Crosley
Gas Range

Model # CGA3D5VK Official Crosley gas freestanding range

Here are the diagrams and repair parts for Official Crosley CGA3D5VK gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Clamp Screw 7101P080-60
#8A

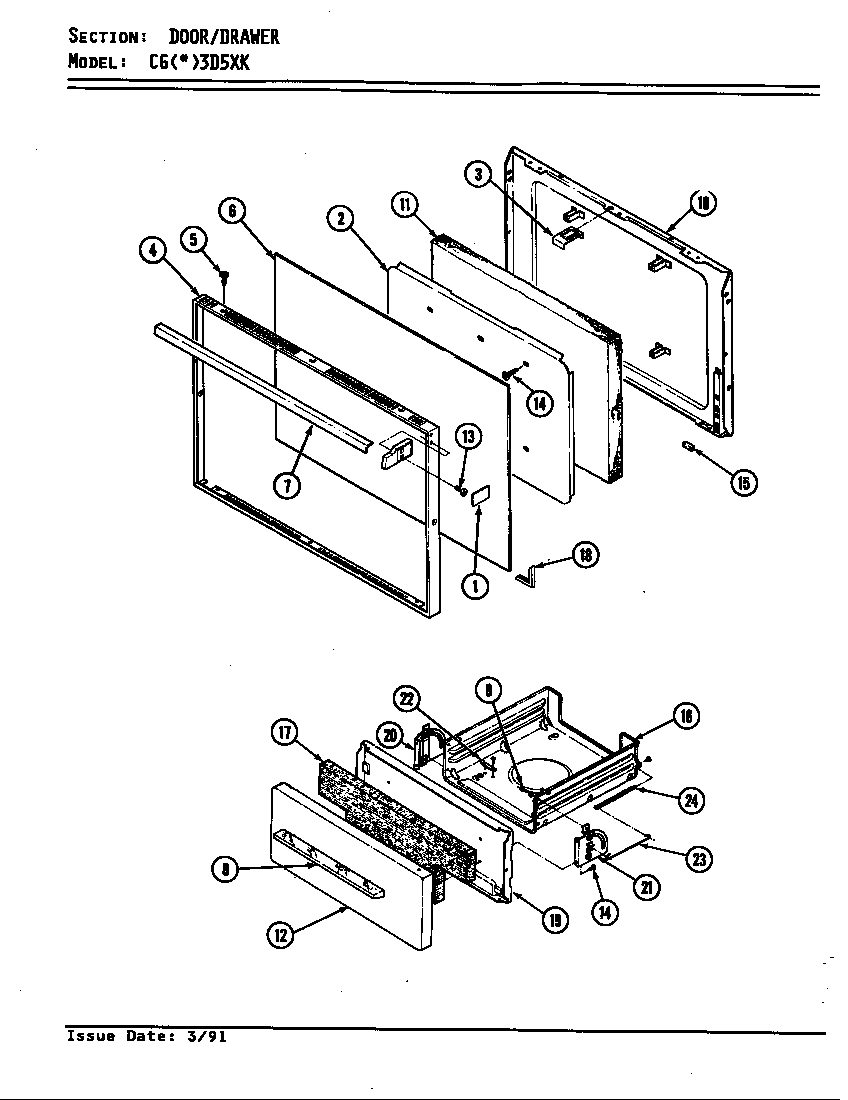

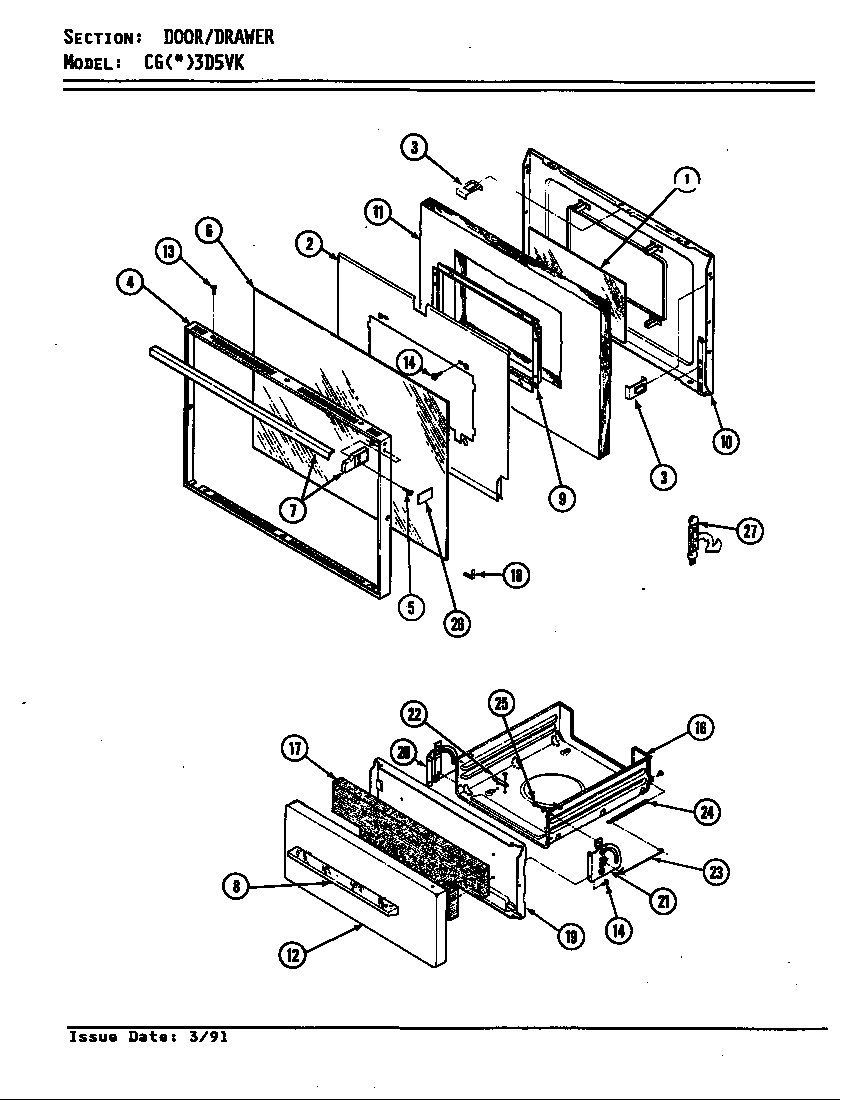

Door/drawer (cg*3d5xk) (cga3d5xk) (cgw3d5xk) diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bracket Screw 7101P040-60
#7A

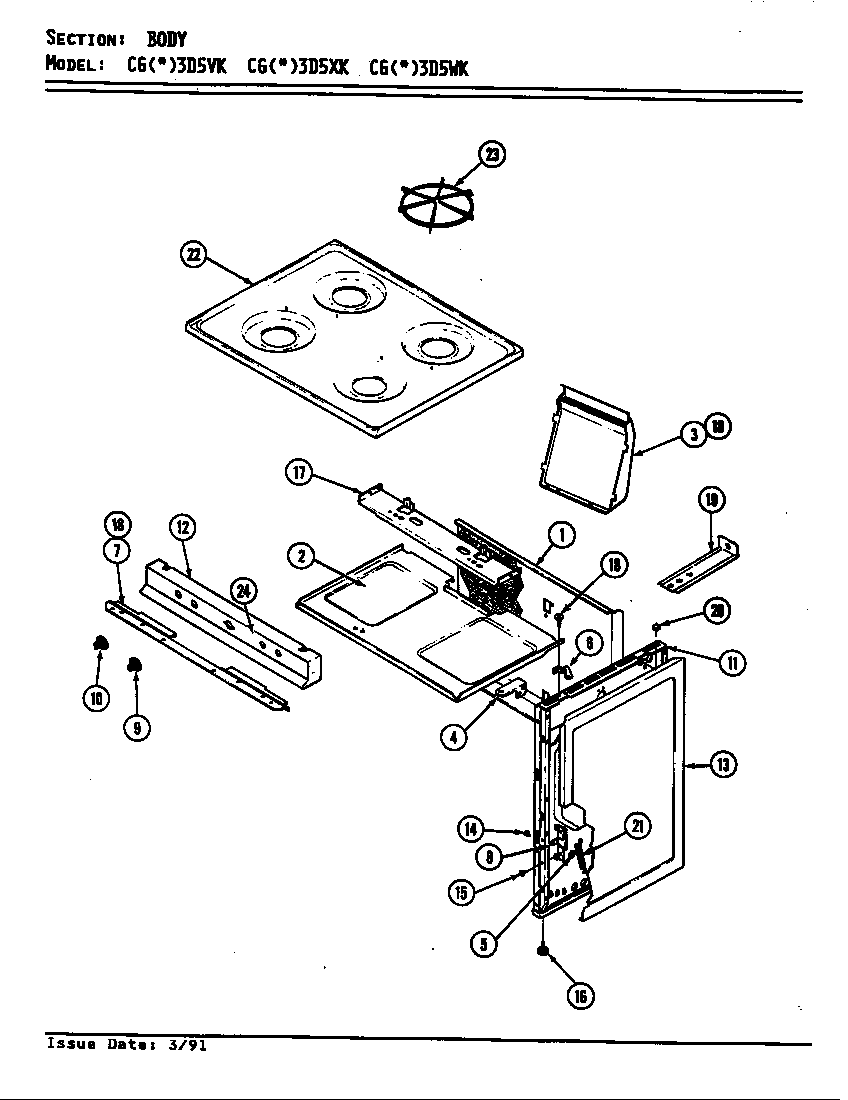

Body diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Oven Spring 7803P058-60
#21

Body diagram

Oven spring

Part #7803P058-60

Replaced by #WP7803P058-60

?
Manufacturer substitution
This part replaces 7803P058-60. Substitute parts can look different from the original.
This item is not returnable
$11.16 |
15% OFF Phone Price : $13.16
In Stock
Screw 7101P077-60
#12A

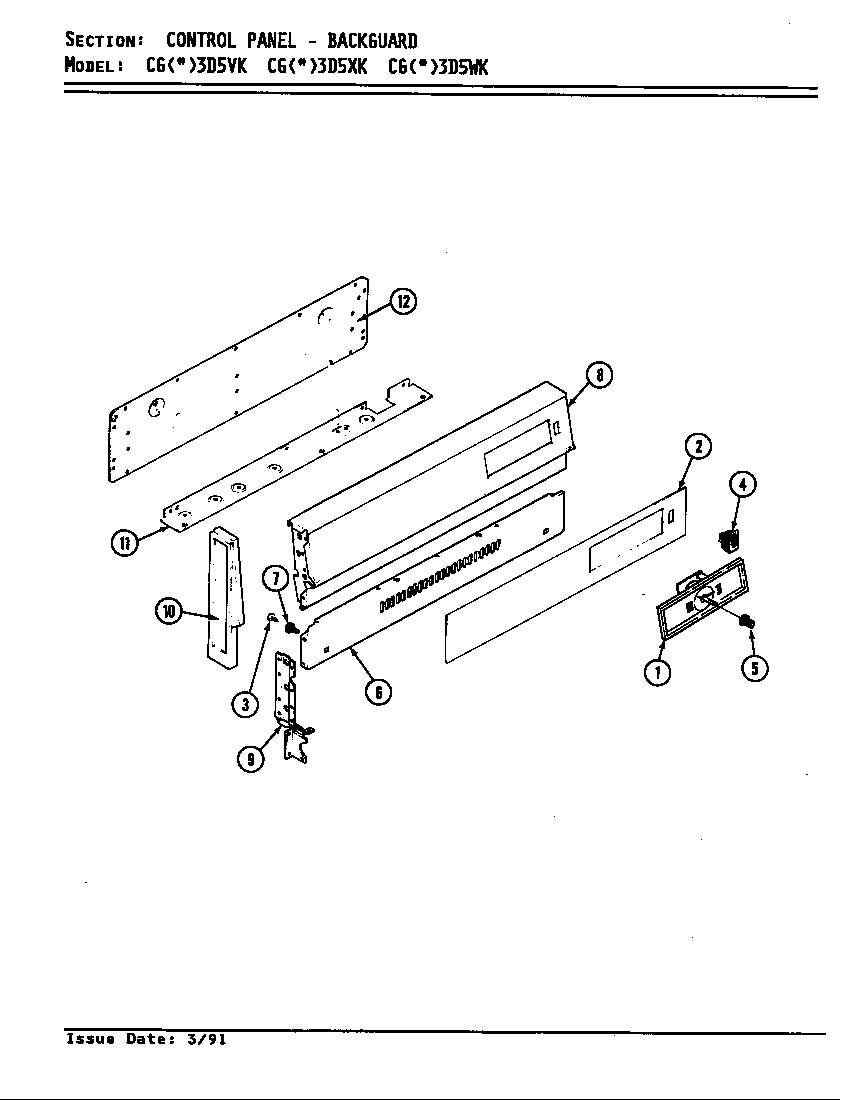

Control panel diagram

Screw

Part #7101P077-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P077-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Screw 7101P126-60
Range screw

Part #7101P126-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P126-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 7101P061-60
Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Seal 7208P011-60
Seal

Part #7208P011-60

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 7208P011-60. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Thermostat Clip 7112P004-60
#10

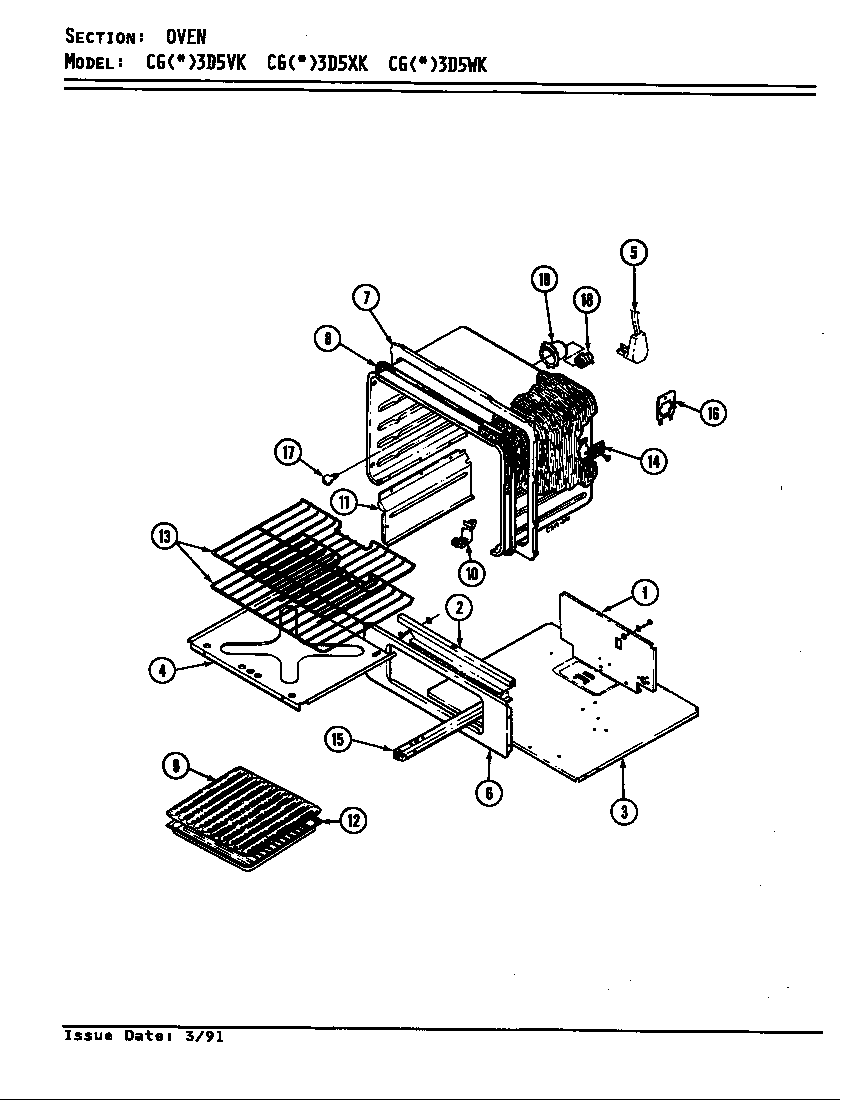

Oven diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Burner Switch 7403P190-60
#5

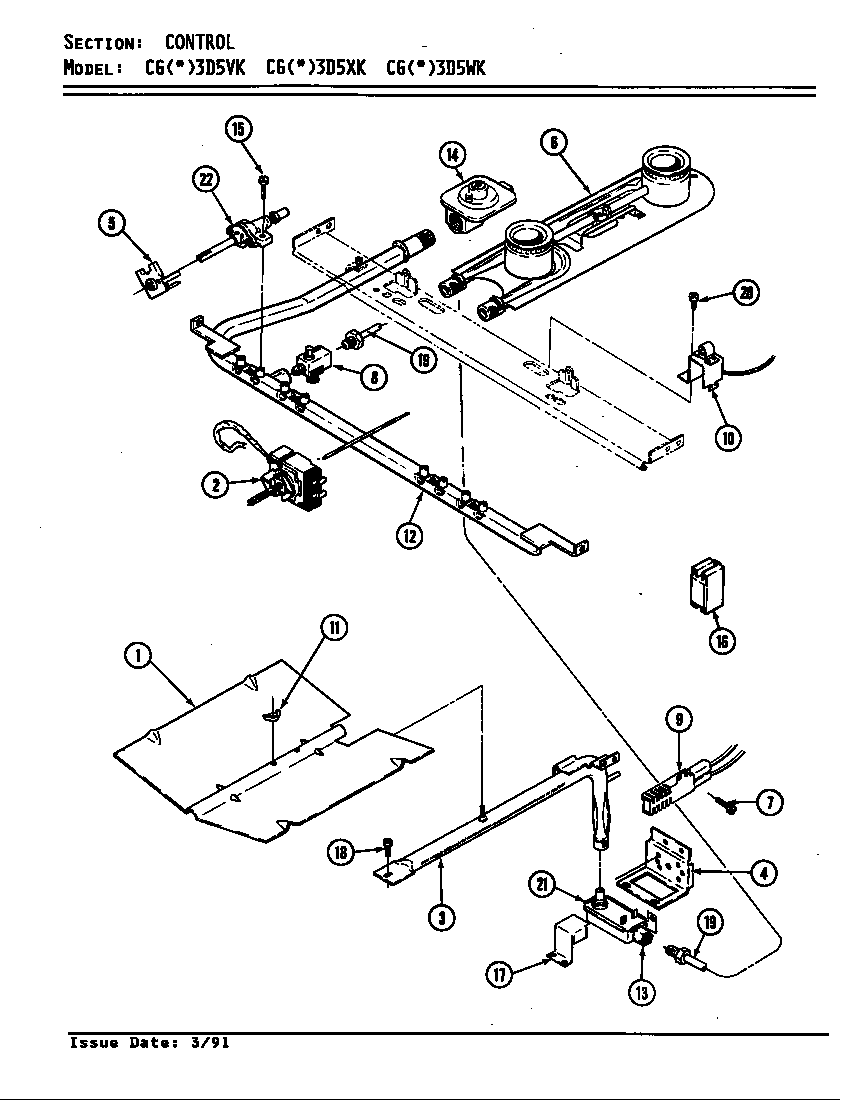

Controls diagram

Burner switch

Part #7403P190-60

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 7403P190-60. Substitute parts can look different from the original.
$54.58 |
10% OFF Phone Price : $60.58
In Stock
Screw 7101P058-60
Screw

Part #7101P058-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P058-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
