KitchenAid
Blender

Model # 5KSB560APM1 Official KitchenAid 5-speed blender with 56-oz plastic jar

Here are the diagrams and repair parts for Official KitchenAid 5KSB560APM1 5-speed blender with 56-oz plastic jar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Power Cord 9708933
#11A

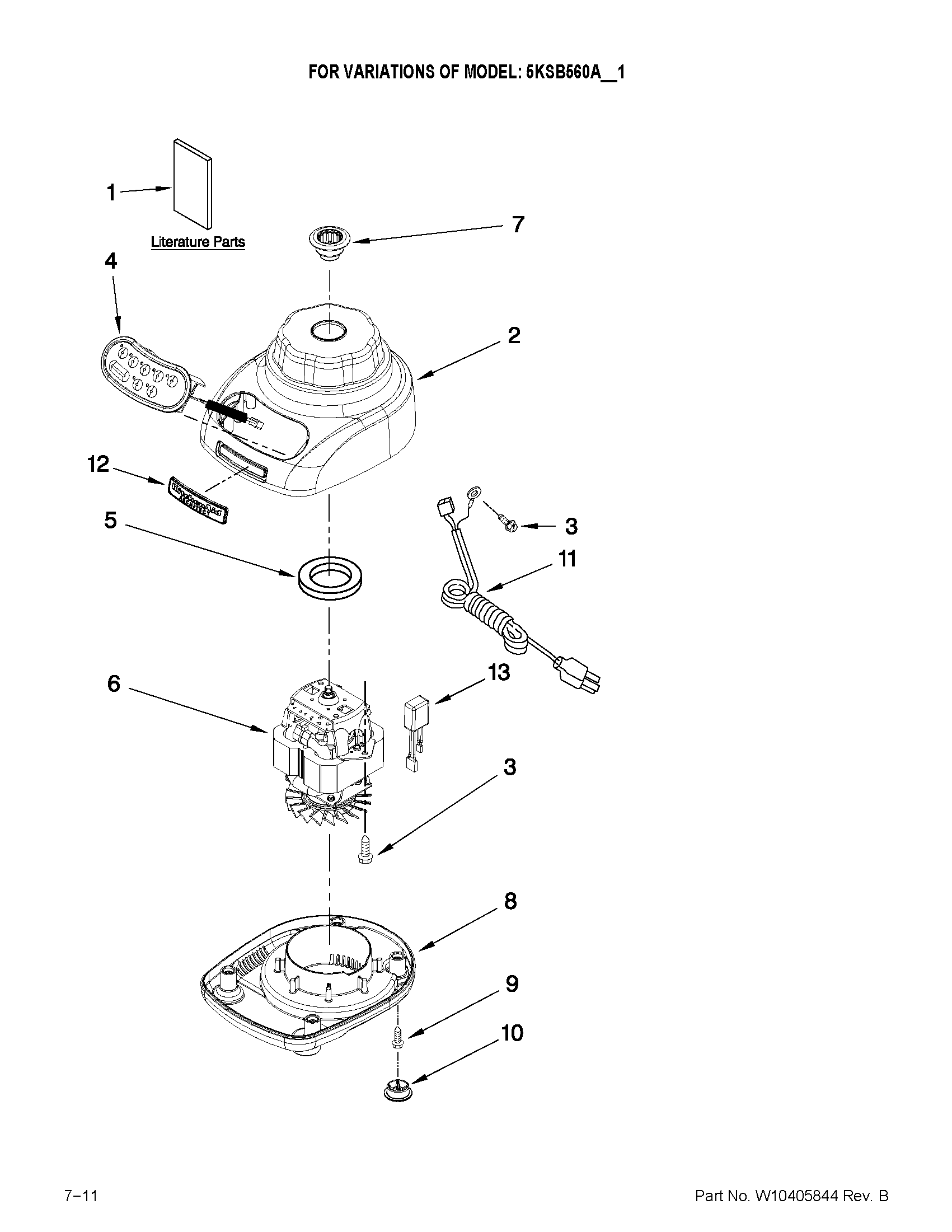

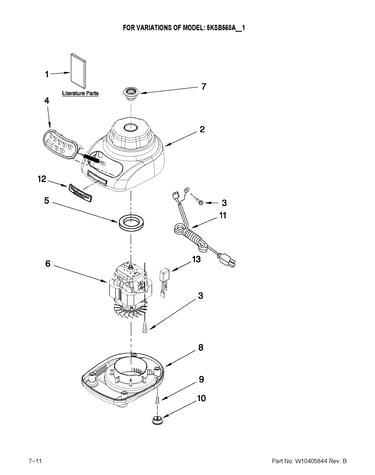

Unit parts diagram

Power cord

Part #9708933

In Stock
Lid Assembly W10378270
#1F

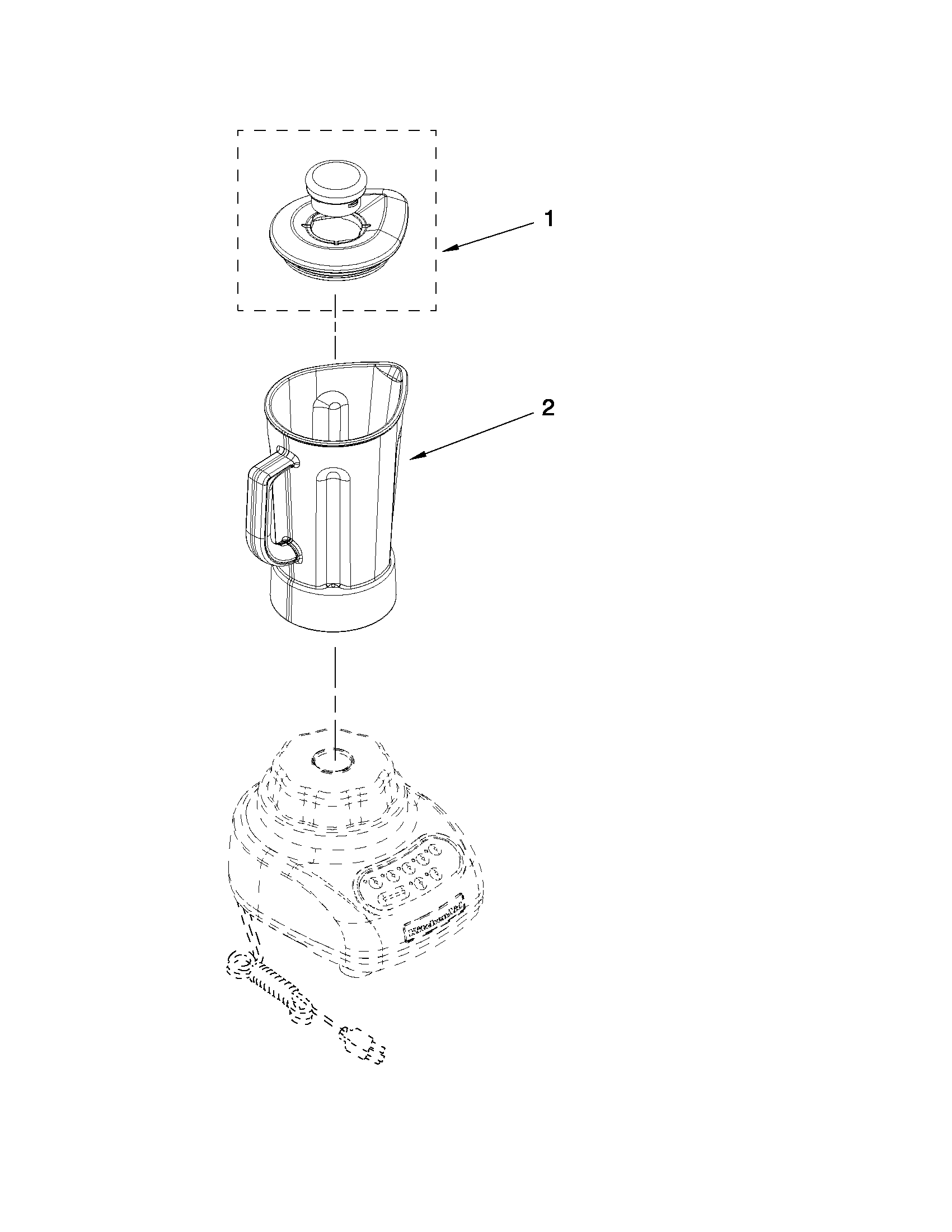

Attachment parts diagram

Lid assembly

Part #W10378270

In Stock
Nameplate W10283470
#12

Unit parts diagram

Nameplate

Part #W10283470

In Stock
Power Cord 9708920
#11

Unit parts diagram

Power cord

Part #9708920

In Stock
Lid Assembly W10236601
#1E

Attachment parts diagram

Lid assembly

Part #W10236601

In Stock
Lid Assembly W10236600
#1A

Attachment parts diagram

Lid assembly

Part #W10236600

In Stock
Lid Assembly W10236598
#1D

Attachment parts diagram

Lid assembly

Part #W10236598

In Stock
Base 9708890
#8

Unit parts diagram

Base

Part #9708890

Replaced by #WP9708890

?
Manufacturer substitution
This part replaces 9708890. Substitute parts can look different from the original.
In Stock
Blender Screw W10001200
#9

Unit parts diagram

Blender screw

Part #W10001200

Replaced by #W11164114

?
Manufacturer substitution
This part replaces W10001200. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw W10068250
#3

Unit parts diagram

Screw

Part #W10068250

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces W10068250. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
