Model # MDB4629AWB1 Official Maytag undercounter dishwasher

Here are the diagrams and repair parts for Official Maytag MDB4629AWB1 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

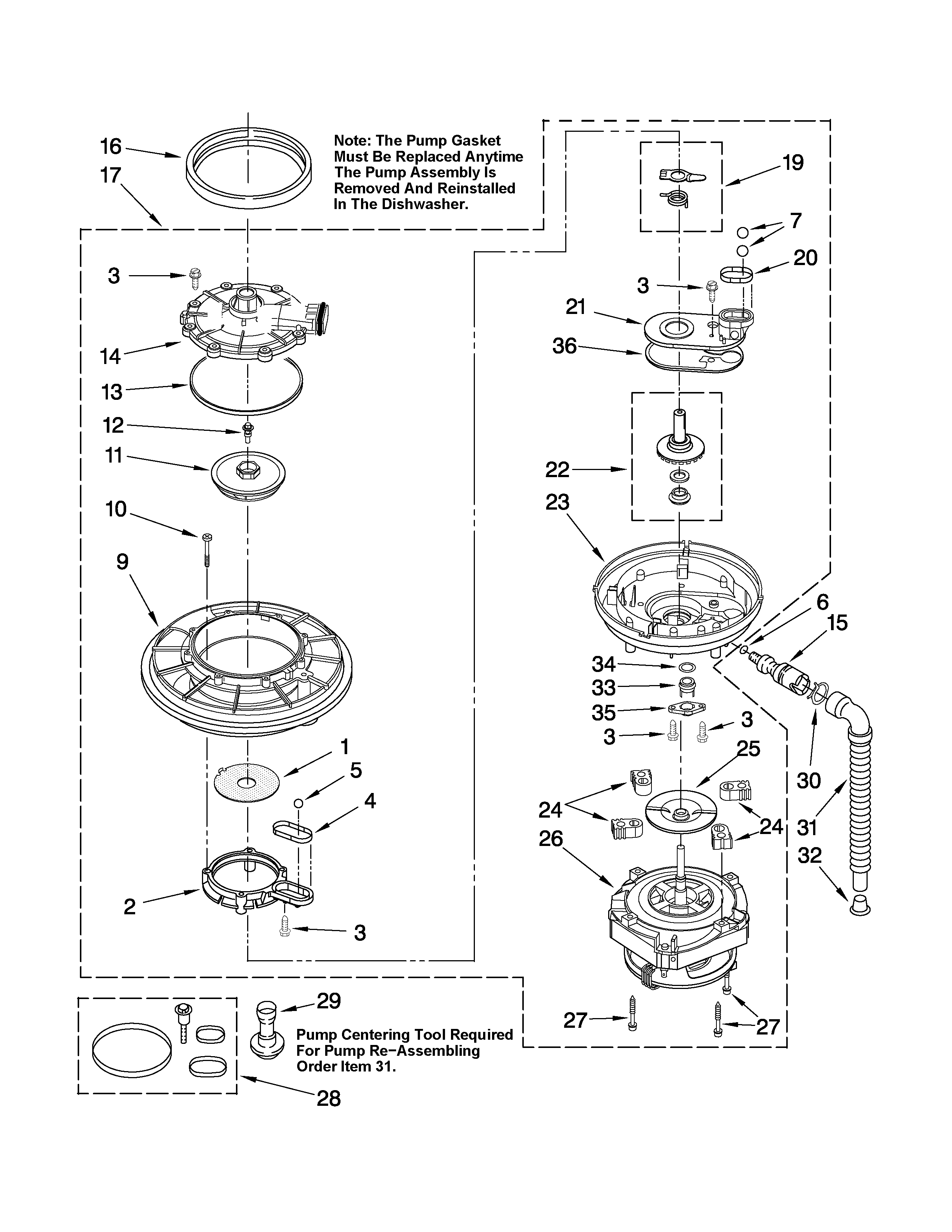

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Dishwasher Thermostat 661566
#18

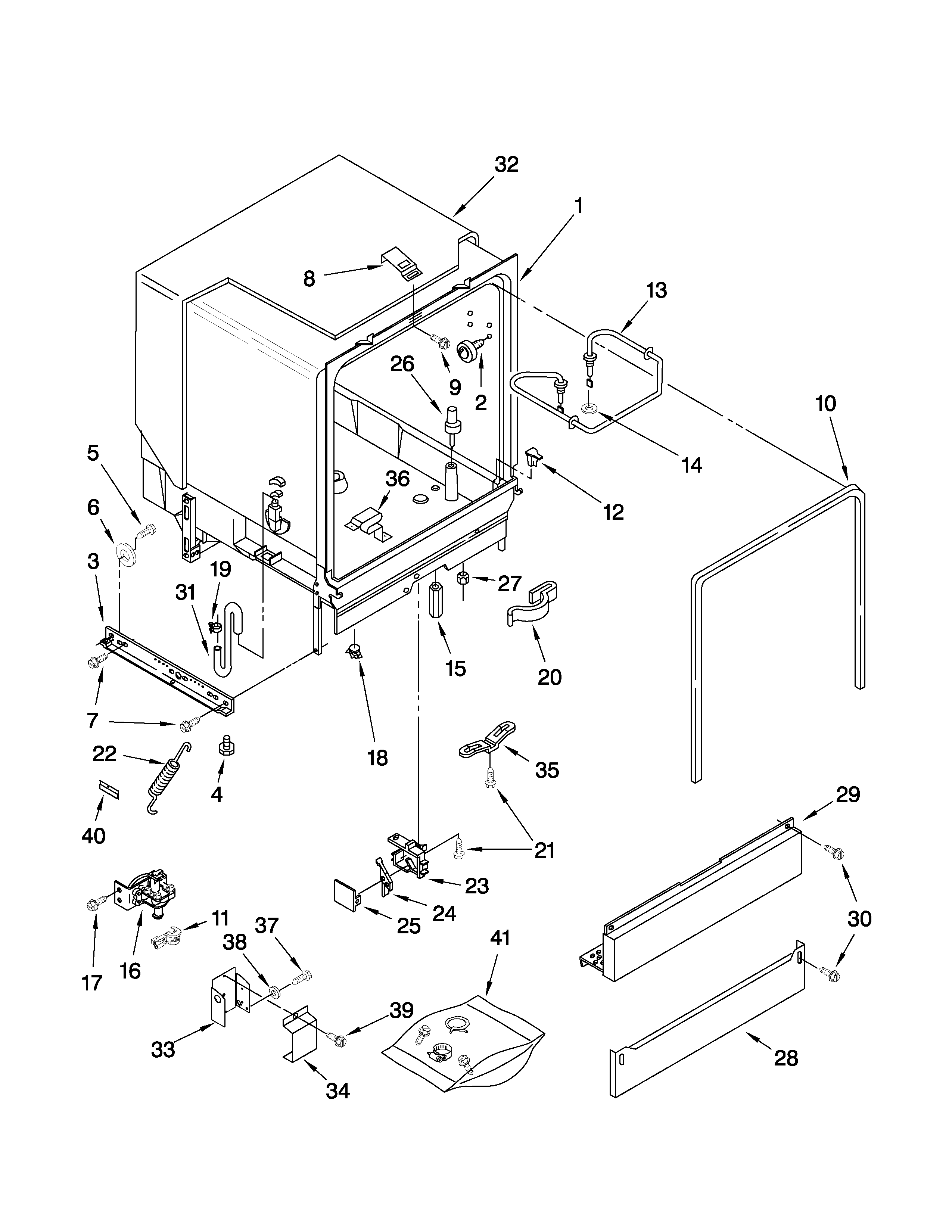

Tub assembly parts diagram

Dishwasher thermostat

Part #661566

Replaced by #WP661566

?
Manufacturer substitution
This part replaces 661566. Substitute parts can look different from the original.
BEST SELLER
$27.41 |
18% OFF Phone Price : $33.41
In Stock
Clamp 301958
#19

Tub assembly parts diagram

Clamp

Part #301958

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 301958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Terminal Nut 8268548
#15

Tub assembly parts diagram

Dishwasher terminal nut

Part #8268548

Replaced by #WPW10477552

?
Manufacturer substitution
This part replaces 8268548. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dishrack 8539208
#7

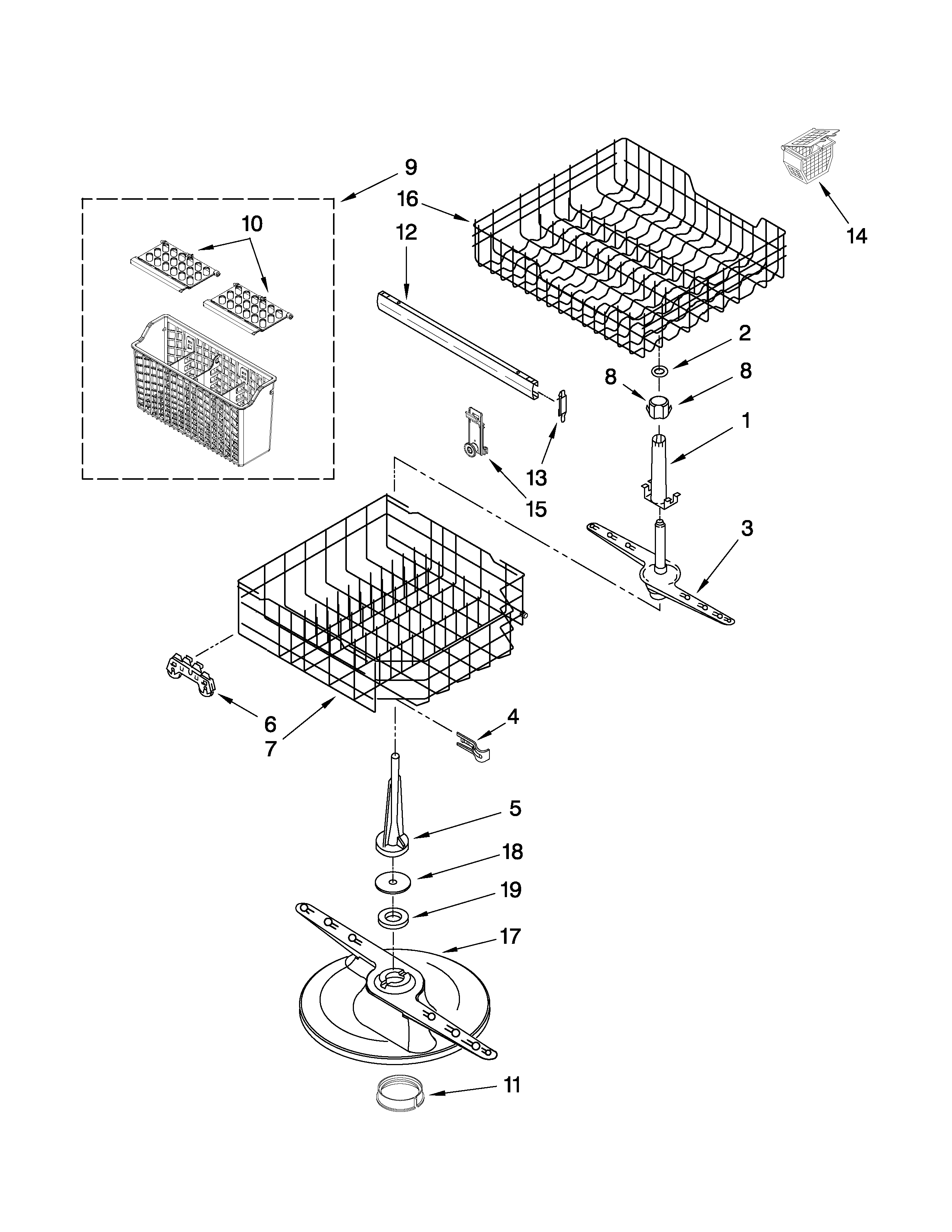

Upper dishrack and water feed parts diagram

Dishrack

Part #8539208

Replaced by #W10833650

?
Manufacturer substitution
This part replaces 8539208. Substitute parts can look different from the original.
BEST SELLER
$213.27 |
5% OFF Phone Price : $225.27
Back Order
Dishwasher Heating Element Rubber Washer 717273
#14

Tub assembly parts diagram

Dishwasher heating element rubber washer

Part #717273

Replaced by #WP717273

?
Manufacturer substitution
This part replaces 717273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Dishwasher Water Inlet Valve W10219643
#16

Tub assembly parts diagram

Dishwasher water inlet valve

Part #W10219643

Replaced by #W10844024

?
Manufacturer substitution
This part replaces W10219643. Substitute parts can look different from the original.
BEST SELLER
$57.47 |
9% OFF Phone Price : $63.47
In Stock
Dishwasher Dishrack Slide Rail 3385089
#12

Upper dishrack and water feed parts diagram

Dishwasher dishrack slide rail

Part #3385089

Replaced by #WP3385089

?
Manufacturer substitution
This part replaces 3385089. Substitute parts can look different from the original.
BEST SELLER
$39.73 |
13% OFF Phone Price : $45.73
In Stock
Dishwasher Detergent Dispenser Cover Spring 8066018
#10

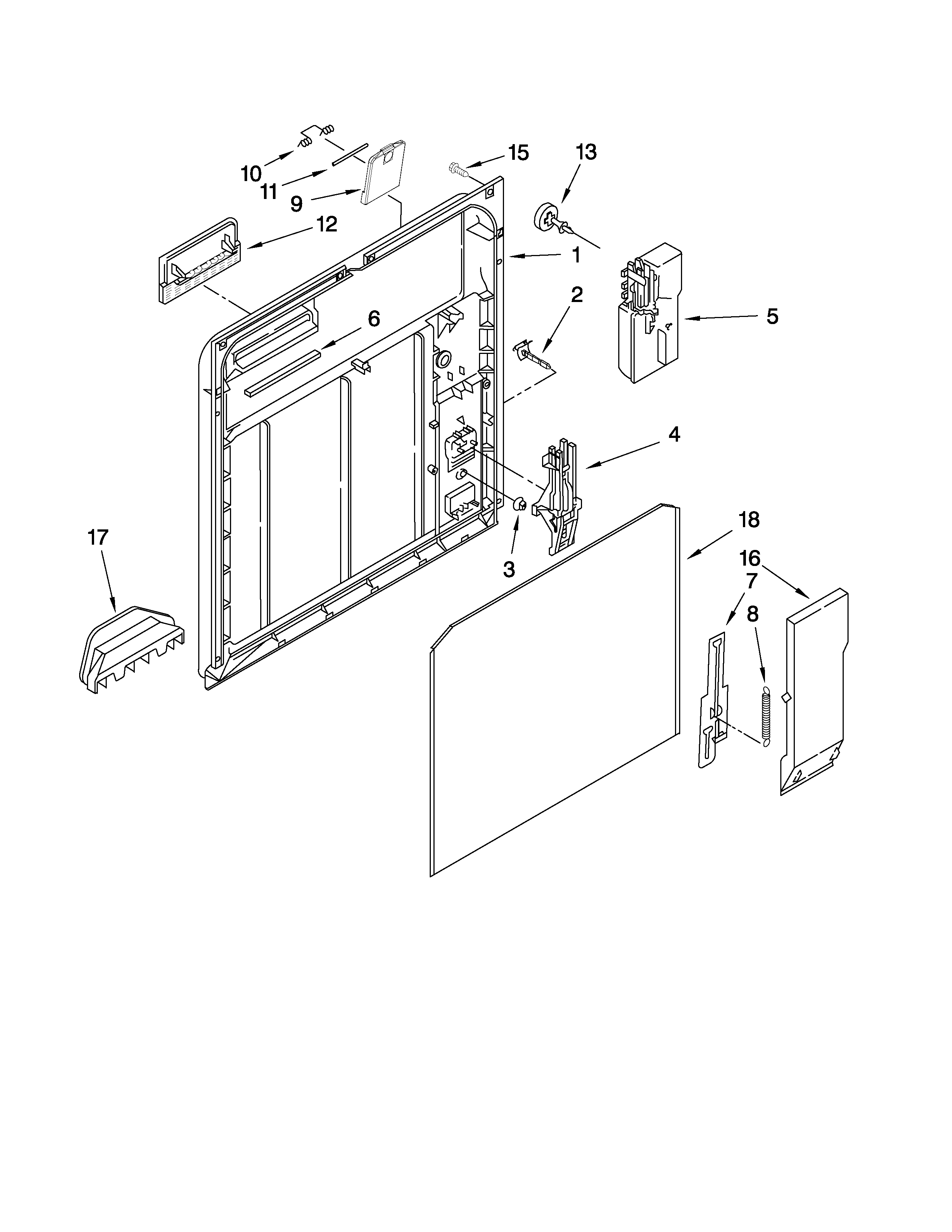

Inner door parts diagram

Dishwasher detergent dispenser cover spring

Part #8066018

Replaced by #WP8066018

?
Manufacturer substitution
This part replaces 8066018. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Dishwasher Door Latch 3380854
#6

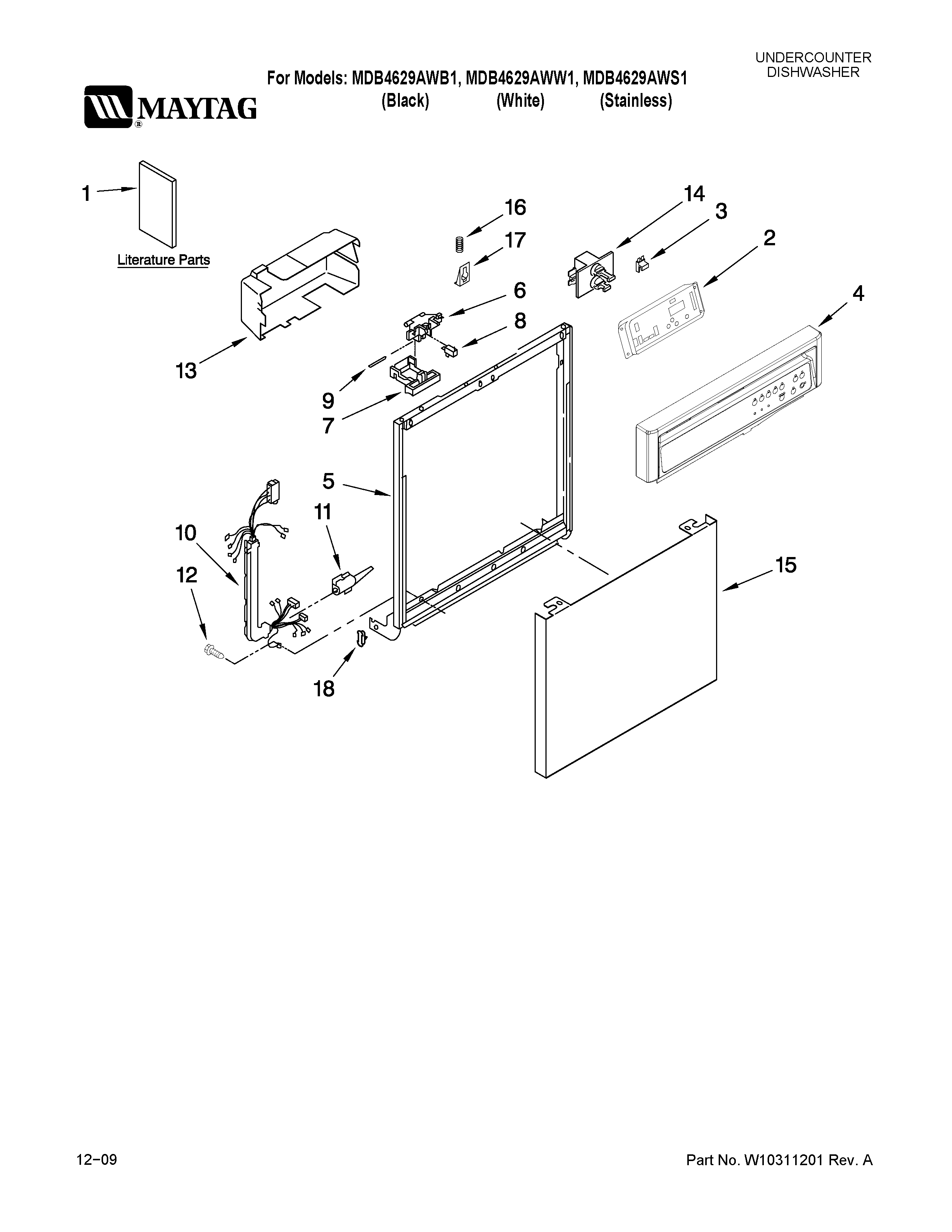

Frame and console parts diagram

Dishwasher door latch

Part #3380854

Replaced by #WP3380854

?
Manufacturer substitution
This part replaces 3380854. Substitute parts can look different from the original.
BEST SELLER
$42.12 |
12% OFF Phone Price : $48.12
In Stock
Dishwasher Dishrack Wheel Assembly, Upper W10204131
#15

Upper dishrack and water feed parts diagram

Dishwasher dishrack wheel assembly, upper

Part #W10204131

Replaced by #WPW10204131

?
Manufacturer substitution
This part replaces W10204131. Substitute parts can look different from the original.
BEST SELLER
$10.20 |
16% OFF Phone Price : $12.20
In Stock
