Model # 316795001 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 316795001 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 104 parts |

#15

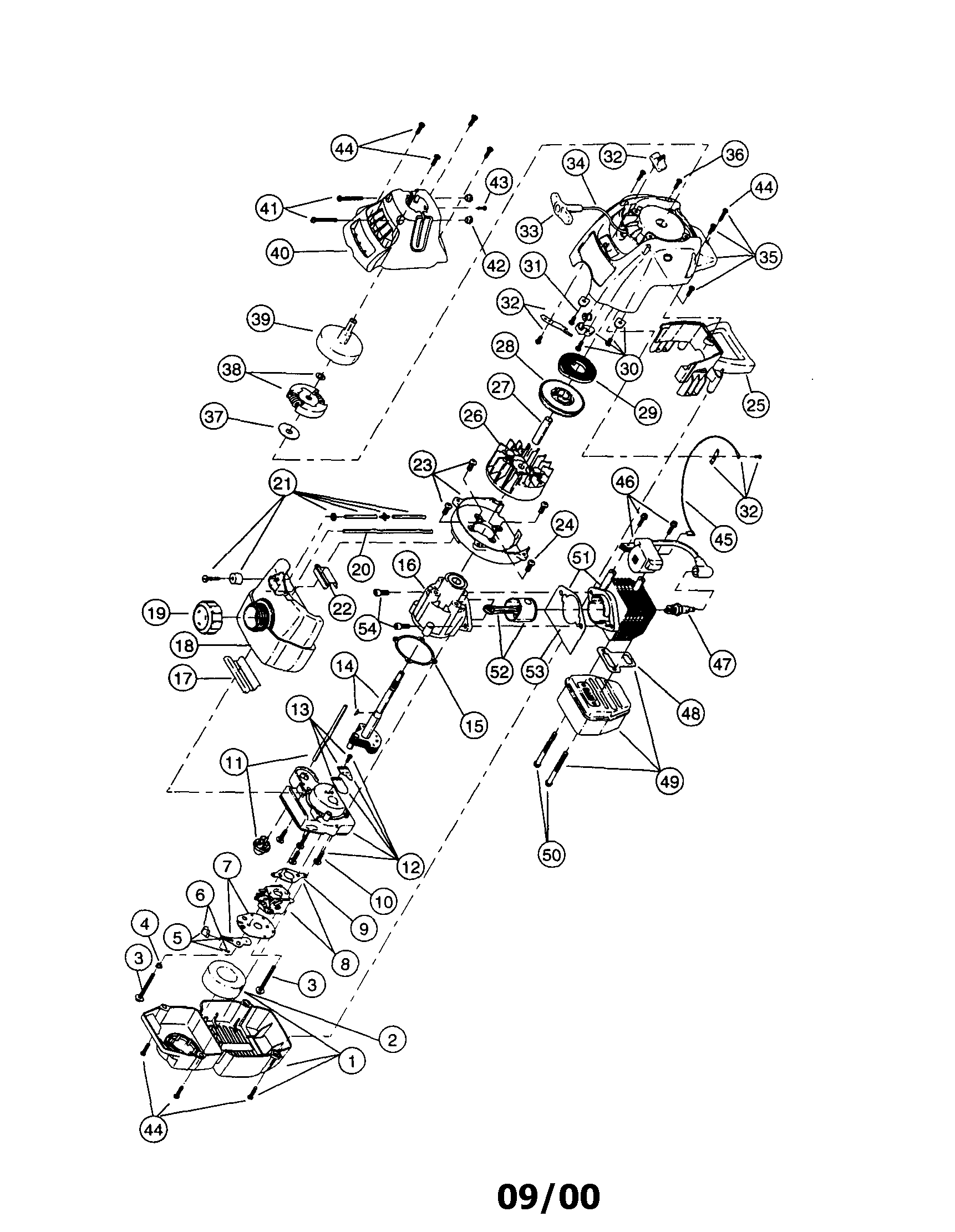

Engine diagram

Gasket

Part #612115

The manufacturer no longer makes this part, and there's no substitute part

#34

Engine diagram

Rope

Part #613103

The manufacturer no longer makes this part, and there's no substitute part

#16

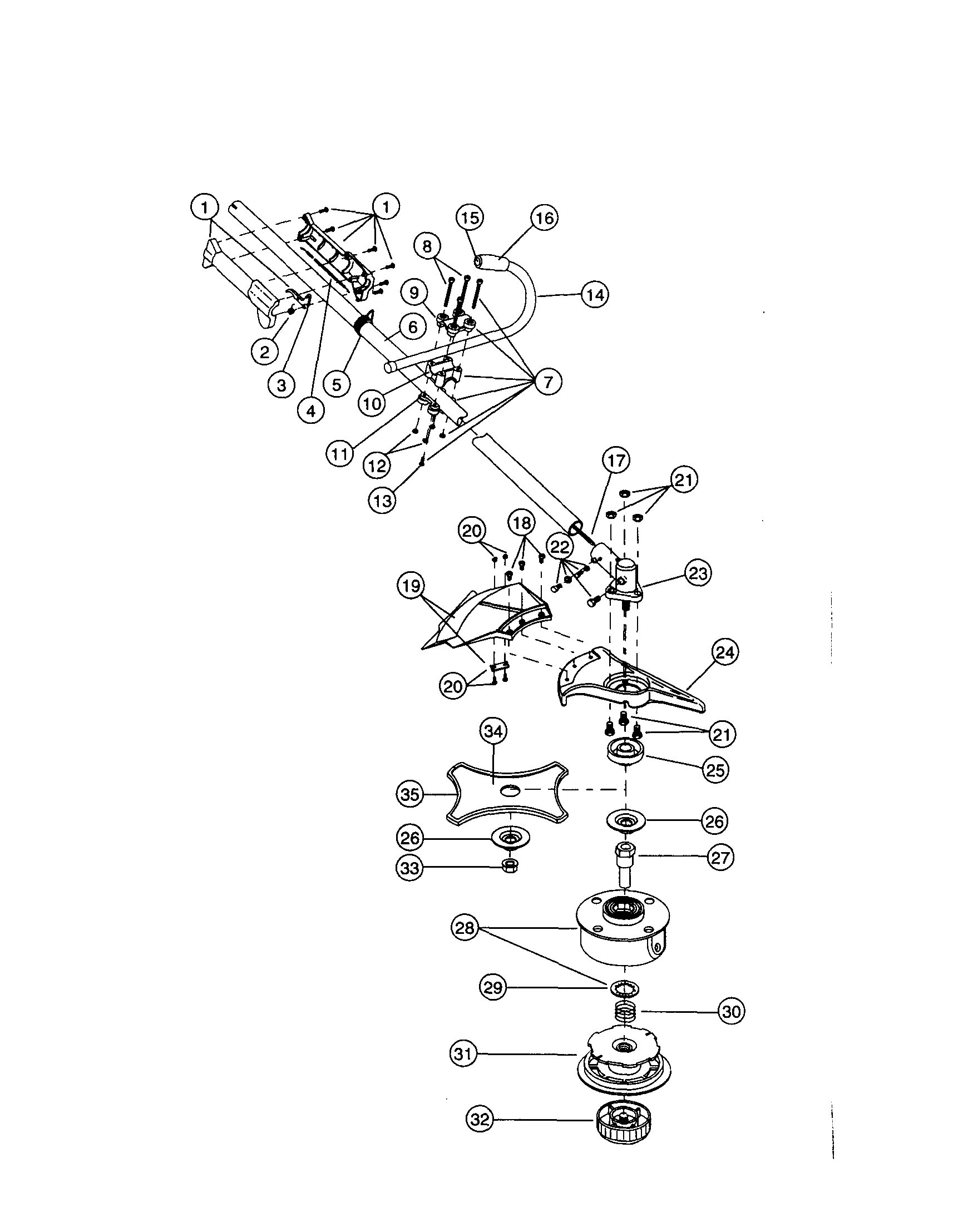

Lower boom diagram

Grip

Part #612831

The manufacturer no longer makes this part, and there's no substitute part

#12

Engine diagram

Mount carburetor

Part #180354

The manufacturer no longer makes this part, and there's no substitute part

#21

Engine diagram

Fuel line

Part #682039

The manufacturer no longer makes this part, and there's no substitute part

#33

Lower boom diagram

Lock nut

Part #181699

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Strap assembly

Part #181694

The manufacturer no longer makes this part, and there's no substitute part

#18

Lower boom diagram

Screw

Part #683304

The manufacturer no longer makes this part, and there's no substitute part

#21

Lower boom diagram

Hardware

Part #147539

The manufacturer no longer makes this part, and there's no substitute part

#17

Engine diagram

Mount pad

Part #612134

The manufacturer no longer makes this part, and there's no substitute part
