Amana
Electric Cooktop

Model # CAK2H30W1-P1131753NW Official Amana electric range

Here are the diagrams and repair parts for Official Amana CAK2H30W1-P1131753NW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Element 0314899
#29

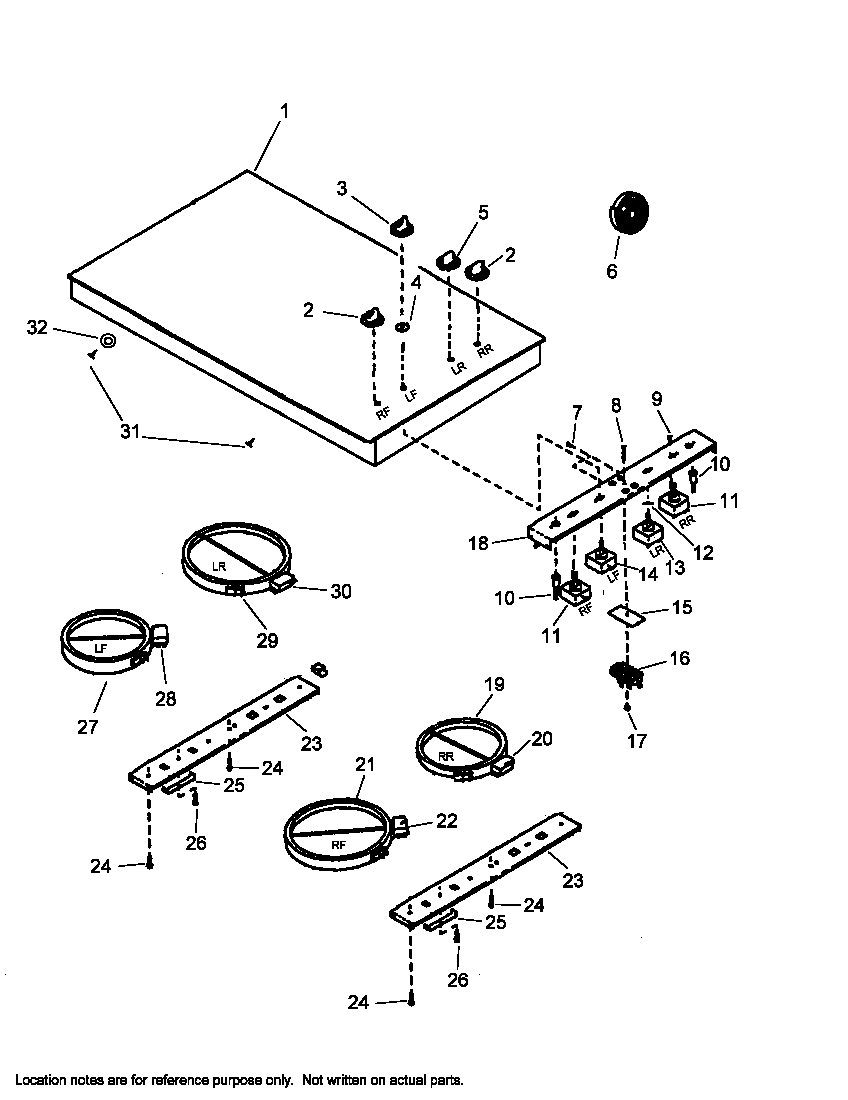

Cooktop assembly diagram

Element

Part #0314899

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 0314899. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Element 0316889
#30

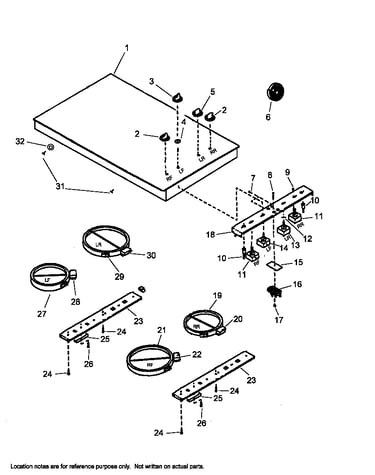

Cooktop assembly diagram

Element

Part #0316889

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 0316889. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Screw M0218231
#13

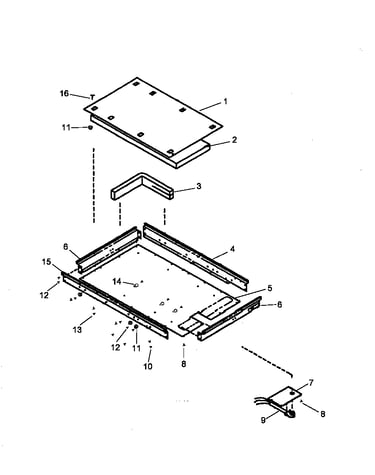

Heater box assembly diagram

Screw

Part #M0218231

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0218231. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Hex Nut 0097885
#8

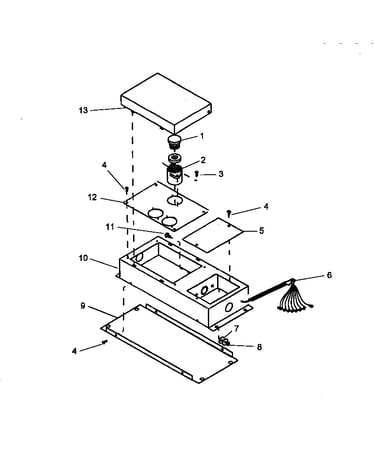

Fuse box assembly (cak2h30w1/p1131568nw) (cak2t30w1/p1131567nw) diagram

Hex nut

Part #0097885

Replaced by #M0282009

?
Manufacturer substitution
This part replaces 0097885. Substitute parts can look different from the original.
$12.49
In Stock
Screw 0041809
Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0216703
#8

Heater box assembly diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Cleaner 0314274

#0B

All parts diagram

Cleaner

Part #0314274

The manufacturer no longer makes this part, and there's no substitute part

Weld Assy 0040676
#10

Fuse box assembly (cak2h30w1/p1131568nw) (cak2t30w1/p1131567nw) diagram

Weld assy

Part #0040676

The manufacturer no longer makes this part, and there's no substitute part

Limiter 10061003
#22A

Cooktop assembly diagram

Limiter

Part #10061003

The manufacturer no longer makes this part, and there's no substitute part

Plate 0307451
#7

Heater box assembly diagram

Plate

Part #0307451

The manufacturer no longer makes this part, and there's no substitute part
