Model # DSXH43GV2WW Official GE gas dryer
Here are the diagrams and repair parts for Official GE DSXH43GV2WW gas dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
DSXH43GV2WW Gas Dryer
#1220

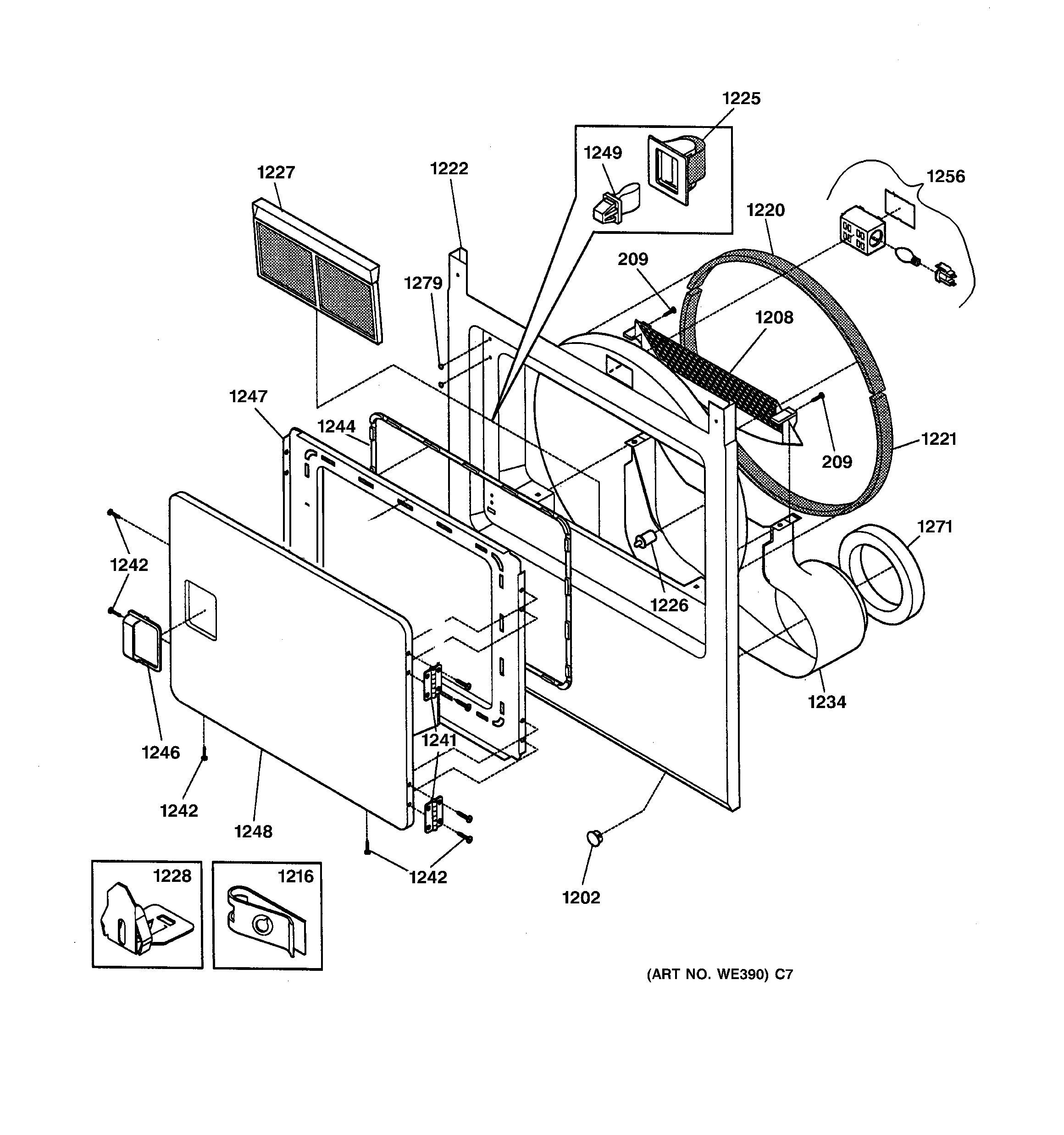

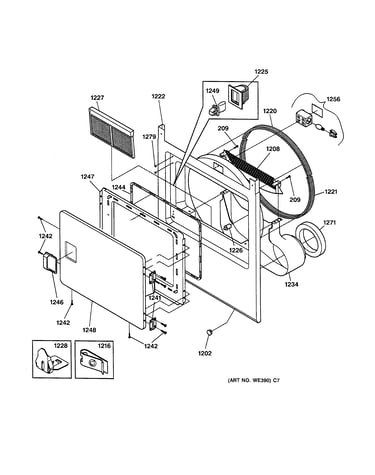

Front panel & lint filter diagram
Drum glide
Part #WE03X0073
Replaced by #WE03X10001
?
Manufacturer substitution
This part replaces WE03X0073. Substitute parts can look different from the original.
$100.99 |
11% OFF Phone Price : $112.99
Back Order
#1213

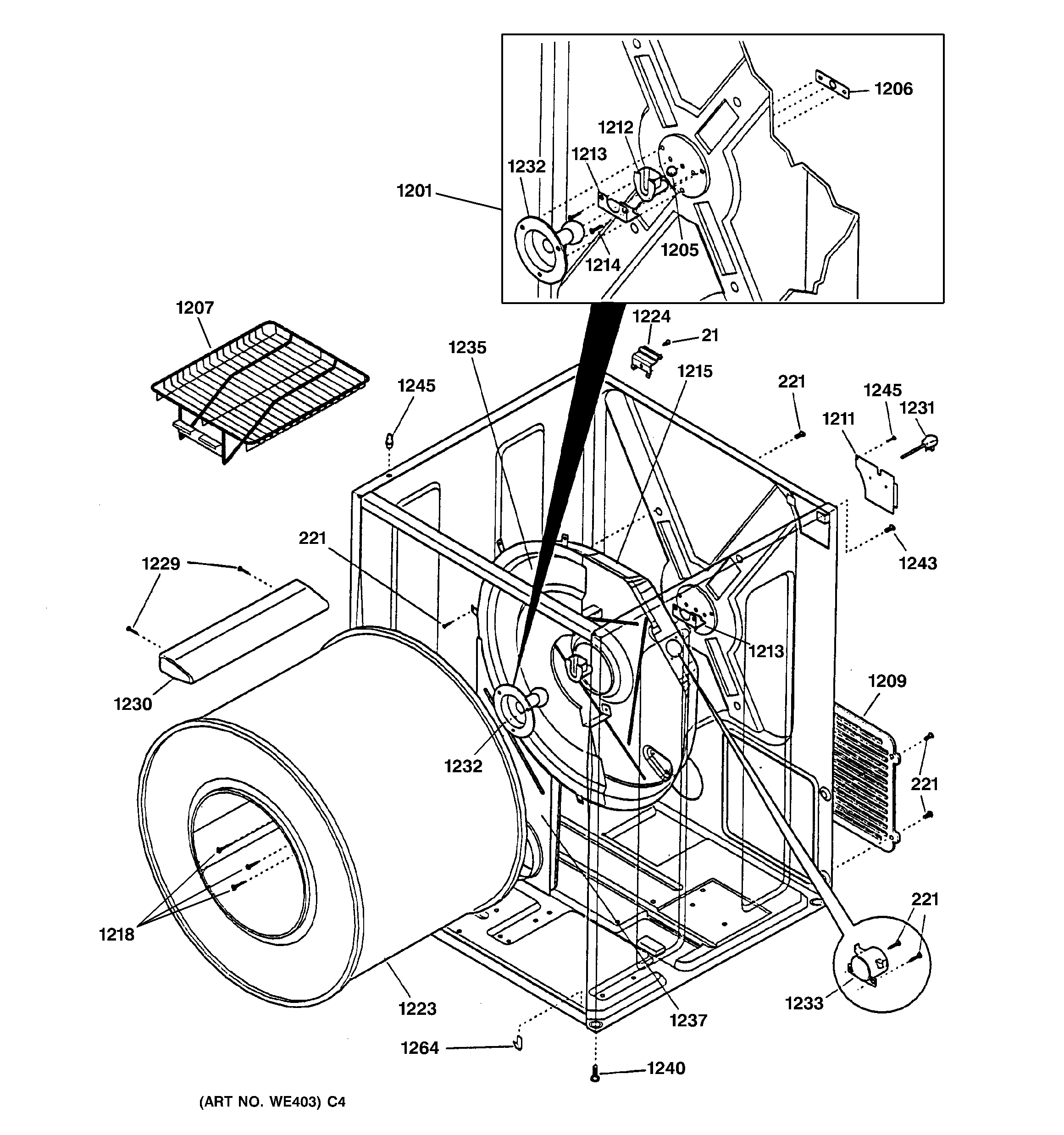

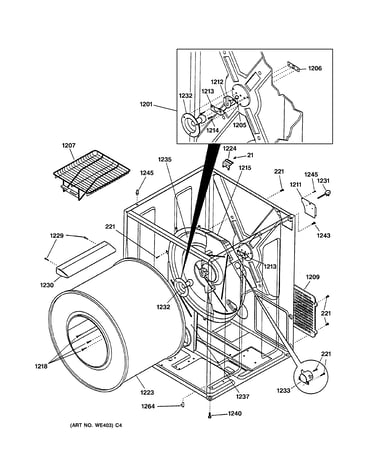

Cabinet & drum diagram
Dryer drum bearing bracket
Part #WE13X10009
Replaced by #WE13X28680
?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$66.91
In Stock
#1232
Cabinet & drum diagram
Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)
Part #WE13X10011
$87.93 |
6% OFF Phone Price : $93.93
In Stock
#1245
Cabinet & drum diagram
Screw
Part #WE02X10011
$23.71
In Stock
#1201
Cabinet & drum diagram
Dryer rear bearing kit
Part #WE25X10001
$90.31 |
6% OFF Phone Price : $96.31
In Stock
#1325

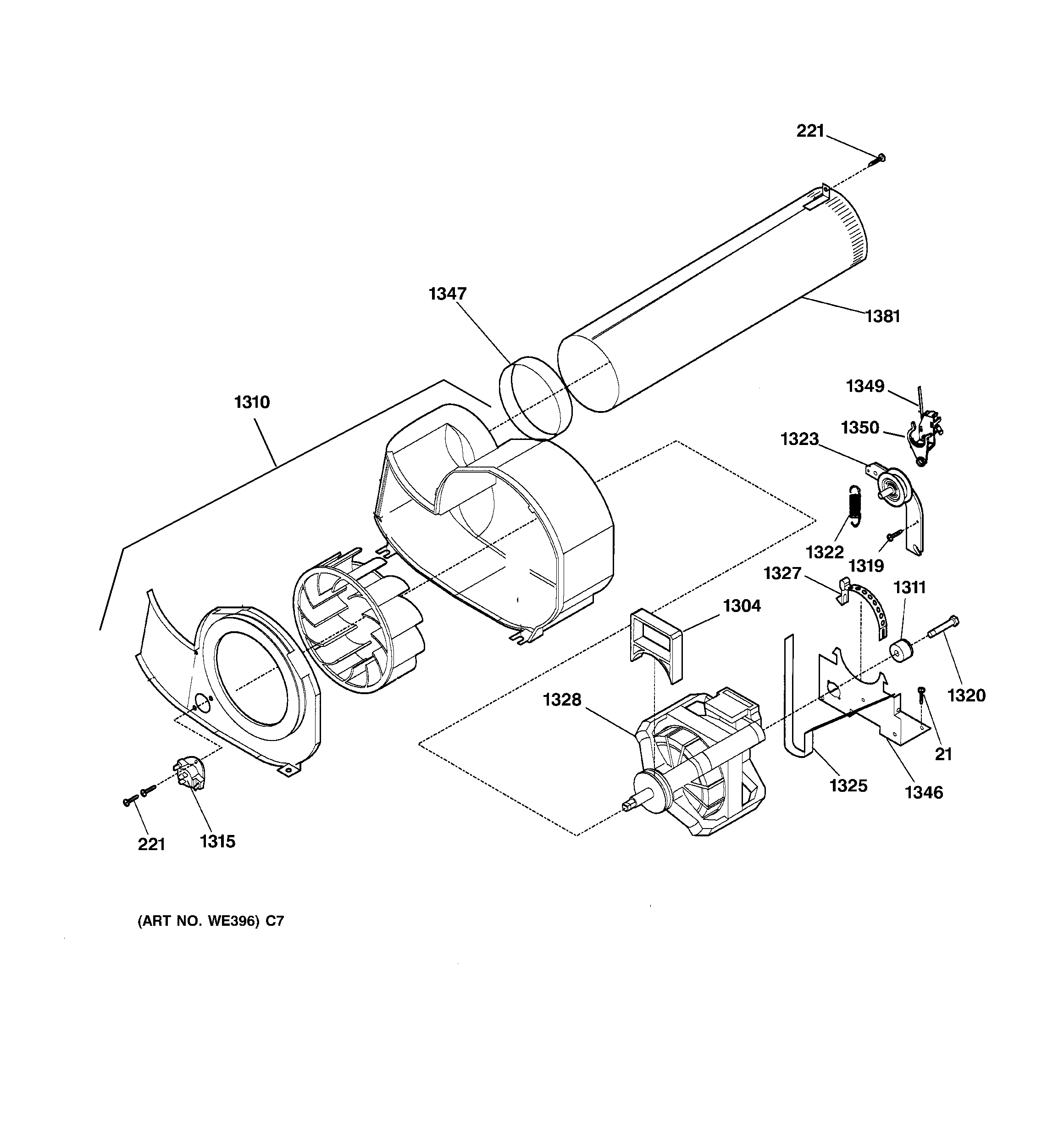

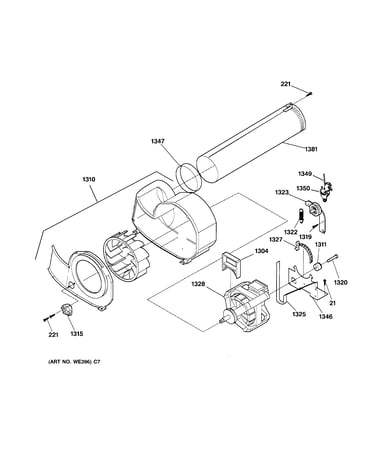

Motor diagram
Dryer belt
Part #WE12X10001
Replaced by #WE12X10009
?
Manufacturer substitution
This part replaces WE12X10001. Substitute parts can look different from the original.
$68.77 |
8% OFF Phone Price : $74.77
In Stock
#1374

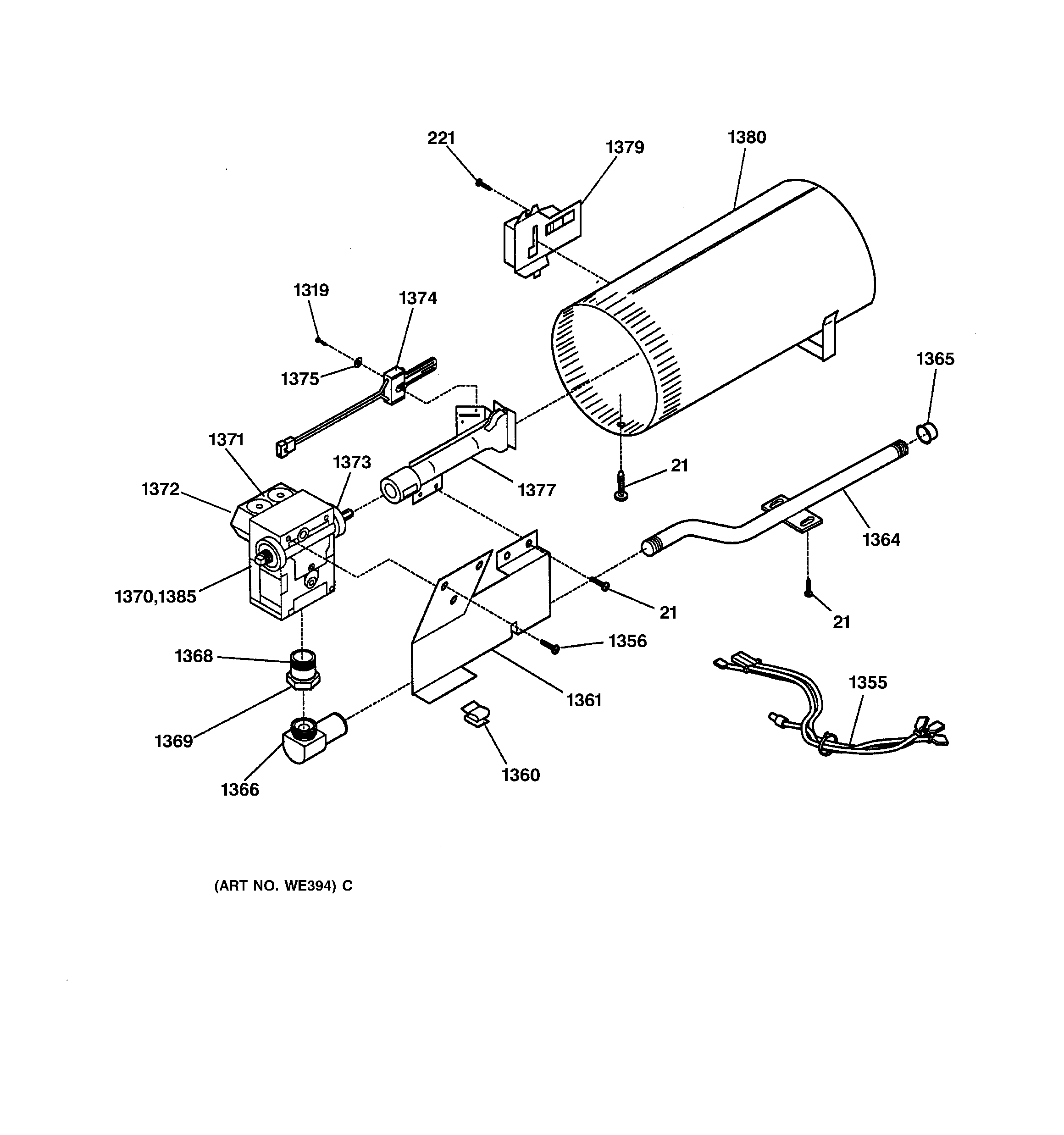

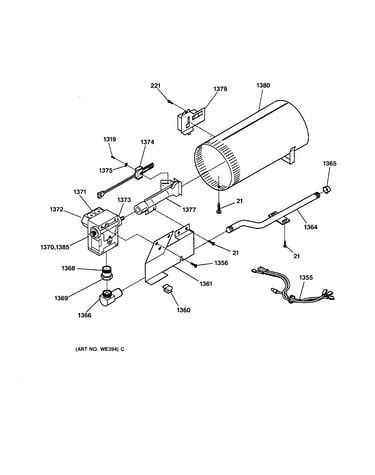

Burner diagram
Igniter
Part #WE04X0750
Replaced by #WE4X750
?
Manufacturer substitution
This part replaces WE04X0750. Substitute parts can look different from the original.
This item is not returnable
$27.31 |
18% OFF Phone Price : $33.31
In Stock
#1

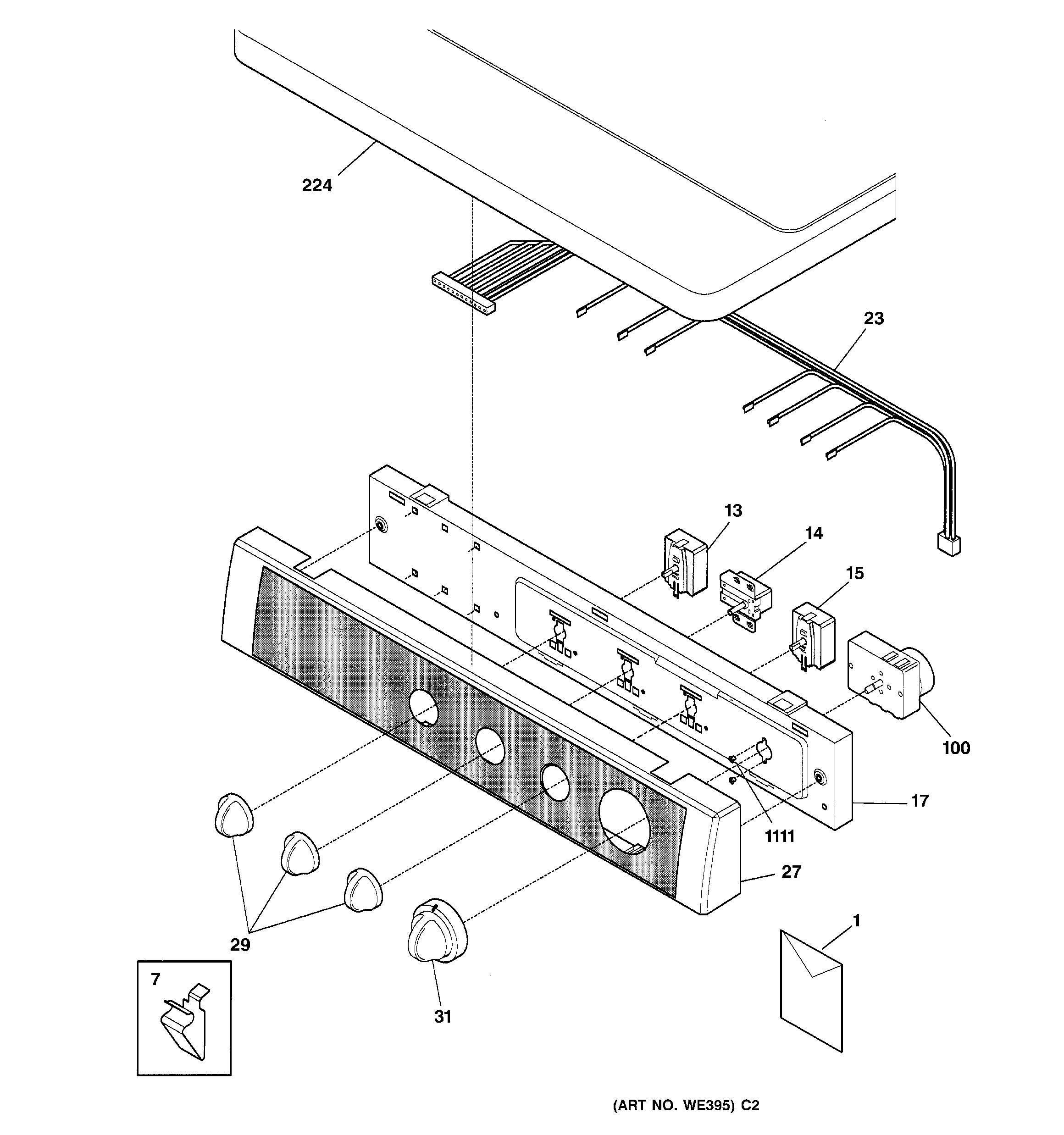

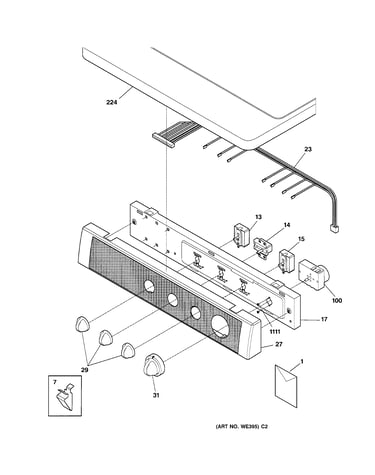

Control panel diagram
Uc spacemake
Part #49-9963-2
Replaced by #049-90117-1
?
Manufacturer substitution
This part replaces 49-9963-2. Substitute parts can look different from the original.
$17.99
In Stock
#1371
Burner diagram
Dryer secondary valve coil (replaces we04x0748, we04x0749, we04x10004, we04x10031, we04x10048, we4x748, we4x749)
Part #WE04X10020
The manufacturer no longer makes this part, and there's no substitute part
#1310
Motor diagram
Dryer blower wheel (replaces we14x10008, we14x10009, we16x10001)
Part #WE14X10025
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your dryers
Choose a symptom to see related dryer repairs.
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …
Main causes: damaged door strike, worn door catch…
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…
Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…
Main causes: bad timer or electronic control board, door switch failure…
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…
