Electric Walk-Behind Mower

Model # 15137214 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 15137214 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Handle GM65BX.00.10.X1.02
#13

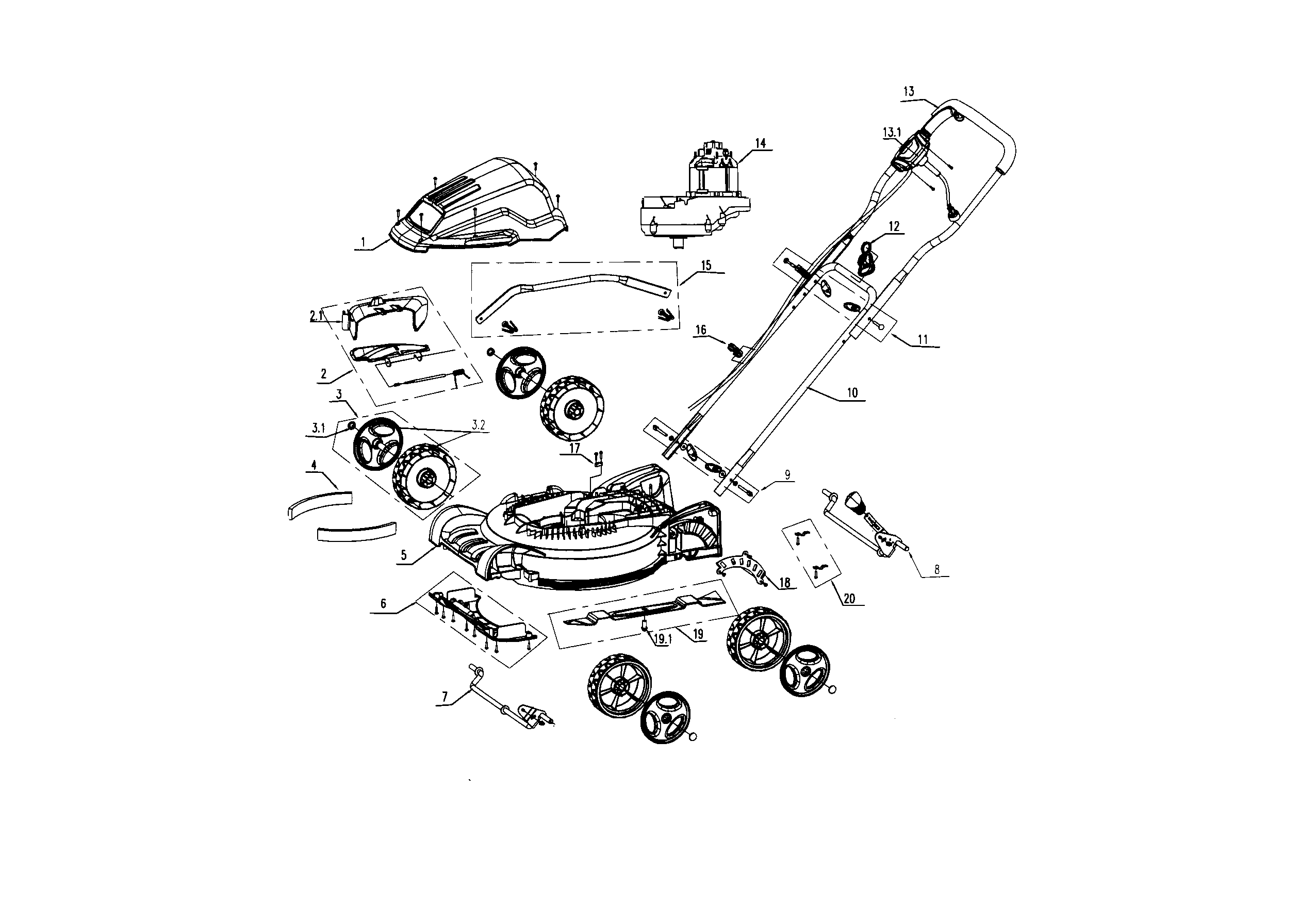

Main assy diagram

Handle

Part #GM65BX.00.10.X1.02

Replaced by #111103114

?
Manufacturer substitution
This part replaces GM65BX.00.10.X1.02. Substitute parts can look different from the original.
$46.80
In Stock
Blade GM65BX.00.07.X1.01
#19

Main assy diagram

Blade

Part #GM65BX.00.07.X1.01

Replaced by #RMB1018X

?
Manufacturer substitution
This part replaces GM65BX.00.07.X1.01. Substitute parts can look different from the original.
$26.40
In Stock
Cord Retainer GC10SS.10.14
#12

Main assy diagram

Cord retainer

Part #GC10SS.10.14

Replaced by #111030123

?
Manufacturer substitution
This part replaces GC10SS.10.14. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Blade Stud BOA4FL.10.20
#19.1

Main assy diagram

Blade stud

Part #BOA4FL.10.20

The manufacturer no longer makes this part, and there's no substitute part

Cable Clamp TOQTGX.13.XJ
#16

Main assy diagram

Cable clamp

Part #TOQTGX.13.XJ

Replaced by #111007115

?
Manufacturer substitution
This part replaces TOQTGX.13.XJ. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Handle GM65BX.00.11
#10

Main assy diagram

Handle

Part #GM65BX.00.11

Replaced by #111103112

?
Manufacturer substitution
This part replaces GM65BX.00.11. Substitute parts can look different from the original.
$22.83
In Stock
Switch TGDQ15.82.00.01
#13.1

Main assy diagram

Switch

Part #TGDQ15.82.00.01

The manufacturer no longer makes this part, and there's no substitute part

Cover GM65BX.00.02.X1.01
#1

Main assy diagram

Cover

Part #GM65BX.00.02.X1.01

The manufacturer no longer makes this part, and there's no substitute part

Wheel TGQTGL.78.00
#3.2

Main assy diagram

Wheel

Part #TGQTGL.78.00

The manufacturer no longer makes this part, and there's no substitute part

Motor TM9460.00.00.X1.01
#14

Main assy diagram

Motor

Part #TM9460.00.00.X1.01

The manufacturer no longer makes this part, and there's no substitute part
