Electric Wall Oven

Model # HBL3560UC/02 Official Bosch electric built-in oven

Here are the diagrams and repair parts for Official Bosch HBL3560UC-02 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

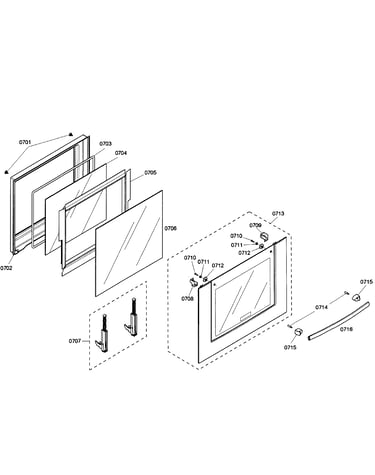

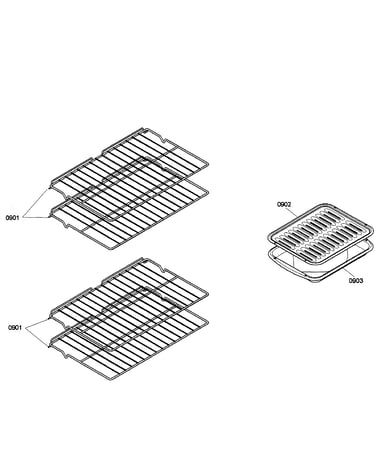

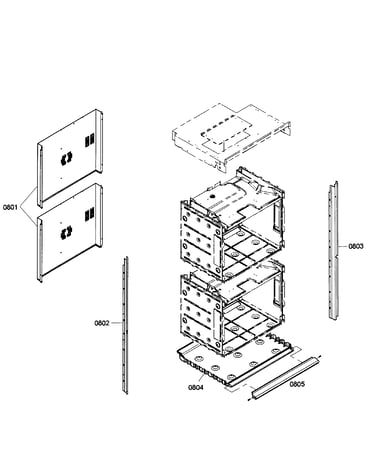

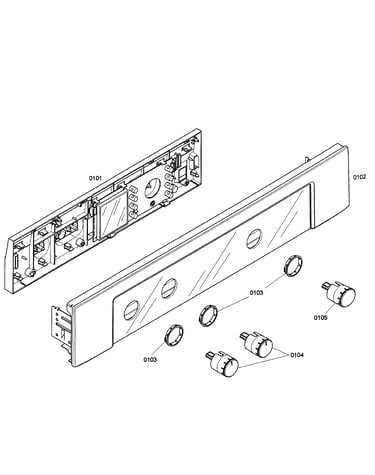

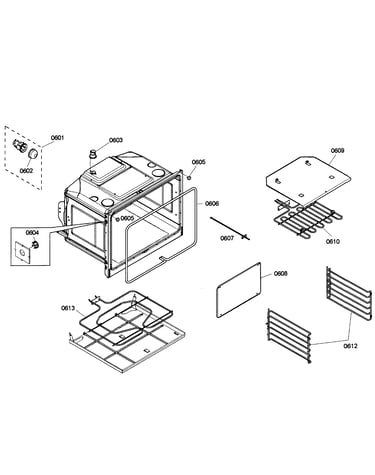

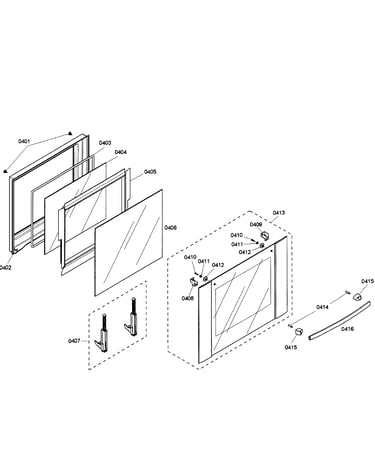

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Power Supply 663802
#205

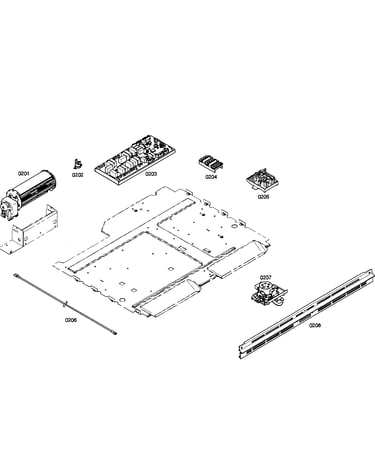

Pcb.s assy diagram

Power supply

Part #663802

Replaced by #00663802

?
Manufacturer substitution
This part replaces 663802. Substitute parts can look different from the original.
$128.19 |
9% OFF Phone Price : $140.19
In Stock
Glass 680088
Glass

Part #680088

Replaced by #00770023

?
Manufacturer substitution
This part replaces 680088. Substitute parts can look different from the original.
$182.39 |
6% OFF Phone Price : $194.39
In Stock
Limiter 642844
Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$29.36
In Stock
Door Seal 144652
Door seal

Part #144652

Replaced by #00144652

?
Manufacturer substitution
This part replaces 144652. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Latch 644216
Latch

Part #644216

Replaced by #00751505

?
Manufacturer substitution
This part replaces 644216. Substitute parts can look different from the original.
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Glass Panel 478310
Glass panel

Part #478310

Replaced by #00478310

?
Manufacturer substitution
This part replaces 478310. Substitute parts can look different from the original.
$137.56 |
8% OFF Phone Price : $149.56
In Stock
Oven Lamp Assembly 415045
Oven lamp assembly

Part #415045

Replaced by #00415045

?
Manufacturer substitution
This part replaces 415045. Substitute parts can look different from the original.
$79.29 |
7% OFF Phone Price : $85.29
In Stock
Element 144648
Element

Part #144648

Replaced by #00144648

?
Manufacturer substitution
This part replaces 144648. Substitute parts can look different from the original.
$108.49 |
10% OFF Phone Price : $120.49
In Stock
Bulb 623710
Bulb

Part #623710

Replaced by #00623710

?
Manufacturer substitution
This part replaces 623710. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Motor 642845
#301

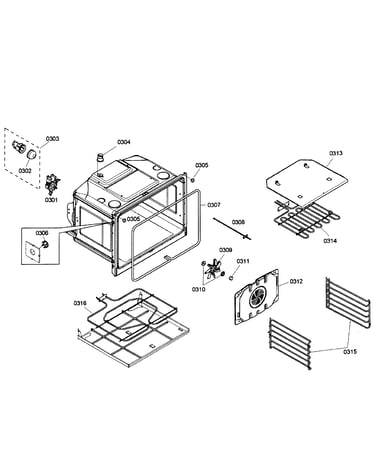

Oven upper diagram
