Model # 7.1AT Official AFG treadmill

Here are the diagrams and repair parts for Official AFG 71AT treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

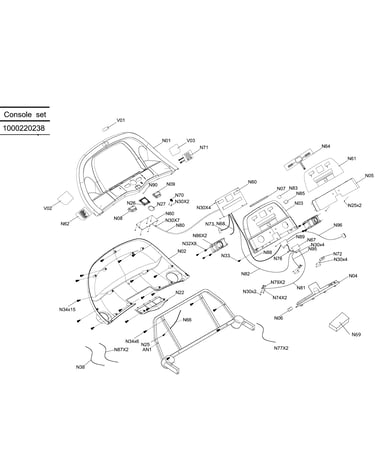

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Screw 020077-00
#H09

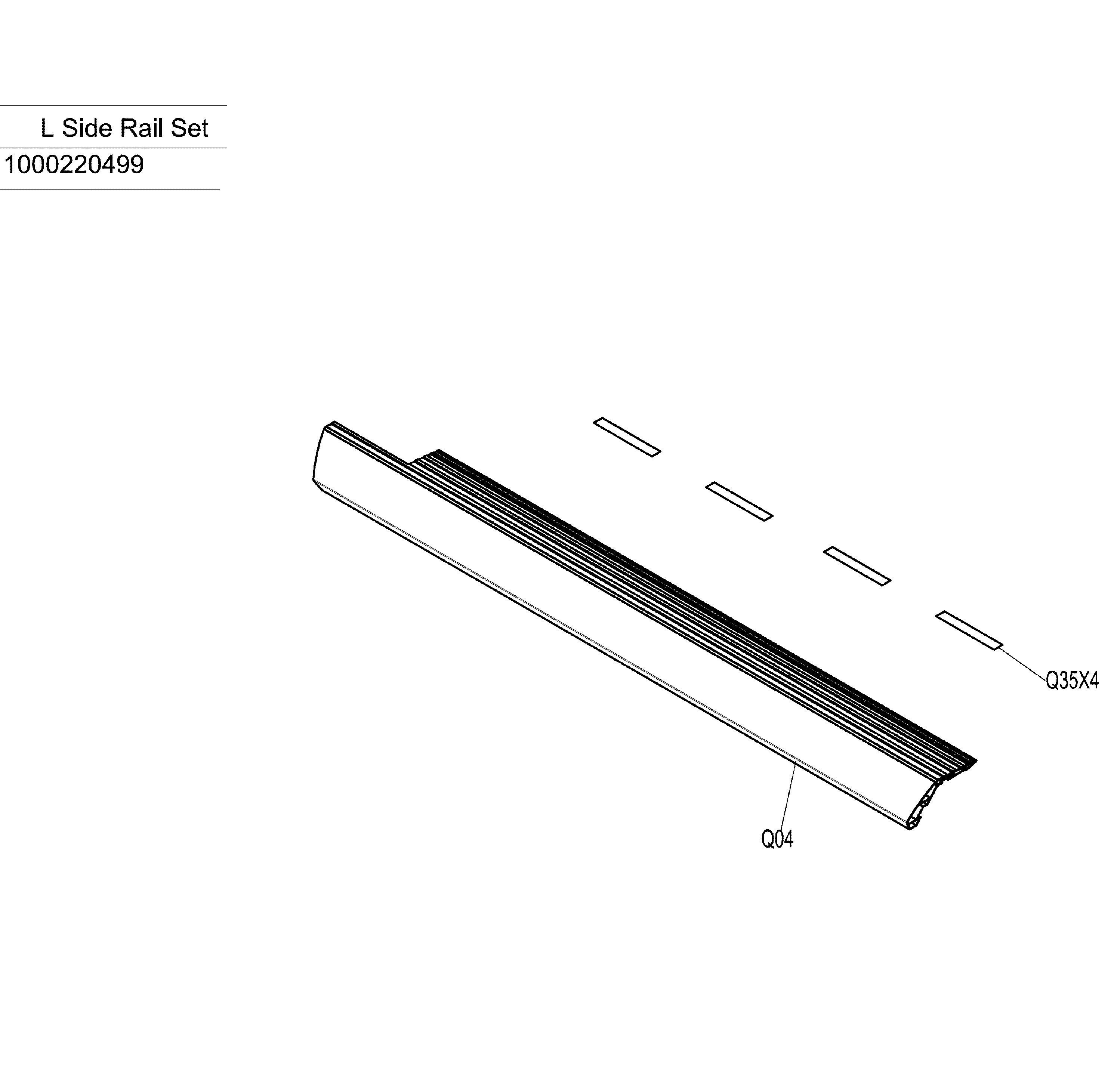

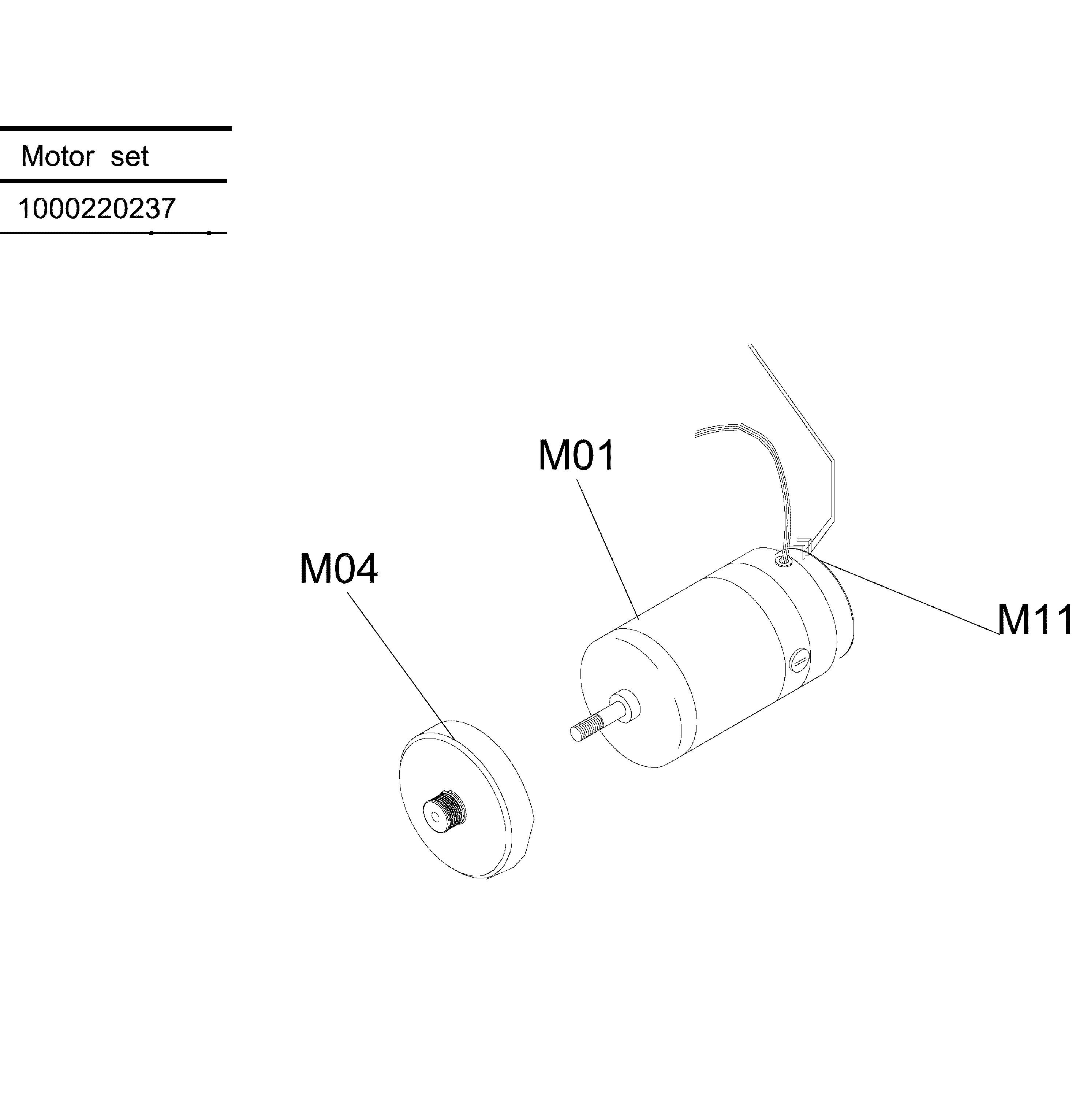

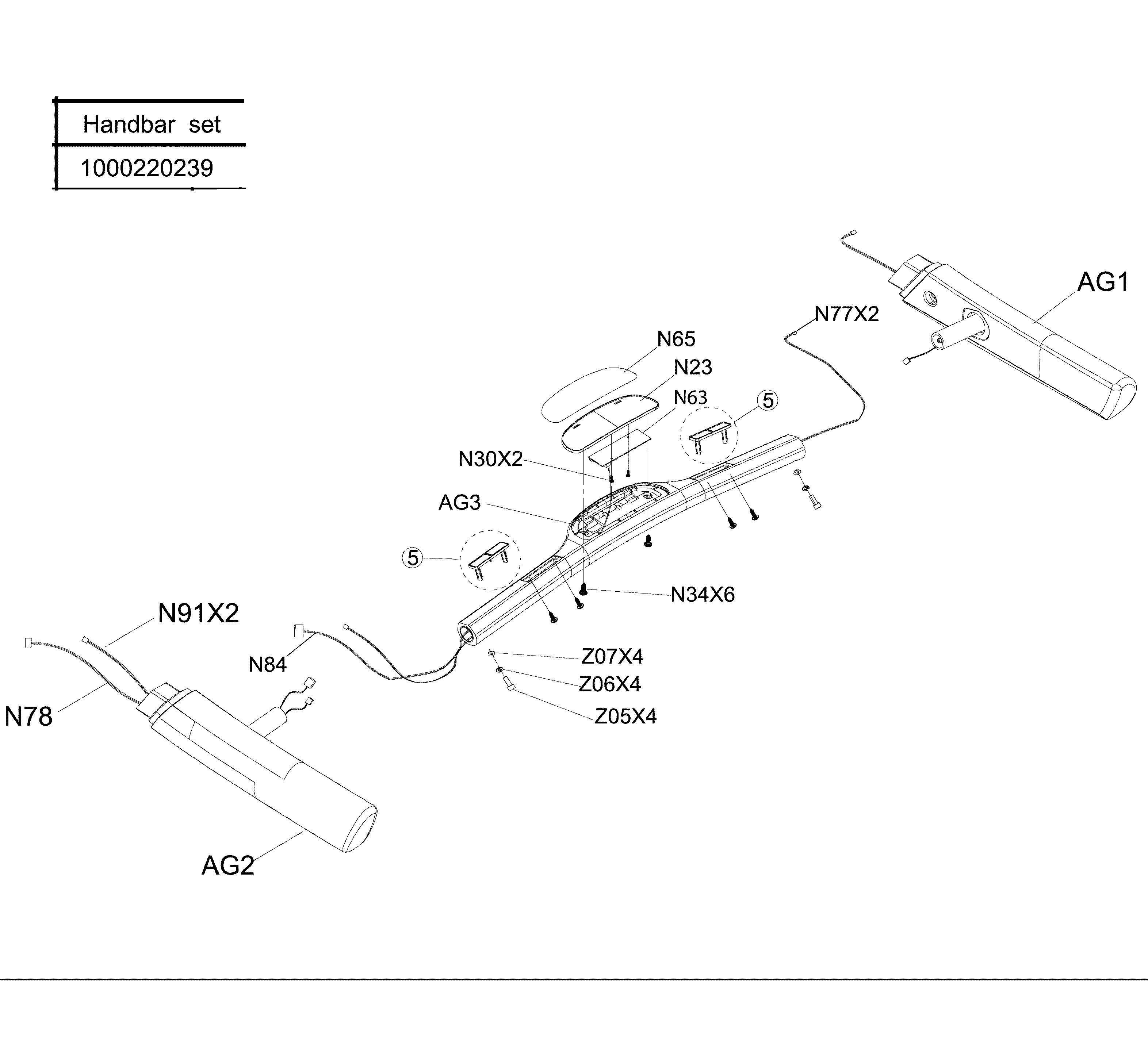

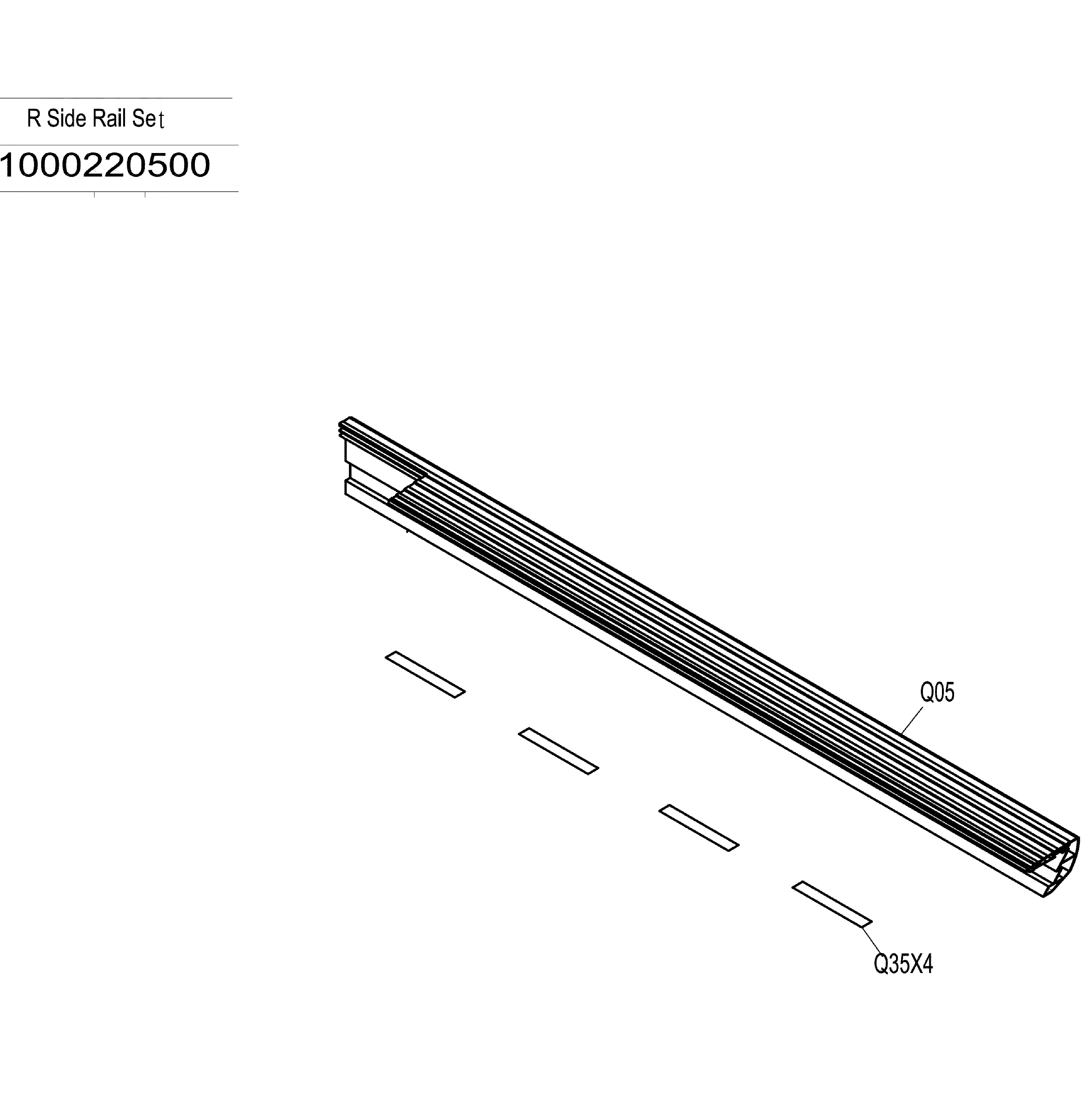

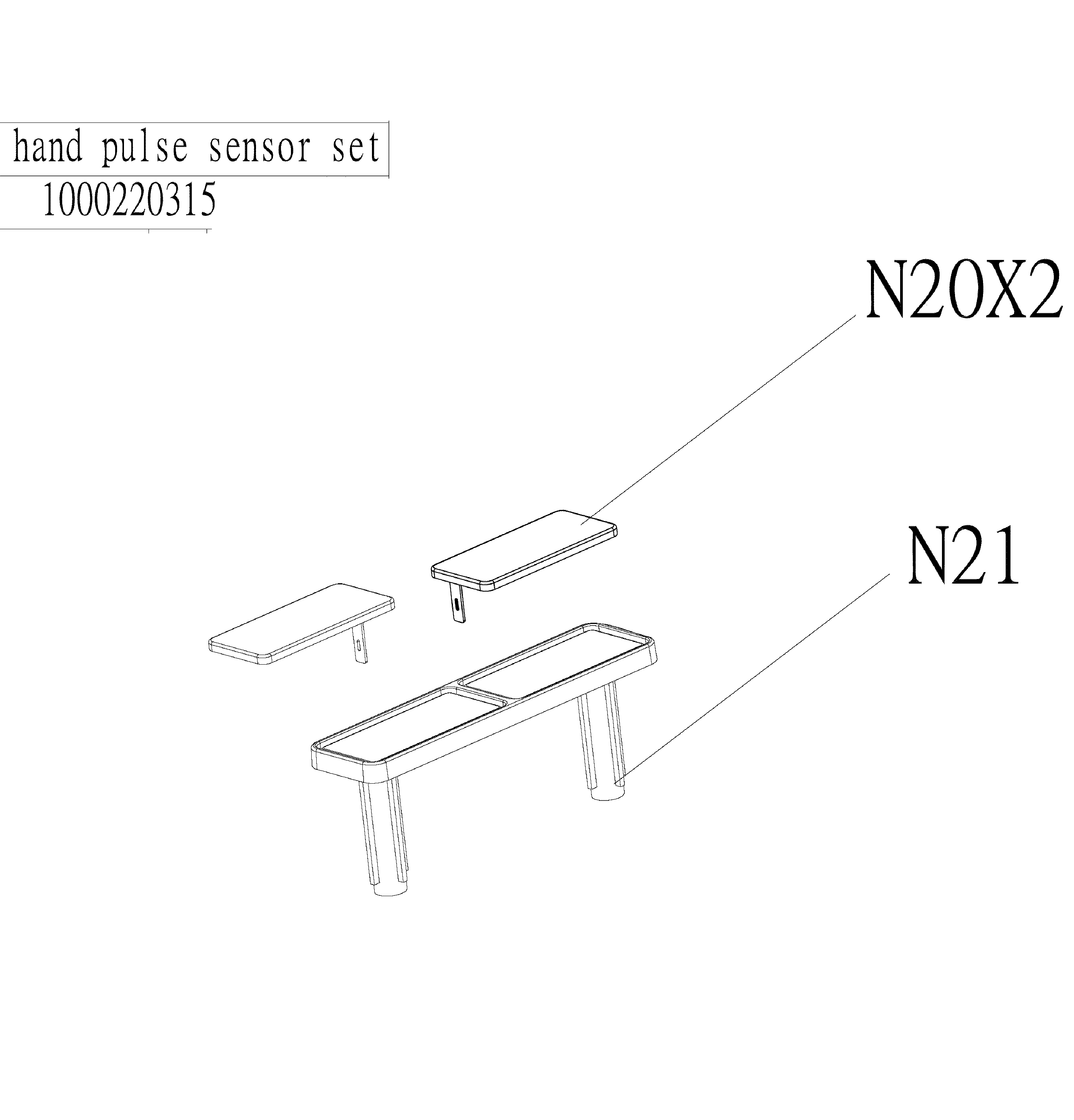

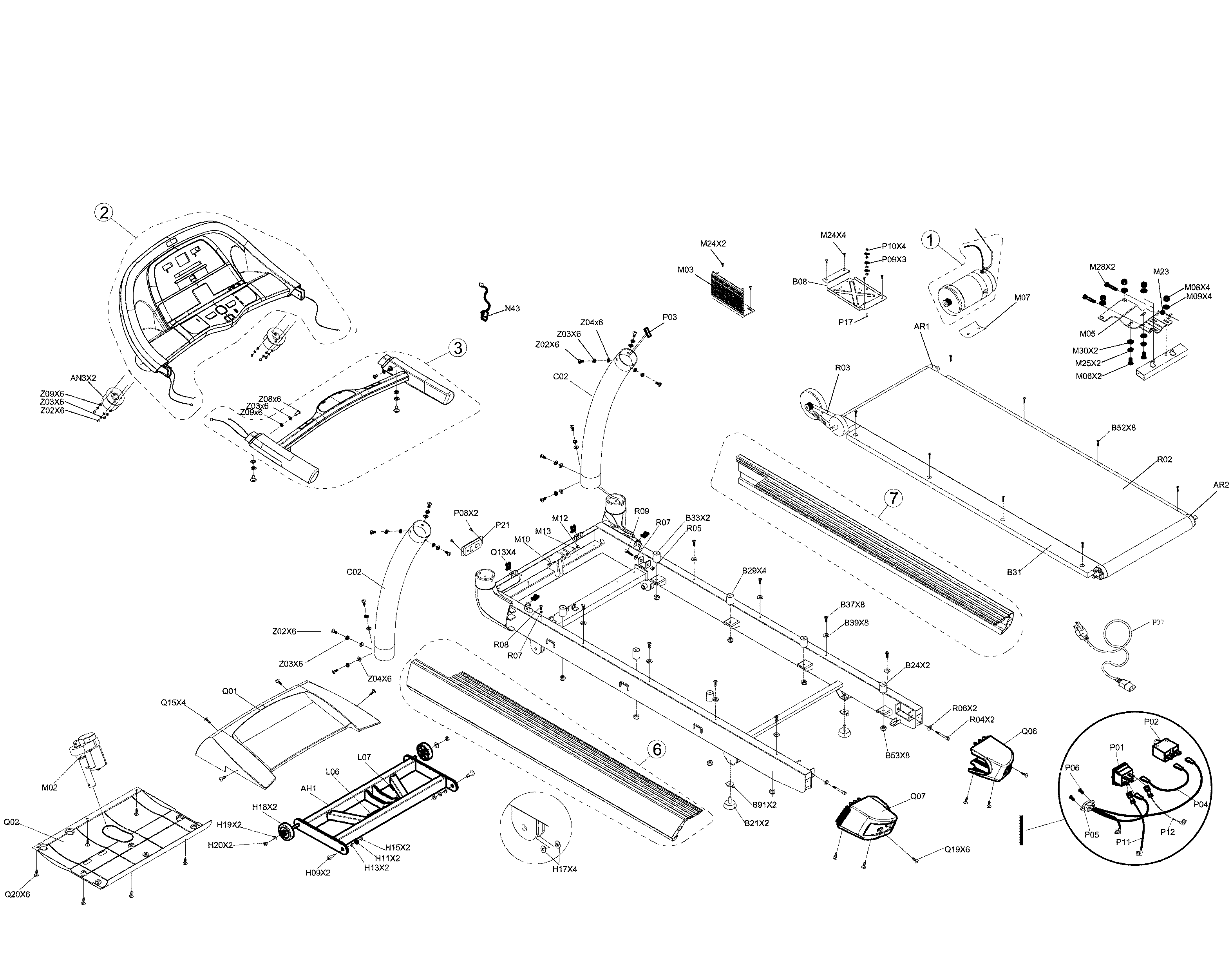

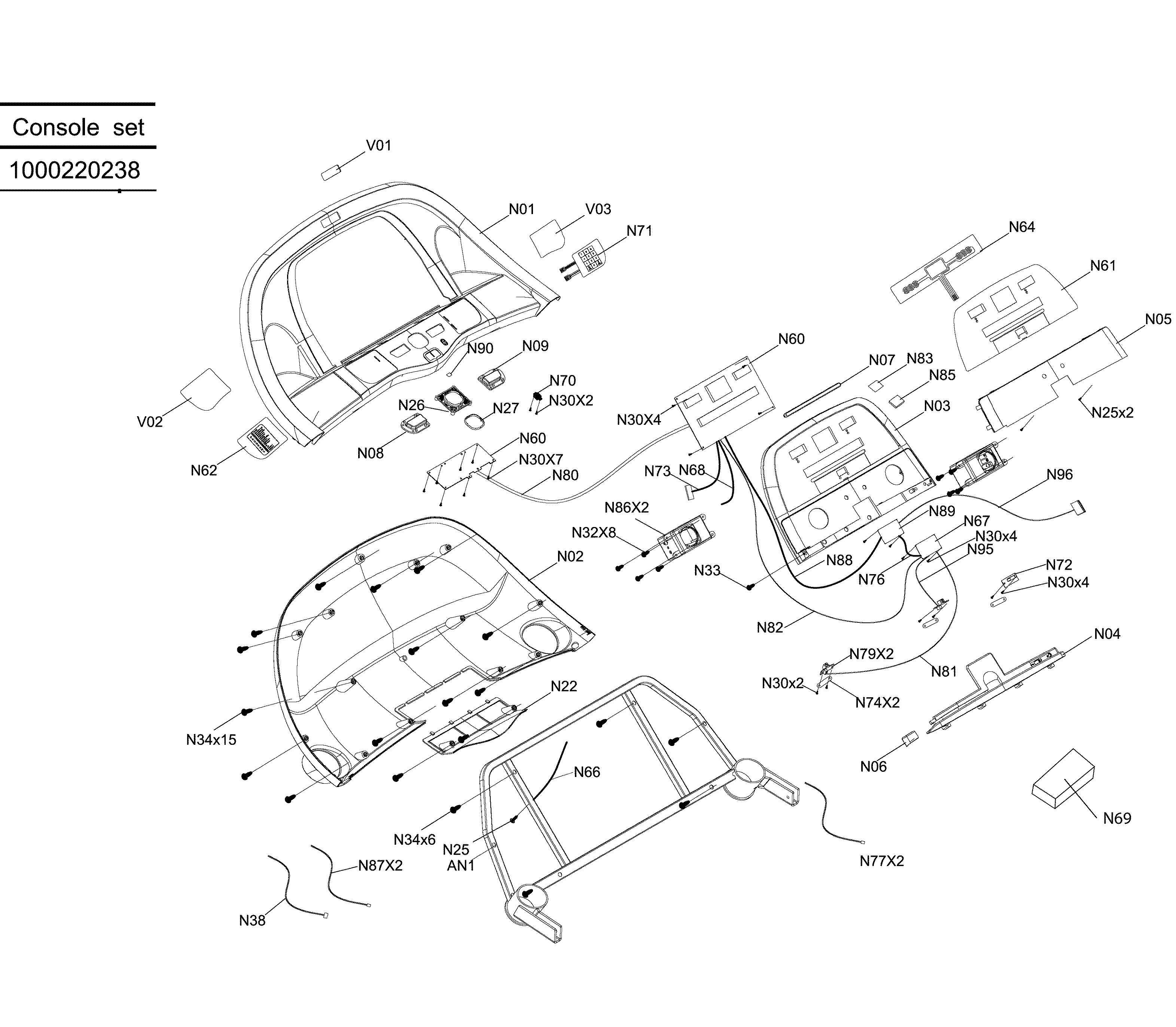

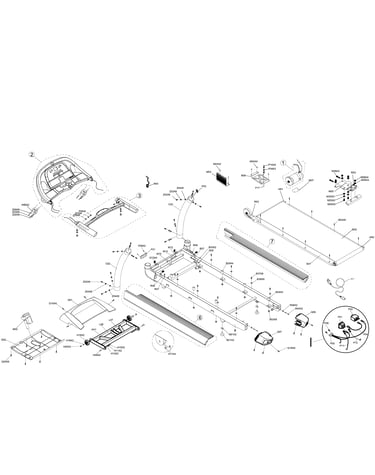

Main assy diagram

Screw

Part #020077-00

This item is not returnable
$2.37
In Stock
Treadmill Power Cord Receptacle (replaces 003363-00, Mc0703045a) 019749-A
#P05

Main assy diagram

Treadmill power cord receptacle (replaces 003363-00, mc0703045a)

Part #019749-A

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Treadmill Nut 004926-00
Treadmill nut

Part #004926-00

This item is not returnable
$2.16
In Stock
Treadmill Bolt 004496-00
#R04

Main assy diagram

Treadmill bolt

Part #004496-00

This item is not returnable
$5.57
In Stock
Treadmill Safety Key Assembly 1000110297
#N43

Main assy diagram

Treadmill safety key assembly

Part #1000110297

This item is not returnable
$34.29 |
15% OFF Phone Price : $40.29
In Stock
Horizon Treadmill Power Cord 019370-A
#P07

Main assy diagram

Horizon treadmill power cord

Part #019370-A

$53.09 |
10% OFF Was : $58.99
In Stock
Horizon Treadmill Incline Motor 1000101465
#M02

Main assy diagram

Horizon treadmill incline motor

Part #1000101465

$182.89 |
6% OFF Phone Price : $194.89
In Stock
Afg Treadmill Wire Harness 1000101981
#P03

Main assy diagram

Afg treadmill wire harness

Part #1000101981

$35.37 |
15% OFF Phone Price : $41.37
In Stock
Fix Plate 001251-F
#B39

Main assy diagram

Fix plate

Part #001251-F

This item is not returnable
$3.92
In Stock
Nut 004883-00
#M23

Main assy diagram

Nut

Part #004883-00

This item is not returnable
$2.16
In Stock
