Model # 137272220 Official Craftsman table saw

Here are the diagrams and repair parts for Official Craftsman 137272220 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

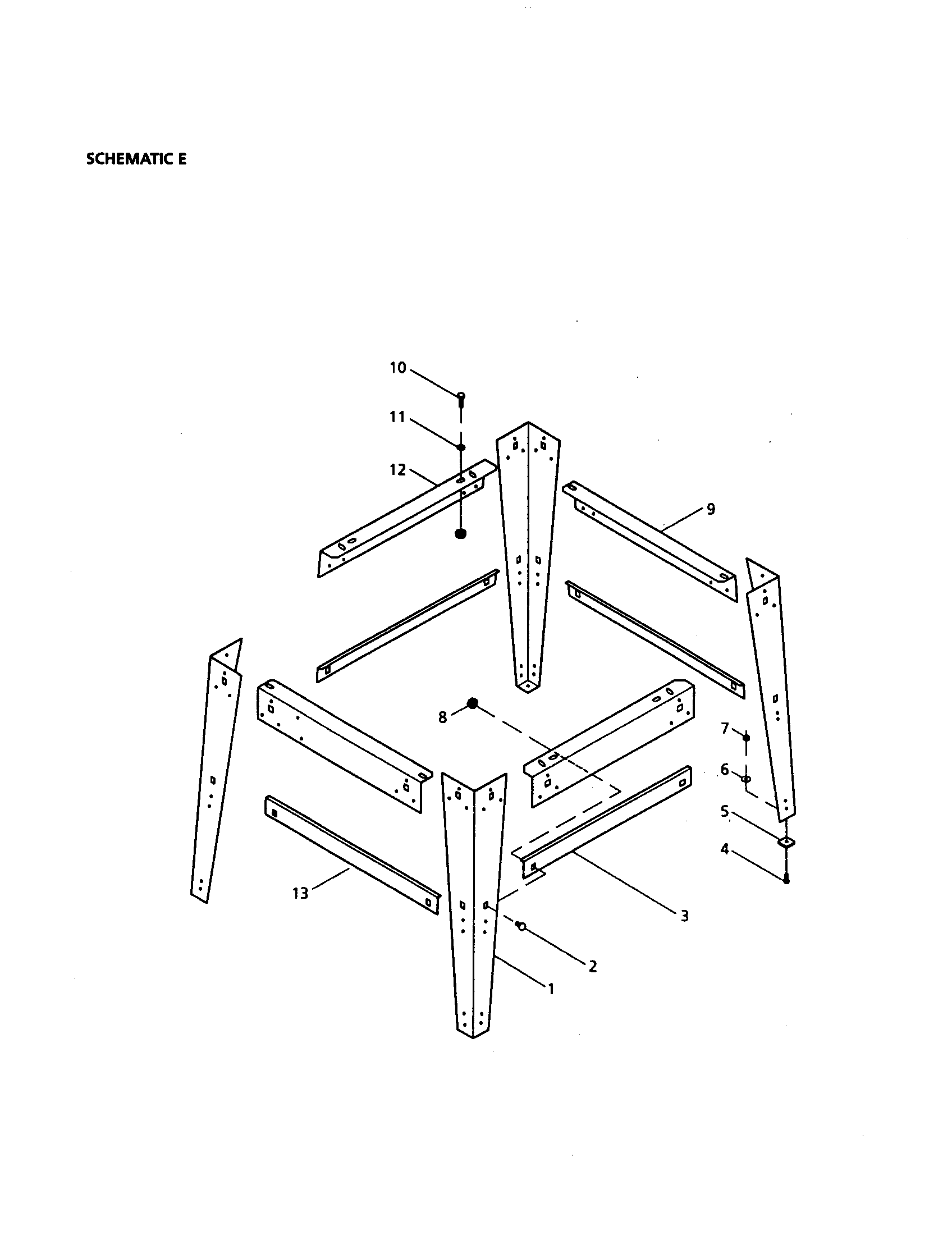

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Bushing 87840081
#7

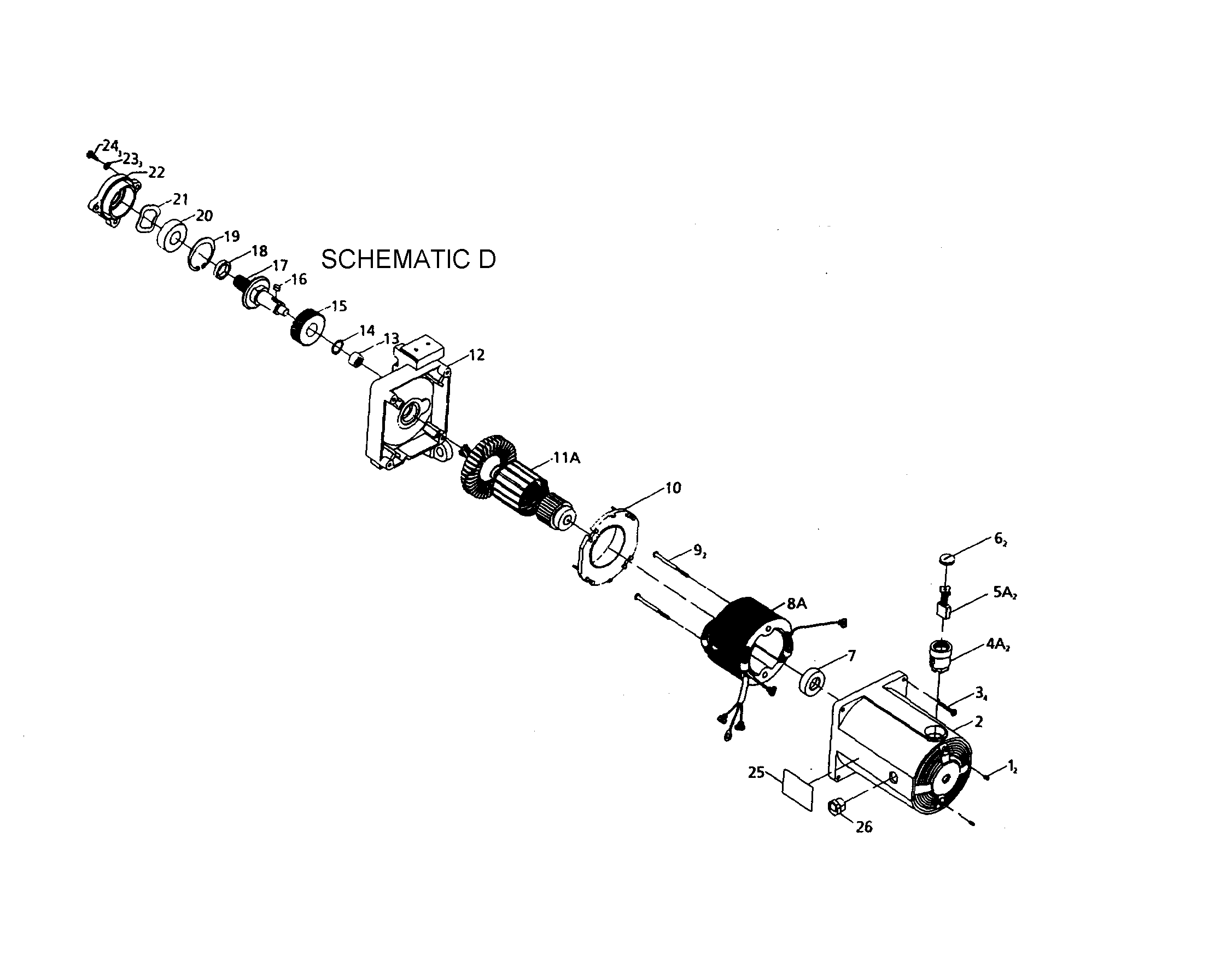

Motor housing diagram

Bushing

Part #87840081

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Rip Fence Clamp Lever Insert 13619201
#140

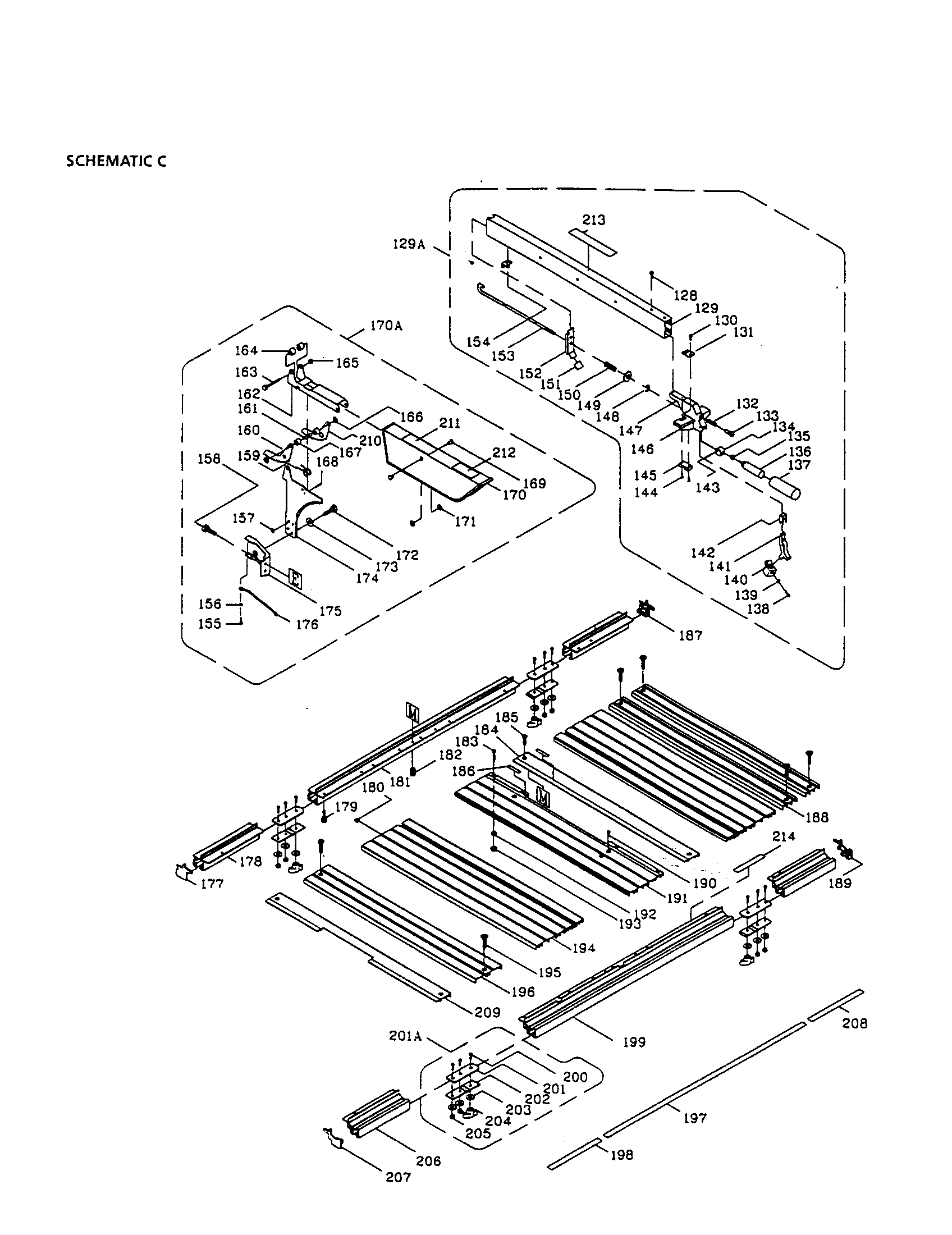

Blade guard assembly diagram

Table saw rip fence clamp lever insert

Part #13619201

The manufacturer no longer makes this part, and there's no substitute part

Rivet 2690MZD418
#169

Blade guard assembly diagram

Rivet

Part #2690MZD418

The manufacturer no longer makes this part, and there's no substitute part

Shaft 14936301
#55

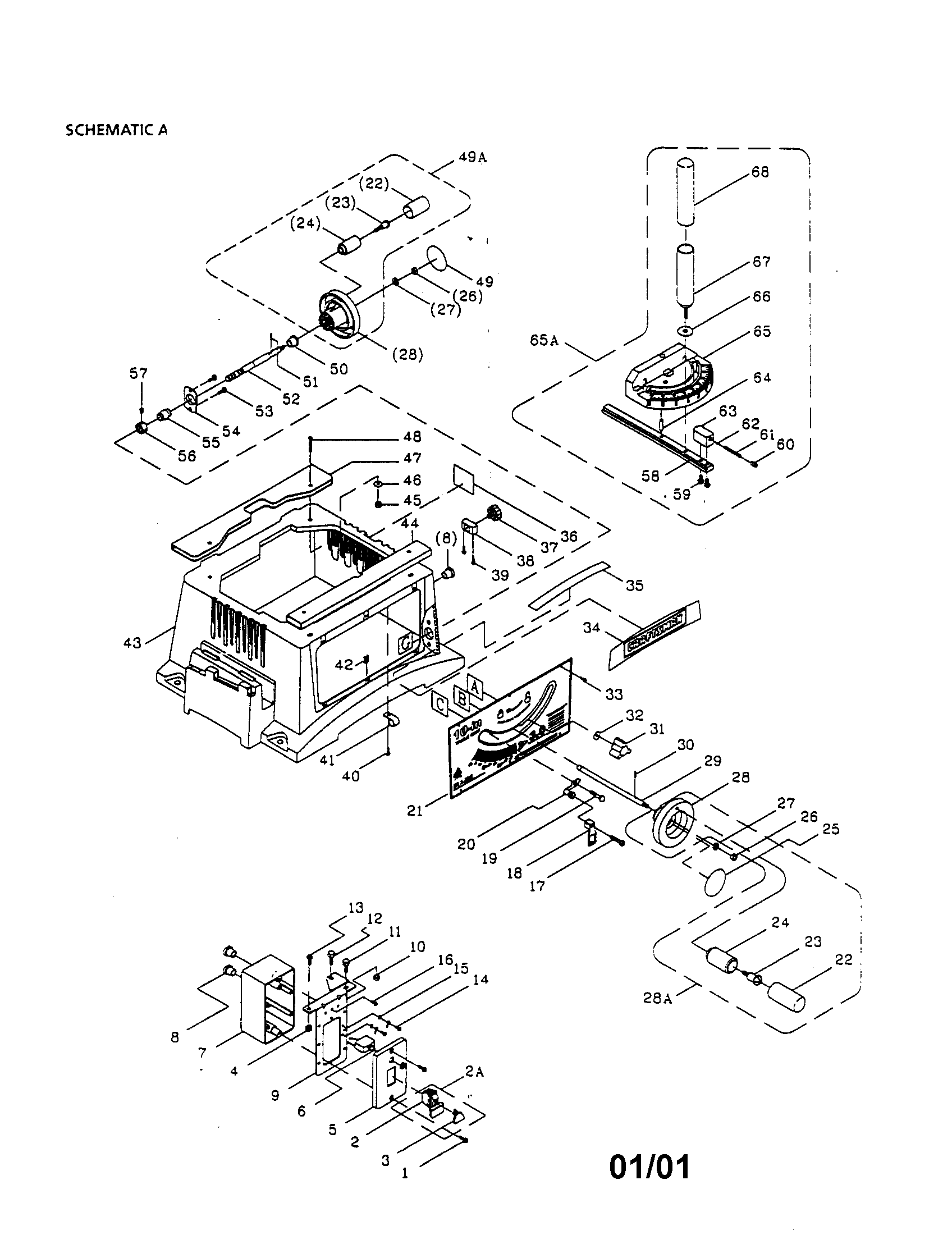

Body diagram

Shaft

Part #14936301

The manufacturer no longer makes this part, and there's no substitute part

Rip Fence 13616501A1
#129A

Blade guard assembly diagram

Rip fence

Part #13616501A1

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Spacer 13617001
#151

Blade guard assembly diagram

Table saw spacer

Part #13617001

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Table Insert Screw 2636BZDA42
Table saw table insert screw

Part #2636BZDA42

The manufacturer no longer makes this part, and there's no substitute part

Rear Clamp 13617101
#152

Blade guard assembly diagram

Rear clamp

Part #13617101

The manufacturer no longer makes this part, and there's no substitute part

M Hex Nut 2701FZD106
#111

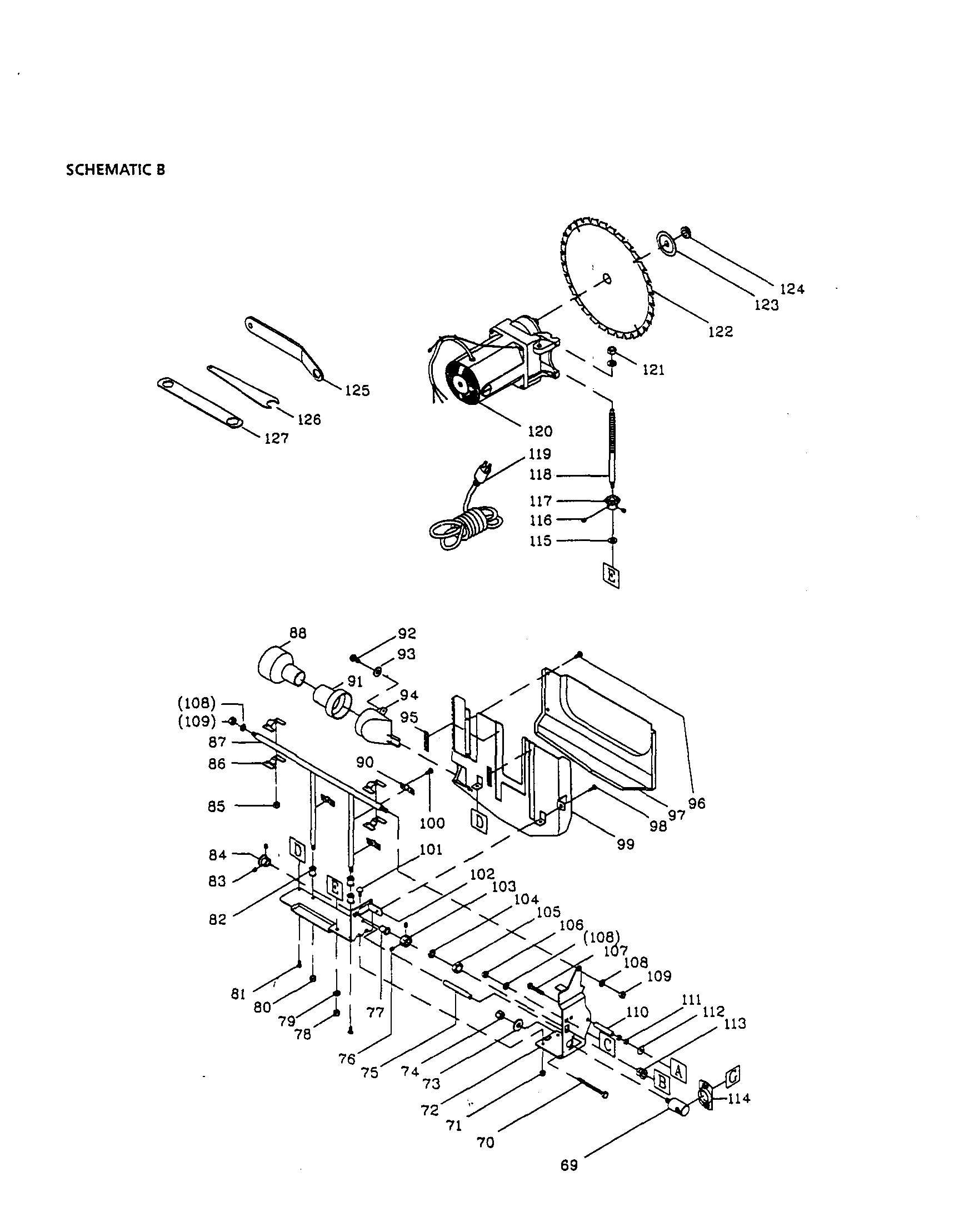

Blade diagram

M hex nut

Part #2701FZD106

The manufacturer no longer makes this part, and there's no substitute part

Grip 14909001
#22

Body diagram

Grip

Part #14909001

The manufacturer no longer makes this part, and there's no substitute part
