Model # 315281260 Official Craftsman rear handle drill

Here are the diagrams and repair parts for Official Craftsman 315281260 rear handle drill, as well as links to manuals and error code tables, if available.

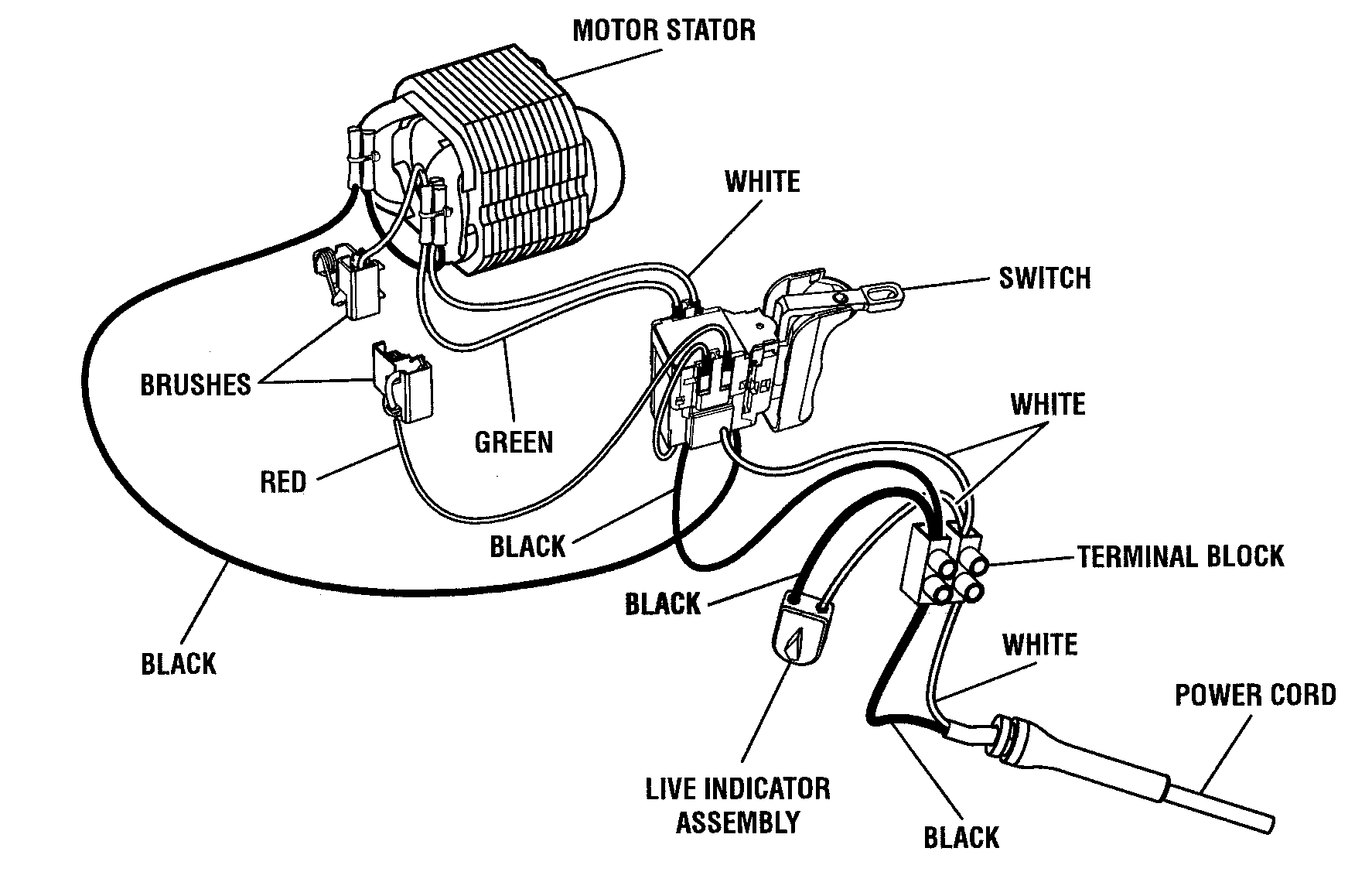

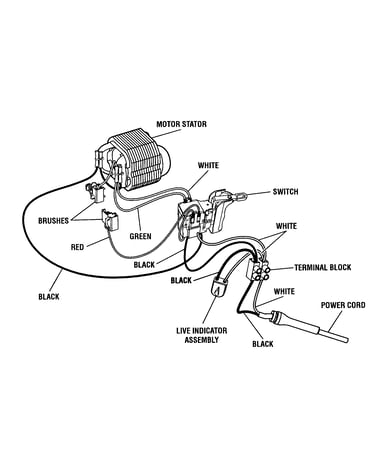

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315281260 Power Tools

  • Bnd Relief 591631001
    #2

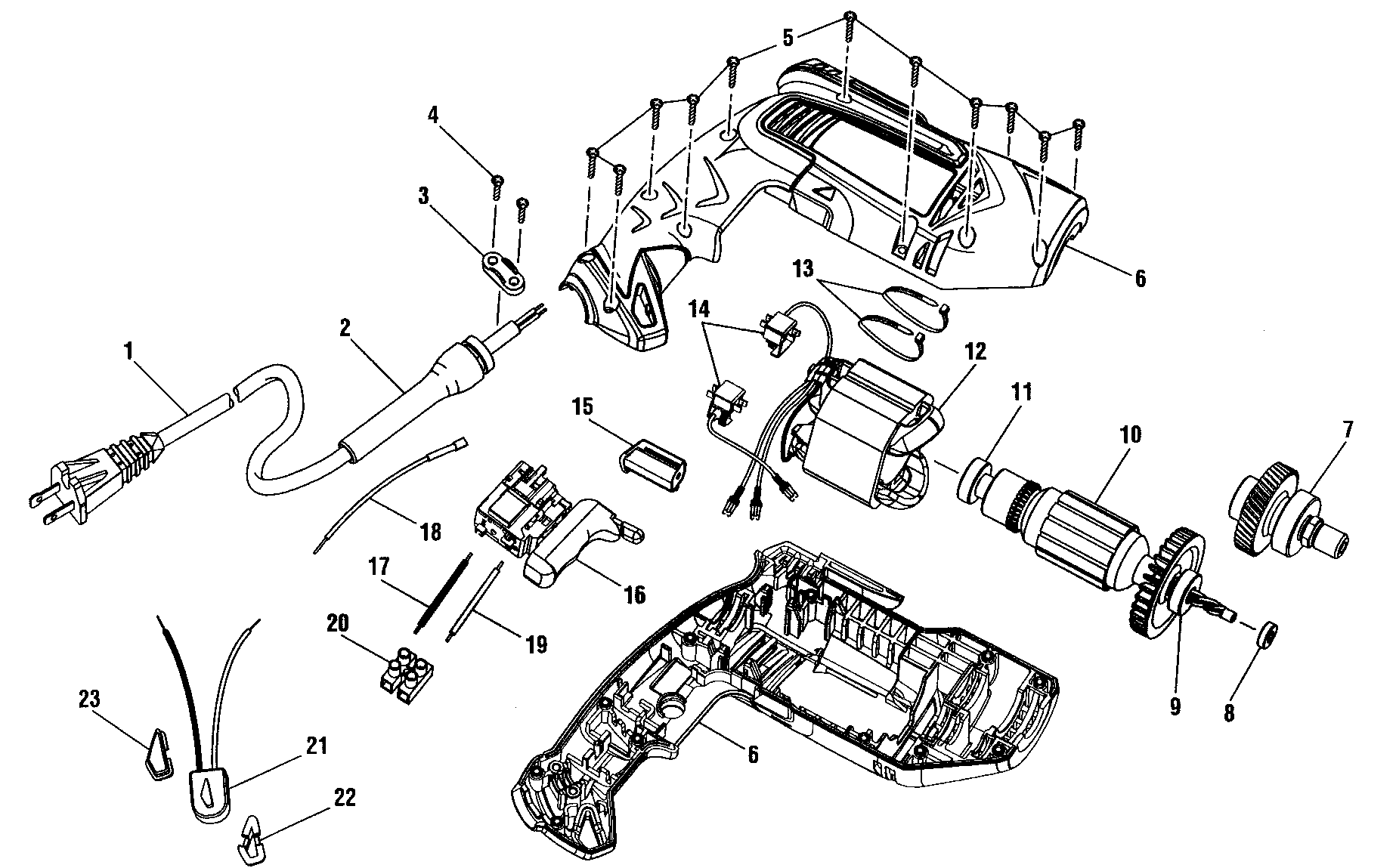

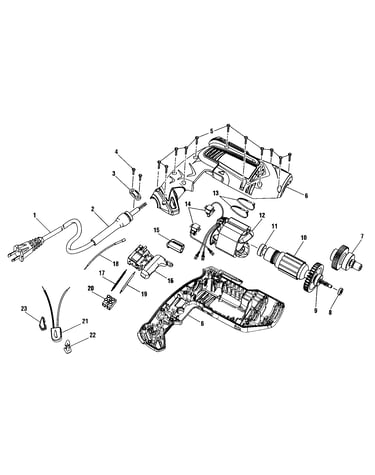

    Housing assy diagram

    Bnd relief

    Part #591631001

    The manufacturer no longer makes this part, and there's no substitute part

  • Carry Case 300636133
    #NI

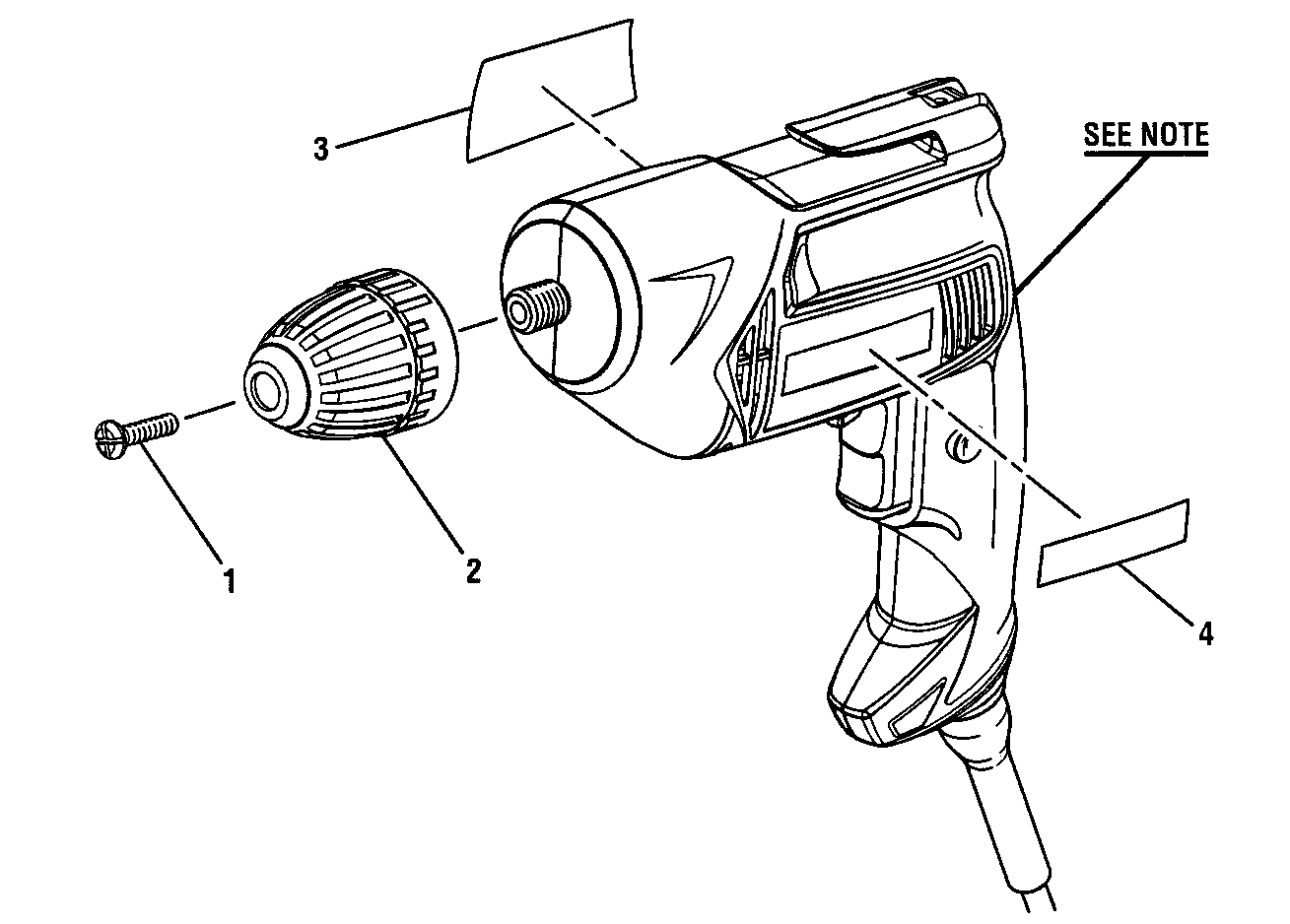

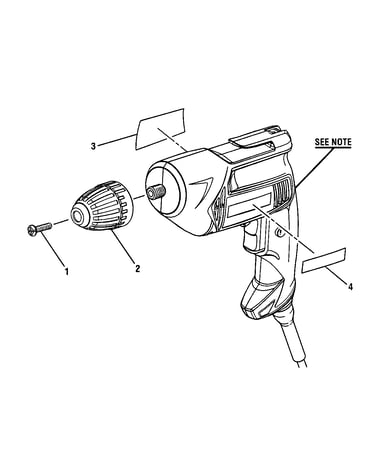

    Drill diagram

    Carry case

    Part #300636133

    The manufacturer no longer makes this part, and there's no substitute part

  • Cord Clamp 5950101
    #3

    Housing assy diagram

    Cord clamp

    Part #5950101

    The manufacturer no longer makes this part, and there's no substitute part

  • Right Lens 513314001
    #23

    Housing assy diagram

    Right lens

    Part #513314001

    The manufacturer no longer makes this part, and there's no substitute part

  • Ac Cord 730356006
    #1

    Housing assy diagram

    Ac cord

    Part #730356006

    The manufacturer no longer makes this part, and there's no substitute part

  • Field 740516001
    #12

    Housing assy diagram

    Field

    Part #740516001

    The manufacturer no longer makes this part, and there's no substitute part

  • Drill Terminal Block 690331001
    #20

    Housing assy diagram

    Drill terminal block

    Part #690331001

    The manufacturer no longer makes this part, and there's no substitute part

  • Armature 740515001
    #10

    Housing assy diagram

    Armature

    Part #740515001

    The manufacturer no longer makes this part, and there's no substitute part

  • Brush Assembly 290069091
    #14

    Housing assy diagram

    Brush assembly

    Part #290069091

    The manufacturer no longer makes this part, and there's no substitute part

  • Gear Box 220031004
    #7

    Housing assy diagram

    Gear box

    Part #220031004

    The manufacturer no longer makes this part, and there's no substitute part
