Frigidaire
Electric Wall Oven

Model # REG78WLB0 Official Frigidaire wall oven - lf32089180

Here are the diagrams and repair parts for Official Frigidaire REG78WLB0 wall oven - lf32089180, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Light 3013071
Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 3051098
#23

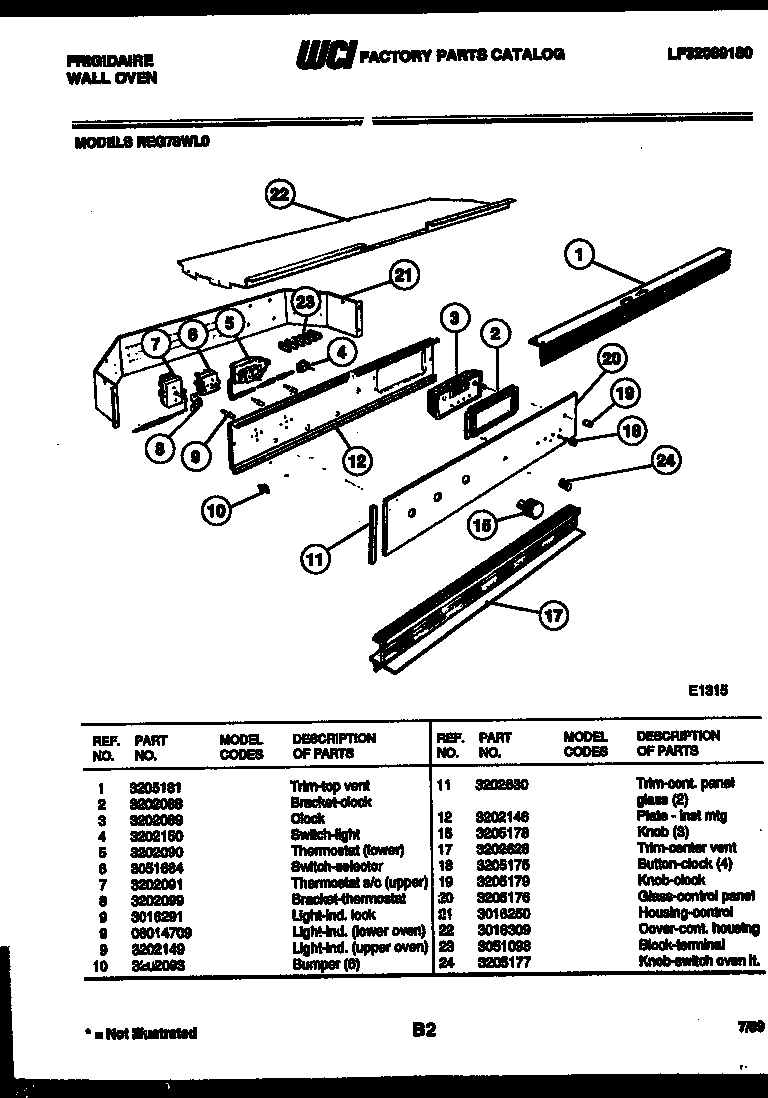

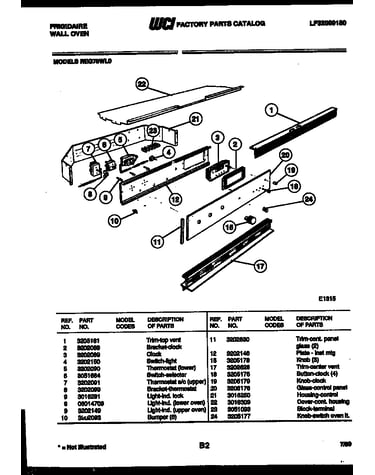

Control panel diagram

Block

Part #3051098

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 3051098. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Element 3016246
Element

Part #3016246

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3016246. Substitute parts can look different from the original.
BEST SELLER
$136.96 |
8% OFF Phone Price : $148.96
In Stock
Receptacle 08011085
Receptacle

Part #08011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 08011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Switch 3016298
#34

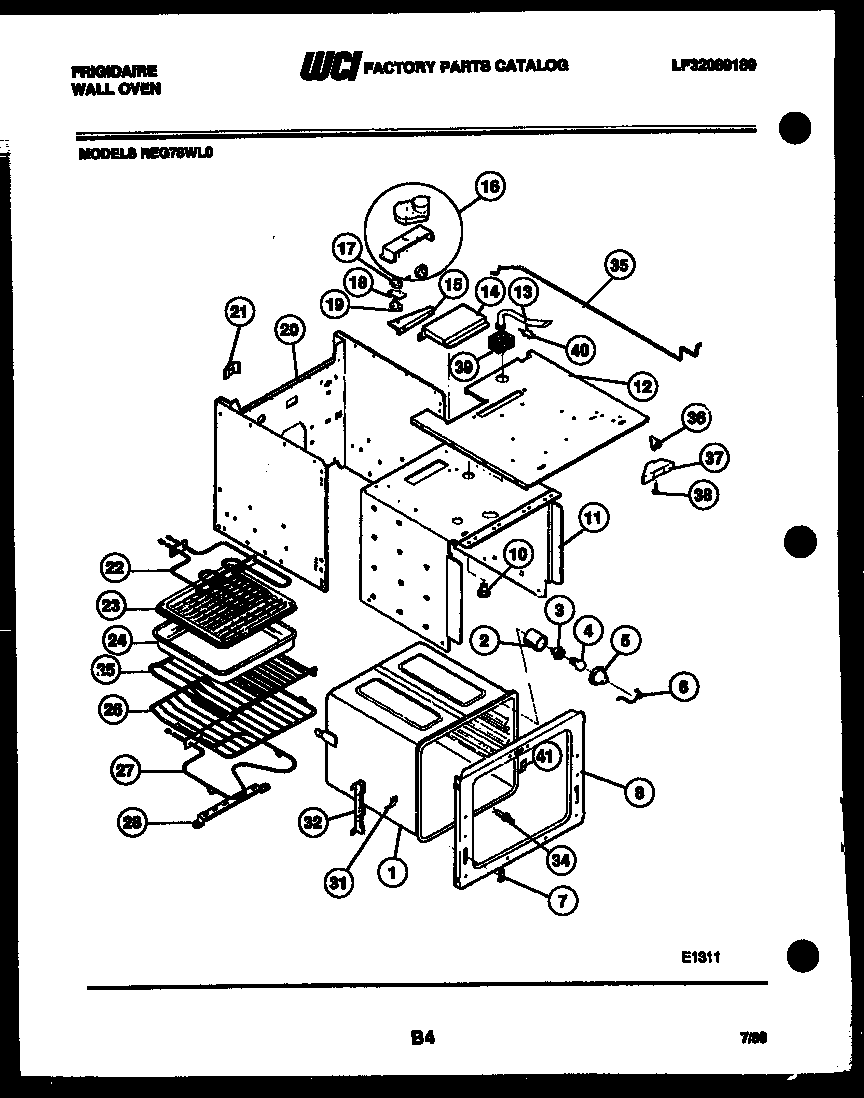

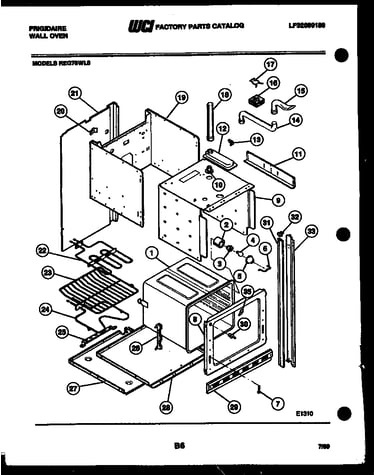

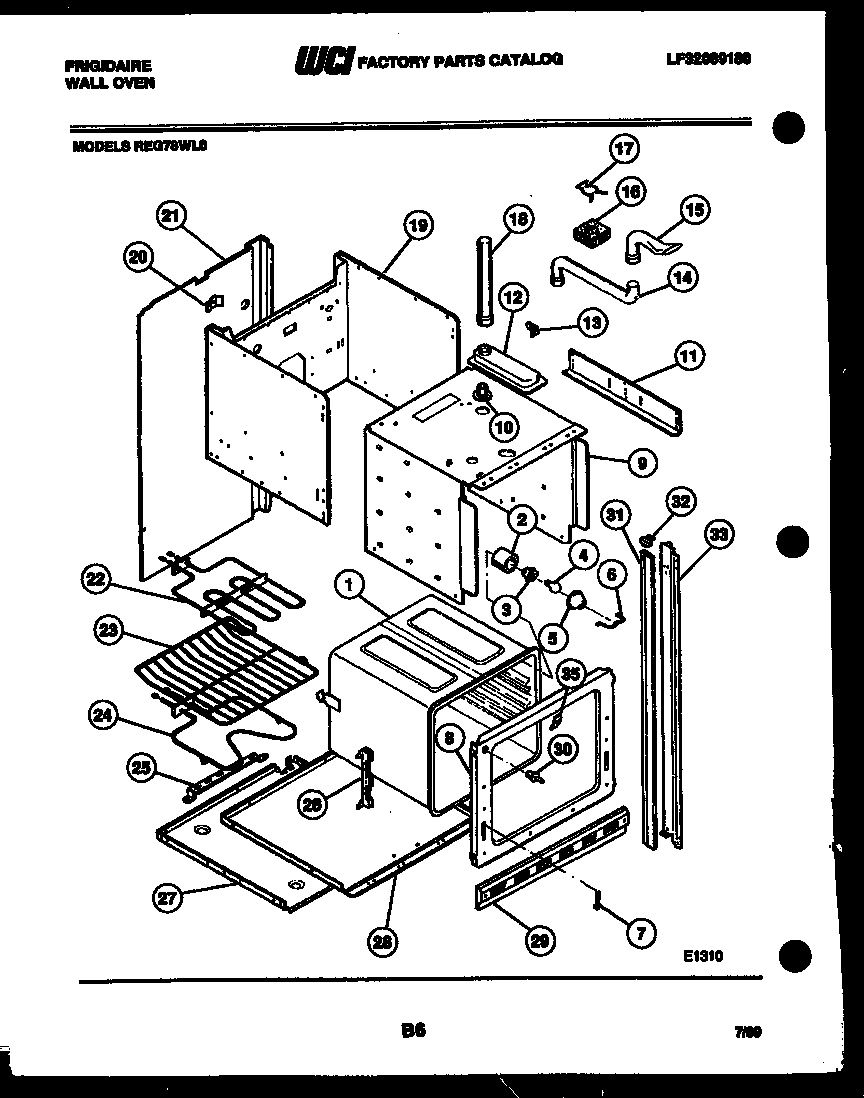

Body parts diagram

Switch

Part #3016298

Replaced by #316445501

?
Manufacturer substitution
This part replaces 3016298. Substitute parts can look different from the original.
BEST SELLER
$63.47 |
9% OFF Phone Price : $69.47
In Stock
Rack 3016282
#25

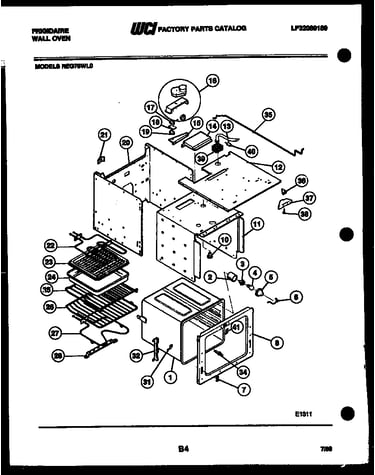

Body parts diagram

Rack

Part #3016282

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 3016282. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
Back Order
Switch 3051531
#30

Body parts diagram

Switch

Part #3051531

Replaced by #5301314211

?
Manufacturer substitution
This part replaces 3051531. Substitute parts can look different from the original.
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Seal 3205189
#10

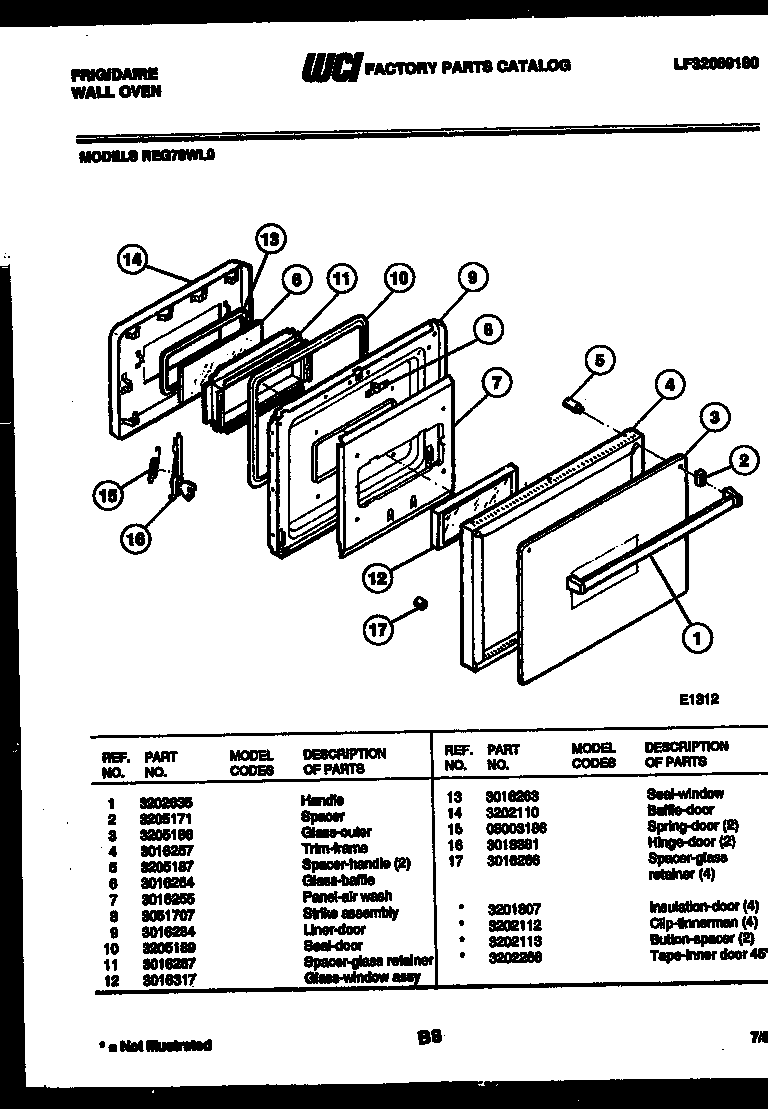

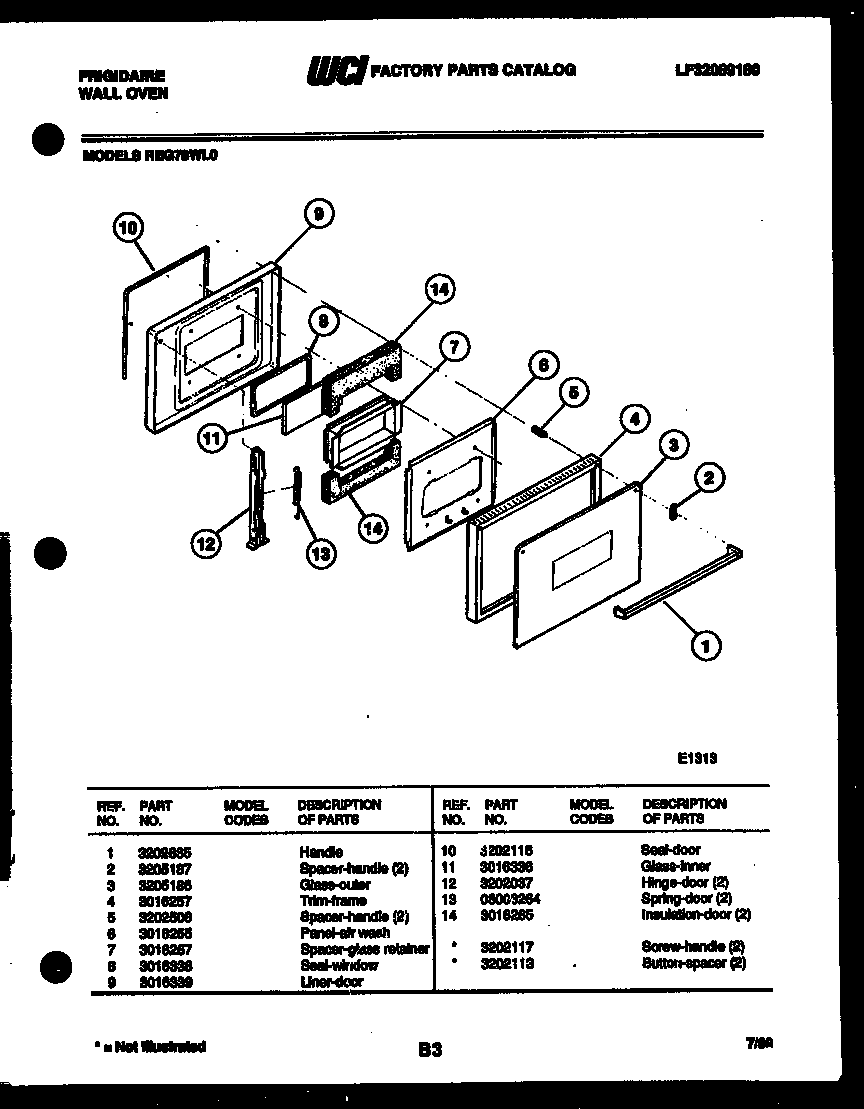

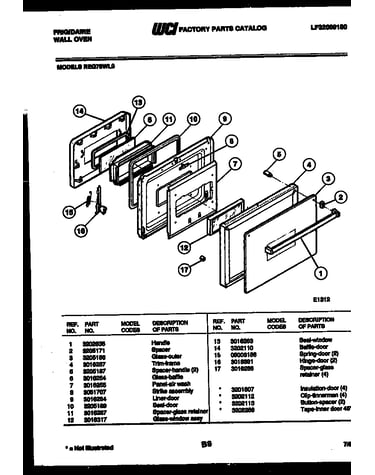

Door parts diagram

Seal

Part #3205189

Replaced by #318178801

?
Manufacturer substitution
This part replaces 3205189. Substitute parts can look different from the original.
$171.66 |
7% OFF Phone Price : $183.66
In Stock
Trim 3205181
#1

Control panel diagram

Trim

Part #3205181

$57.99
In Stock
Wall Oven Door Hinge Receiver 3201631
Wall oven door hinge receiver

Part #3201631

$114.40
In Stock
