Model # 360634400 Official Kenmore toaster oven

Here are the diagrams and repair parts for Official Kenmore 360634400 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Chassis 622946
#8

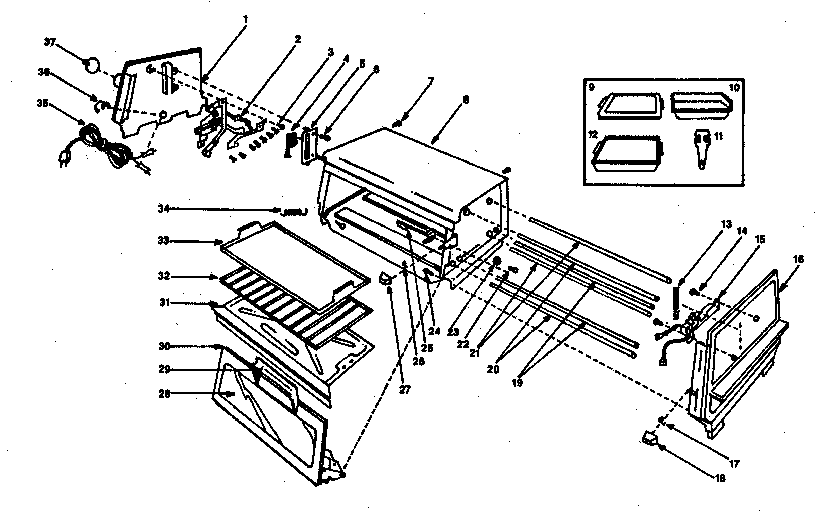

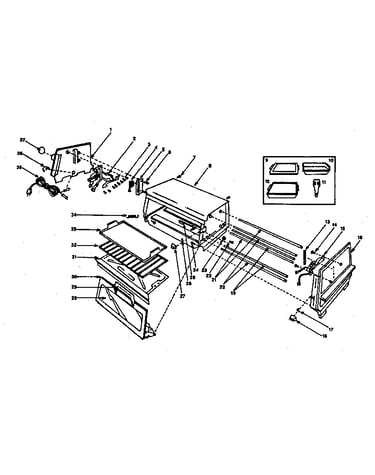

Replacement parts diagram

Chassis

Part #622946

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 920806
#25

Replacement parts diagram

Thermostat

Part #920806

The manufacturer no longer makes this part, and there's no substitute part

Pan 935737
#10

Replacement parts diagram

Pan

Part #935737

The manufacturer no longer makes this part, and there's no substitute part

Door Assembl 923004
#30

Replacement parts diagram

Door assembl

Part #923004

The manufacturer no longer makes this part, and there's no substitute part

Knob 156922
#18

Replacement parts diagram

Knob

Part #156922

The manufacturer no longer makes this part, and there's no substitute part

Door Spring 105265
#34

Replacement parts diagram

Door spring

Part #105265

The manufacturer no longer makes this part, and there's no substitute part

Screw 002275
Screw

Part #002275

The manufacturer no longer makes this part, and there's no substitute part

Screw 002733
#7

Replacement parts diagram

Screw

Part #002733

The manufacturer no longer makes this part, and there's no substitute part

Power Cord Assembly 626761
#35

Replacement parts diagram

Power cord assembly

Part #626761

The manufacturer no longer makes this part, and there's no substitute part

Rear Element 620751
#21

Replacement parts diagram

Rear element

Part #620751

The manufacturer no longer makes this part, and there's no substitute part
