Model # SHU3306UC/14 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHU3306UC-14 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

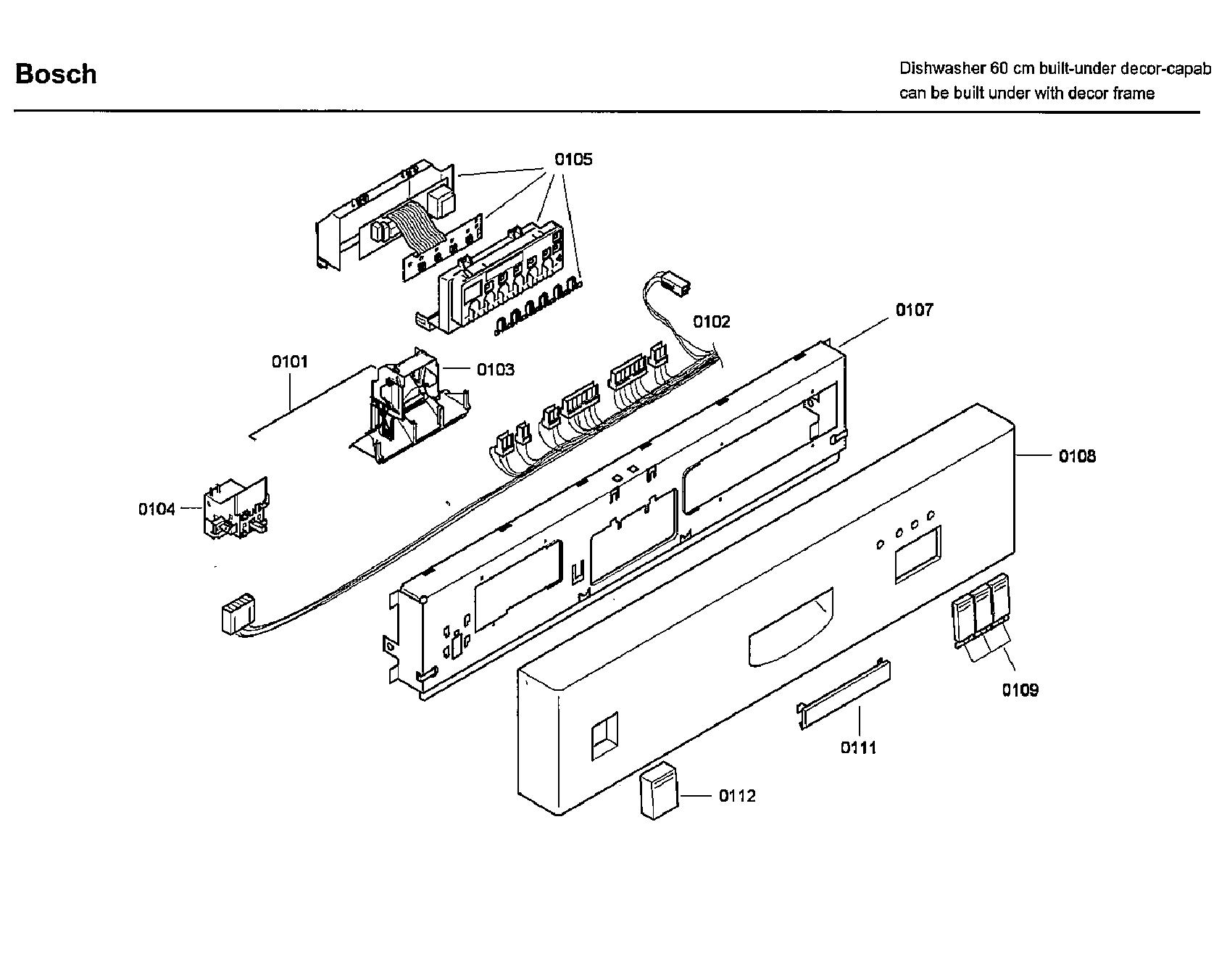

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#422

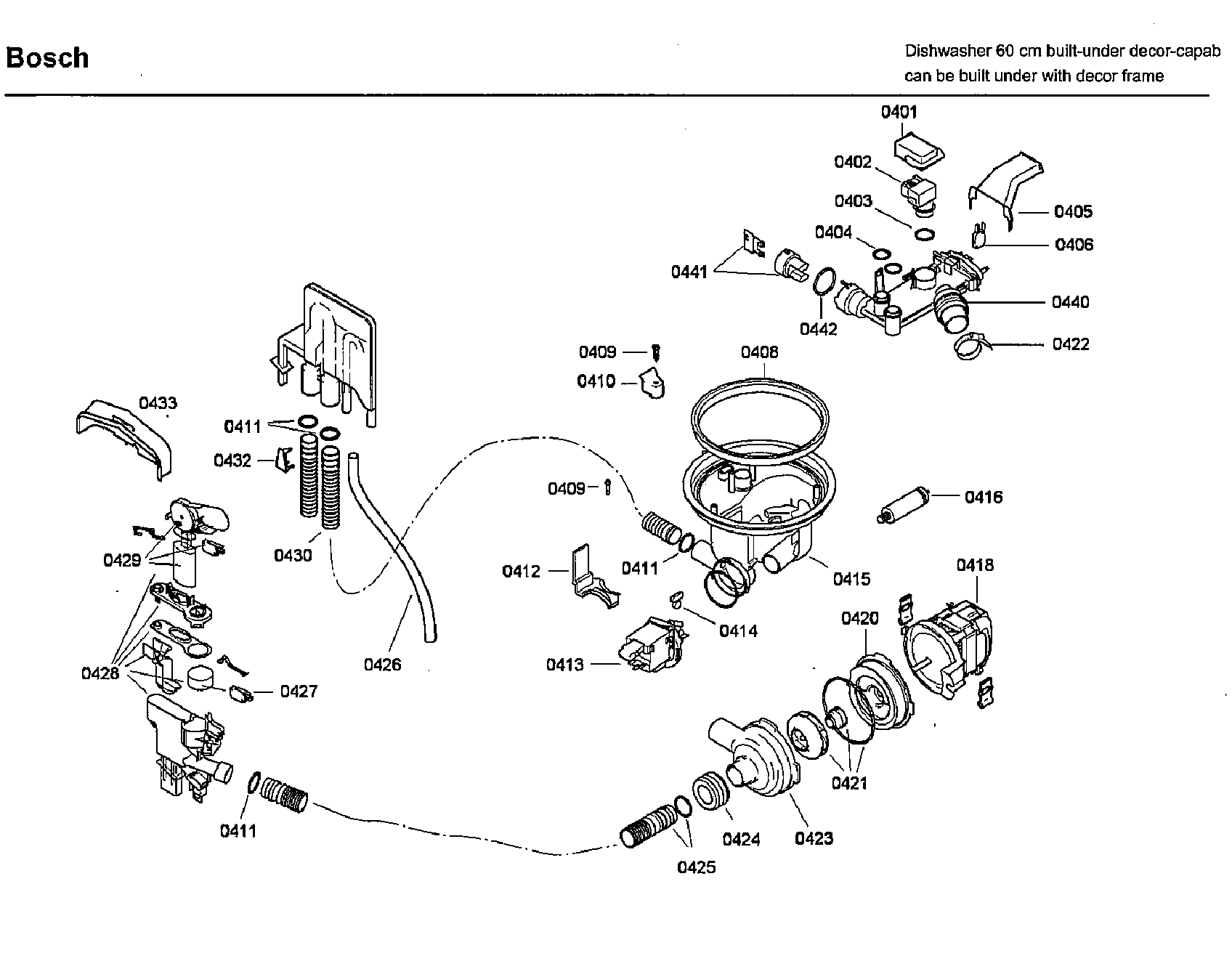

Pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Crockery 00434647
#613

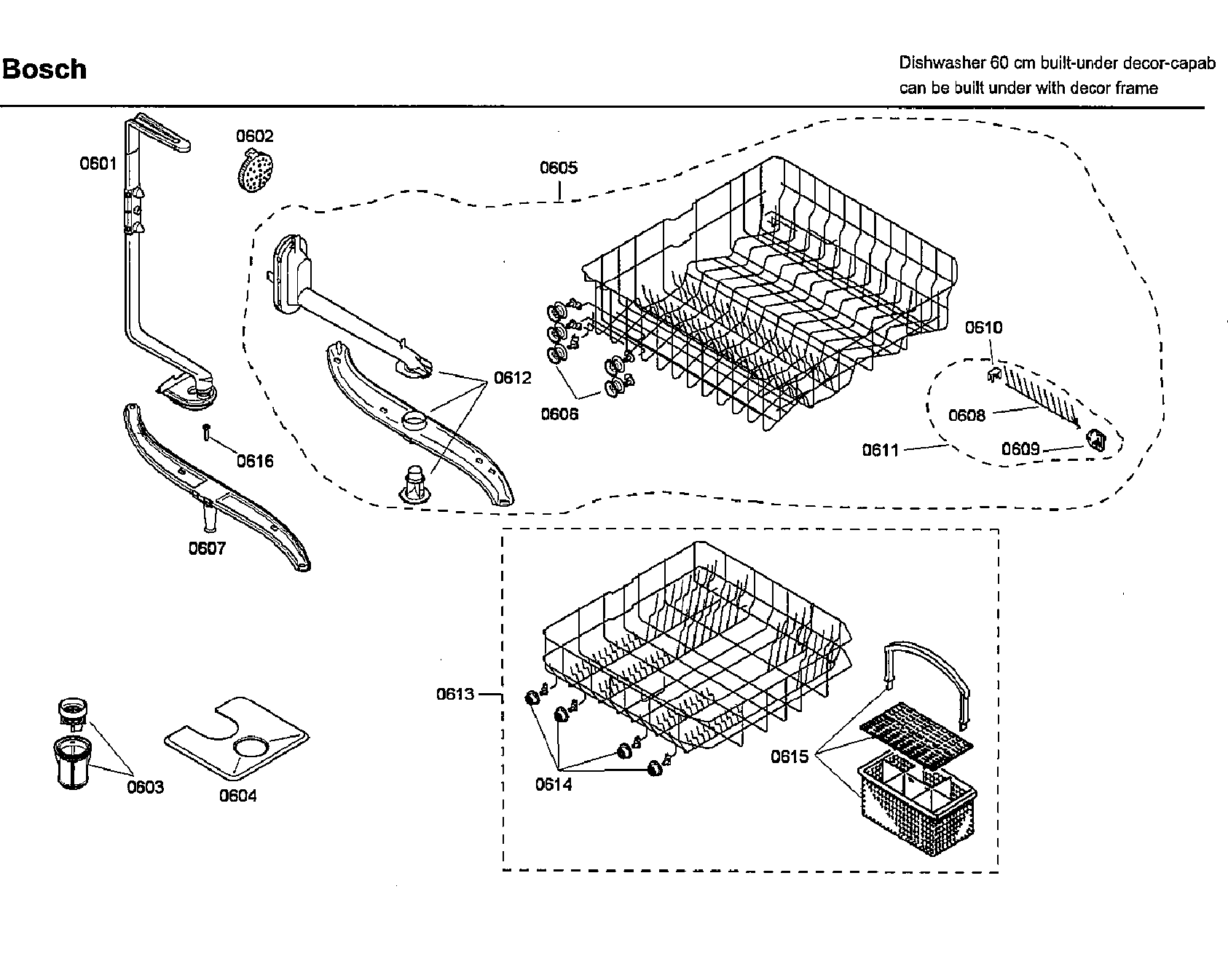

Baskets diagram

Crockery

Part #00434647

Replaced by #00249276

?
Manufacturer substitution
This part replaces 00434647. Substitute parts can look different from the original.
$287.15 |
$12.00 OFF Phone Price : $299.15
Back Order
Dishwasher Water Inlet Valve (replaces 00492043, 263833) 00263833
#434

Pump diagram

Dishwasher water inlet valve (replaces 00492043, 263833)

Part #00263833

$124.53 |
9% OFF Phone Price : $136.53
In Stock
Dishwasher Drain Pump 00167082
#413

Pump diagram

Dishwasher drain pump

Part #00167082

$124.86 |
9% OFF Phone Price : $136.86
In Stock
Appliance Screw 00151703
#201

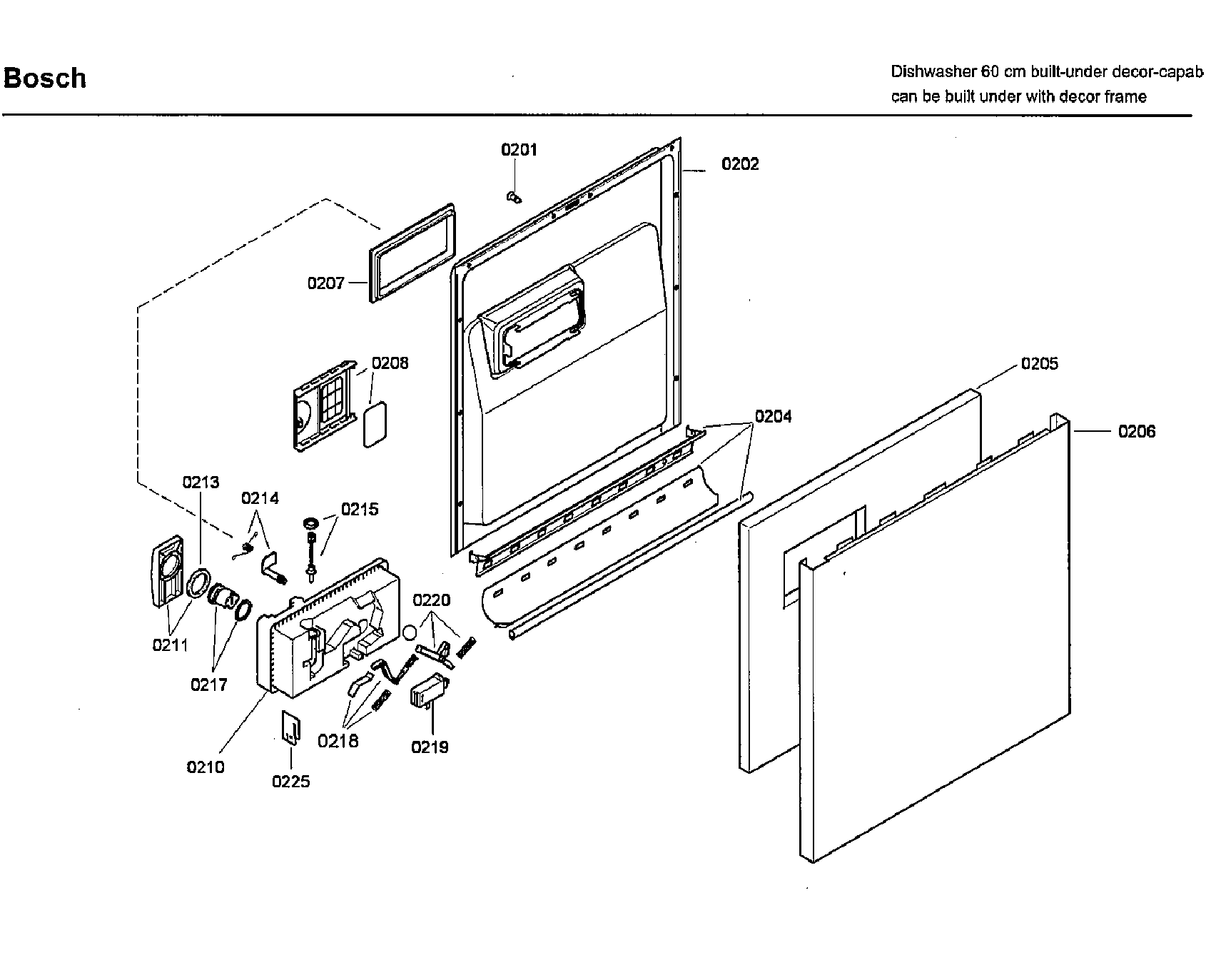

Door diagram

Appliance screw

Part #00151703

This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Dishwasher Dishrack Slide Rail Stop, Upper 00165254
#336

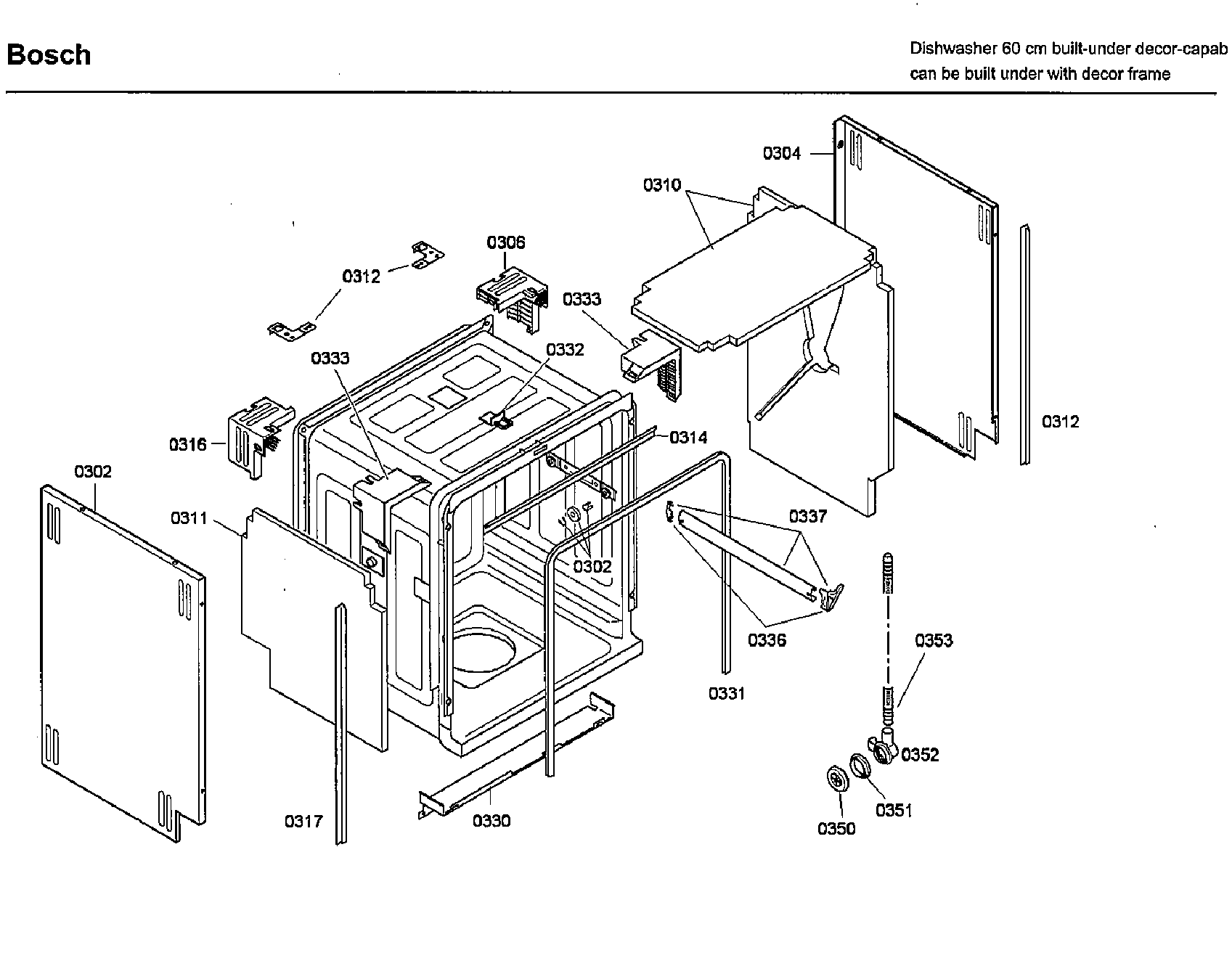

Cabinet diagram

Dishwasher dishrack slide rail stop, upper

Part #00165254

This item is not returnable
$15.56 |
11% OFF Phone Price : $17.56
In Stock
Dishwasher Door Seal (replaces 263096) 00263096
#331

Cabinet diagram

Dishwasher door seal (replaces 263096)

Part #00263096

$77.20 |
7% OFF Phone Price : $83.20
In Stock
Dishwasher Door Hinge Lever Bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296) 00165296
#504

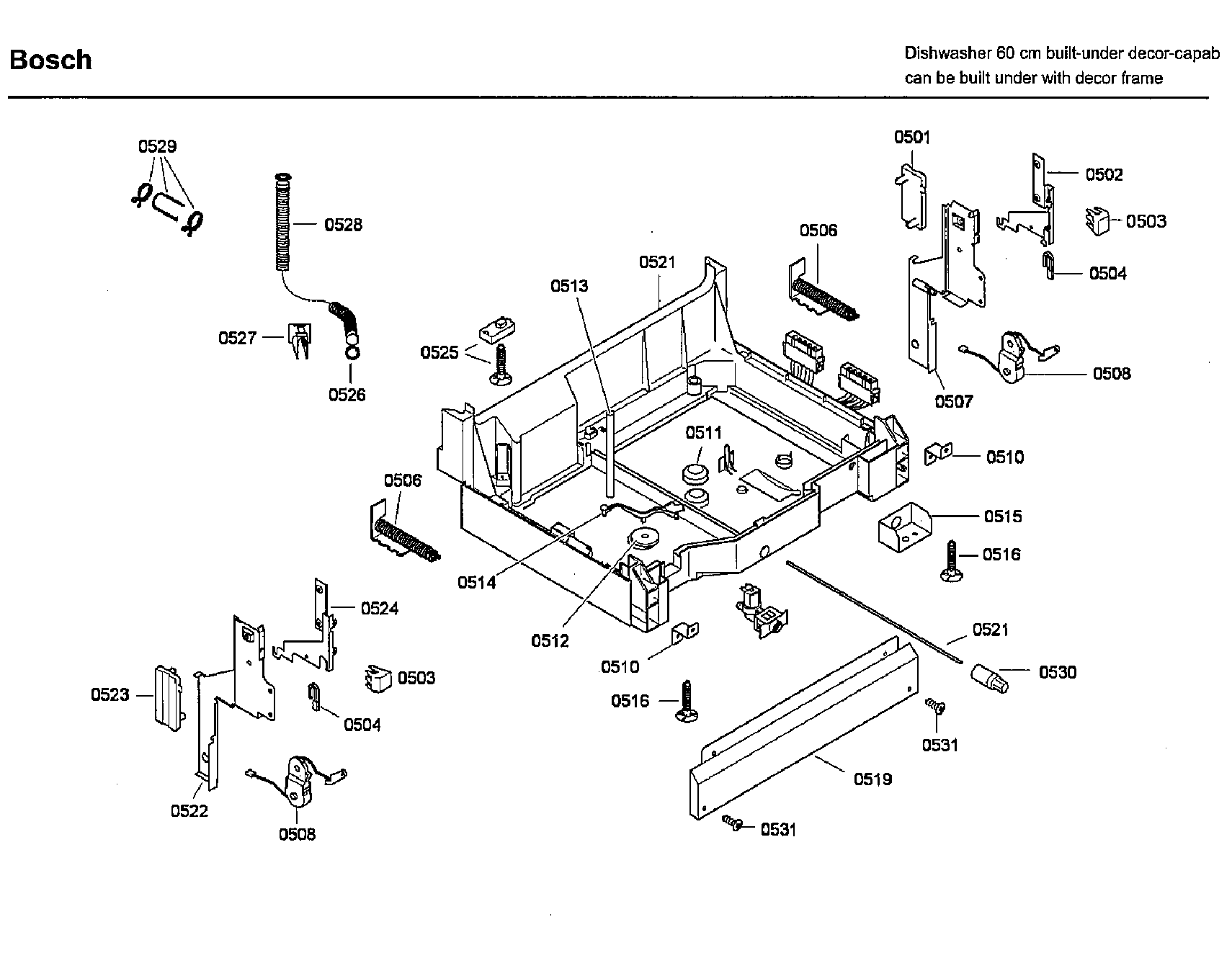

Base diagram

Dishwasher door hinge lever bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296)

Part #00165296

This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Dishwasher Spray Arm, Upper (replaces 00298594, 00350644, 359976) 00359976
#612

Baskets diagram

Dishwasher spray arm, upper (replaces 00298594, 00350644, 359976)

Part #00359976

$58.41 |
9% OFF Phone Price : $64.41
In Stock
Dishwasher Drain Hose (replaces 263099) 00263099
#430

Pump diagram

Dishwasher drain hose (replaces 263099)

Part #00263099

$17.16 |
10% OFF Phone Price : $19.16
In Stock
