Model # RP130WW Official Broan range hood

Here are the diagrams and repair parts for Official Broan RP130WW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Range Hood Motor Retainer Ring 98005212
#19

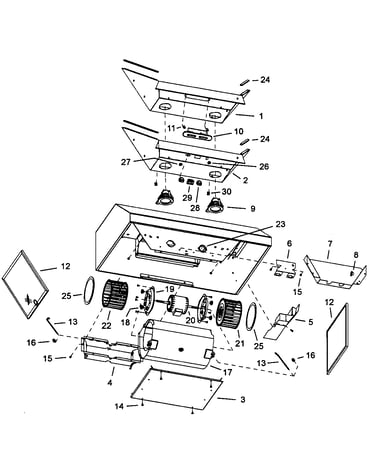

Range hood diagram

Range hood motor retainer ring

Part #98005212

Replaced by #S98005212

?
Manufacturer substitution
This part replaces 98005212. Substitute parts can look different from the original.
This item is not returnable
$4.72
In Stock
Range Hood Blower Wheel Assembly 99020142
#21

Range hood diagram

Range hood blower wheel assembly

Part #99020142

Replaced by #S99020142

?
Manufacturer substitution
This part replaces 99020142. Substitute parts can look different from the original.
$23.58
In Stock
Range Hood Counterclockwise Blower Wheel Assembly 99020143
#22

Range hood diagram

Range hood counterclockwise blower wheel assembly

Part #99020143

Replaced by #S99020143

?
Manufacturer substitution
This part replaces 99020143. Substitute parts can look different from the original.
$25.15
In Stock
Range Hood Fan Motor Mount 99100491
#18

Range hood diagram

Range hood fan motor mount

Part #99100491

The manufacturer no longer makes this part, and there's no substitute part

Ring Assembly 99271346
#9

Range hood diagram

Ring assembly

Part #99271346

$34.00
In Stock
Range Hood Grease Filter 97017455
#12

Range hood diagram

Range hood grease filter

Part #97017455

This item is not returnable
$28.39 |
17% OFF Phone Price : $34.39
In Stock
Range Hood Filter 97017456
#12A

Range hood diagram

Range hood filter

Part #97017456

$51.08 |
11% OFF Phone Price : $57.08
In Stock
Range Hood Fan Switch (white) 97016971
#29

Range hood diagram

Range hood fan switch (white)

Part #97016971

This item is not returnable
$25.71
In Stock
Motor 99080597
#20

Range hood diagram

Motor

Part #99080597

$94.63
In Stock
Range Hood Fan Speed Control Knob (white) 600349
#28

Range hood diagram

Range hood fan speed control knob (white)

Part #600349

This item is not returnable
$4.89
In Stock
