Model # GSD3300R20WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE GSD3300R20WW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Dishwasher Pump And Motor Assembly (replaces Wd26x10035) WD26X10051
#310

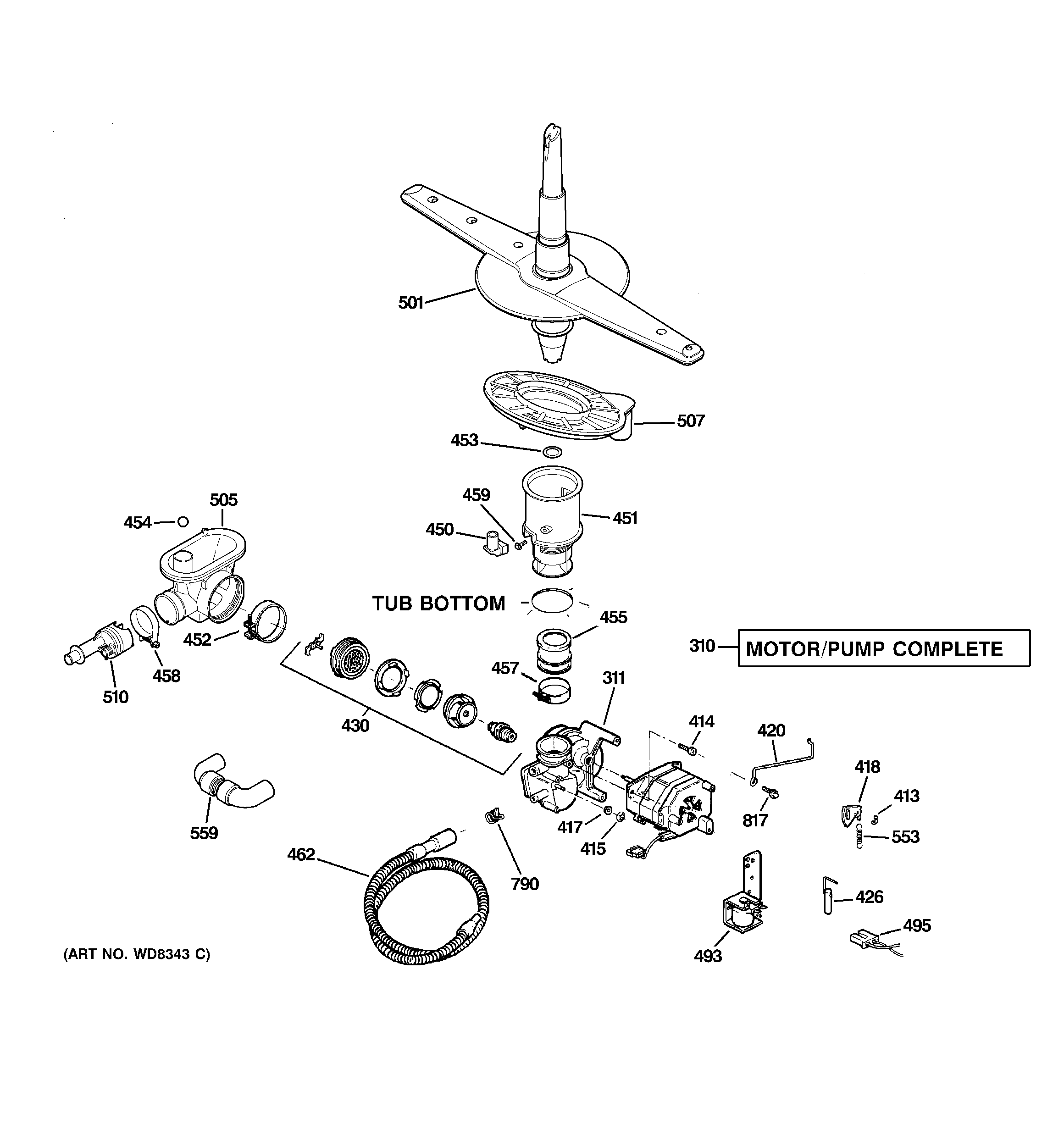

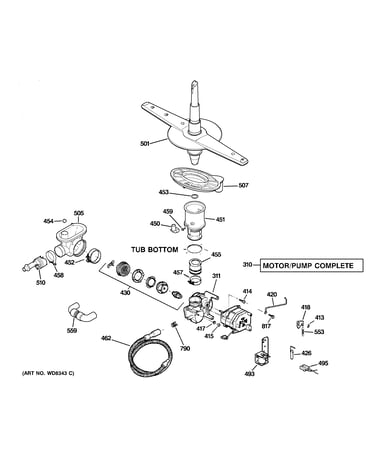

Motor-pump mechanism diagram

Dishwasher pump and motor assembly (replaces wd26x10035)

Part #WD26X10051

BEST SELLER
$153.00 |
10% OFF Was : $169.99
In Stock
Dishwasher Dishrack, Lower (replaces Wd28x10041, Wd28x10053, Wd28x10054, Wd28x10335) WD28X10284
#701

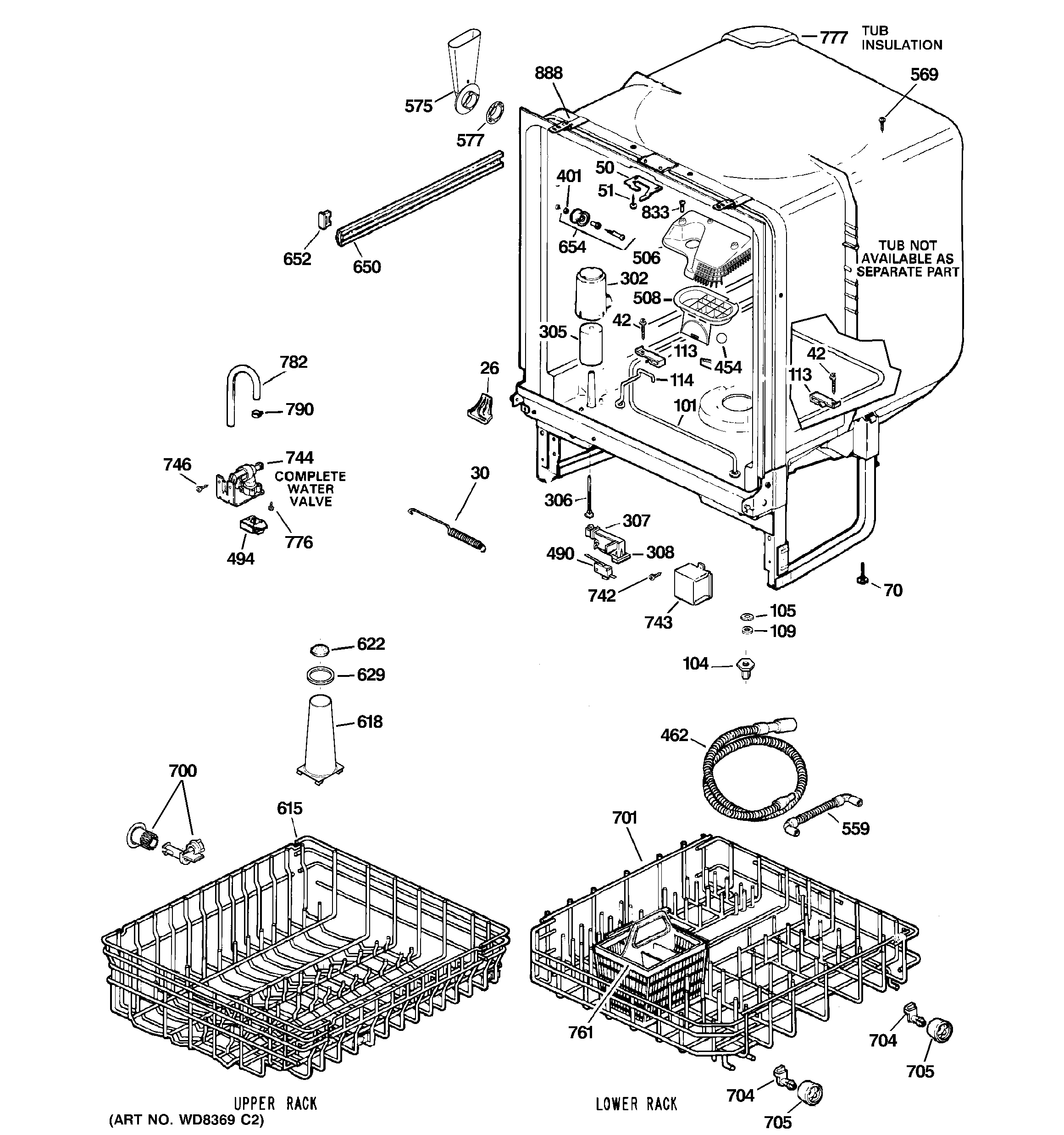

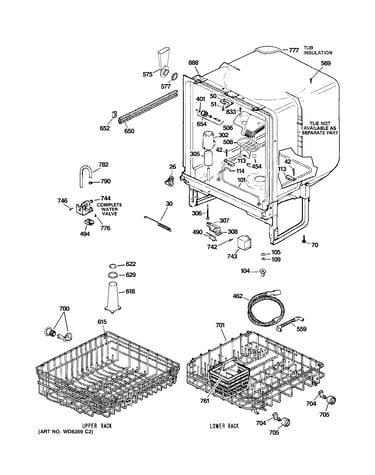

Body parts diagram

Dishwasher dishrack, lower (replaces wd28x10041, wd28x10053, wd28x10054, wd28x10335)

Part #WD28X10284

Replaced by #WD28X31819

?
Manufacturer substitution
This part replaces WD28X10284. Substitute parts can look different from the original.
BEST SELLER
$115.44 |
9% OFF Phone Price : $127.44
In Stock
Dishwasher Drain Solenoid Assembly (replaces Wd21x10071) WD21X10268
#493

Motor-pump mechanism diagram

Dishwasher drain solenoid assembly (replaces wd21x10071)

Part #WD21X10268

BEST SELLER
$41.53 |
13% OFF Phone Price : $47.53
In Stock
Bafle Tubcnr WD08X0227
#26

Body parts diagram

Bafle tubcnr

Part #WD08X0227

Replaced by #WD8X227

?
Manufacturer substitution
This part replaces WD08X0227. Substitute parts can look different from the original.
BEST SELLER
$19.45 |
9% OFF Phone Price : $21.45
In Stock
Water Valve WD15X10011
#744

Body parts diagram

Water valve

Part #WD15X10011

Replaced by #WD15X10014

?
Manufacturer substitution
This part replaces WD15X10011. Substitute parts can look different from the original.
BEST SELLER
$33.34 |
15% OFF Phone Price : $39.34
In Stock
Bafle Tubcn WD08X0228
#26

Body parts diagram

Bafle tubcn

Part #WD08X0228

Replaced by #WD8X228

?
Manufacturer substitution
This part replaces WD08X0228. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Dishwasher Door Switch (replaces Wd21x557) WD21X10261
#803

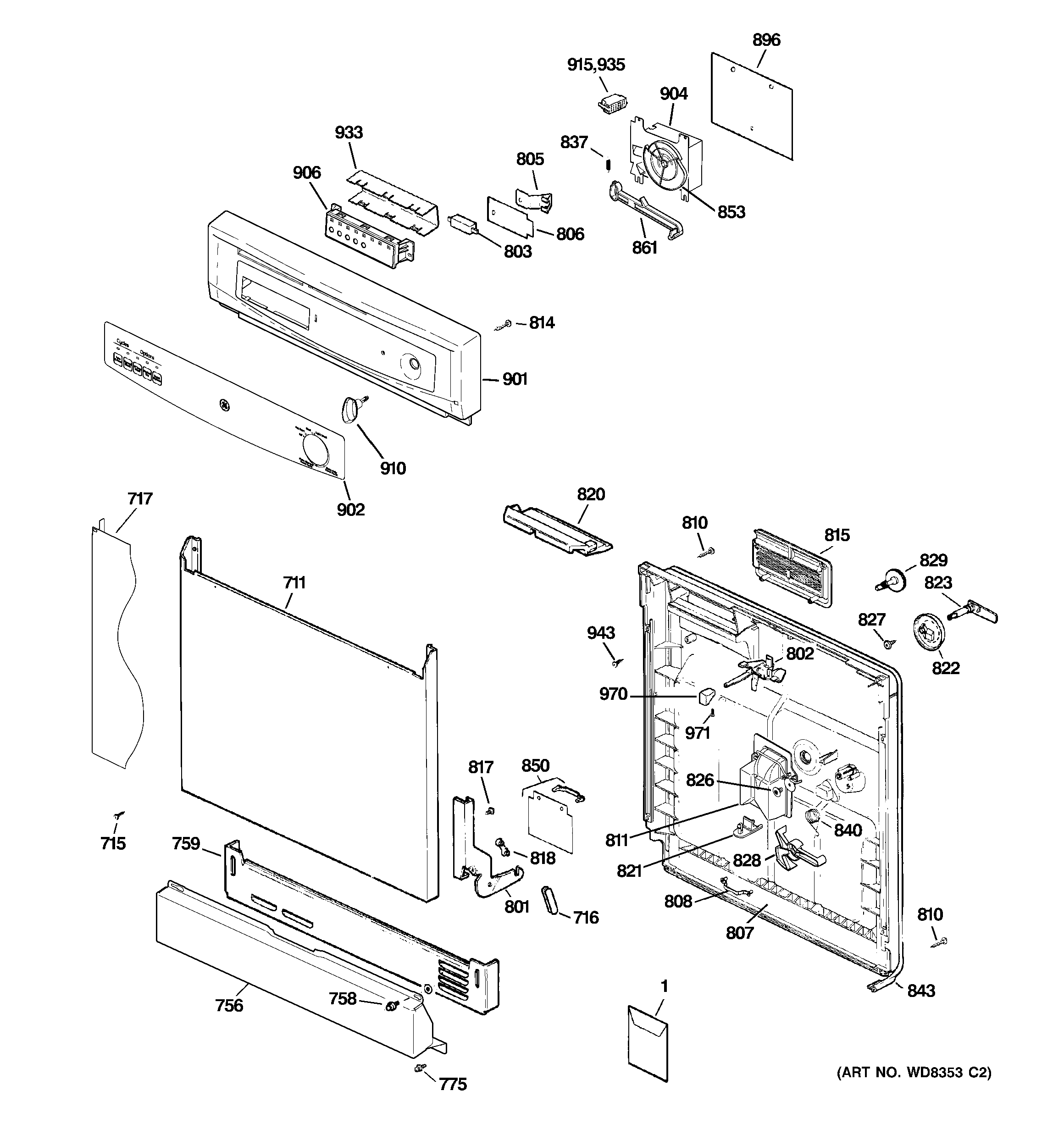

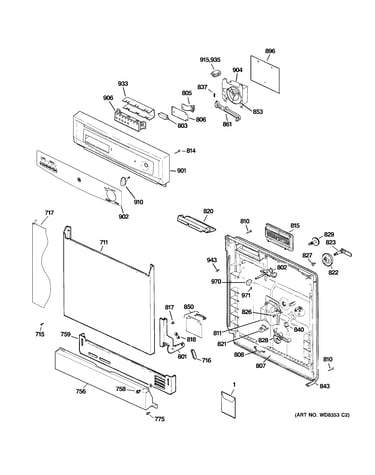

Escutcheon & door assembly diagram

Dishwasher door switch (replaces wd21x557)

Part #WD21X10261

BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Dishwasher Rack WD28X10220
#615

Body parts diagram

Dishwasher rack

Part #WD28X10220

Replaced by #WD28X31820

?
Manufacturer substitution
This part replaces WD28X10220. Substitute parts can look different from the original.
BEST SELLER
$112.17 |
10% OFF Phone Price : $124.17
In Stock
Dishwasher Drain Hose (replaces Wd24x10003) WD24X10014
Dishwasher drain hose (replaces wd24x10003)

Part #WD24X10014

BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Dishwasher Heating Element Nut WD01X10070
#104

Body parts diagram

Dishwasher heating element nut

Part #WD01X10070

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
