Model # FEB24S5AQA Official Frigidaire electric oven
Here are the diagrams and repair parts for Official Frigidaire FEB24S5AQA electric oven, as well as links to manuals and error code tables, if available.

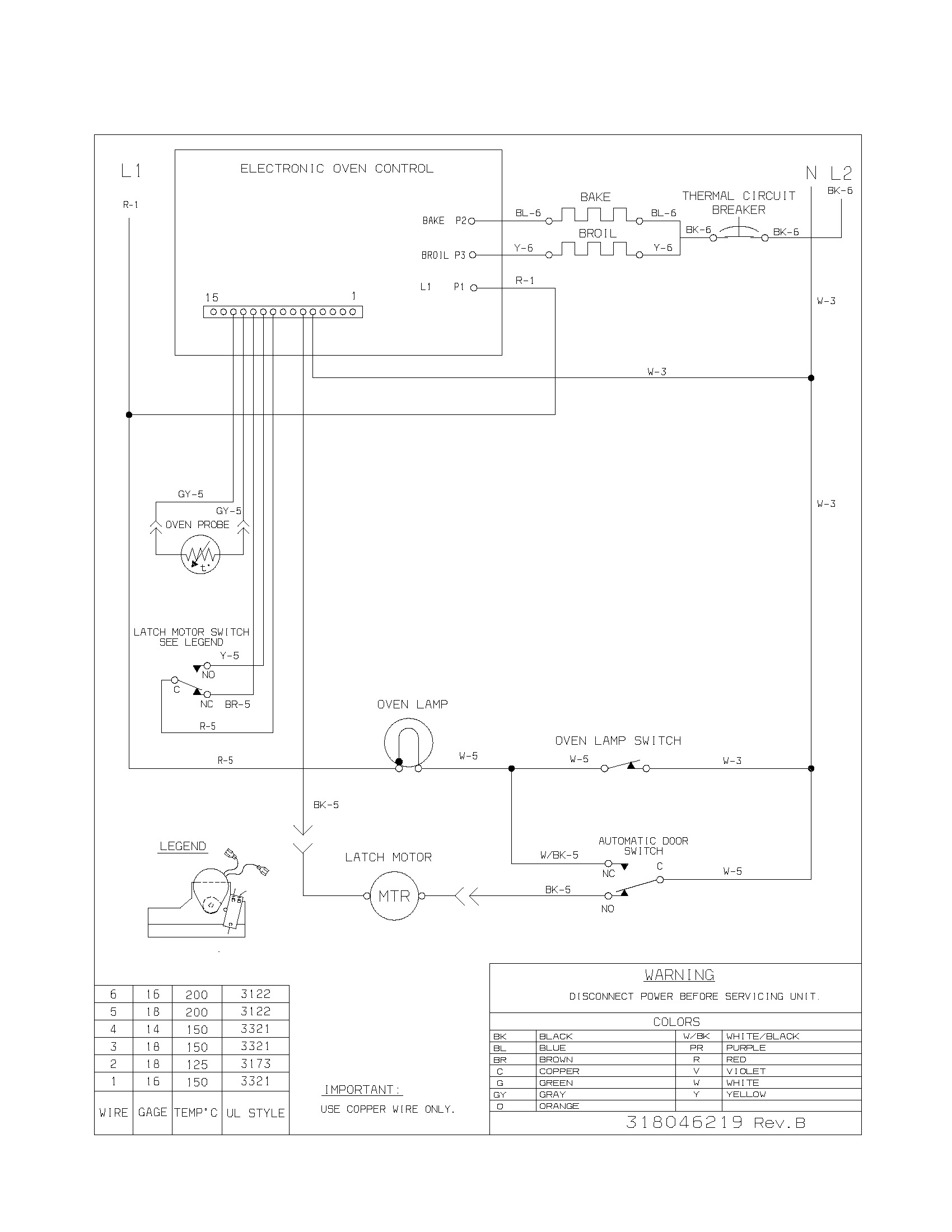

Error CodesBy Schematic
By Part

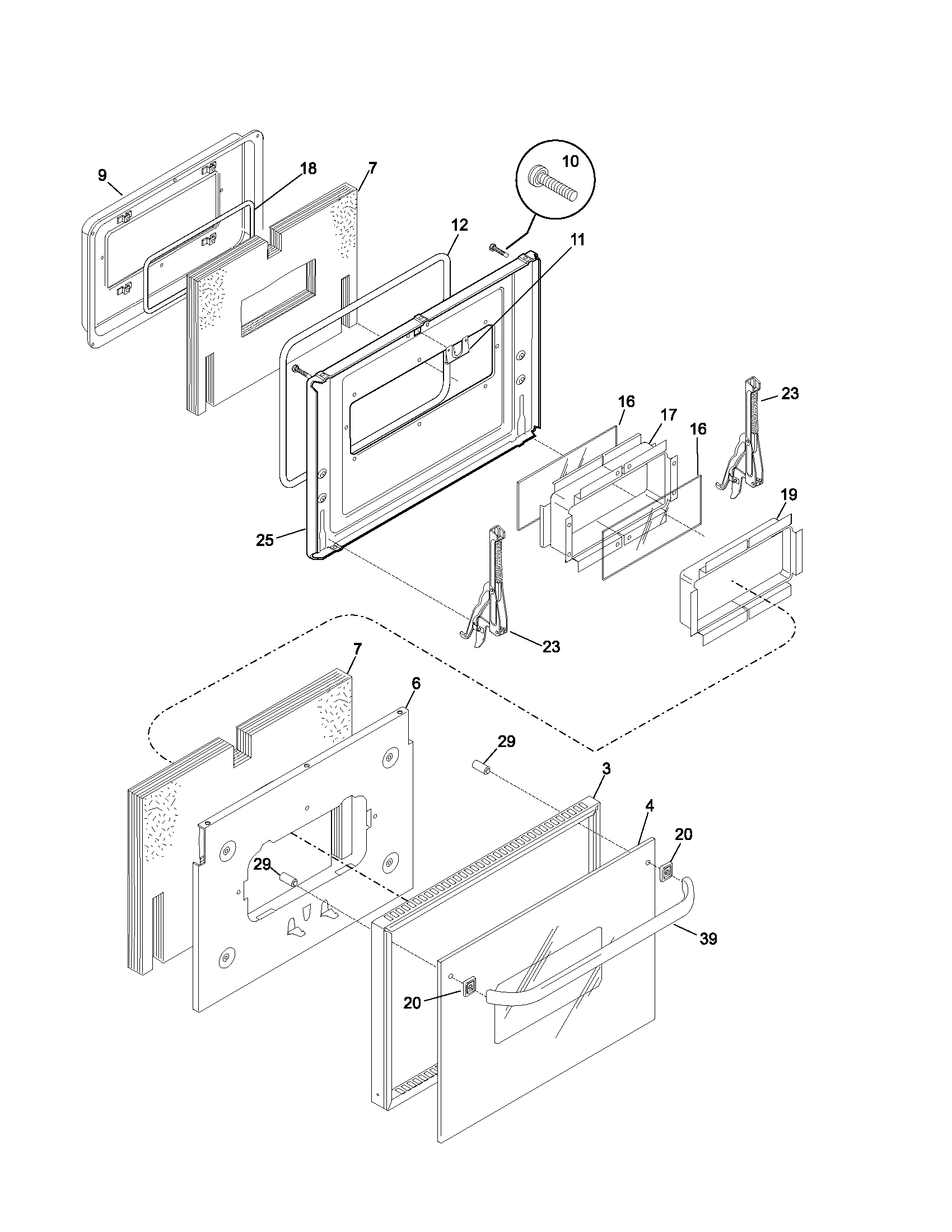

SELECT DIAGRAM
Browse Parts forFEB24S5AQA Wall Ovens
- #15

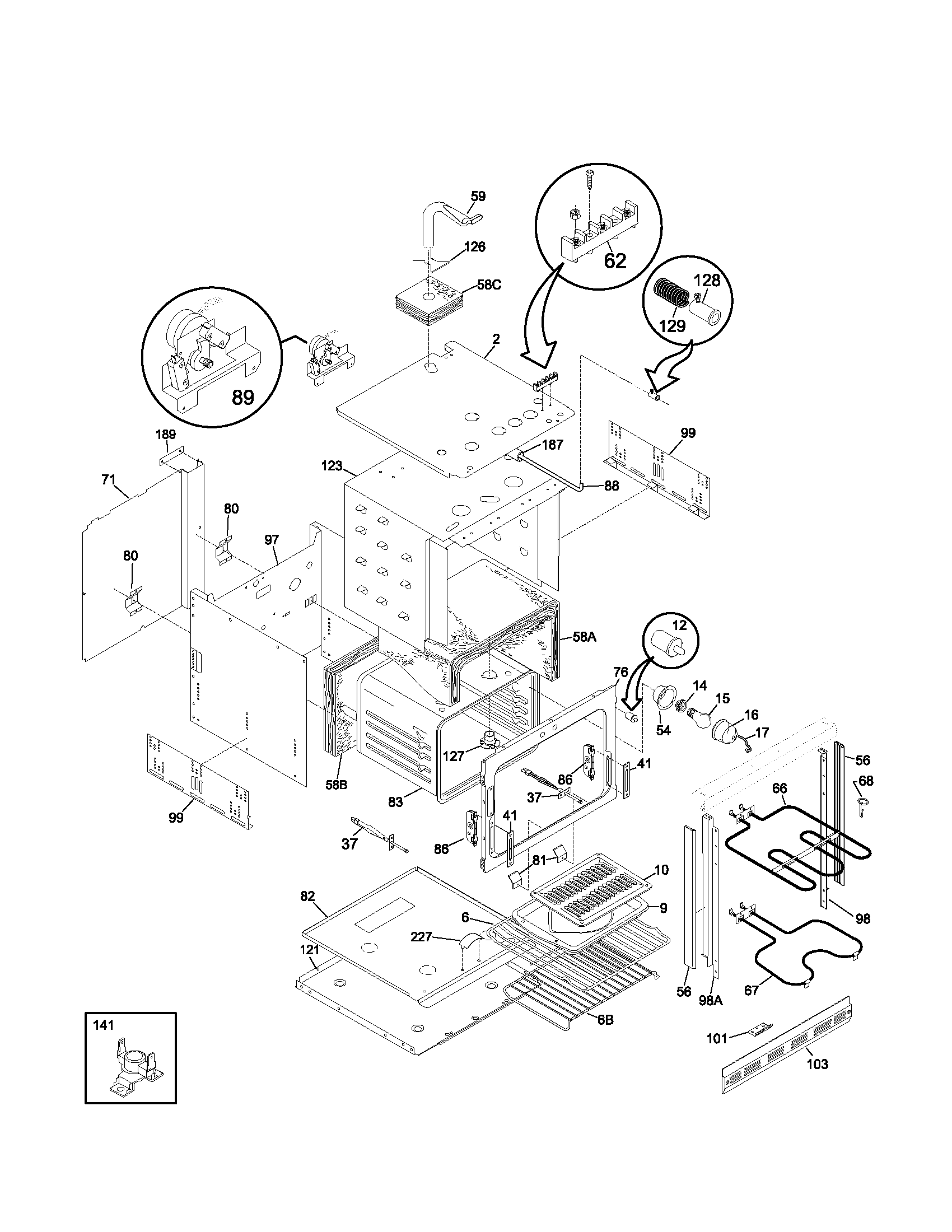

Body diagram
BulbPart #3201908
Replaced by #316538904
?Manufacturer substitutionThis part replaces 3201908. Substitute parts can look different from the original.$15.89 |11% OFF Phone Price : $17.89In Stock - #62
Body diagram
Terminal blockPart #5303310518
Replaced by #5304409888
?Manufacturer substitutionThis part replaces 5303310518. Substitute parts can look different from the original.$22.93 |21% OFF Phone Price : $28.93In Stock - #67
Body diagram
Bake elementPart #5303323865
Replaced by #318255101
?Manufacturer substitutionThis part replaces 5303323865. Substitute parts can look different from the original.$117.96 |9% OFF Phone Price : $129.96In Stock - Screw
Part #08016432
Replaced by #131243700
?Manufacturer substitutionThis part replaces 08016432. Substitute parts can look different from the original.$55.42In Stock - #14
Body diagram
ReceptaclePart #5308011085
Replaced by #316116400
?Manufacturer substitutionThis part replaces 5308011085. Substitute parts can look different from the original.$43.02 |12% OFF Phone Price : $49.02In Stock - #12
Body diagram
Oven light switchPart #318089910
Replaced by #318394803
?Manufacturer substitutionThis part replaces 318089910. Substitute parts can look different from the original.$35.89 |14% OFF Phone Price : $41.89In Stock - #24

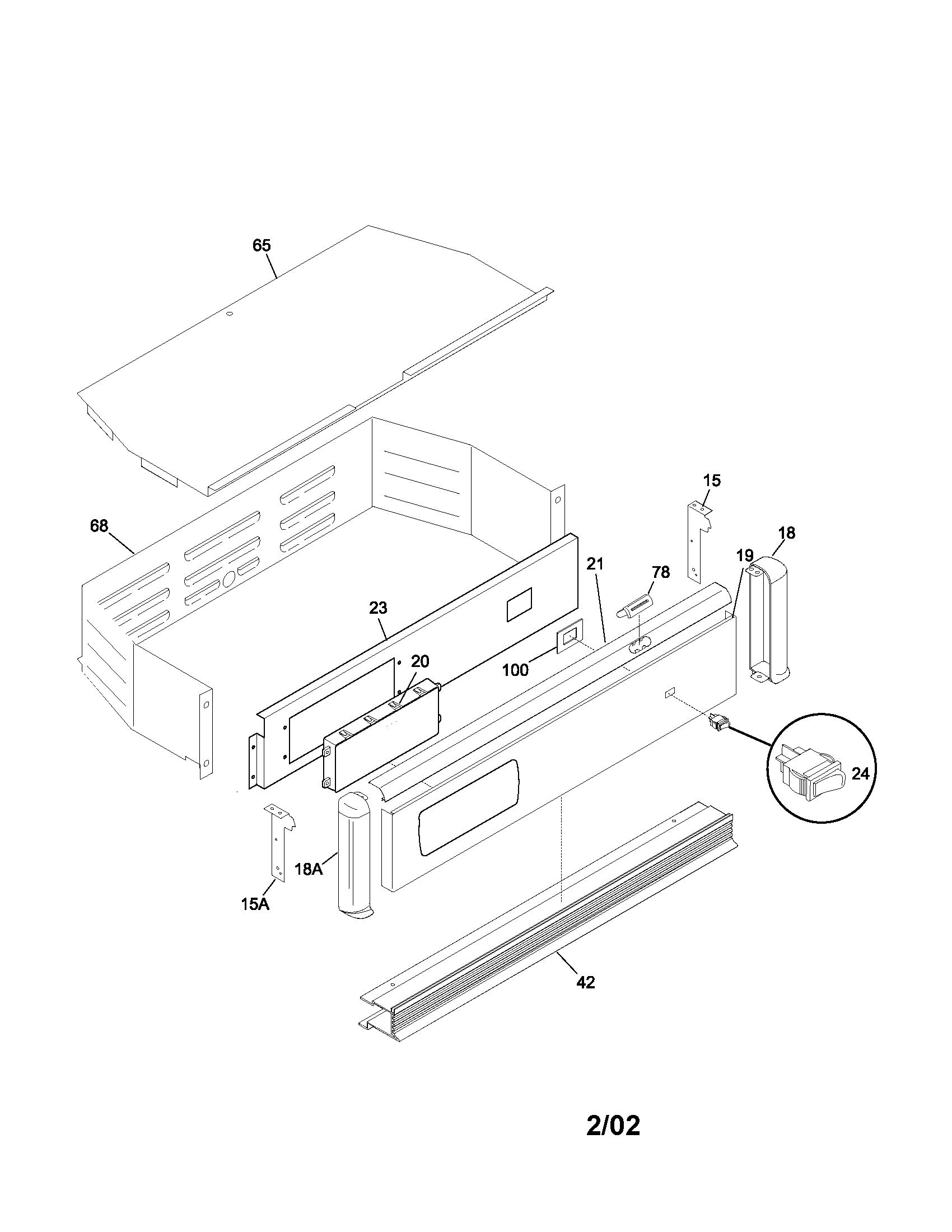

Control panel diagram
Rocker switchPart #316005607
Replaced by #5304527842
?Manufacturer substitutionThis part replaces 316005607. Substitute parts can look different from the original.This item is not returnable$11.14 |15% OFF Phone Price : $13.14In Stock - Range screw
Part #5303300265
This item is not returnable$16.40In Stock - #123
Body diagram
Shield,insulation ,top & sidesPart #318071443
$117.88In Stock - #NI
Control panel diagram
Range screw, #10-24 x 1/2-inPart #08002868
$15.73 |11% OFF Phone Price : $17.73In Stock
