Model # FGES3045KWC Official Frigidaire electric range
Here are the diagrams and repair parts for Official Frigidaire FGES3045KWC electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

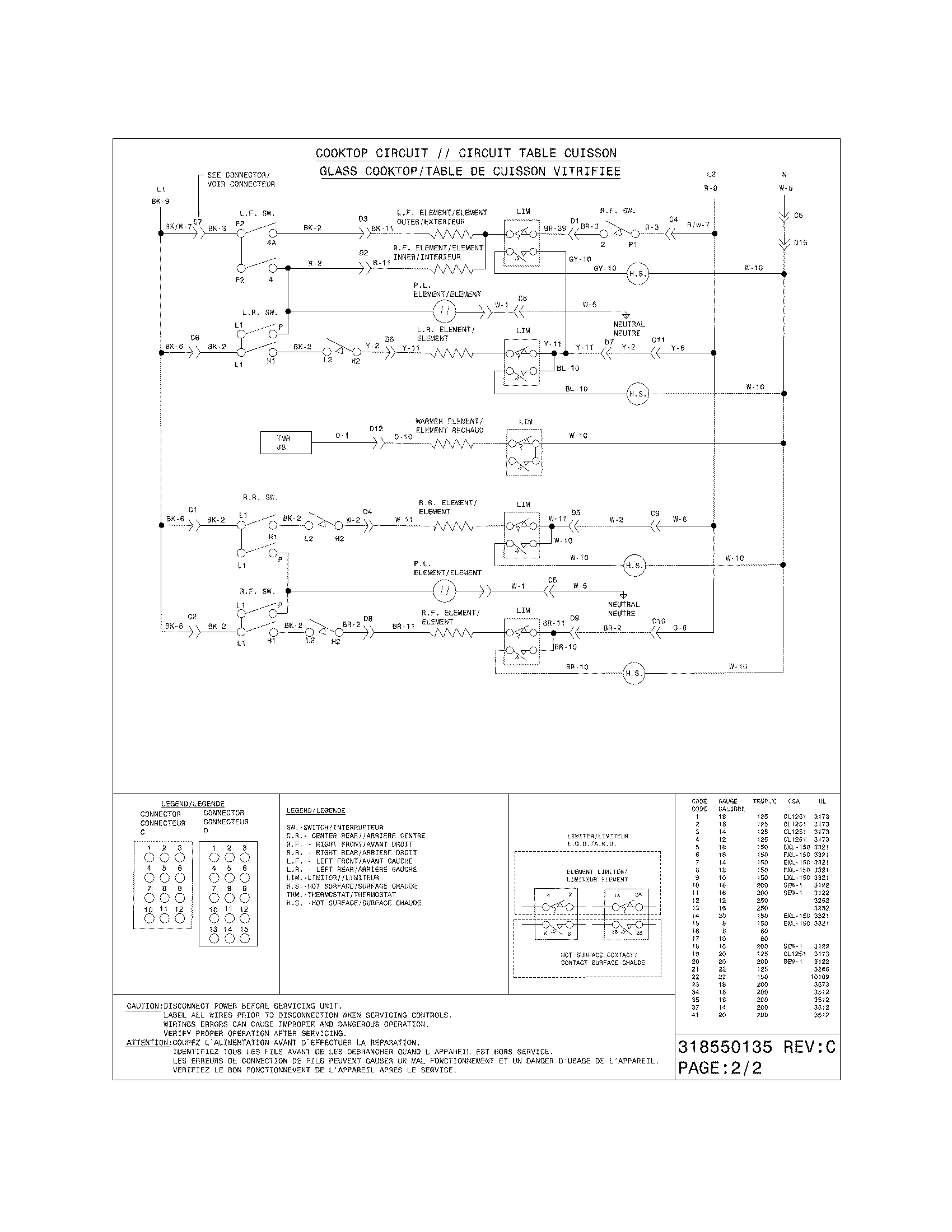

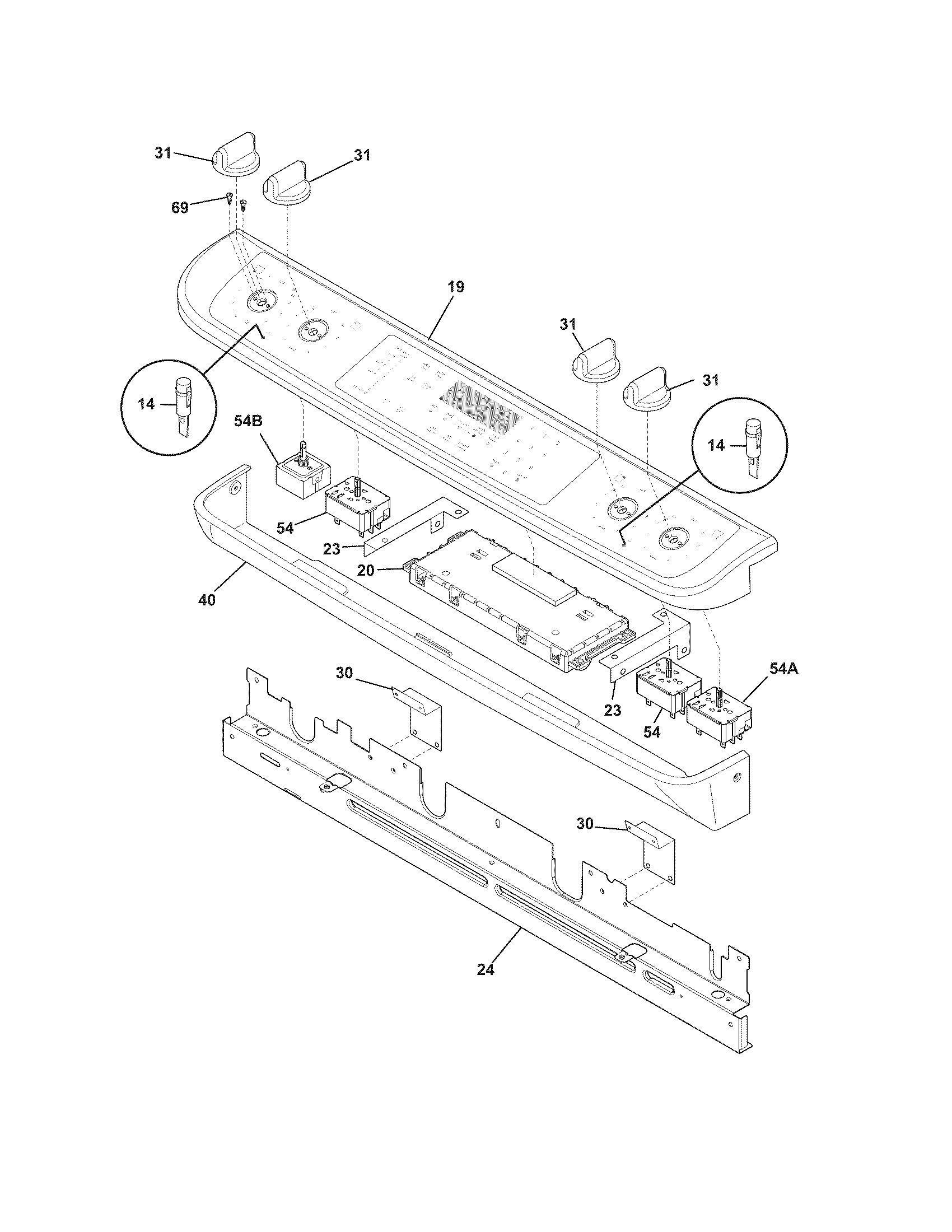

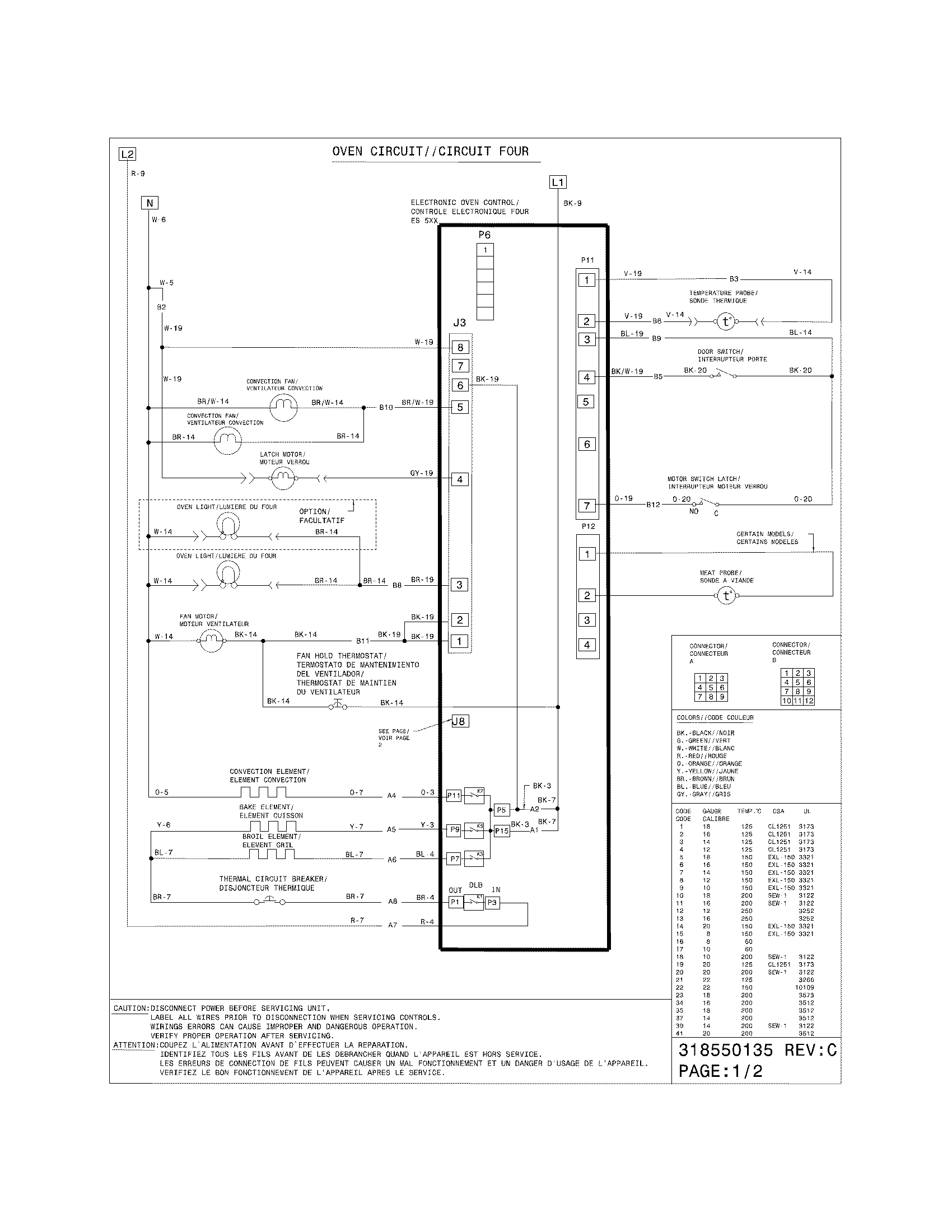

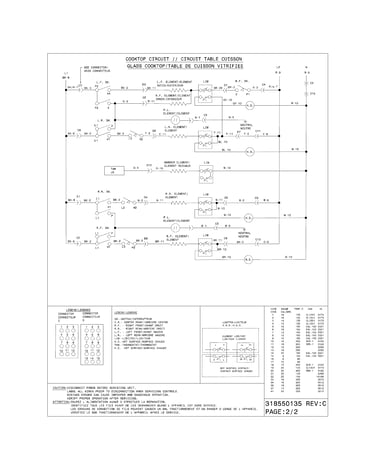

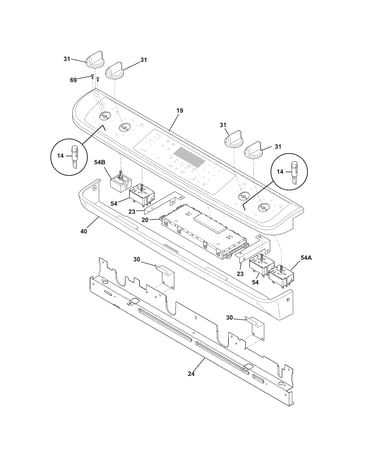

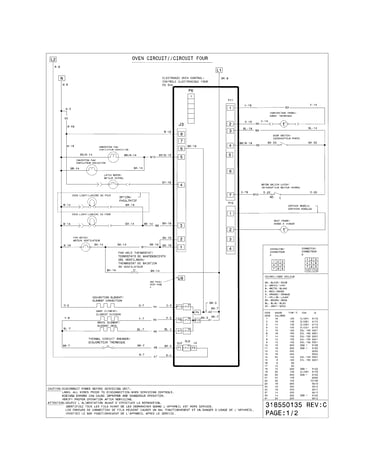

SELECT DIAGRAM
Browse Parts forFGES3045KWC Ranges
- #8

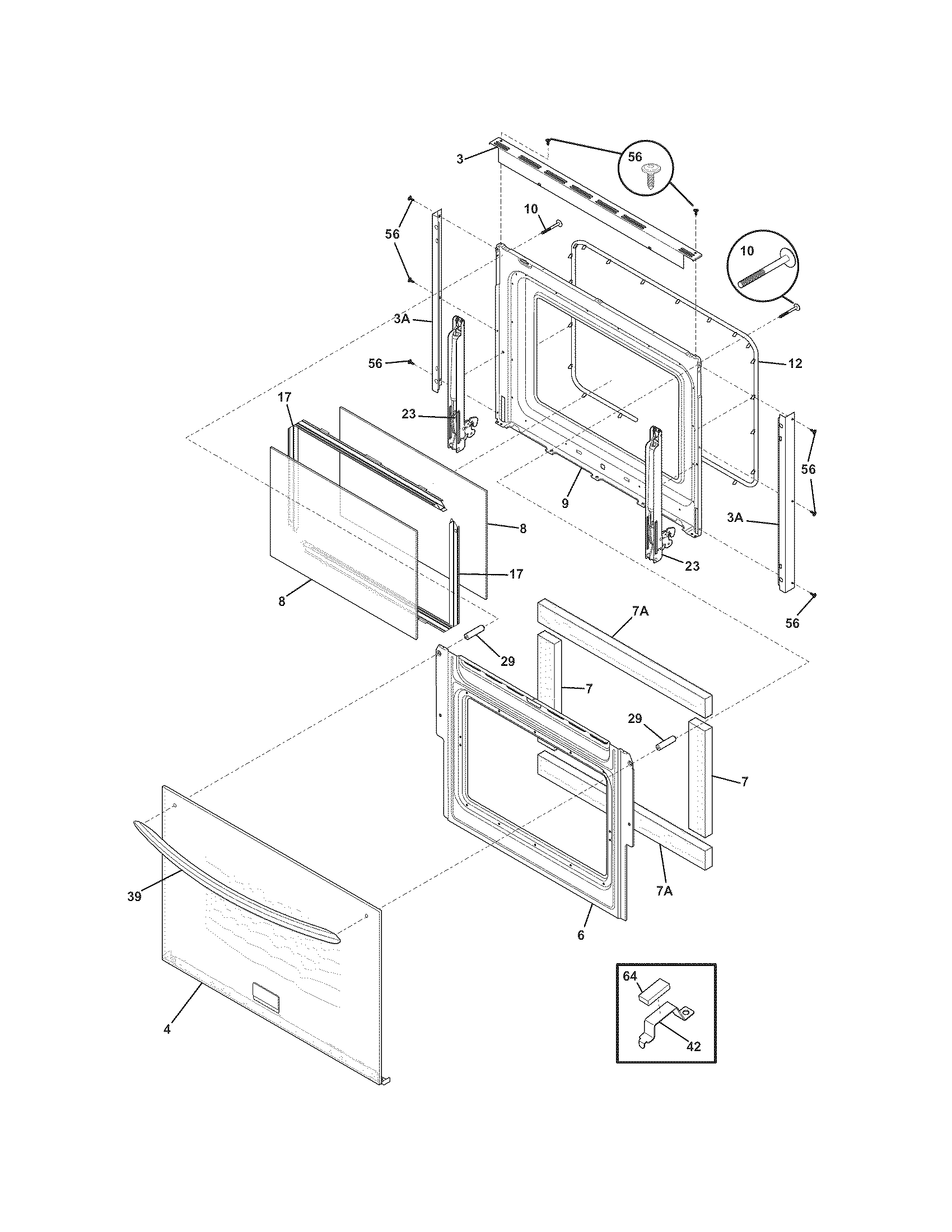

Door diagram
Range oven door inner glassPart #316117502
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117502. Substitute parts can look different from the original.$72.95 |8% OFF Phone Price : $78.95In Stock - #37

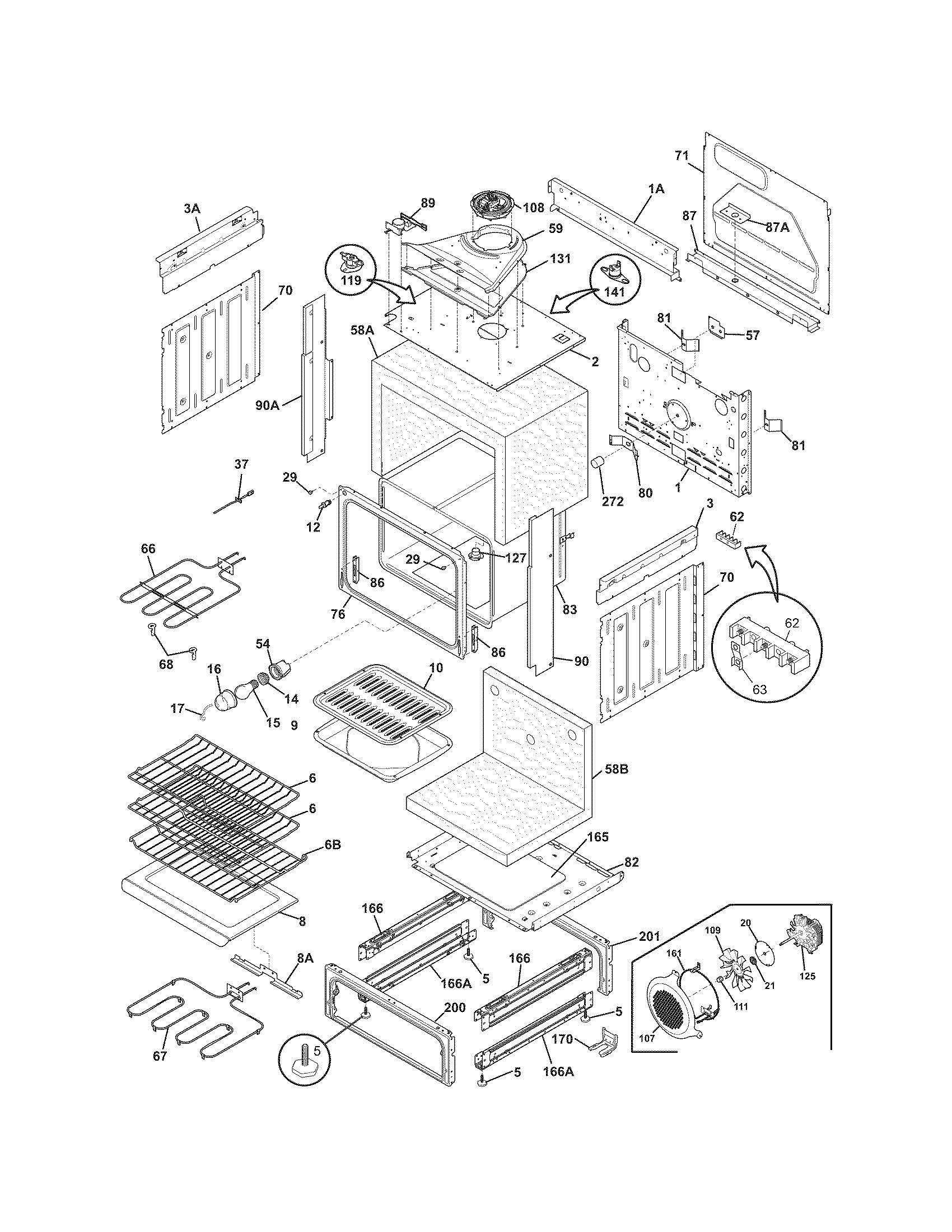

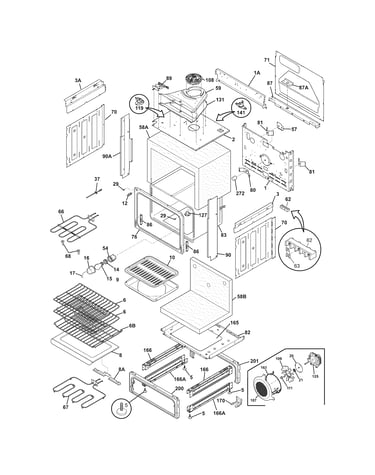

Body diagram
Range oven temperature sensorPart #318562500
Replaced by #5304504897
?Manufacturer substitutionThis part replaces 318562500. Substitute parts can look different from the original.$29.58 |17% OFF Phone Price : $35.58In Stock - #62
Body diagram
Terminal blockPart #5303935061
Replaced by #5304409888
?Manufacturer substitutionThis part replaces 5303935061. Substitute parts can look different from the original.$9.33 |10% OFF Phone Price : $10.33In Stock - #109
Body diagram
Range convection fan bladePart #318398302
$23.24 |21% OFF Phone Price : $29.24In Stock - #15A

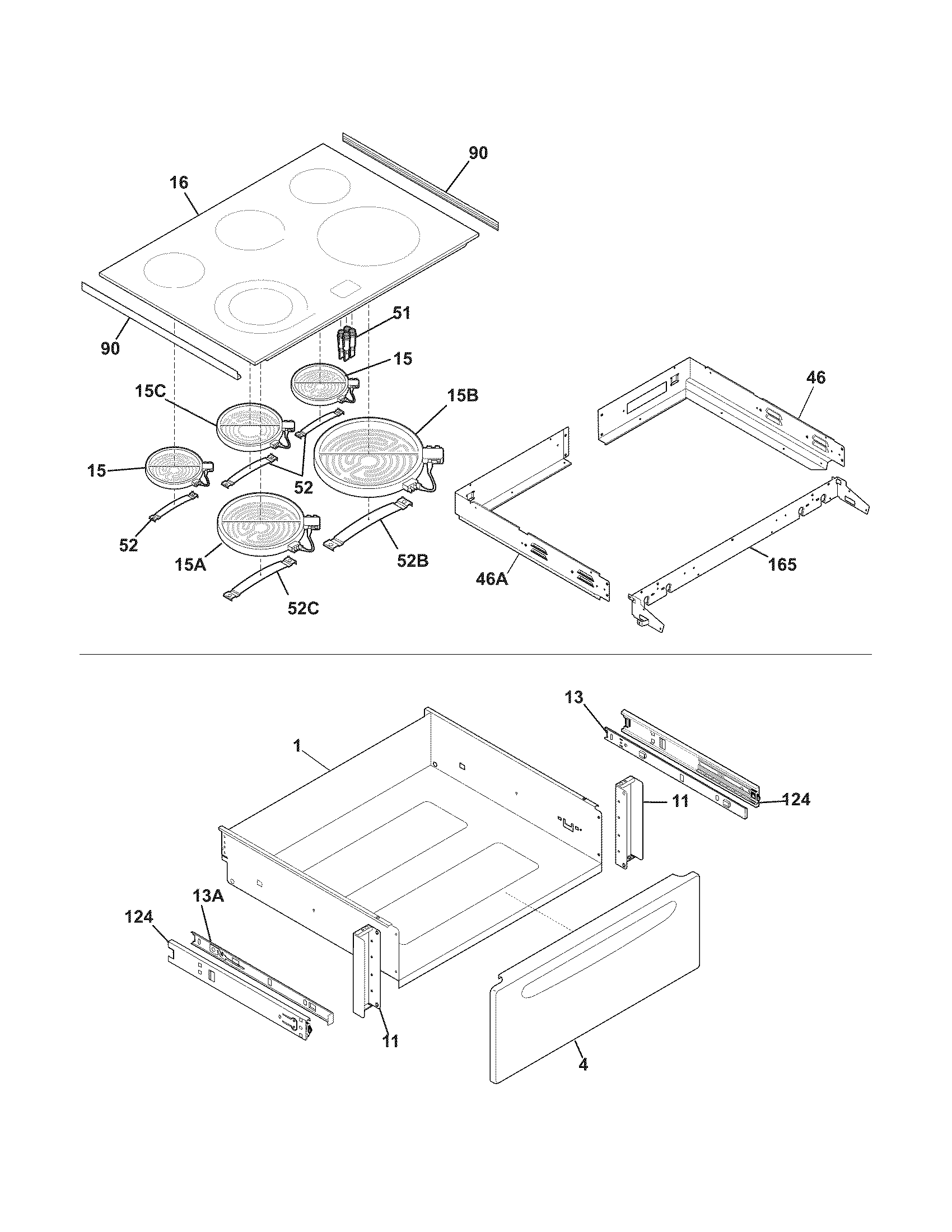

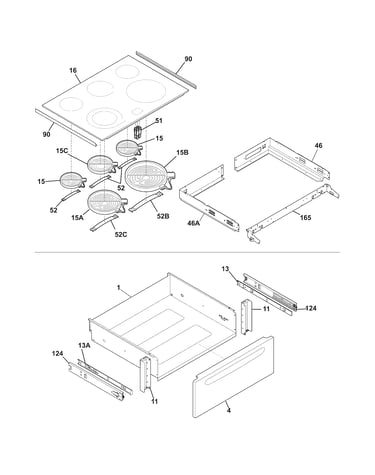

Top/drawer diagram
Surface elementPart #316465002
Replaced by #5304533520
?Manufacturer substitutionThis part replaces 316465002. Substitute parts can look different from the original.$74.86 |7% OFF Phone Price : $80.86In Stock - #15B
Top/drawer diagram
ElementPart #318198827
Replaced by #316291200
?Manufacturer substitutionThis part replaces 318198827. Substitute parts can look different from the original.$136.30 |8% OFF Phone Price : $148.30In Stock - #12
Body diagram
Range oven door switchPart #316445501
$59.43 |9% OFF Phone Price : $65.43In Stock - #125
Body diagram
Range convection fan motorPart #318398201
Replaced by #5304463302
?Manufacturer substitutionThis part replaces 318398201. Substitute parts can look different from the original.$193.90 |6% OFF Phone Price : $205.90In Stock - #10
Door diagram
Range screwPart #5304453223
This item is not returnable$13.69 |13% OFF Phone Price : $15.69In Stock - #108
Body diagram
Range oven cooling fan assemblyPart #318575600
$130.53 |8% OFF Phone Price : $142.53In Stock
