Model # FUF20DABRWH Official GE freezer - b series

Here are the diagrams and repair parts for Official GE FUF20DABRWH freezer - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Refrigerator Filter Dryer WR86X96
#740

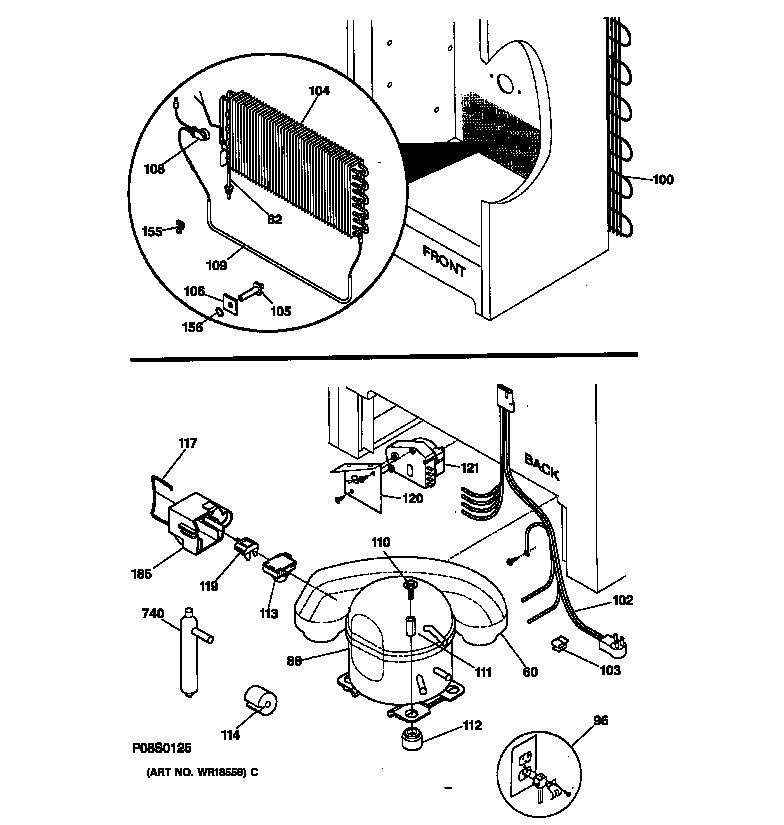

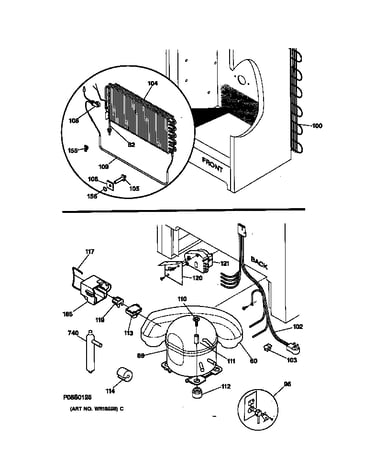

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X108
#102

Unit parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Complete Lock WR5X10001
#12

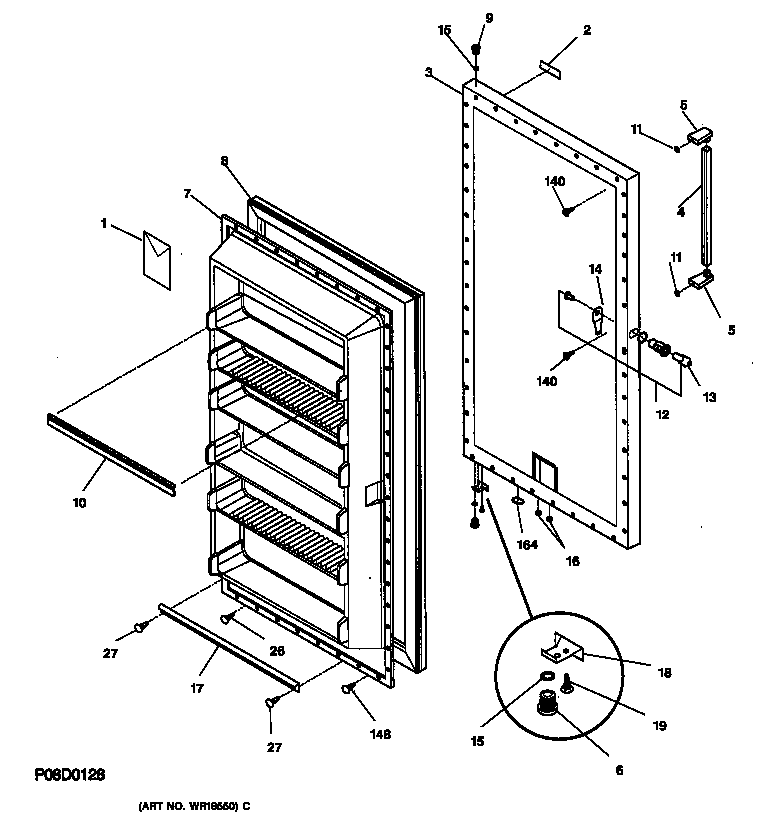

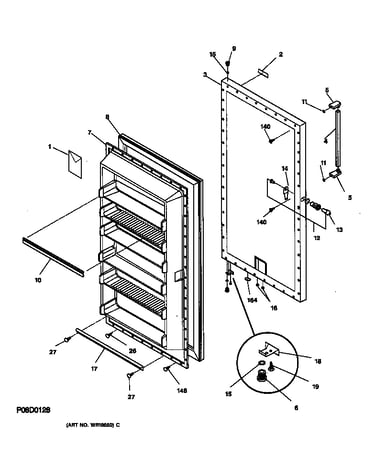

Door diagram

Complete lock

Part #WR5X10001

$21.99
In Stock
Bracket WR2X8729
#152

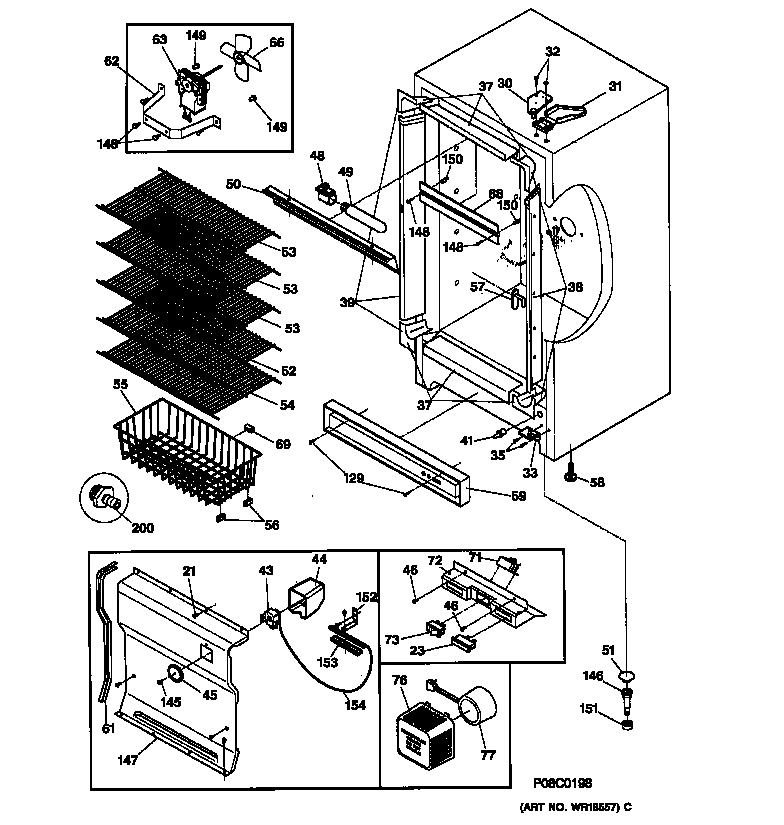

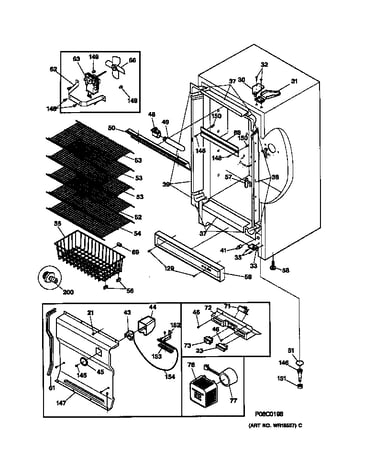

Cabinet diagram

Bracket

Part #WR2X8729

$14.11
In Stock
Mtg. Slee WR2X9497
#111

Unit parts diagram

Mtg. slee

Part #WR2X9497

$45.51
In Stock
Starter WR7X10003
#113

Unit parts diagram

Starter

Part #WR7X10003

$37.99
In Stock
Freezer Basket Bumper WR2X6361
#69

Cabinet diagram

Freezer basket bumper

Part #WR2X6361

$17.11
In Stock
Insulator WR2X9500
#154

Cabinet diagram

Insulator

Part #WR2X9500

$37.40
In Stock
Toe Screw WR1X2209
#129

Cabinet diagram

Toe screw

Part #WR1X2209

$7.51
In Stock
Freezer Leveling Leg WR2X9485
#58

Cabinet diagram

Freezer leveling leg

Part #WR2X9485

$20.43 |
23% OFF Phone Price : $26.43
In Stock
