Kenmore
Gas Range

Model # 103730621 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 103730621 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Support 86931
#44

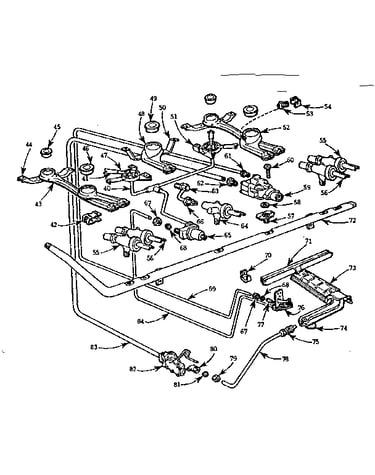

Burner section diagram

Support

Part #86931

This item is not returnable
$2.29
In Stock
Drawer Guide 97820
#98B

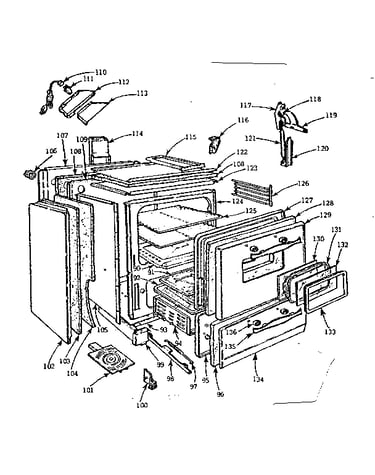

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Loxit Nut 79719
#66

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Door Arm 97758
#119A

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Trim Clip 70588
#8

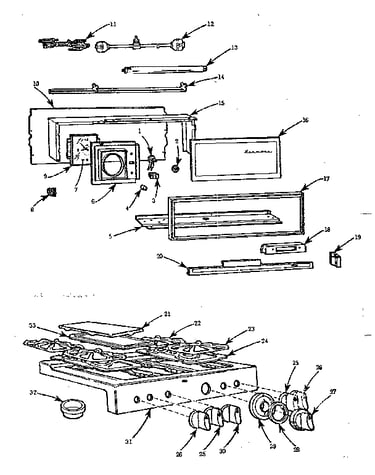

Backguard and maintop diagram

Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Therm Gasket 96365
#58

Burner section diagram

Therm gasket

Part #96365

The manufacturer no longer makes this part, and there's no substitute part

Burner Body 71568
#52A

Burner section diagram

Burner body

Part #71568

The manufacturer no longer makes this part, and there's no substitute part

Frame 75857
#154

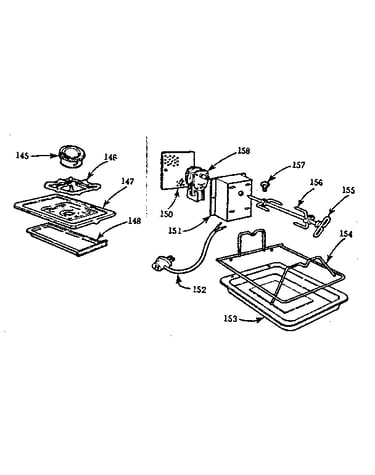

Optional equipment diagram

Frame

Part #75857

The manufacturer no longer makes this part, and there's no substitute part

Burner Bowl 88035
#24B

Backguard and maintop diagram

Burner bowl

Part #88035

The manufacturer no longer makes this part, and there's no substitute part
