Electric Range

Model # 72196043610 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 72196043610 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for72196043610 Ranges

  • Lg Range Dual Radiant Element MEE62385201
    #3302

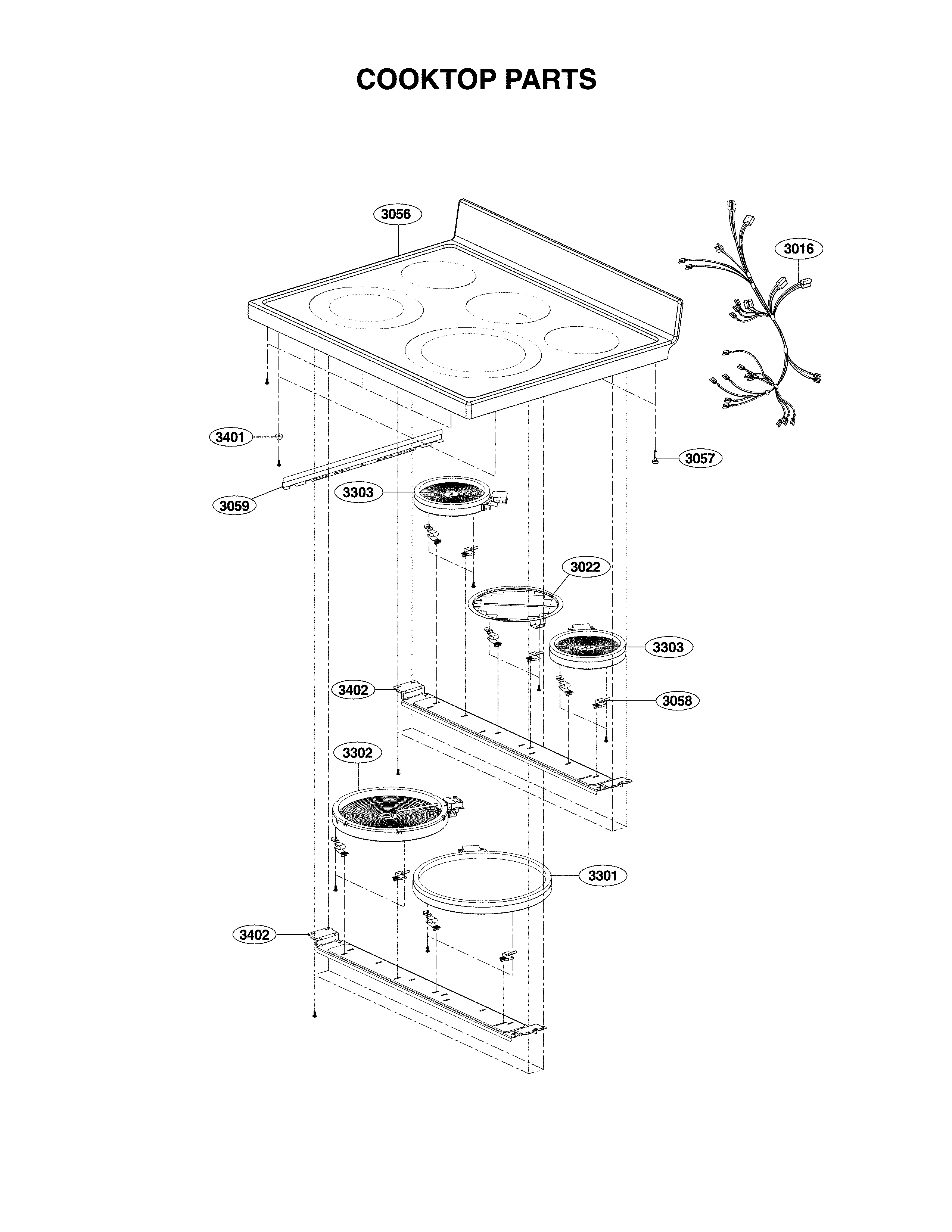

    Cooktop parts diagram

    Lg range dual radiant element

    Part #MEE62385201

    BEST SELLER
    $214.53
    5% OFF Phone Price : $226.53
    In Stock
  • Range Safety Thermostat 6930W1A003X
    #5117

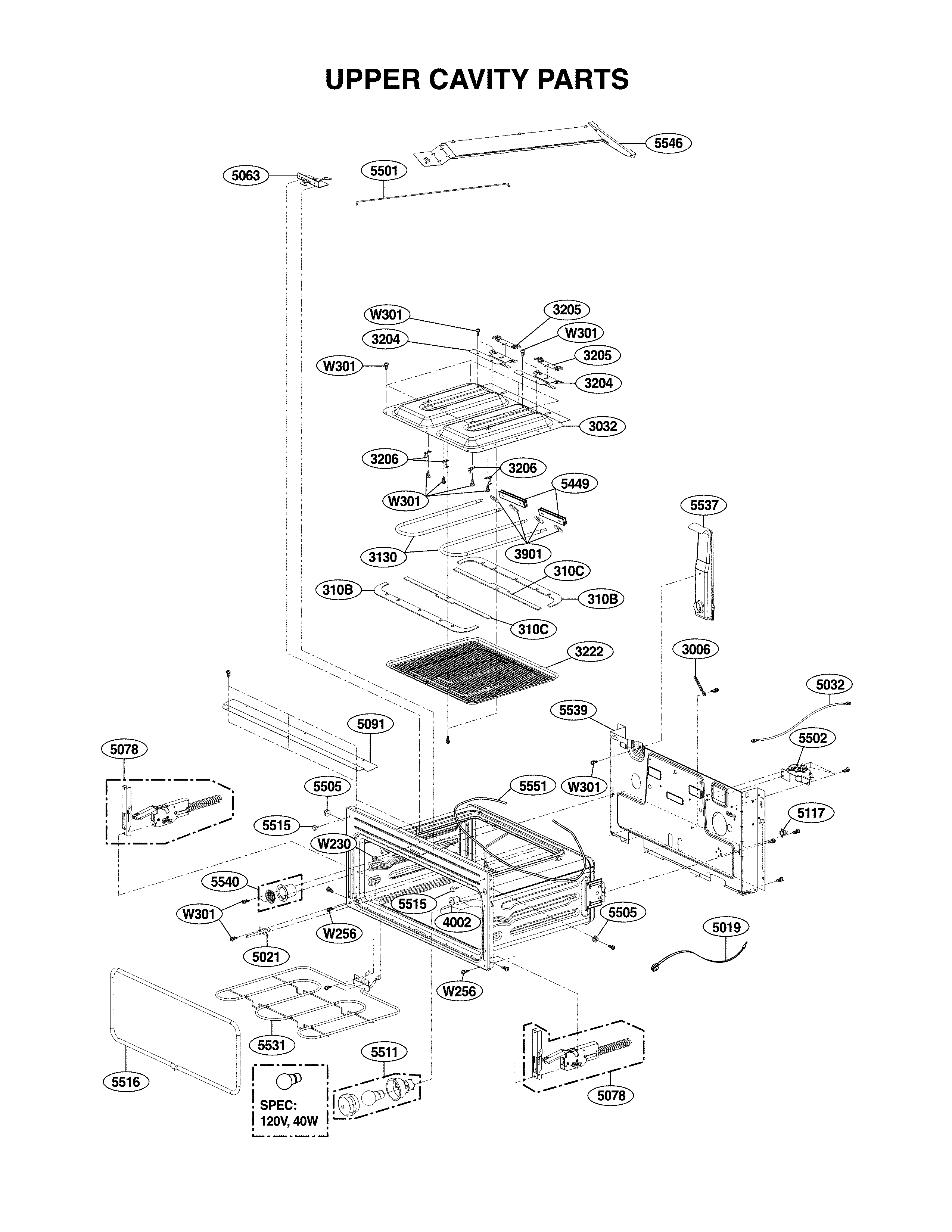

    Upper cavity parts diagram

    Range safety thermostat

    Part #6930W1A003X

    BEST SELLER
    $14.67
    12% OFF Phone Price : $16.67
    In Stock
  • Range Nut 1NHB0500032
    #W233

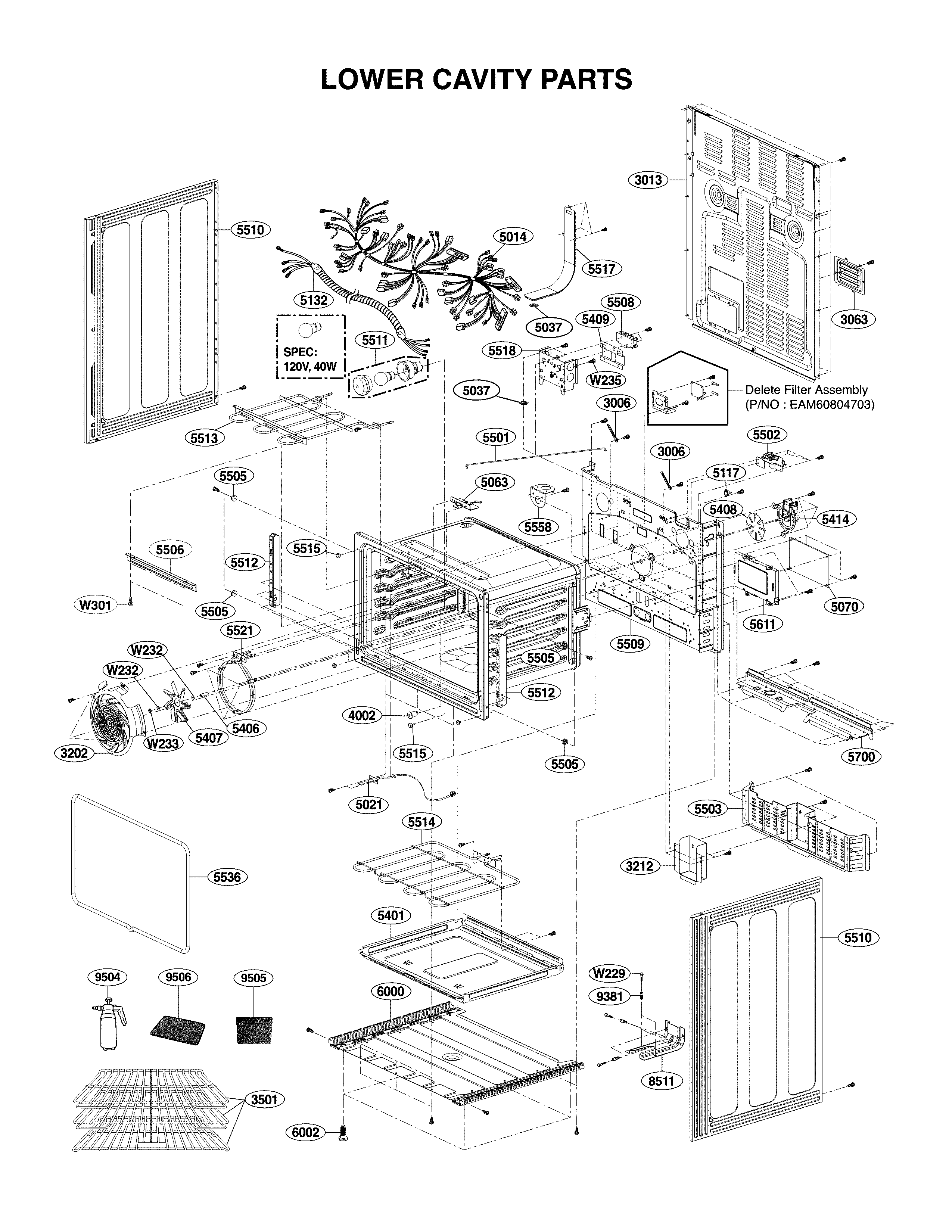

    Lower cavity parts diagram

    Range nut

    Part #1NHB0500032

    BEST SELLER
    $11.86
    14% OFF Phone Price : $13.86
    Back Order
  • Goldstar Cooking Appliance Convection Fan Blade 3B72559A
    #5408

    Lower cavity parts diagram

    Goldstar cooking appliance convection fan blade

    Part #3B72559A

    $9.22
    10% OFF Phone Price : $10.22
    In Stock
  • Range Leveling Leg 4778W1N001B
    #6002

    Lower cavity parts diagram

    Range leveling leg

    Part #4778W1N001B

    This item is not returnable
    $14.67
    12% OFF Phone Price : $16.67
    In Stock
  • Range Washer, 5.3 X 1-mm 1WZZ81N001A
    #W232

    Lower cavity parts diagram

    Range washer, 5.3 x 1-mm

    Part #1WZZ81N001A

    $9.22
    10% OFF Phone Price : $10.22
    In Stock
  • Range Power Control Board EBR64624601
    #5070

    Lower cavity parts diagram

    Range power control board

    Part #EBR64624601

    This item is not returnable
    $282.20
    $12.00 OFF Phone Price : $294.20
    In Stock
  • Range Terminal Block EAG32629302
    #5508

    Lower cavity parts diagram

    Range terminal block

    Part #EAG32629302

    $65.14
    8% OFF Phone Price : $71.14
    In Stock
  • Range Oven Light Assembly 6913W1N002D
    #5511

    Upper cavity parts diagram

    Range oven light assembly

    Part #6913W1N002D

    Replaced by #6913W1N002C

    ?
    Manufacturer substitution
    This part replaces 6913W1N002D. Substitute parts can look different from the original.
    $92.43
    6% OFF Phone Price : $98.43
    In Stock
  • Range Display Board EBR64624901
    #2009

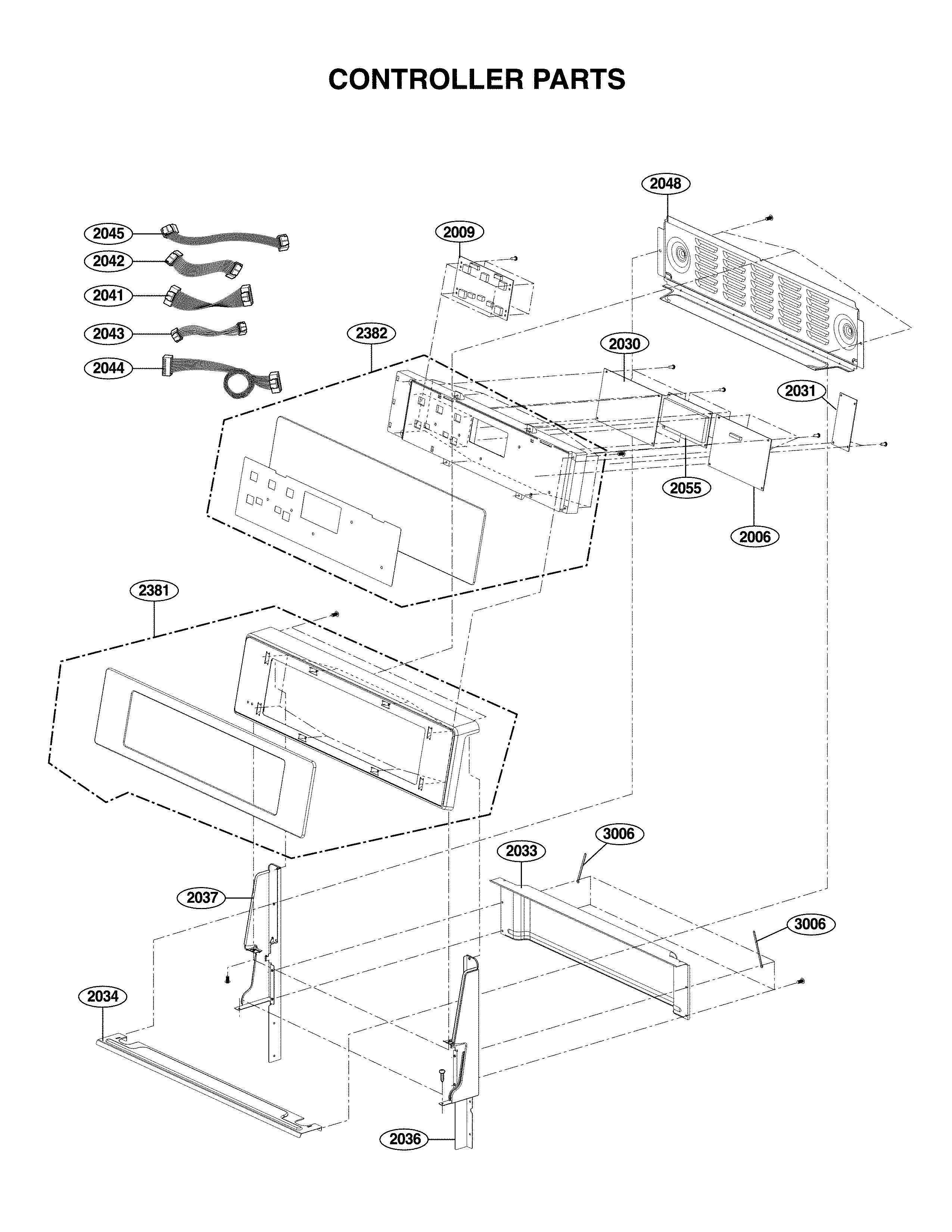

    Contoller assembly parts diagram

    Range display board

    Part #EBR64624901

    This item is not returnable
    $168.47
    7% OFF Phone Price : $180.47
    In Stock
