Upright Freezer

Model # B18ID80NLP/01 Official Bosch freezer

Here are the diagrams and repair parts for Official Bosch B18ID80NLP-01 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

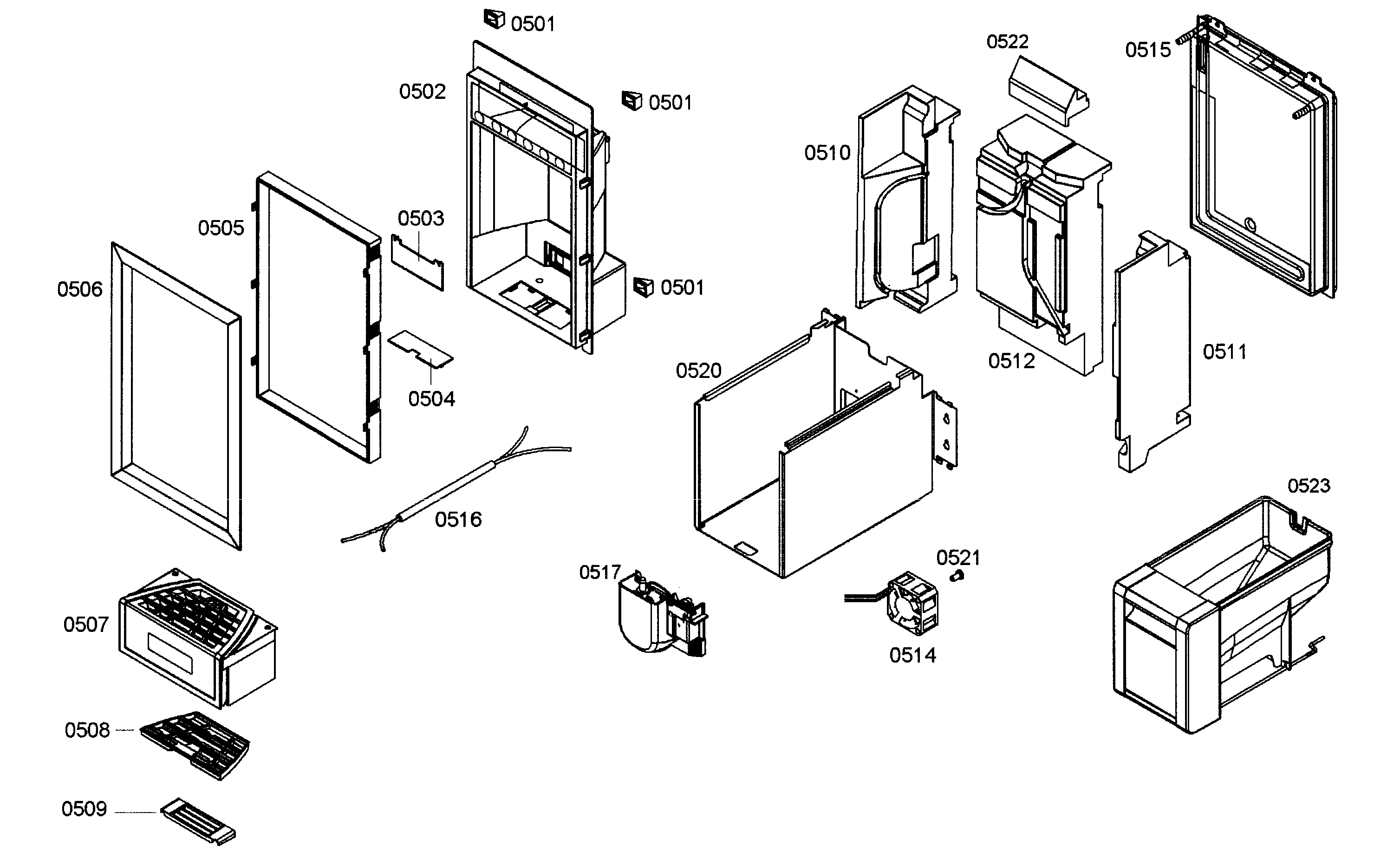

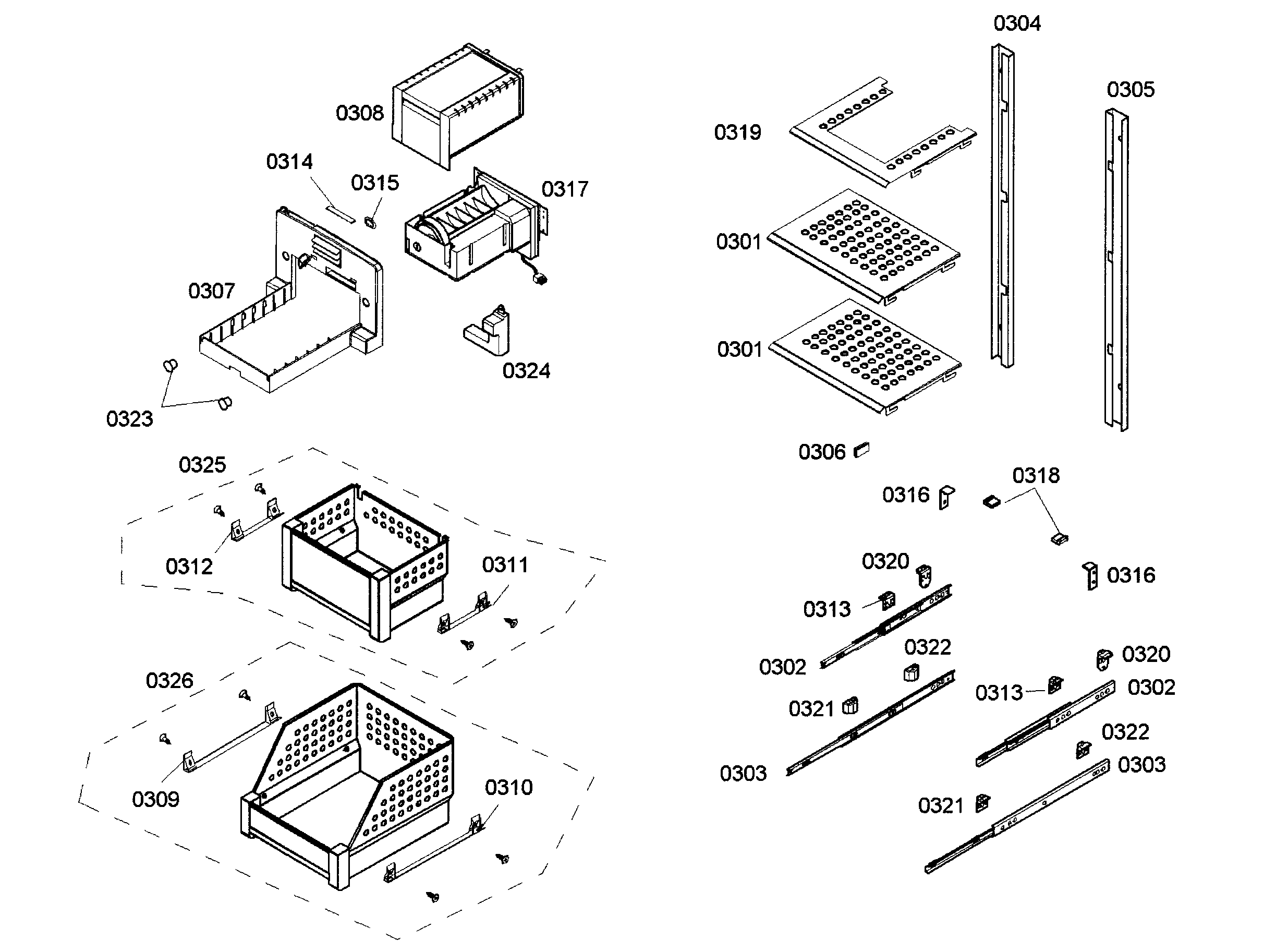

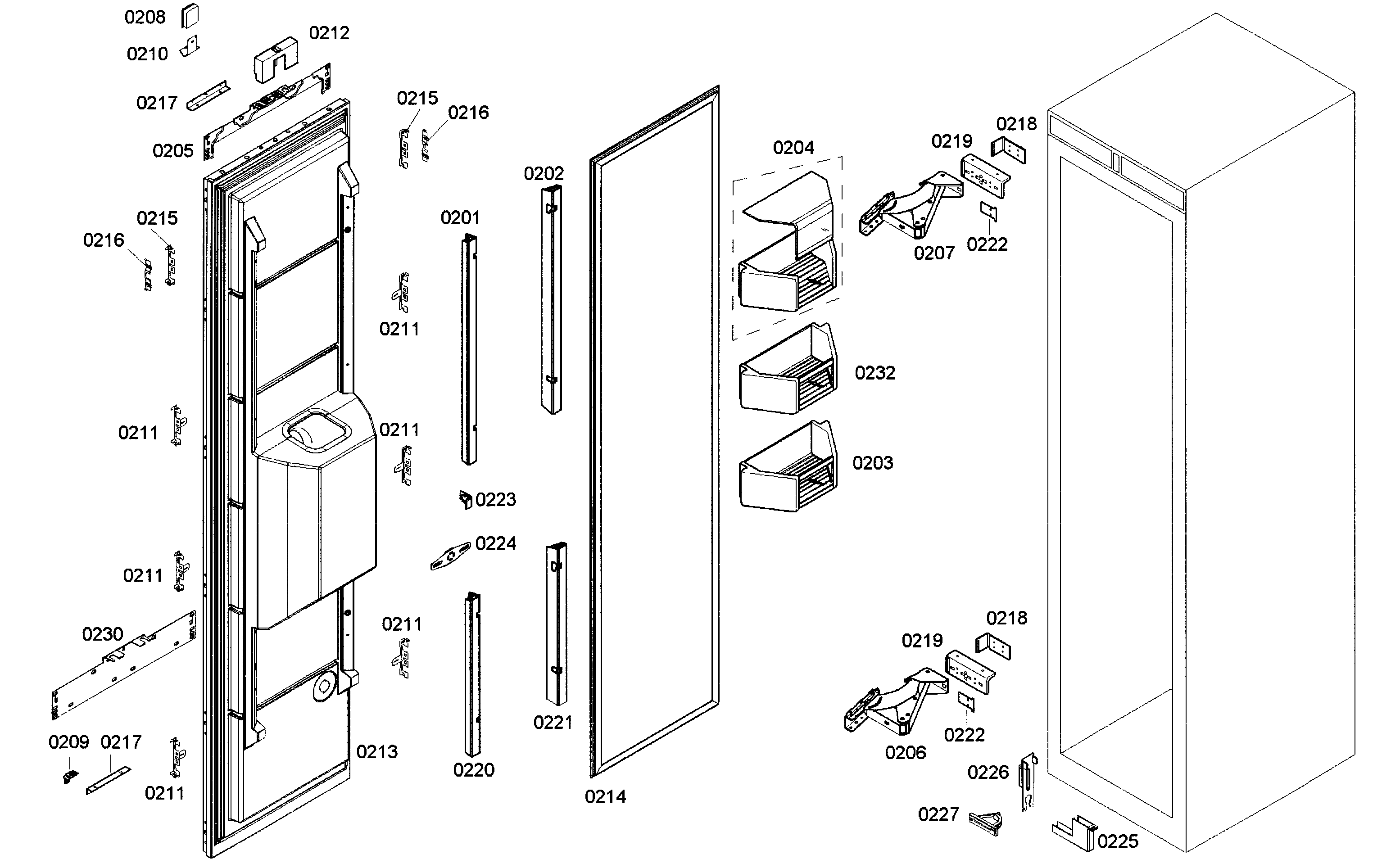

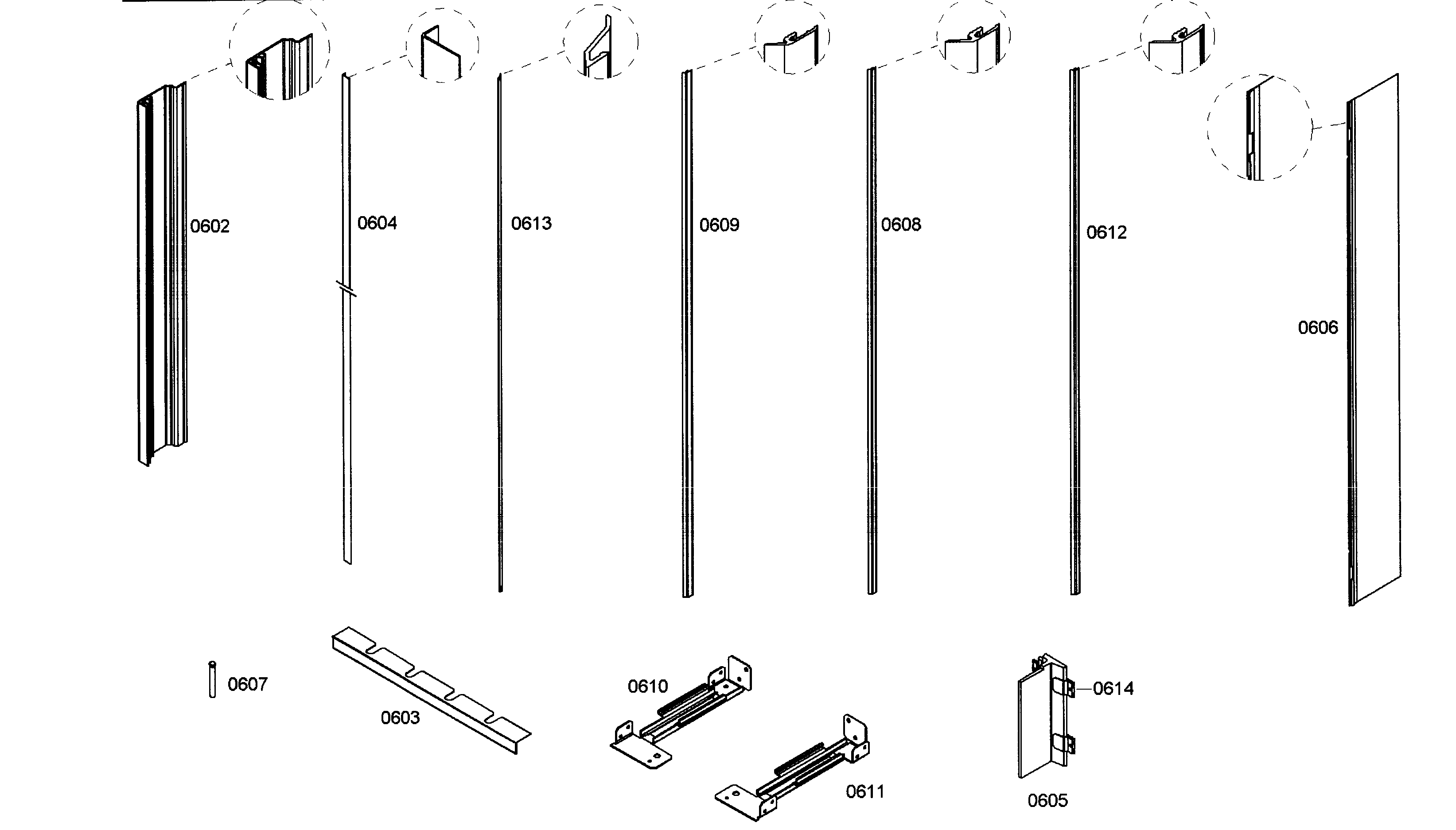

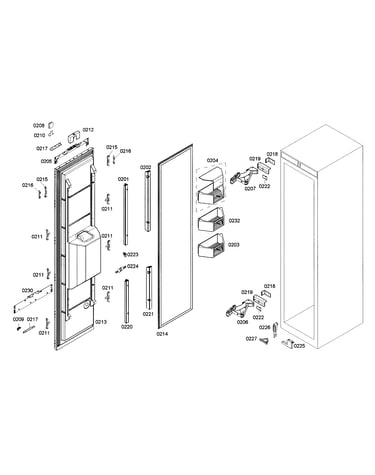

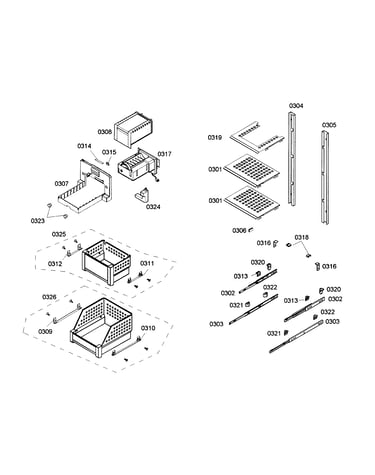

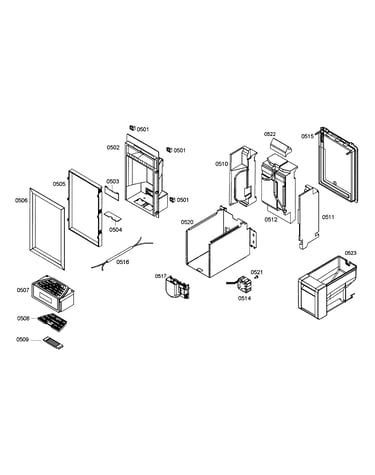

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Filter 499850
#411

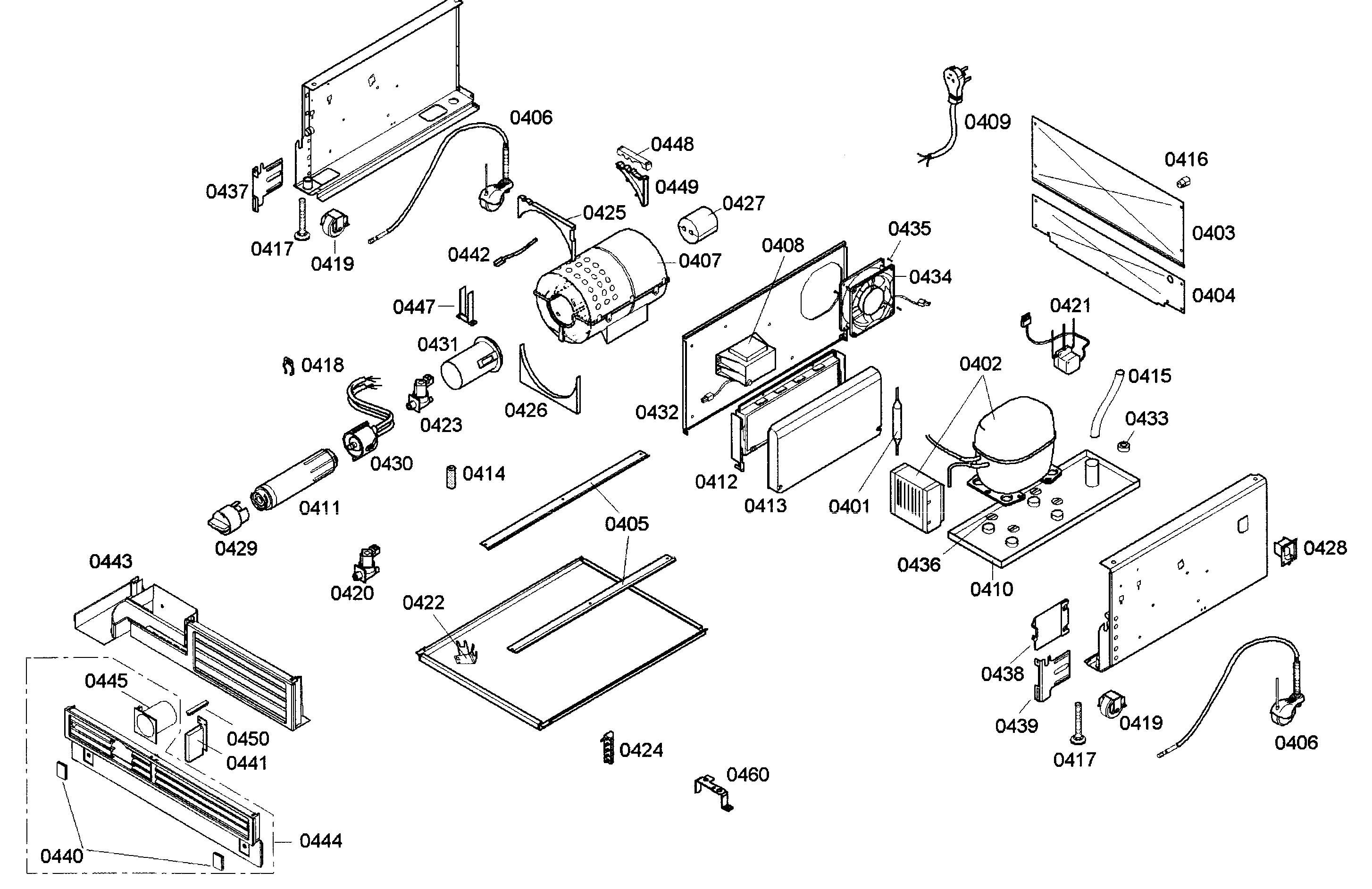

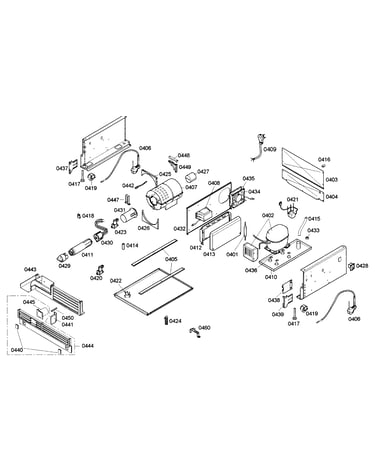

Compressor diagram

Filter

Part #499850

Replaced by #00644845

?
Manufacturer substitution
This part replaces 499850. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$61.39
In Stock
Defrost Sensor 604025
#130

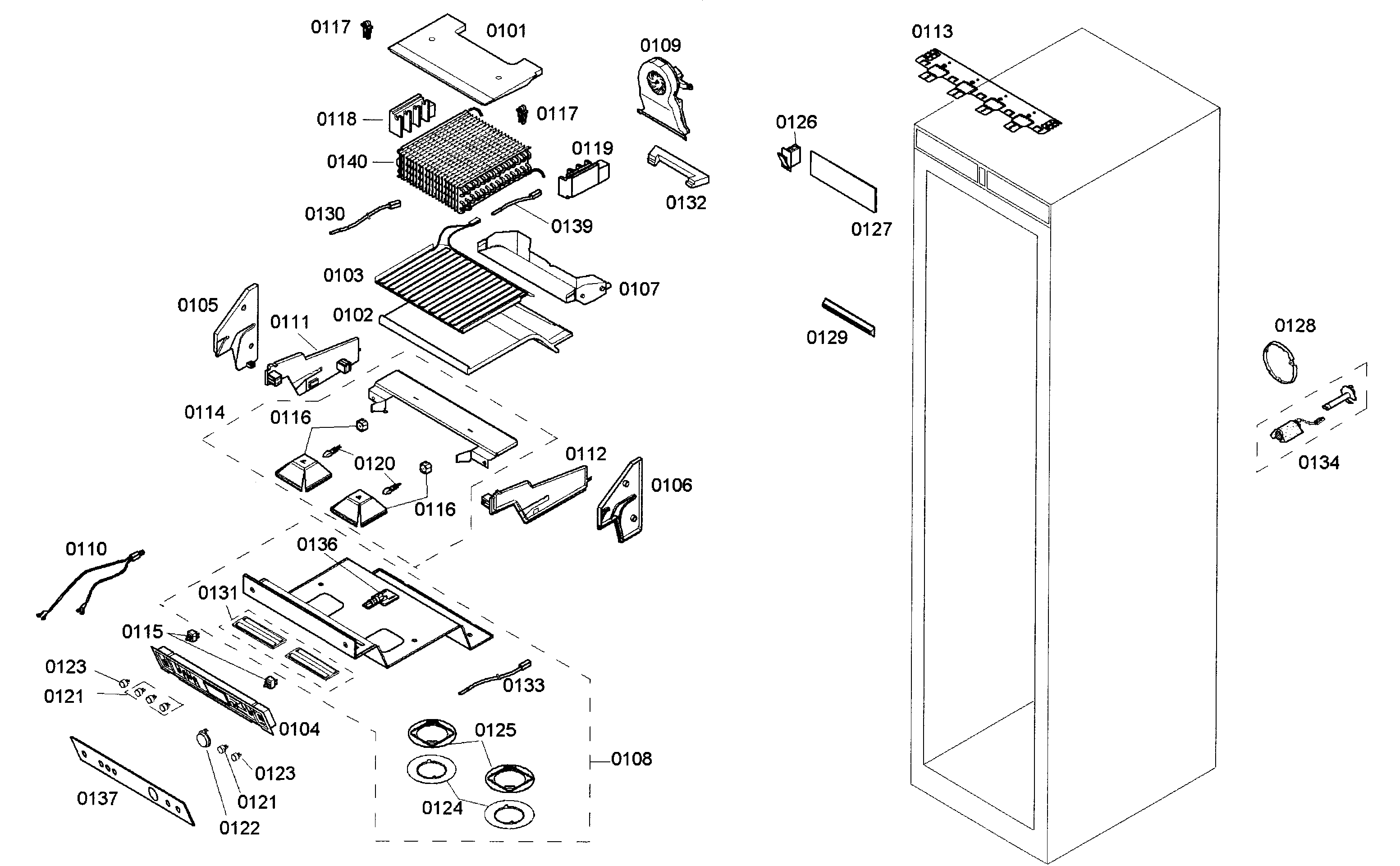

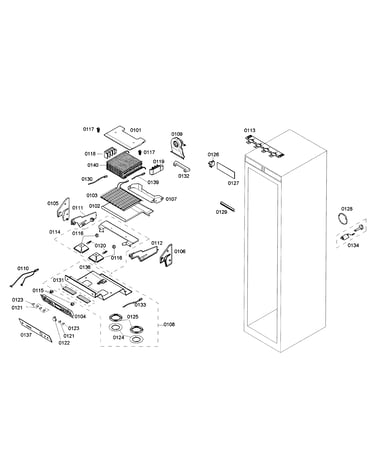

Cabinet parts diagram
