Power Sander

Model # 315116360 Official Craftsman random orbital sander

Here are the diagrams and repair parts for Official Craftsman 315116360 random orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

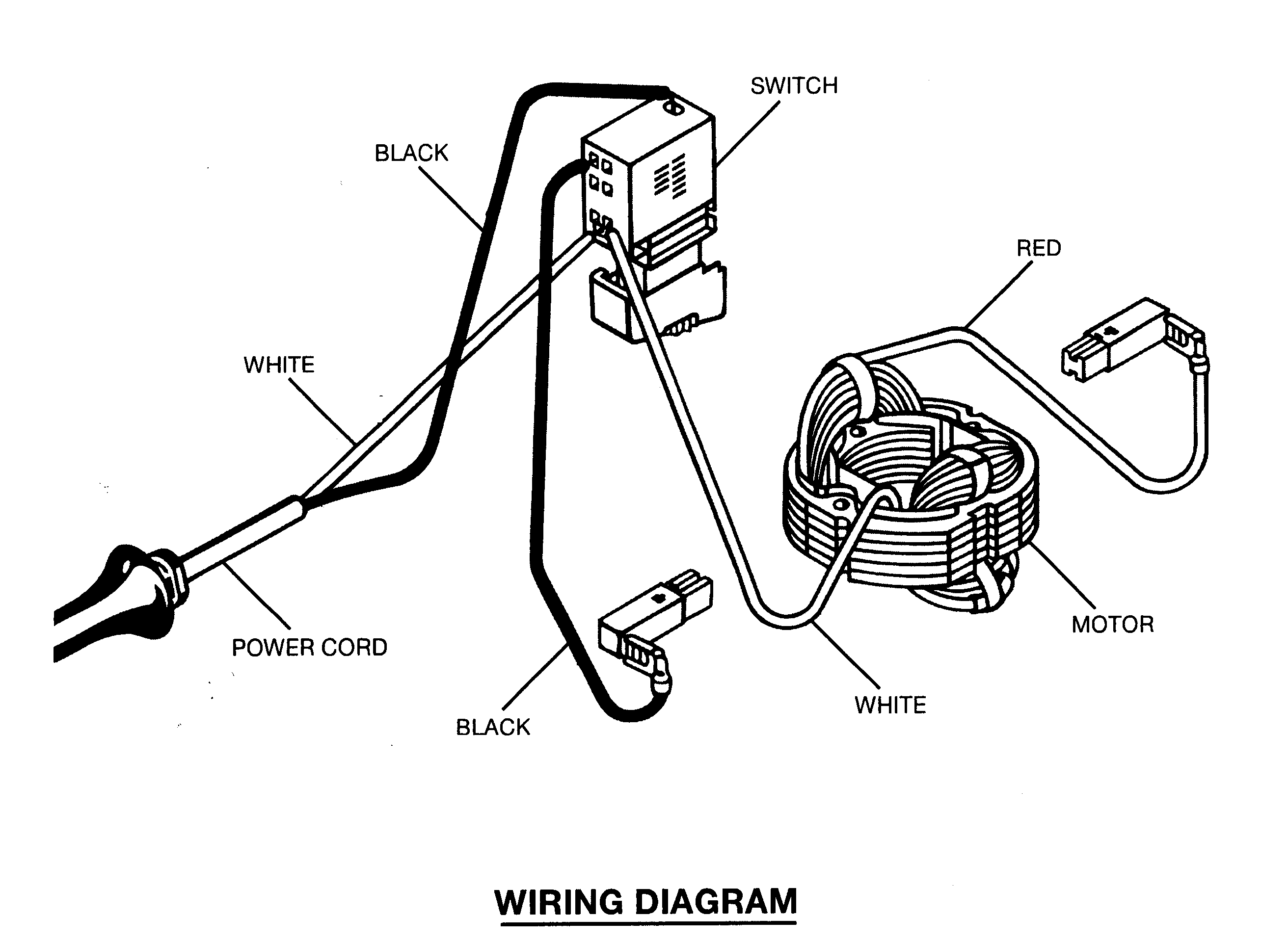

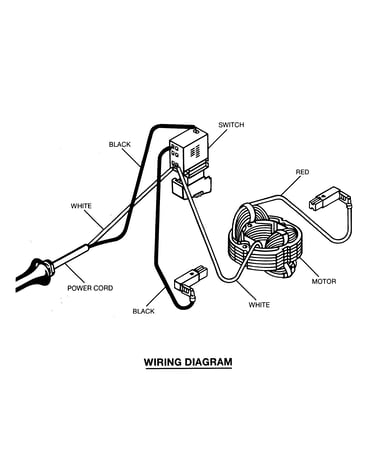

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Seal 970099-002
#14

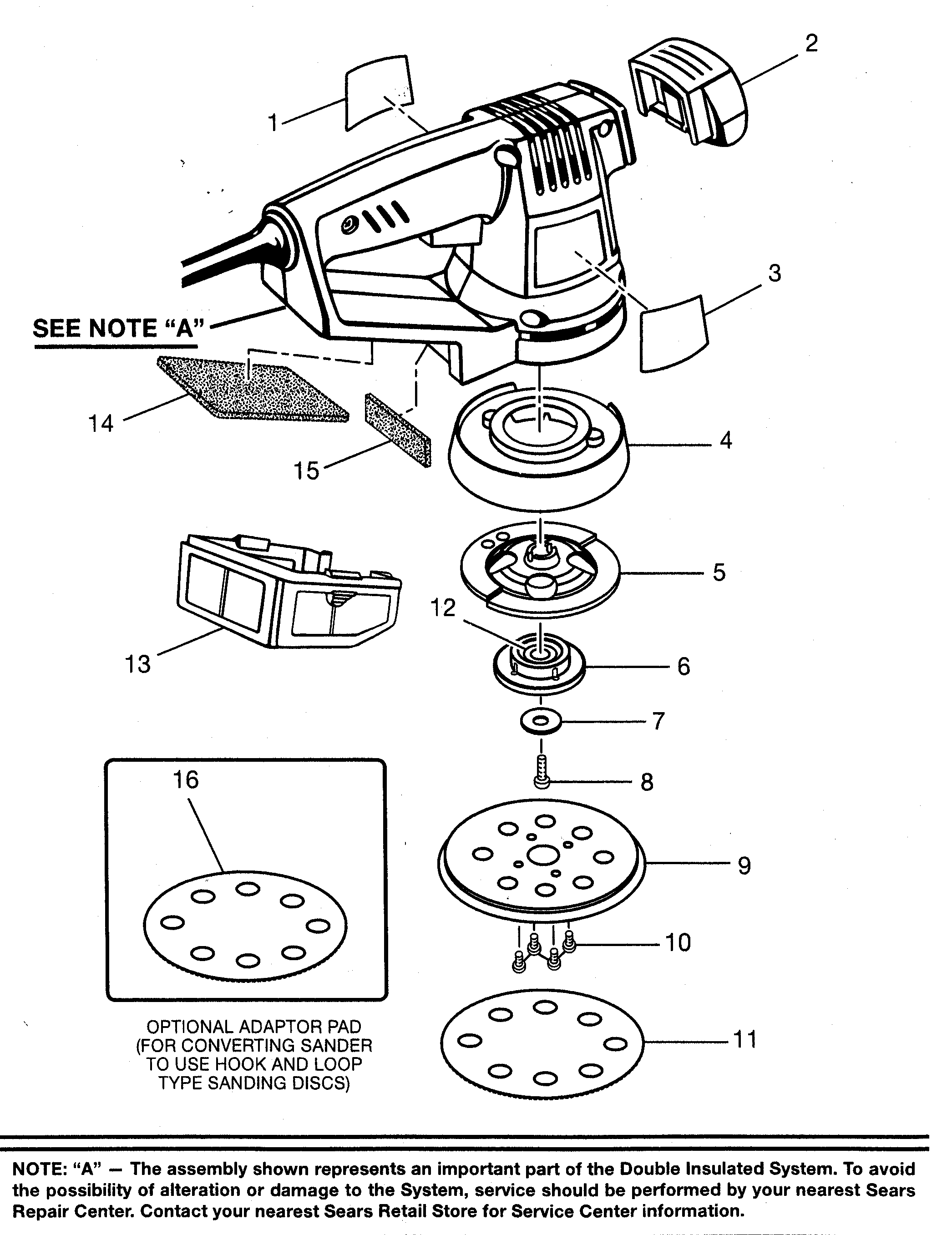

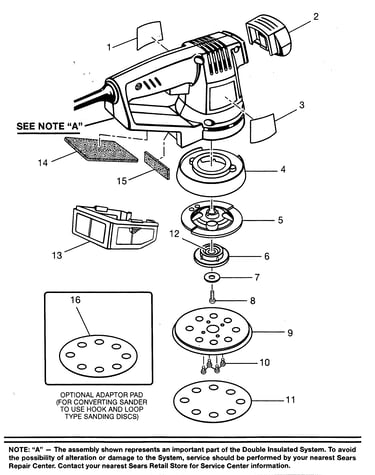

Sander diagram

Seal

Part #970099-002

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 972000-952R
#NI

Sander diagram

Repair sheet

Part #972000-952R

The manufacturer no longer makes this part, and there's no substitute part

Gasket 969896-001
#15

Sander diagram

Gasket

Part #969896-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 969655-001
#12

Sander diagram

Ball bearing

Part #969655-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 968700-011
#11

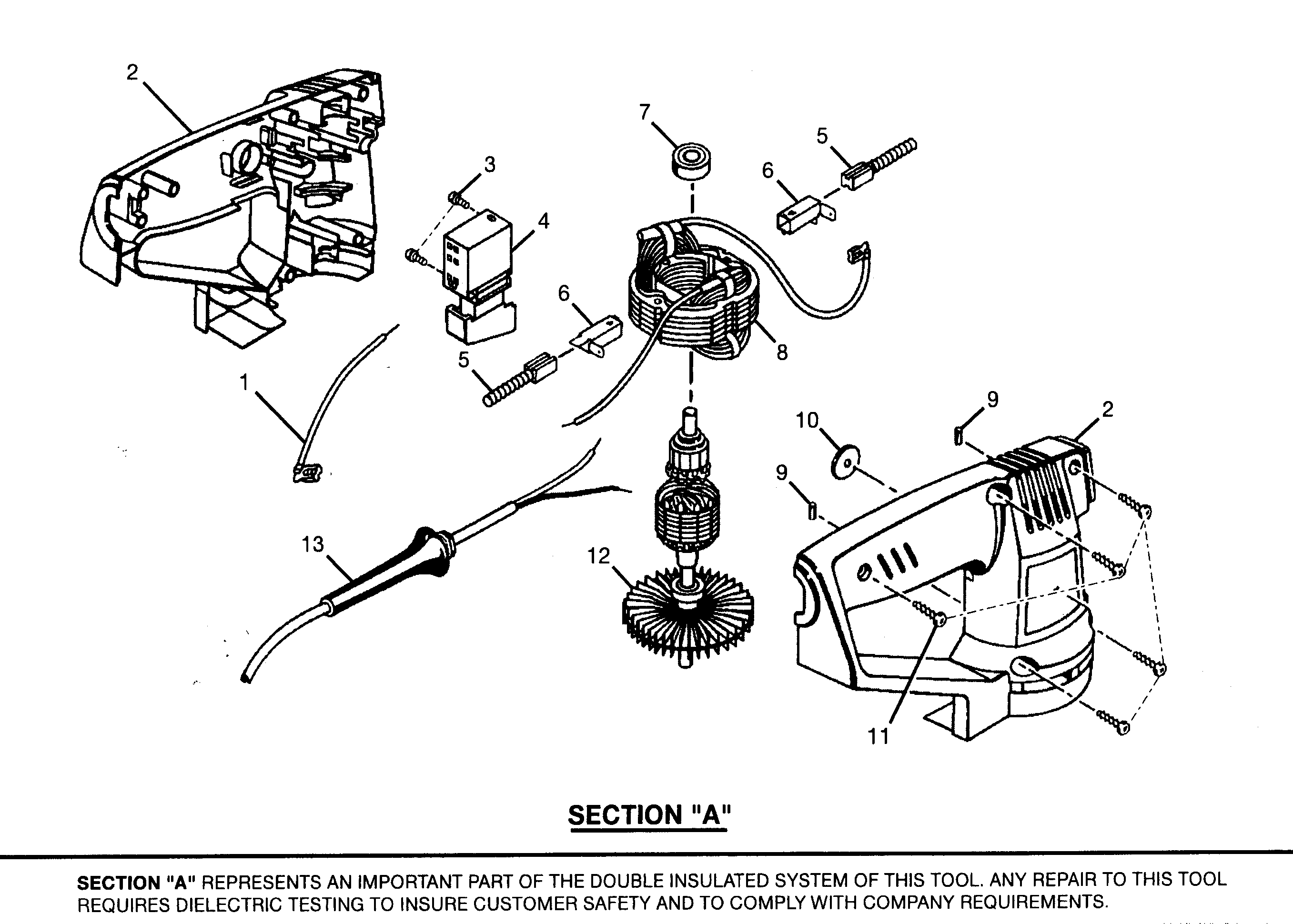

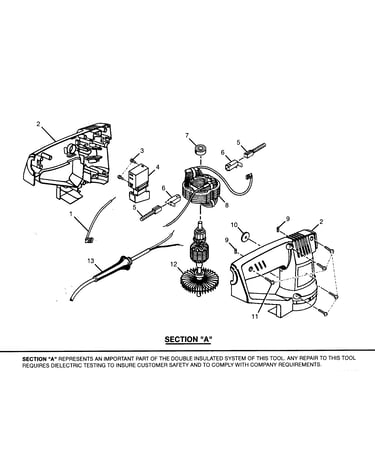

Motor assy diagram

Screw

Part #968700-011

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 990494-019
#13

Motor assy diagram

Ac cord

Part #990494-019

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 983110-001
#1

Sander diagram

Logo plate

Part #983110-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 983109-001
#3

Sander diagram

Data plate

Part #983109-001

The manufacturer no longer makes this part, and there's no substitute part

Skirt 973713-001
#4

Sander diagram

Skirt

Part #973713-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Housing Rubber Plug 623019-004
#9

Motor assy diagram

Sander motor housing rubber plug

Part #623019-004

The manufacturer no longer makes this part, and there's no substitute part
