Amana
Gas Range

Model # AGDS902WW-P1131833NWW Official Amana gas range

Here are the diagrams and repair parts for Official Amana AGDS902WW-P1131833NWW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

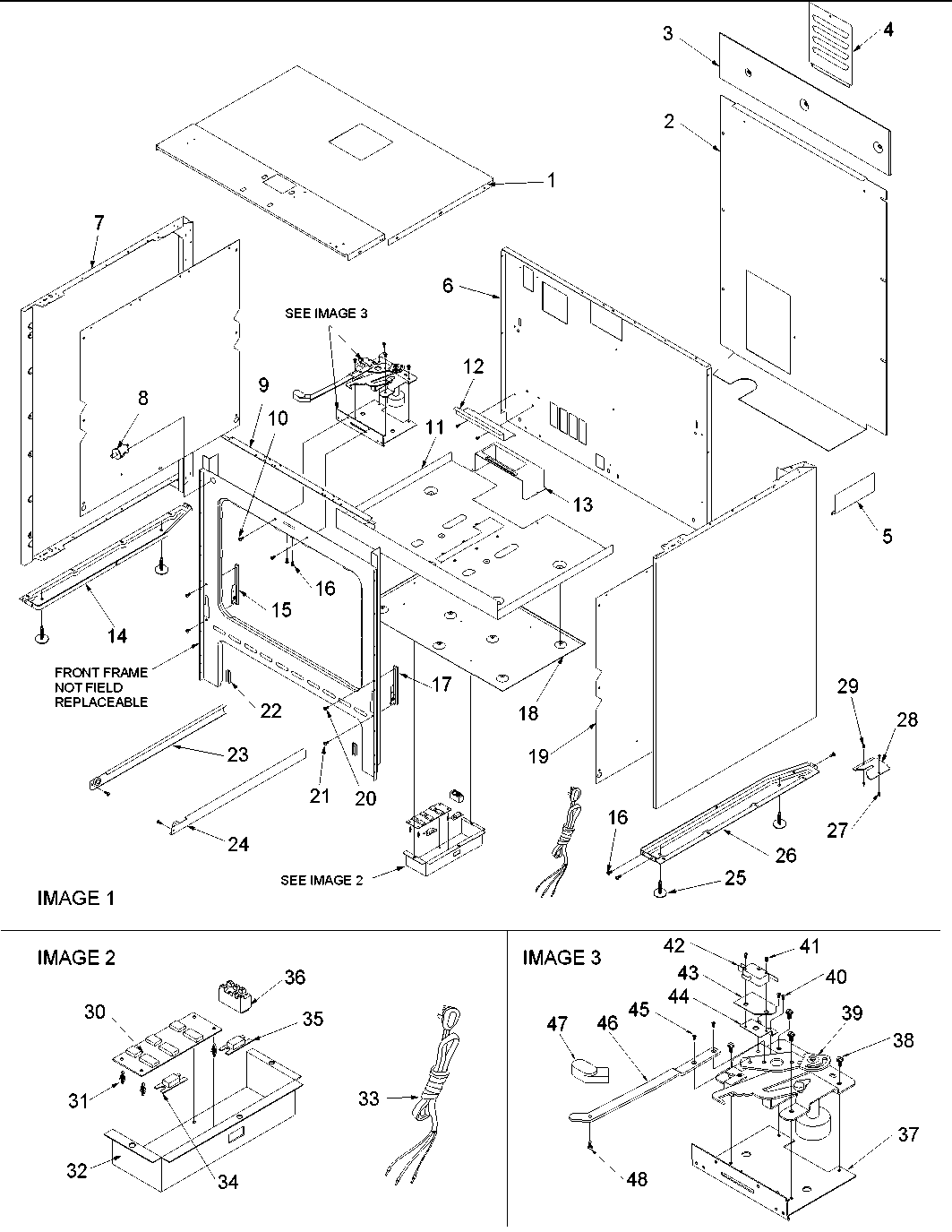

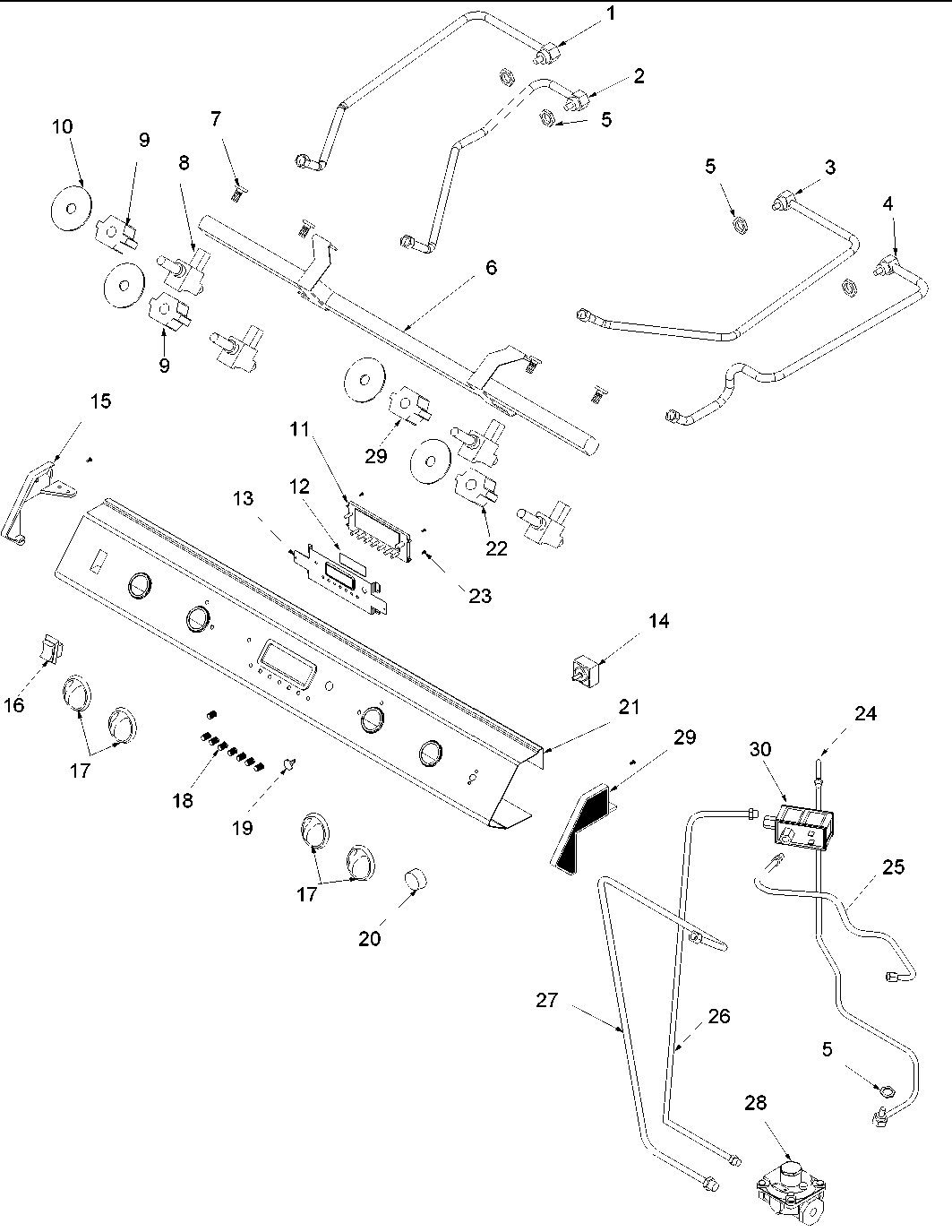

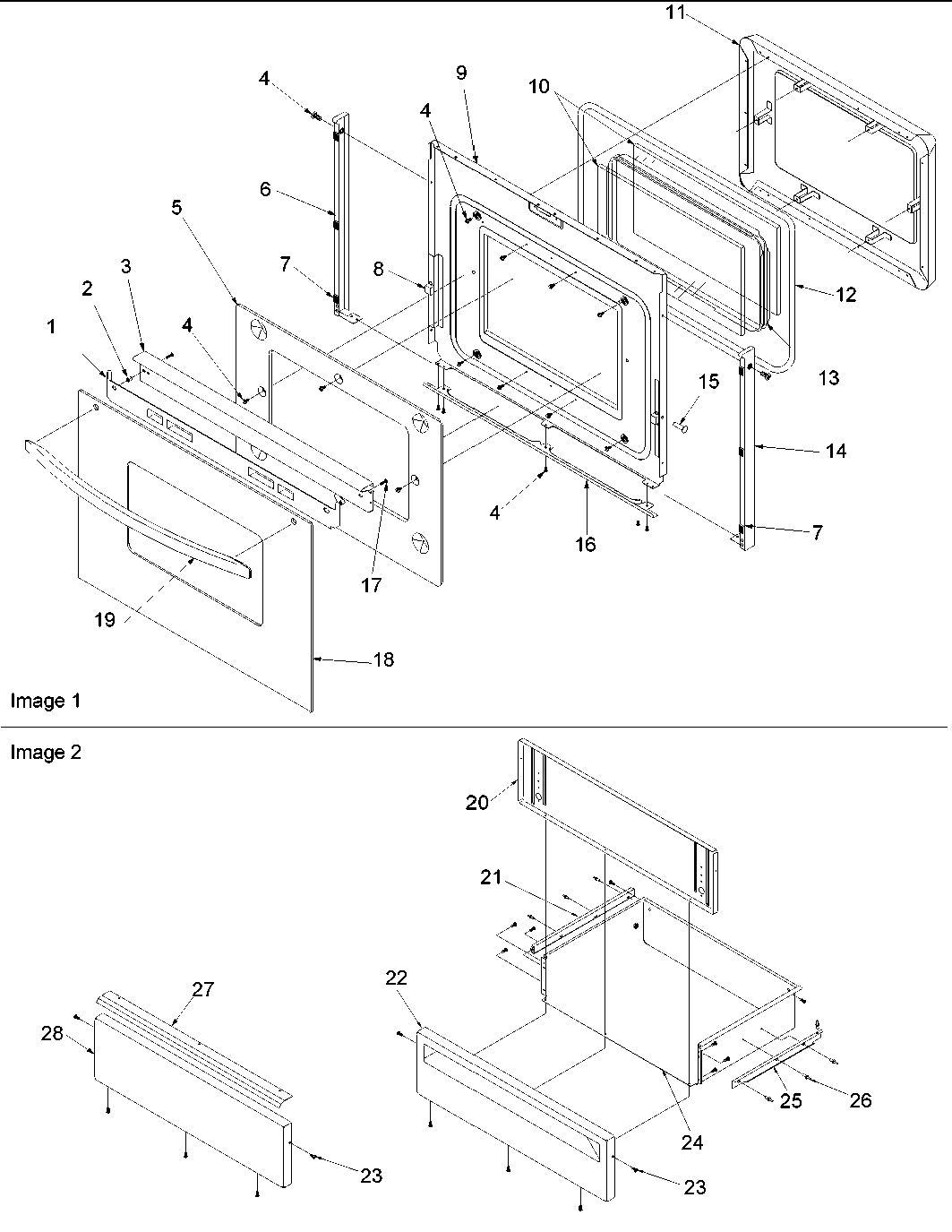

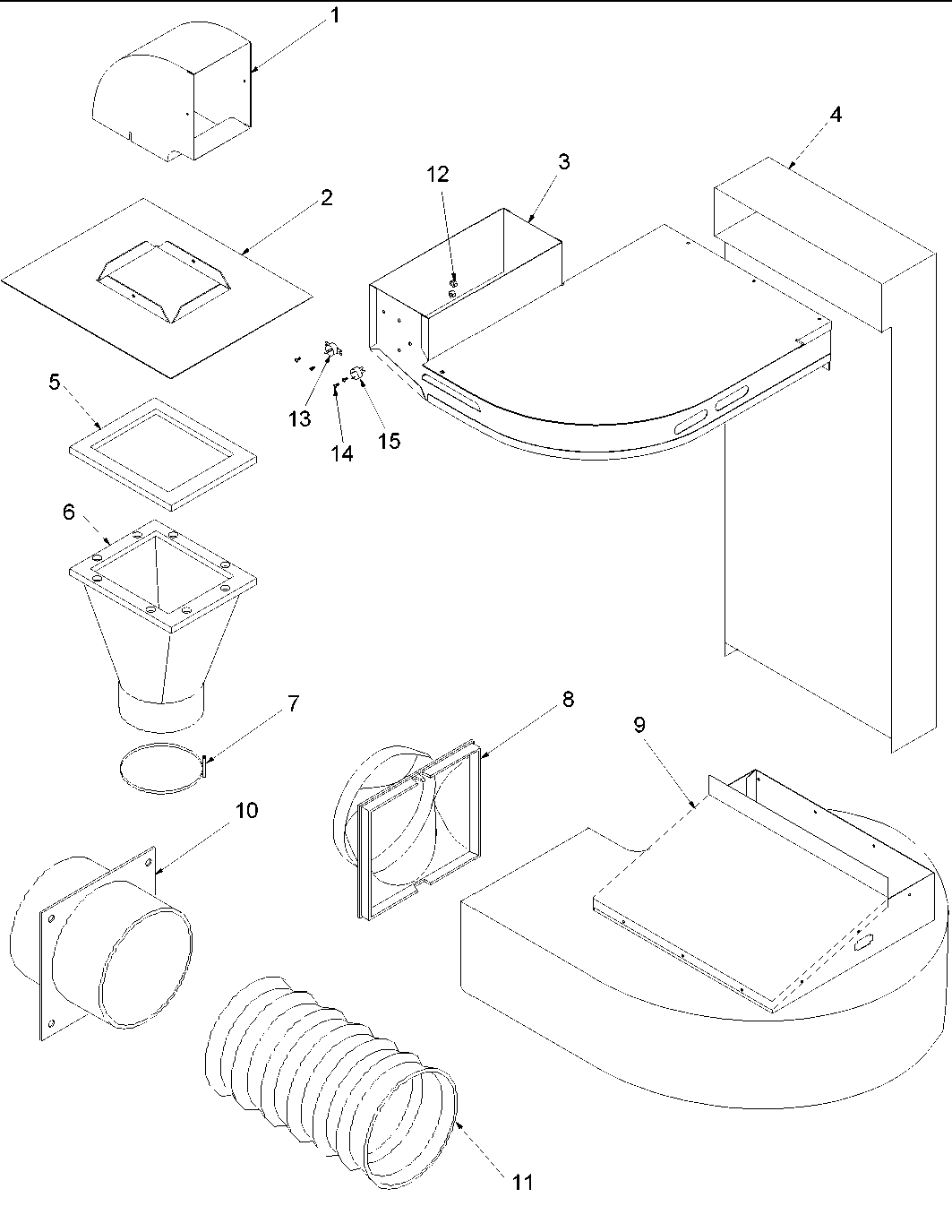

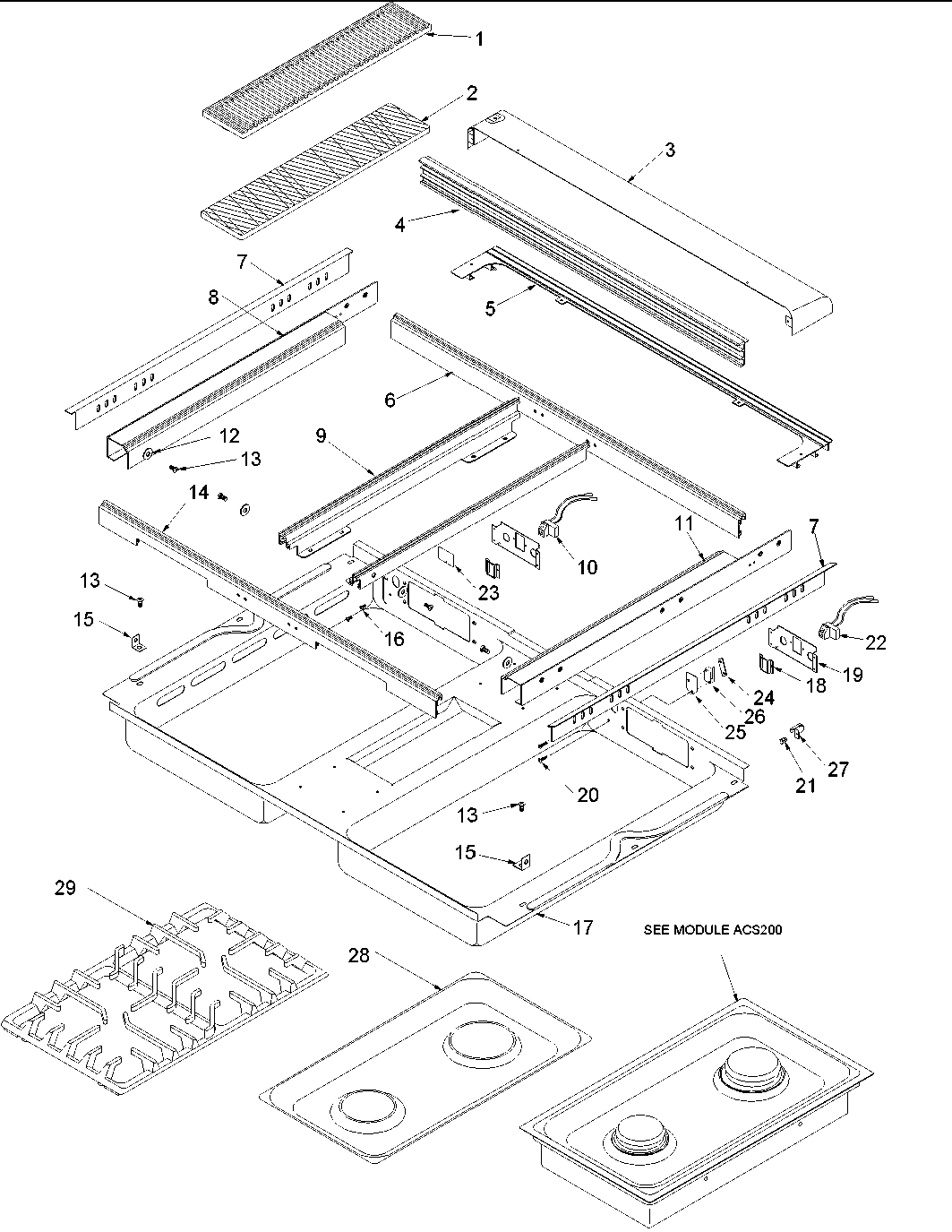

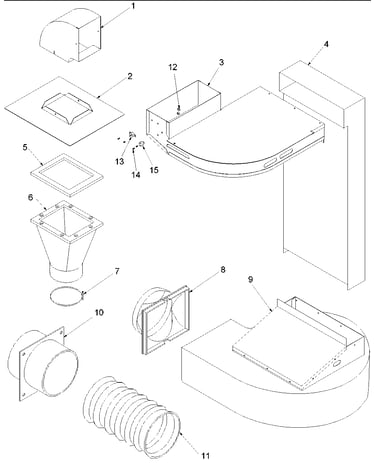

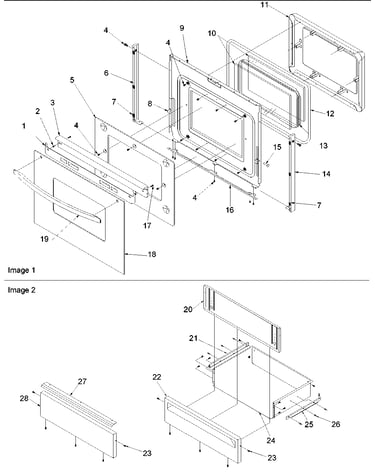

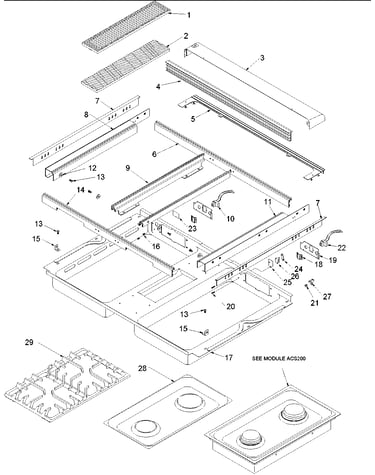

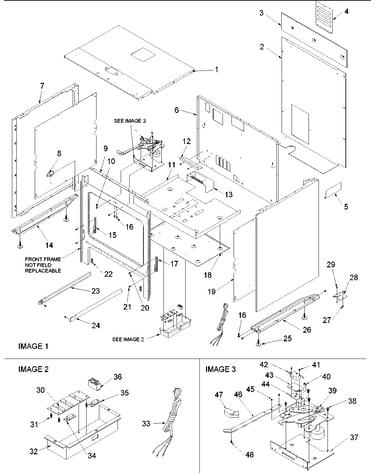

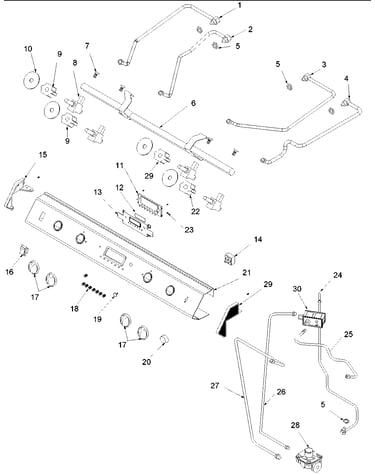

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Screw 31750432
Screw

Part #31750432

The manufacturer no longer makes this part, and there's no substitute part

Igniter 31939901
#34

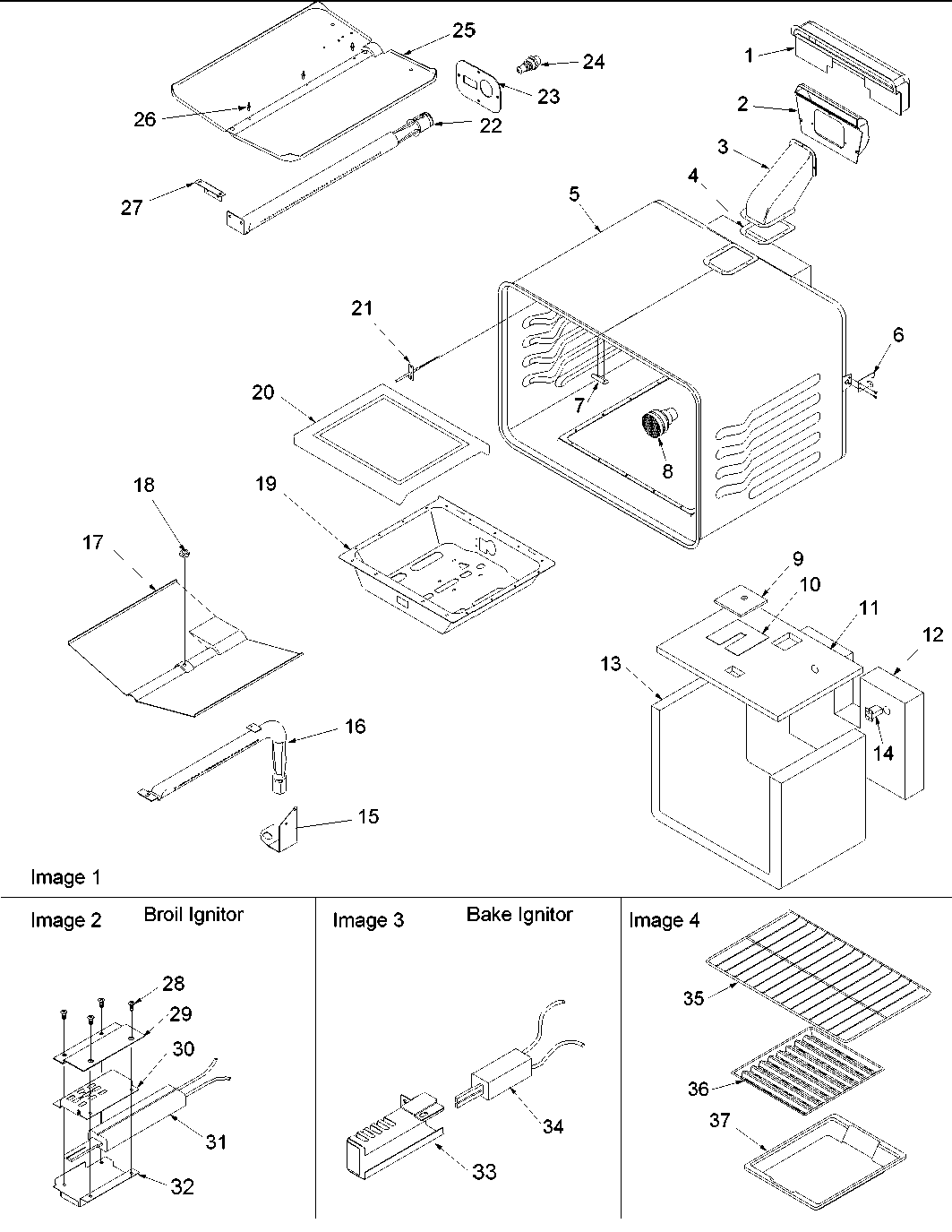

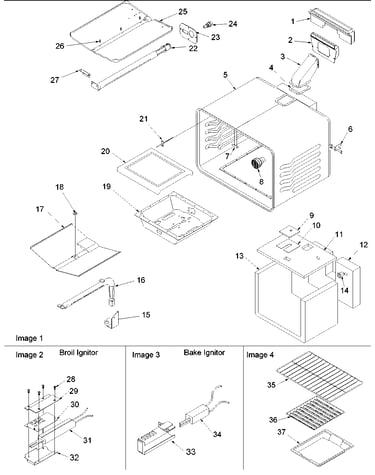

Cavity diagram

Igniter

Part #31939901

Replaced by #786324

?
Manufacturer substitution
This part replaces 31939901. Substitute parts can look different from the original.
$46.23 |
11% OFF Phone Price : $52.23
In Stock
Oven Light 0314842
#8

Cavity diagram

Oven light

Part #0314842

The manufacturer no longer makes this part, and there's no substitute part

Burner 0315768
#3

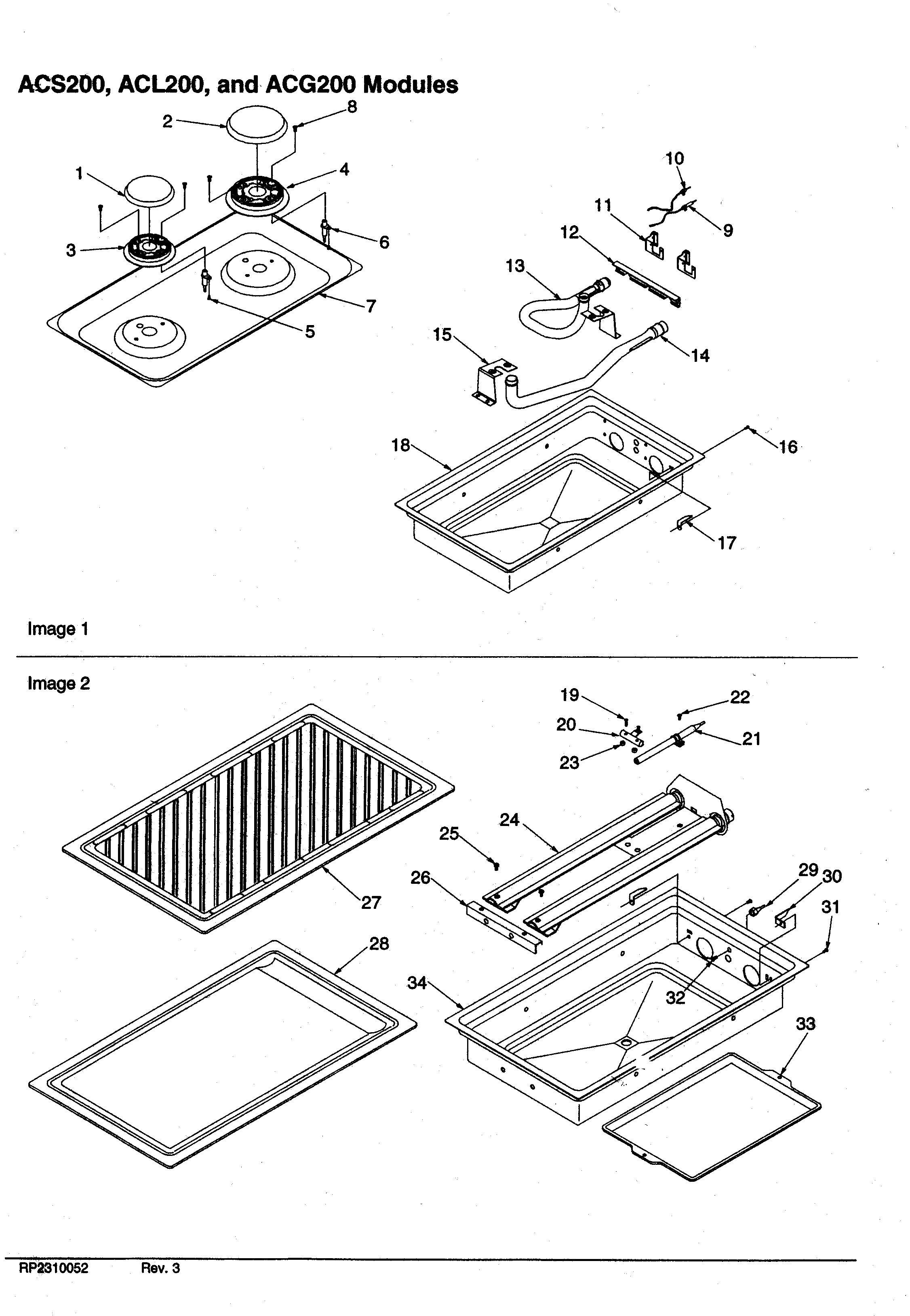

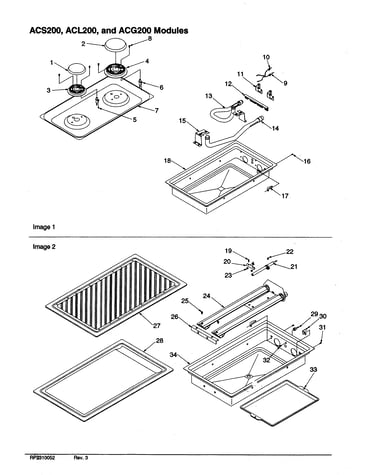

Gas cartridge, griddle, grill diagram
