Upright Freezer

Model # RA1816RW3 Official WC Wood upright freezer

Here are the diagrams and repair parts for Official WC Wood RA1816RW3 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Drier 3-34960-001
#5

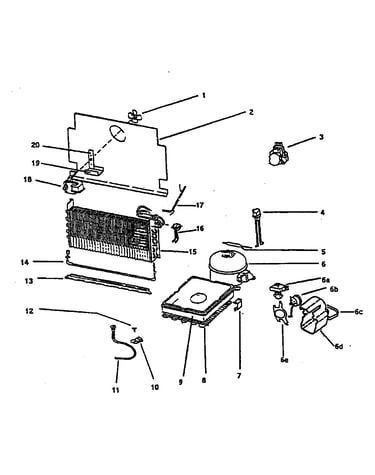

Refrigerator unit compartment system diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Heater 3-80405-001
#14

Refrigerator unit compartment system diagram

Heater

Part #3-80405-001

The manufacturer no longer makes this part, and there's no substitute part

Gasket Assembly 0-90000-101
#5

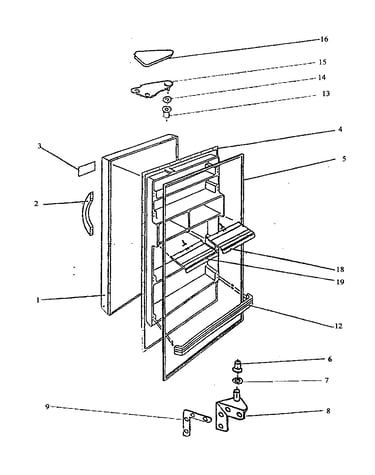

Door assy diagram

Gasket assembly

Part #0-90000-101

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-80271-104
#20B

Refrigerator unit compartment system diagram

Screw

Part #1-80271-104

The manufacturer no longer makes this part, and there's no substitute part

Protector 2-34286-020
#6B

Refrigerator unit compartment system diagram

Protector

Part #2-34286-020

The manufacturer no longer makes this part, and there's no substitute part

Screw 3-24004-126
#12B

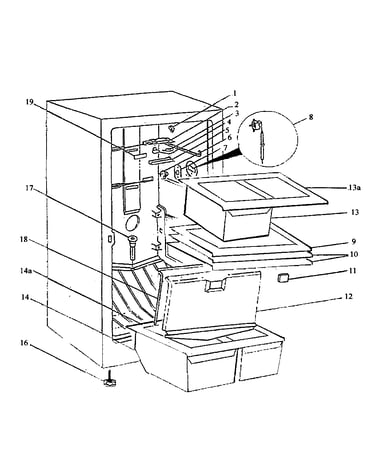

Cabinet parts diagram

Screw

Part #3-24004-126

The manufacturer no longer makes this part, and there's no substitute part

Seal Block 1-80252-101
#11

Cabinet parts diagram

Seal block

Part #1-80252-101

The manufacturer no longer makes this part, and there's no substitute part

Fan Bracket 0-90034-001
#20

Refrigerator unit compartment system diagram

Fan bracket

Part #0-90034-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 3-24004-107
Screw

Part #3-24004-107

The manufacturer no longer makes this part, and there's no substitute part

Crisper Rail 3-34715-004
#15A

Cabinet parts diagram

Crisper rail

Part #3-34715-004

The manufacturer no longer makes this part, and there's no substitute part
