Model # 11629319211 Official Kenmore vacuum
Here are the diagrams and repair parts for Official Kenmore 11629319211 vacuum, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11629319211 Vacuum Cleaners
#27

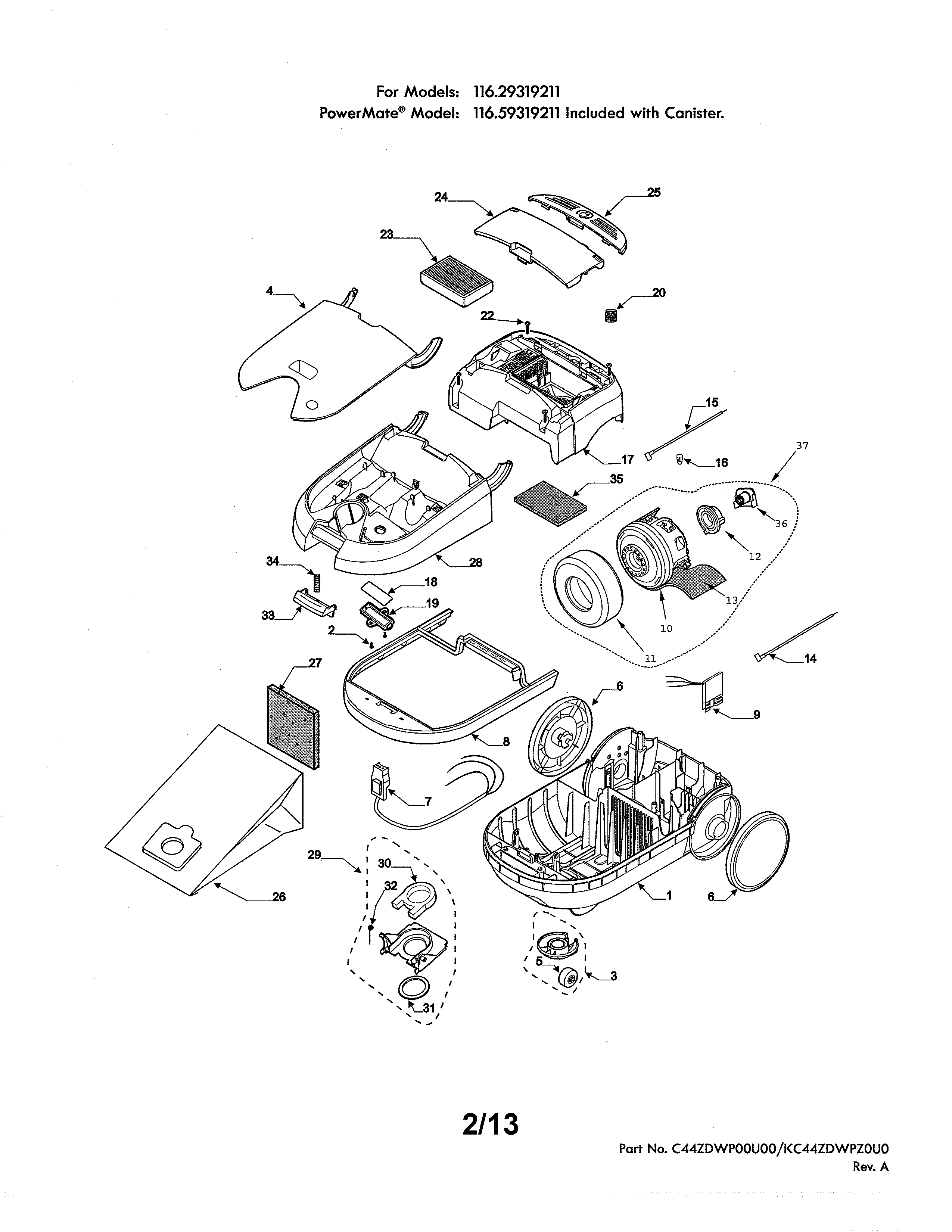

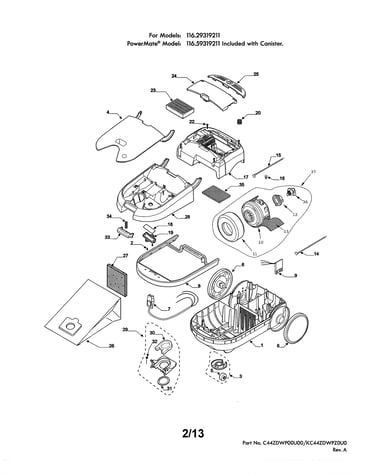

Canister diagram
Vacuum motor safety filter
Part #8175139
Replaced by #8175139
?
Manufacturer substitution
This part replaces 8175139. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$28.26 |
18% OFF Phone Price : $34.26
In Stock
#31
Canister diagram
Packing (black)
Part #4370688
The manufacturer no longer makes this part, and there's no substitute part
#16

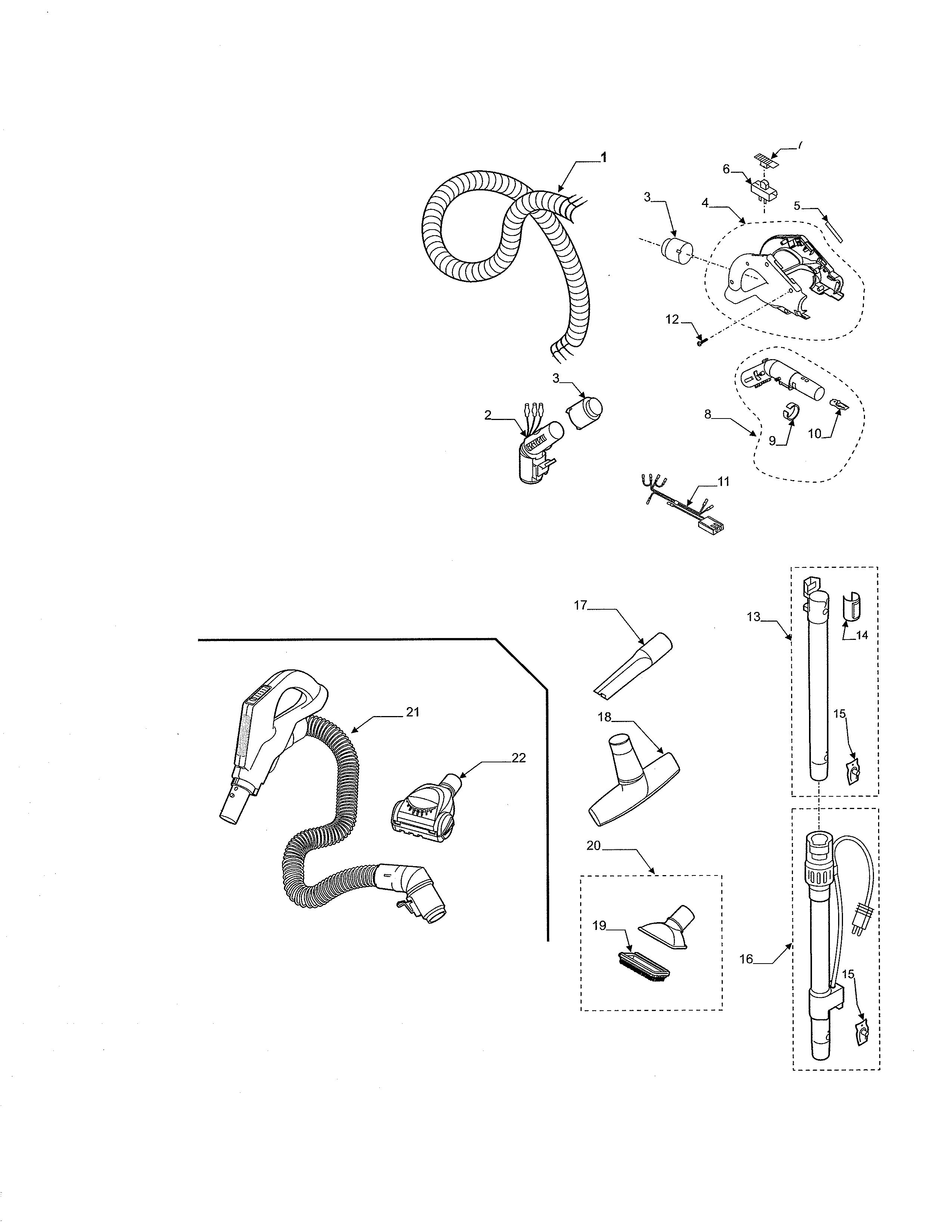

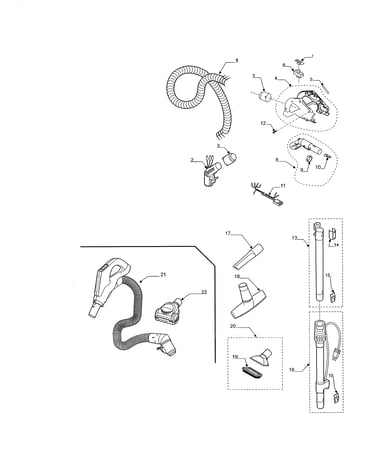

Hose & attachment diagram
Vacuum lower wand
Part #KC99PDGWZV06
The manufacturer no longer makes this part, and there's no substitute part
#13
Hose & attachment diagram
Vacuum extension wand
Part #8192064
The manufacturer no longer makes this part, and there's no substitute part
#32
Canister diagram
Spring
Part #KC23DDGBZ000
Replaced by #KC23DDGBZ000
?
Manufacturer substitution
This part replaces KC23DDGBZ000. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#1

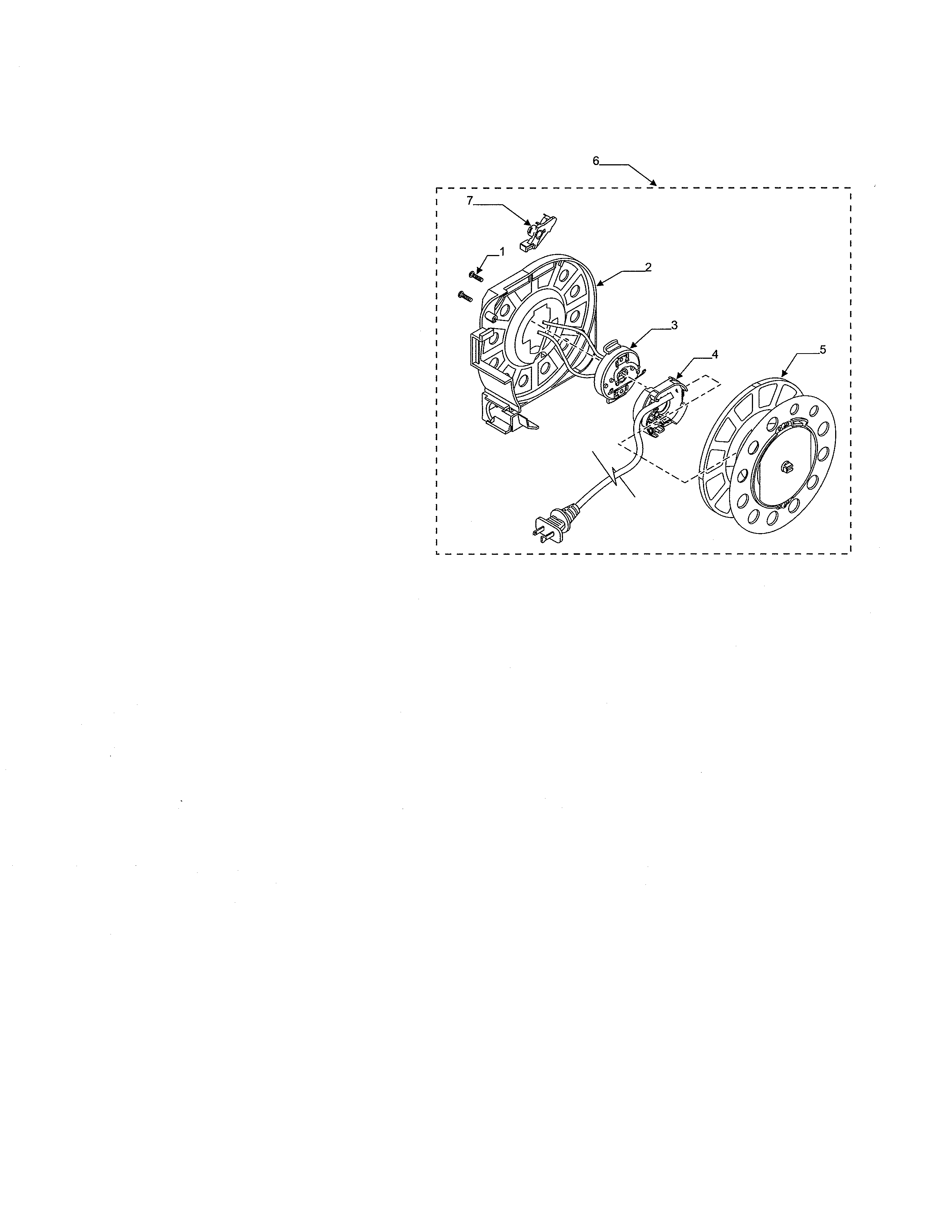

Cord reel diagram
Vacuum screw
Part #4368563
The manufacturer no longer makes this part, and there's no substitute part
#17
Hose & attachment diagram
Vacuum crevice tool
Part #8175100
The manufacturer no longer makes this part, and there's no substitute part
#35
Canister diagram
Vacuum exhaust filter
Part #KC38KDGWZ000
The manufacturer no longer makes this part, and there's no substitute part
#5
Canister diagram
Vacuum caster wheel
Part #4370691
The manufacturer no longer makes this part, and there's no substitute part
#16
Canister diagram
Vacuum twist-on wire connector
Part #KS4154460
The manufacturer no longer makes this part, and there's no substitute part
