Craftsman
Radial Arm Saw

Model # 113234701 Official Craftsman radial arm saw

Here are the diagrams and repair parts for Official Craftsman 113234701 radial arm saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Screw 806214
#28

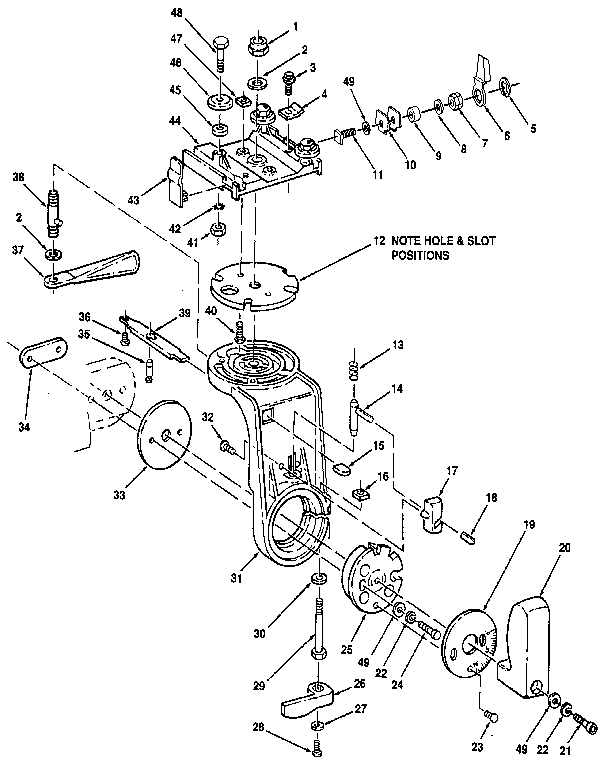

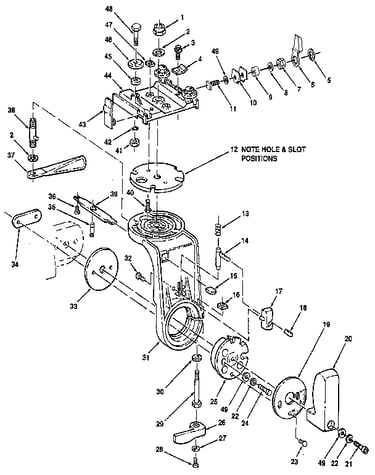

Figure 2 diagram

Screw

Part #806214

The manufacturer no longer makes this part, and there's no substitute part

Screw 815992-1
#25

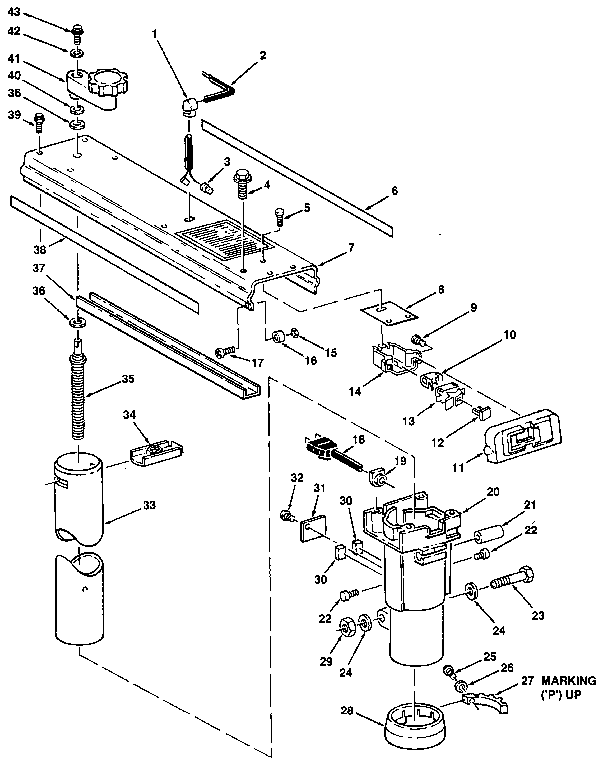

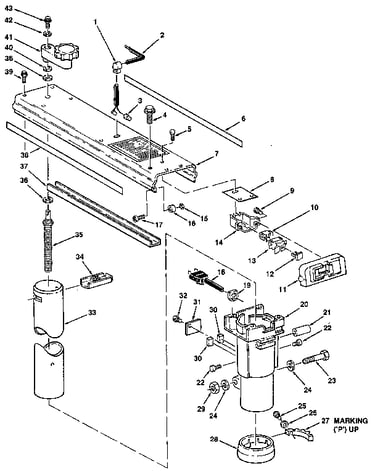

Figure 3 diagram

Screw

Part #815992-1

The manufacturer no longer makes this part, and there's no substitute part

Bolt 455722
#17

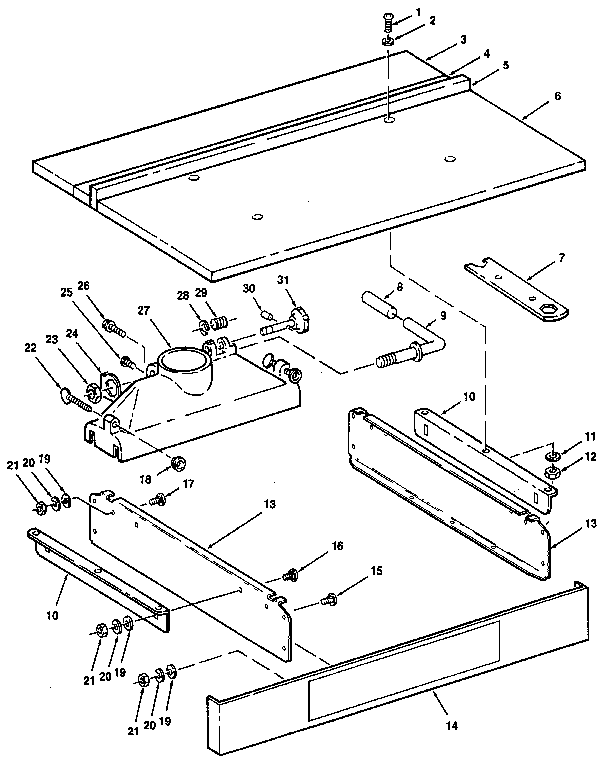

Figure 1 diagram

Bolt

Part #455722

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 141594-47
#21

Figure 2 diagram

Cap screw

Part #141594-47

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Guide Fence 818693
#5

Figure 1 diagram

Radial arm saw guide fence

Part #818693

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Anti-kickback Bar Bearing And Retainer 816341
#22

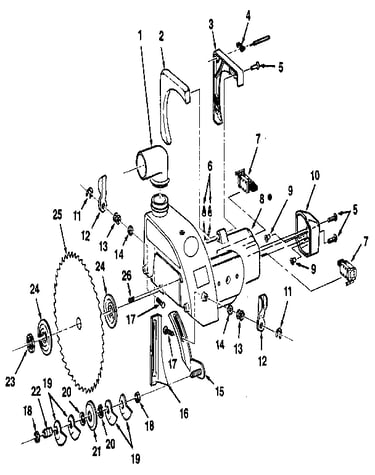

Figure 4 diagram

Radial arm saw anti-kickback bar bearing and retainer

Part #816341

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table Spacer 818703
#4

Figure 1 diagram

Radial arm saw table spacer

Part #818703

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Bracket Clamp 818161
#18

Figure 1 diagram

Radial arm saw bracket clamp

Part #818161

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Screw, 1/4-20 X 5/8-in 817398-1
#40

Figure 2 diagram

Radial arm saw screw, 1/4-20 x 5/8-in

Part #817398-1

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Rear 818745
#3

Figure 1 diagram

Radial arm saw table, rear

Part #818745

The manufacturer no longer makes this part, and there's no substitute part
