Model # GXI6536DXS0 Official Whirlpool 36" professional hood

Here are the diagrams and repair parts for Official Whirlpool GXI6536DXS0 36" professional hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Range Hood Light Bulb 8186678
#5

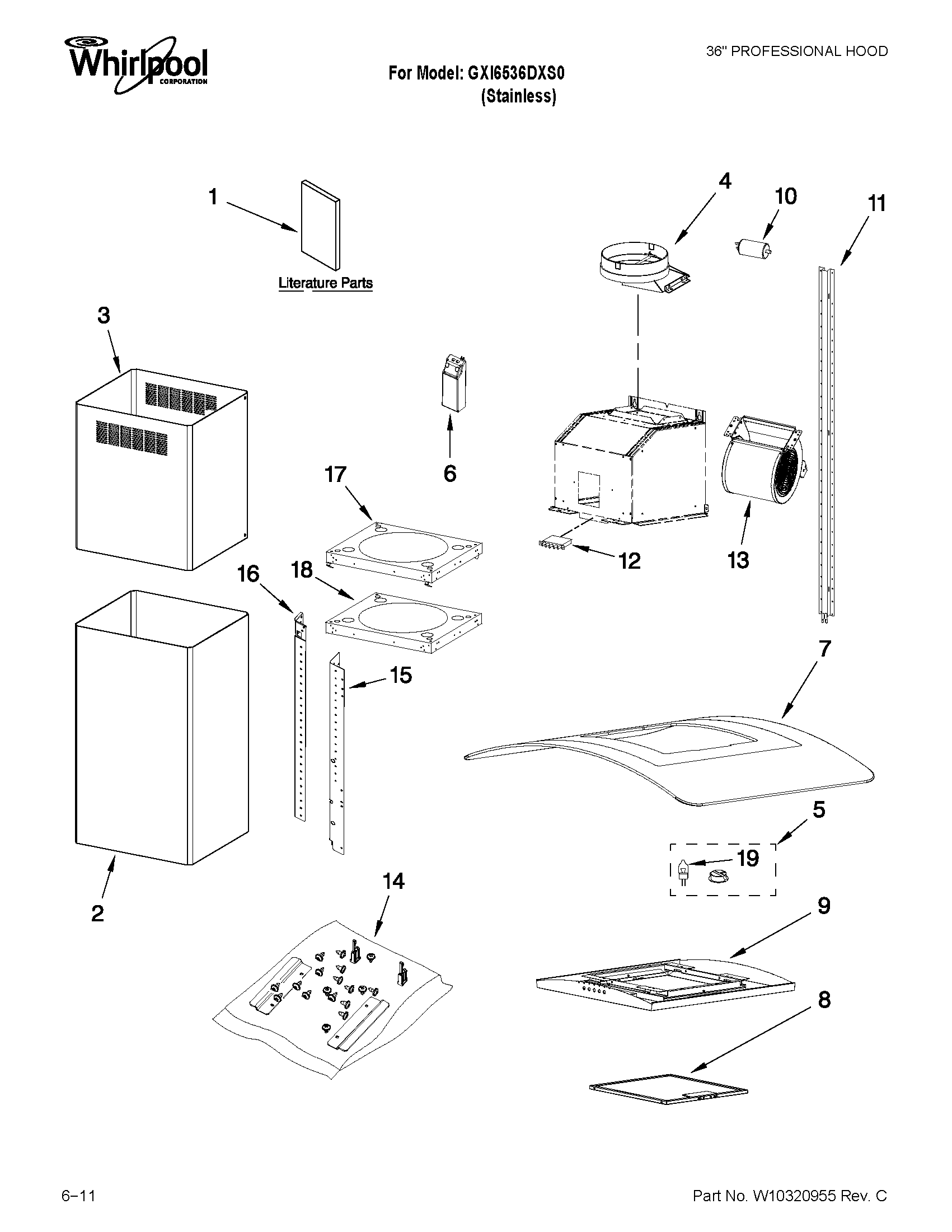

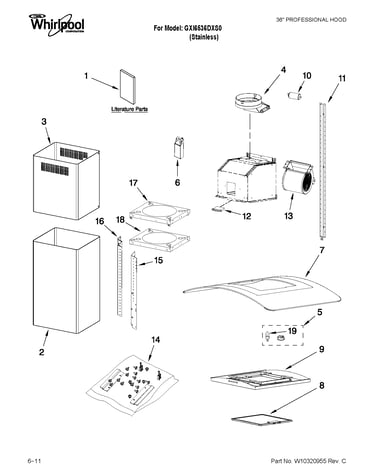

Hood parts diagram

Range hood light bulb

Part #8186678

Replaced by #WP8186678

?
Manufacturer substitution
This part replaces 8186678. Substitute parts can look different from the original.
BEST SELLER
$58.13 |
9% OFF Phone Price : $64.13
In Stock
Filter W10294730
#NI

Hood parts diagram

Filter

Part #W10294730

Replaced by #W10412939

?
Manufacturer substitution
This part replaces W10294730. Substitute parts can look different from the original.
$56.06 |
10% OFF Phone Price : $62.06
In Stock
Range Hood Recirculation Kit W10294734
#NI

Hood parts diagram

Range hood recirculation kit

Part #W10294734

Replaced by #W11430929

?
Manufacturer substitution
This part replaces W10294734. Substitute parts can look different from the original.
$90.44 |
6% OFF Phone Price : $96.44
In Stock
Range Hood Flue Support, Lower W10293065
#18

Hood parts diagram

Range hood flue support, lower

Part #W10293065

$76.40
In Stock
Support W10293063
#16

Hood parts diagram

Support

Part #W10293063

$43.53
In Stock
Range Hood Flue Support W10297052
#17

Hood parts diagram

Range hood flue support

Part #W10297052

$137.29
In Stock
Range Hood Blower Motor Capacitor W10256657
#10

Hood parts diagram

Range hood blower motor capacitor

Part #W10256657

$55.58
In Stock
Range Hood Light Bulb W10298151
#19

Hood parts diagram

Range hood light bulb

Part #W10298151

Replaced by #WPW10298151

?
Manufacturer substitution
This part replaces W10298151. Substitute parts can look different from the original.
This item is not returnable
$23.69 |
20% OFF Phone Price : $29.69
In Stock
Range Hood Fan Motor Assembly W10291577
#13

Hood parts diagram

Range hood fan motor assembly

Part #W10291577

Replaced by #WPW10291577

?
Manufacturer substitution
This part replaces W10291577. Substitute parts can look different from the original.
$381.54 |
$12.00 OFF Phone Price : $393.54
In Stock
Transformer 8186686
#6

Hood parts diagram

Transformer

Part #8186686

Replaced by #W11186486

?
Manufacturer substitution
This part replaces 8186686. Substitute parts can look different from the original.
$114.79 |
9% OFF Phone Price : $126.79
In Stock
