Model # SC8830EBB1 Official Whirlpool 30" sealed gas cooktop
Here are the diagrams and repair parts for Official Whirlpool SC8830EBB1 30" sealed gas cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forSC8830EBB1 Ranges
- #9

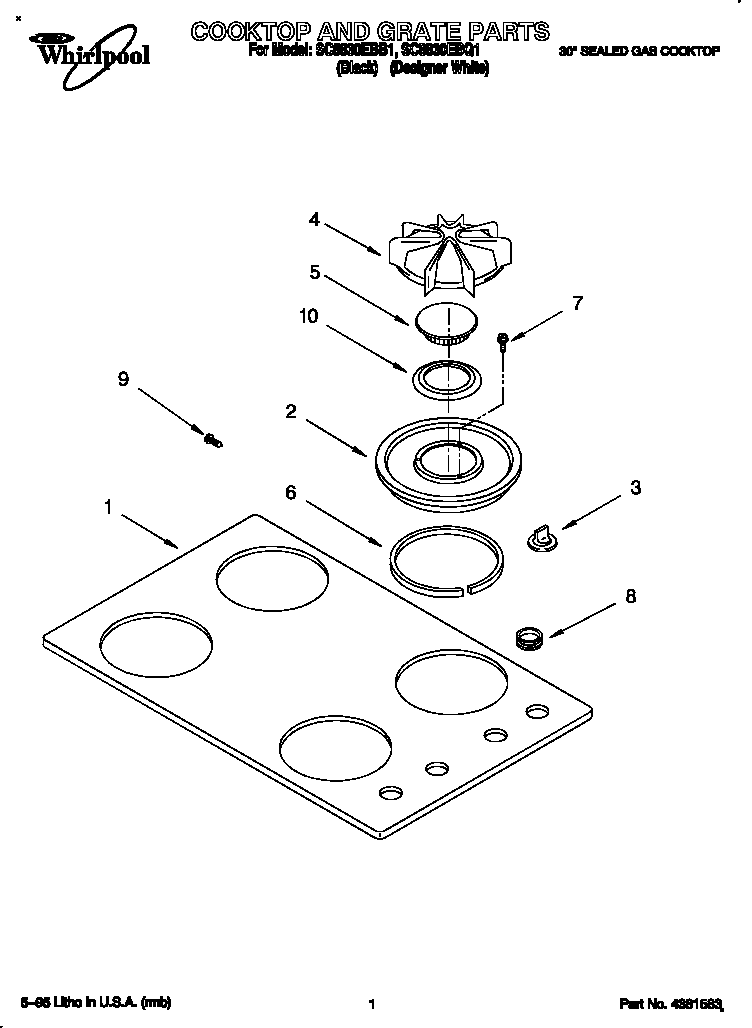

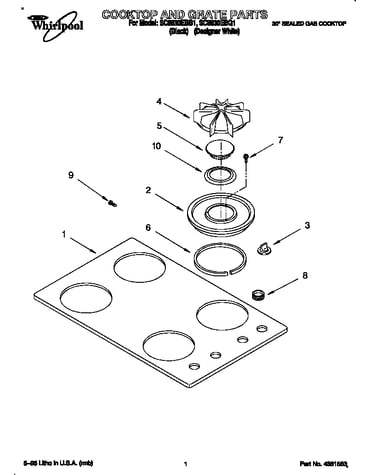

Cooktop and grate diagram
ScrewPart #4381534
Replaced by #WP4159387
?Manufacturer substitutionThis part replaces 4381534. Substitute parts can look different from the original.$28.42In Stock - #3A
Cooktop and grate diagram
Control knobPart #4381524
Replaced by #WP74001253
?Manufacturer substitutionThis part replaces 4381524. Substitute parts can look different from the original.$21.22 |22% OFF Phone Price : $27.22In Stock - #5

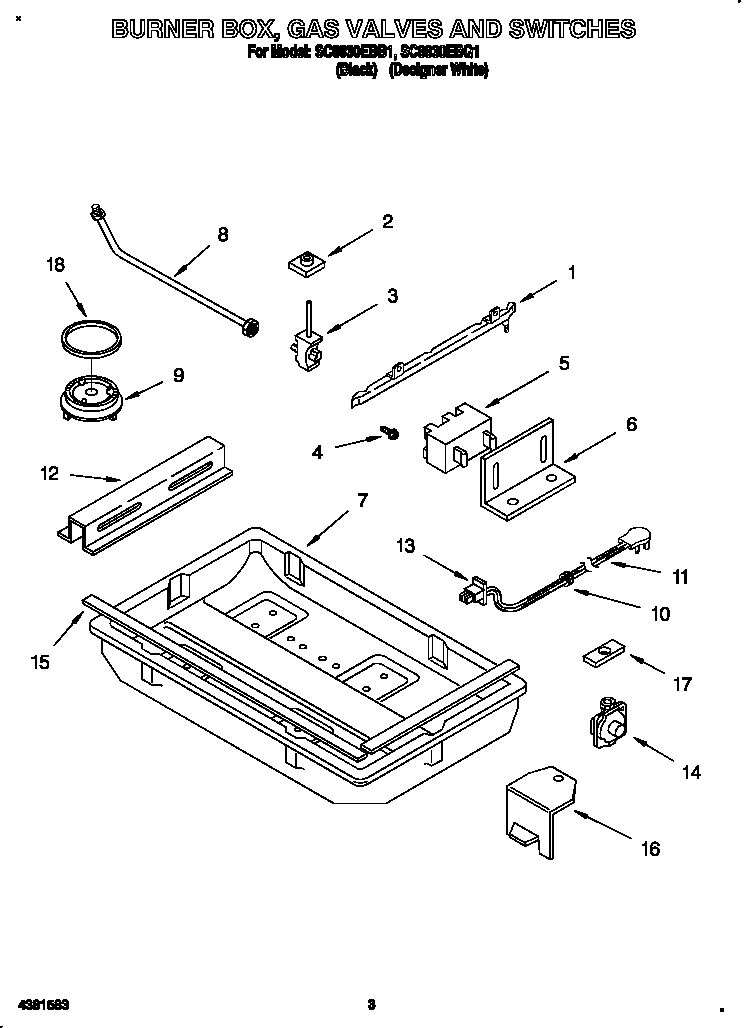

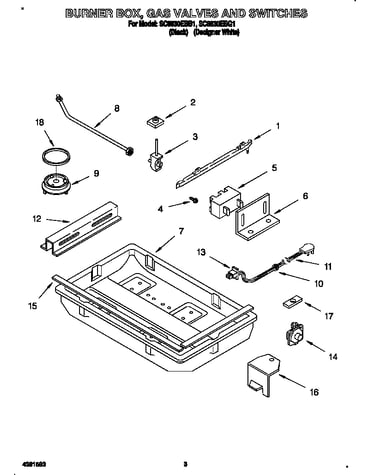

Burner box, gas valves and switches diagram
Spark modulePart #4381542
Replaced by #12001596
?Manufacturer substitutionThis part replaces 4381542. Substitute parts can look different from the original.$72.35 |8% OFF Phone Price : $78.35In Stock - #2
Burner box, gas valves and switches diagram
Igniter switchPart #4381538
Replaced by #WP7403P367-60
?Manufacturer substitutionThis part replaces 4381538. Substitute parts can look different from the original.$67.79 |8% OFF Phone Price : $73.79In Stock - #9
Burner box, gas valves and switches diagram
Cooktop burnerPart #4381550
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Foam seal (white)Part #4381565
The manufacturer no longer makes this part, and there's no substitute part
- #10B
Cooktop and grate diagram
Cooktop trim ringPart #4381536
The manufacturer no longer makes this part, and there's no substitute part
- #4B
Cooktop and grate diagram
Burner grate (gray)Part #4381526
The manufacturer no longer makes this part, and there's no substitute part
- #13A
Burner box, gas valves and switches diagram
Terminal blockPart #4381558
The manufacturer no longer makes this part, and there's no substitute part
- #13B
Burner box, gas valves and switches diagram
Terminal blockPart #4381559
The manufacturer no longer makes this part, and there's no substitute part
