Model # 22996234 Official Kenmore gas-fired hot water & steam boiler
Here are the diagrams and repair parts for Official Kenmore 22996234 gas-fired hot water & steam boiler, as well as links to manuals and error code tables, if available.
By Schematic

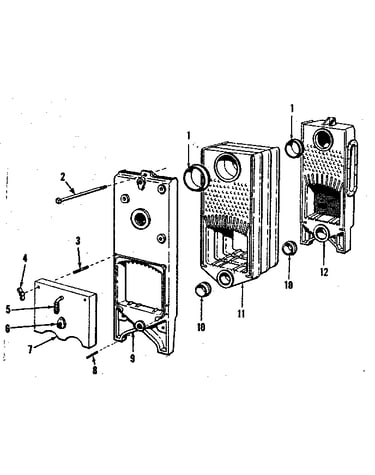

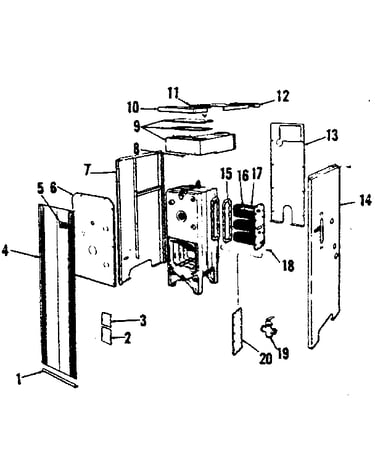

SELECT DIAGRAM
Browse Parts for
22996234 Gas-Fired Hot Water & Steam Boiler
#5

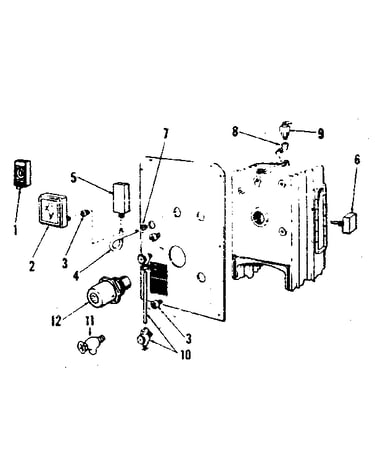

Boiler controls (steam) diagram
Control
Part #387.9268
Replaced by #PA404A1033
?
Manufacturer substitution
This part replaces 387.9268. Substitute parts can look different from the original.
$312.53 |
$12.00 OFF Phone Price : $324.53
In Stock
#14

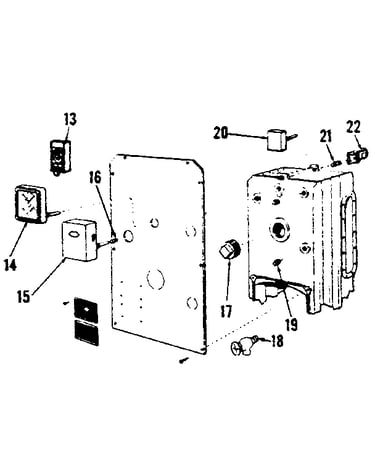

Boiler controls (water) diagram
P/t gauge
Part #8879
Replaced by #1260006SP
?
Manufacturer substitution
This part replaces 8879. Substitute parts can look different from the original.
$52.91
In Stock
Thermostat
Part #9237
Replaced by #1E30N-910
?
Manufacturer substitution
This part replaces 9237. Substitute parts can look different from the original.
$81.43 |
7% OFF Phone Price : $87.43
In Stock
Thermostat
Part #9235
The manufacturer no longer makes this part, and there's no substitute part
#22
Boiler controls (water) diagram
Relief valve
Part #8840
Replaced by #10-408-05
?
Manufacturer substitution
This part replaces 8840. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
#10
Boiler controls (steam) diagram
Gauge
Part #21001
Replaced by #21-104-03
?
Manufacturer substitution
This part replaces 21001. Substitute parts can look different from the original.
$194.80
In Stock
#9
Boiler controls (steam) diagram
Safety valve
Part #8836
Replaced by #1570001
?
Manufacturer substitution
This part replaces 8836. Substitute parts can look different from the original.
$73.51
In Stock
#9C

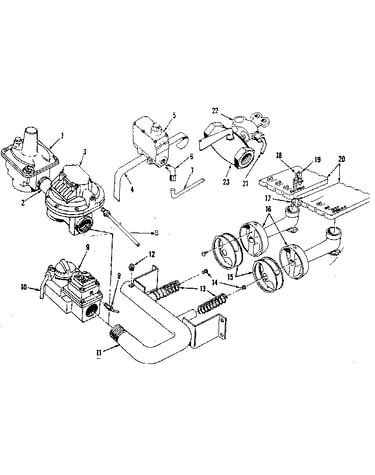

Sears gas fired boiler burners, manifold and valves diagram
Gas valve
Part #VS8279B-1025
The manufacturer no longer makes this part, and there's no substitute part
#5
Sears gas fired boiler burners, manifold and valves diagram
Pilot valve
Part #CS587A
The manufacturer no longer makes this part, and there's no substitute part
#9A
Sears gas fired boiler burners, manifold and valves diagram
Gas valve
Part #VS8279A-1034
The manufacturer no longer makes this part, and there's no substitute part
