Kenmore
Water Softener

Model # 625342300 Official Kenmore water softener

Here are the diagrams and repair parts for Official Kenmore 625342300 water softener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Resin 501741
#49

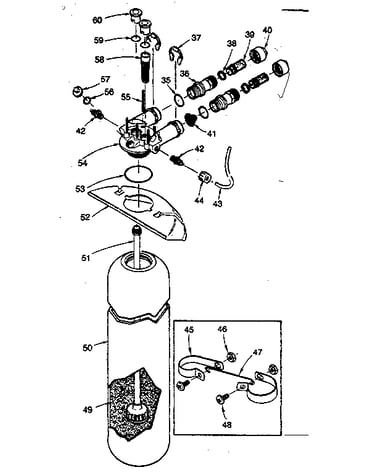

Resin tank, valve adaptor and connecting parts diagram

Resin

Part #501741

Replaced by #0502272

?
Manufacturer substitution
This part replaces 501741. Substitute parts can look different from the original.
BEST SELLER
$248.36 |
5% OFF Phone Price : $260.36
In Stock
Clip 1205500
#37

Resin tank, valve adaptor and connecting parts diagram

Clip

Part #1205500

Replaced by #7116713

?
Manufacturer substitution
This part replaces 1205500. Substitute parts can look different from the original.
BEST SELLER
$19.26 |
9% OFF Phone Price : $21.26
Back Order
Retainer 516924
#80

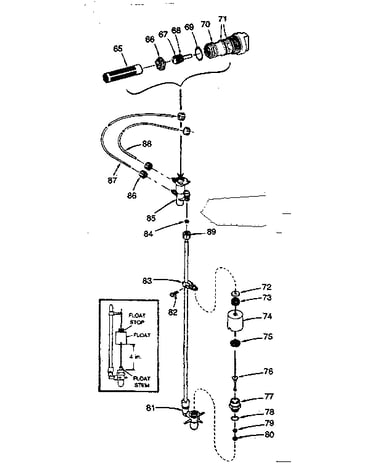

Nozzle assembly & brine valve diagram

Retainer

Part #516924

Replaced by #0516924

?
Manufacturer substitution
This part replaces 516924. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Water Softener Brine Valve Seal 516211
#79

Nozzle assembly & brine valve diagram

Water softener brine valve seal

Part #516211

Replaced by #0516211

?
Manufacturer substitution
This part replaces 516211. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Parts Bag 4920001

#NI

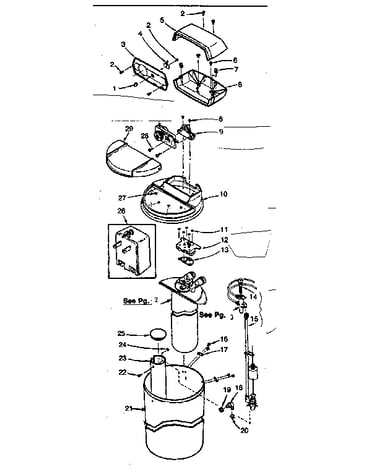

All parts diagram

Parts bag

Part #4920001

Replaced by #7287205

?
Manufacturer substitution
This part replaces 4920001. Substitute parts can look different from the original.
$104.39 |
10% OFF Phone Price : $116.39
In Stock
Spring (gray) 1219600
#114

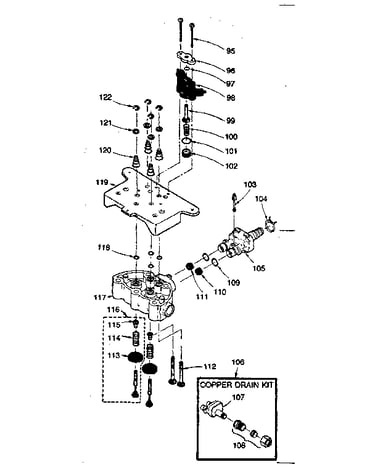

Valve cap, safety valve and flow washer housing diagram

Spring (gray)

Part #1219600

$7.86
In Stock
White Tube 501014
#88

Nozzle assembly & brine valve diagram

White tube

Part #501014

Replaced by #7089267

?
Manufacturer substitution
This part replaces 501014. Substitute parts can look different from the original.
This item is not returnable
$11.29 |
15% OFF Phone Price : $13.29
In Stock
Tube Red 501545
#87

Nozzle assembly & brine valve diagram

Tube red

Part #501545

Replaced by #7089267

?
Manufacturer substitution
This part replaces 501545. Substitute parts can look different from the original.
This item is not returnable
$11.29 |
15% OFF Phone Price : $13.29
In Stock
Power Cable 1263500
#132

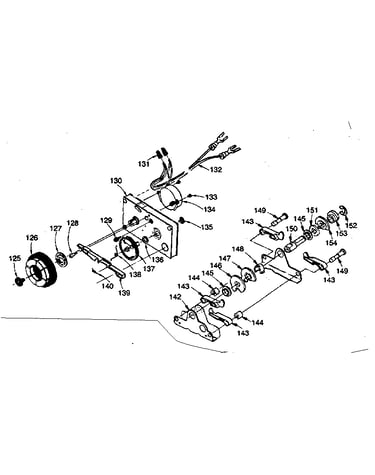

Timer and cam nest diagram

Power cable

Part #1263500

Replaced by #7132840

?
Manufacturer substitution
This part replaces 1263500. Substitute parts can look different from the original.
$30.29 |
17% OFF Phone Price : $36.29
In Stock
Kenmore Kit 7060661

#NI

All parts diagram

Kenmore kit

Part #7060661

$11.99
In Stock
