Amana
Electric Range

Model # ARDS802E-P1131941NE Official Amana electric range

Here are the diagrams and repair parts for Official Amana ARDS802E-P1131941NE electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

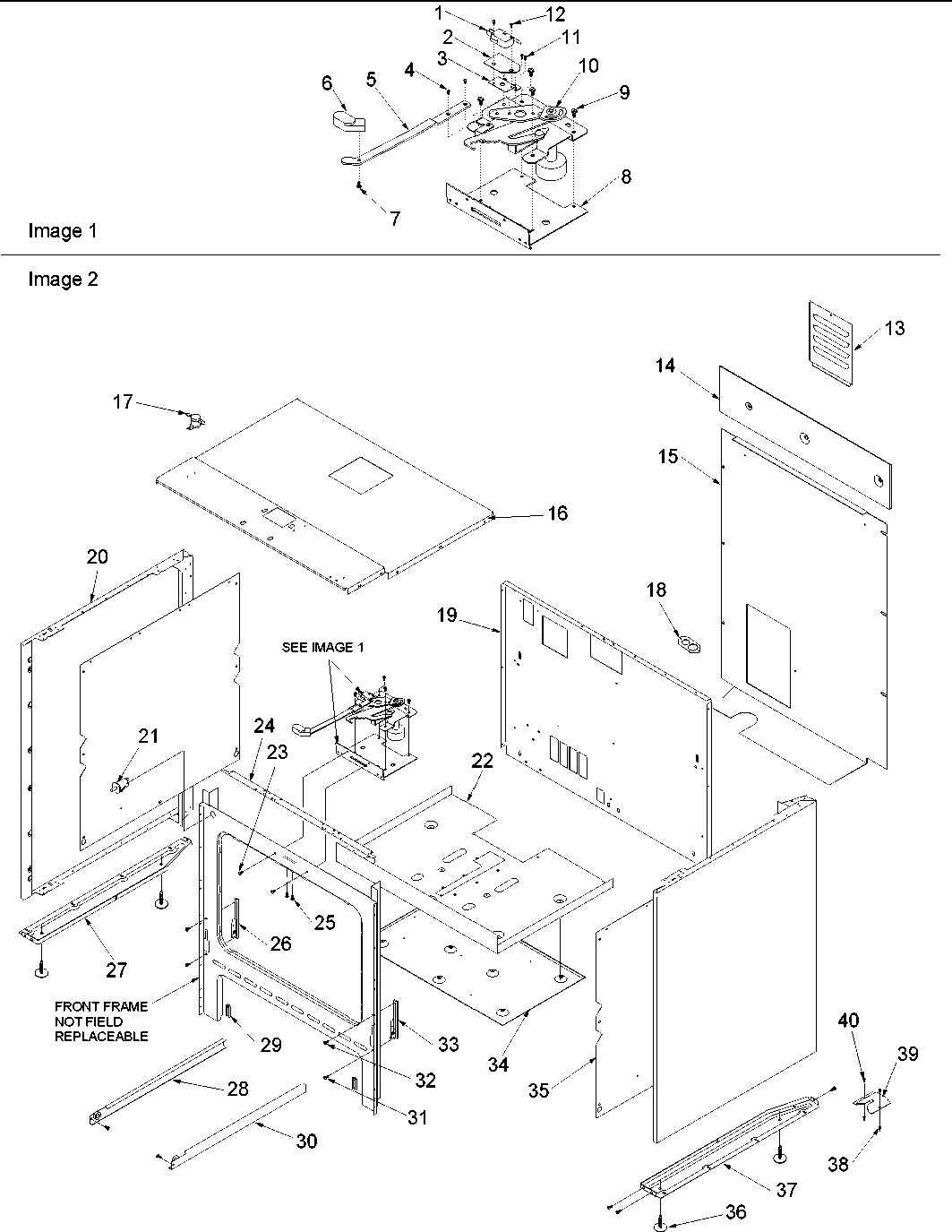

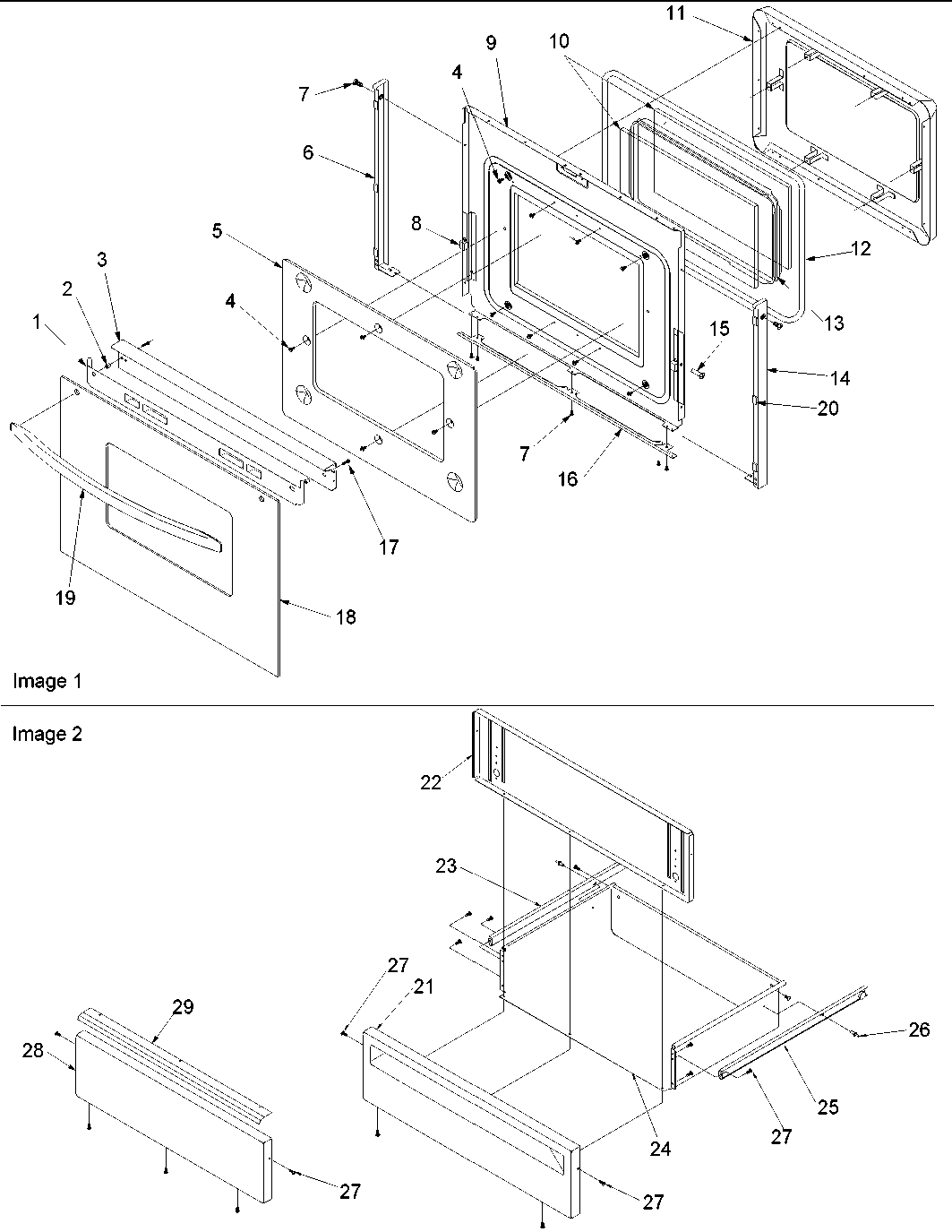

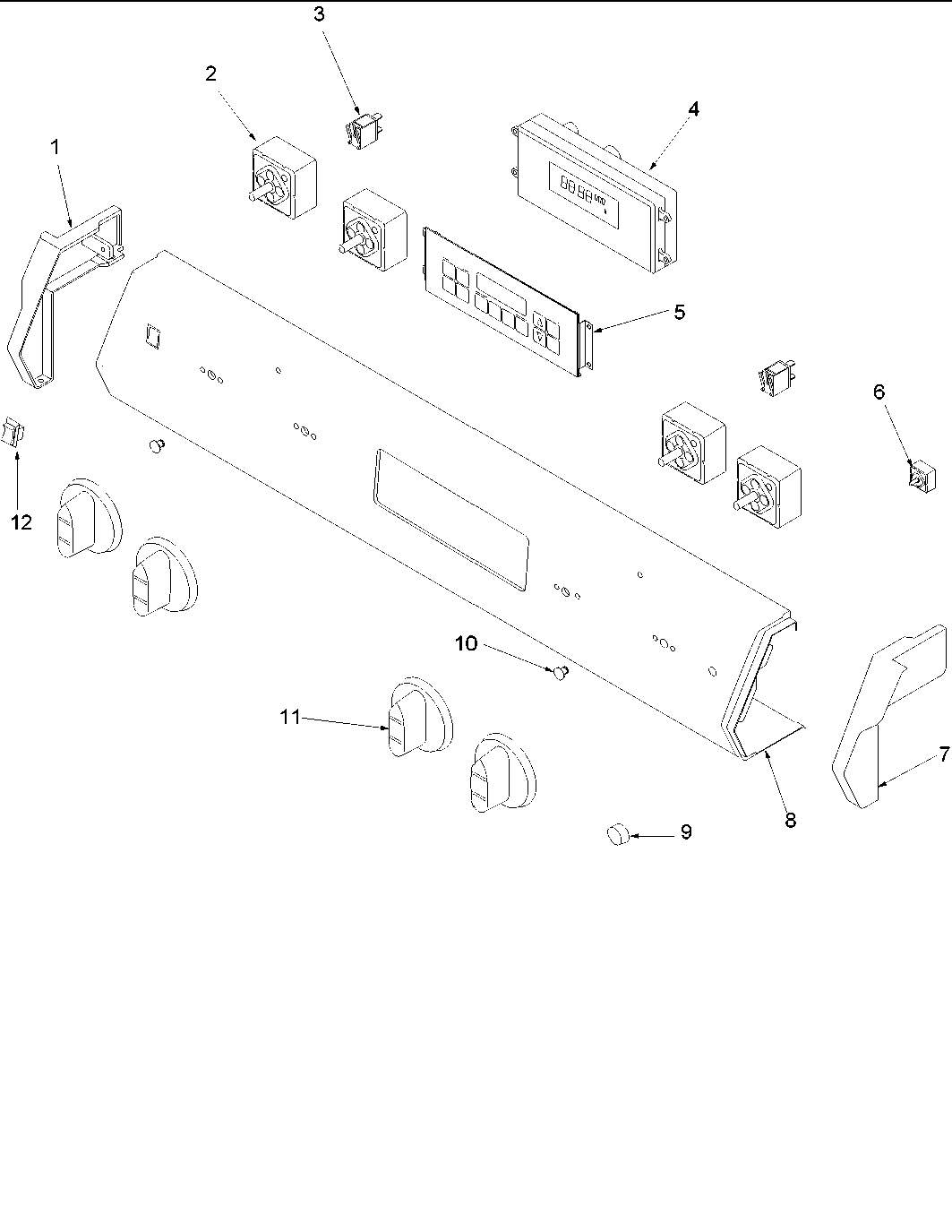

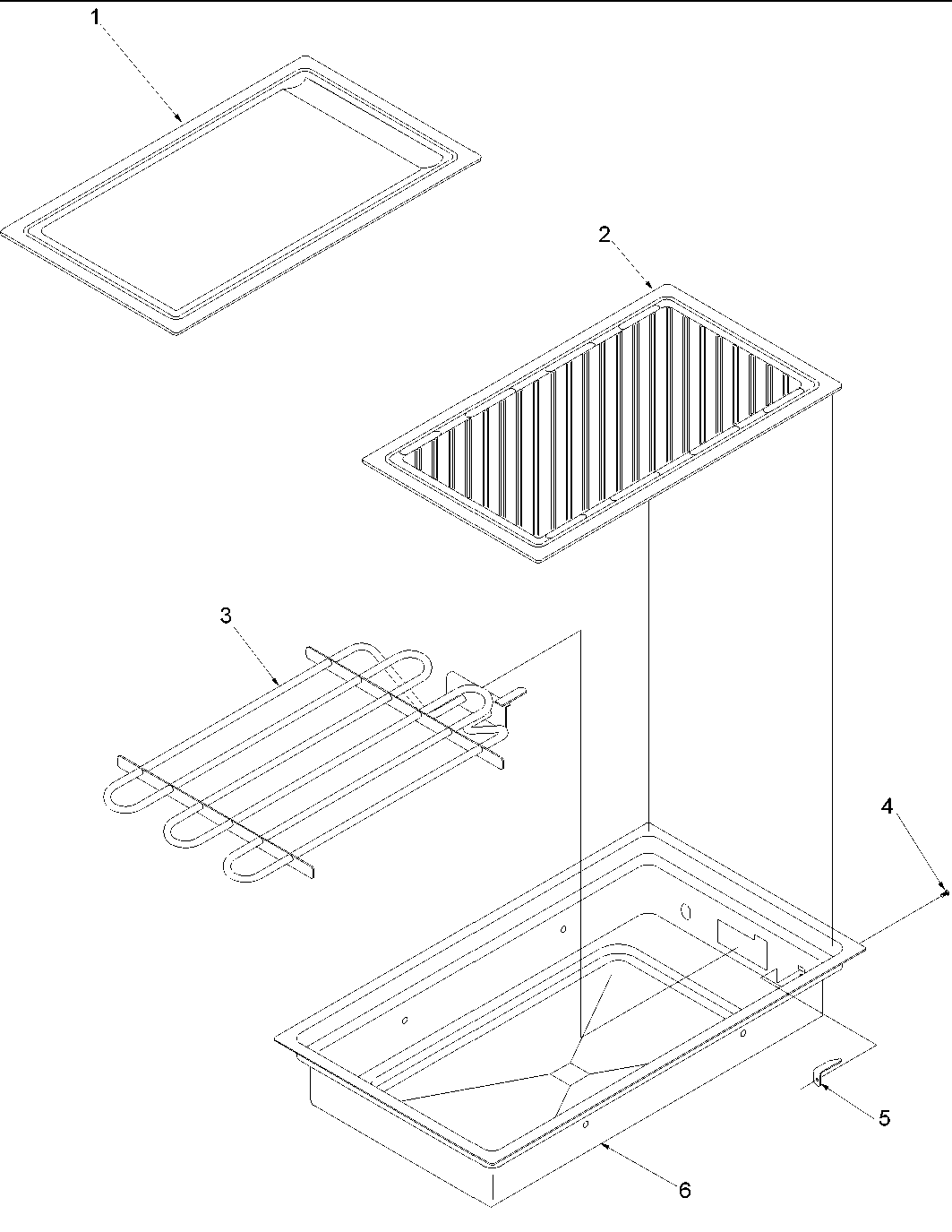

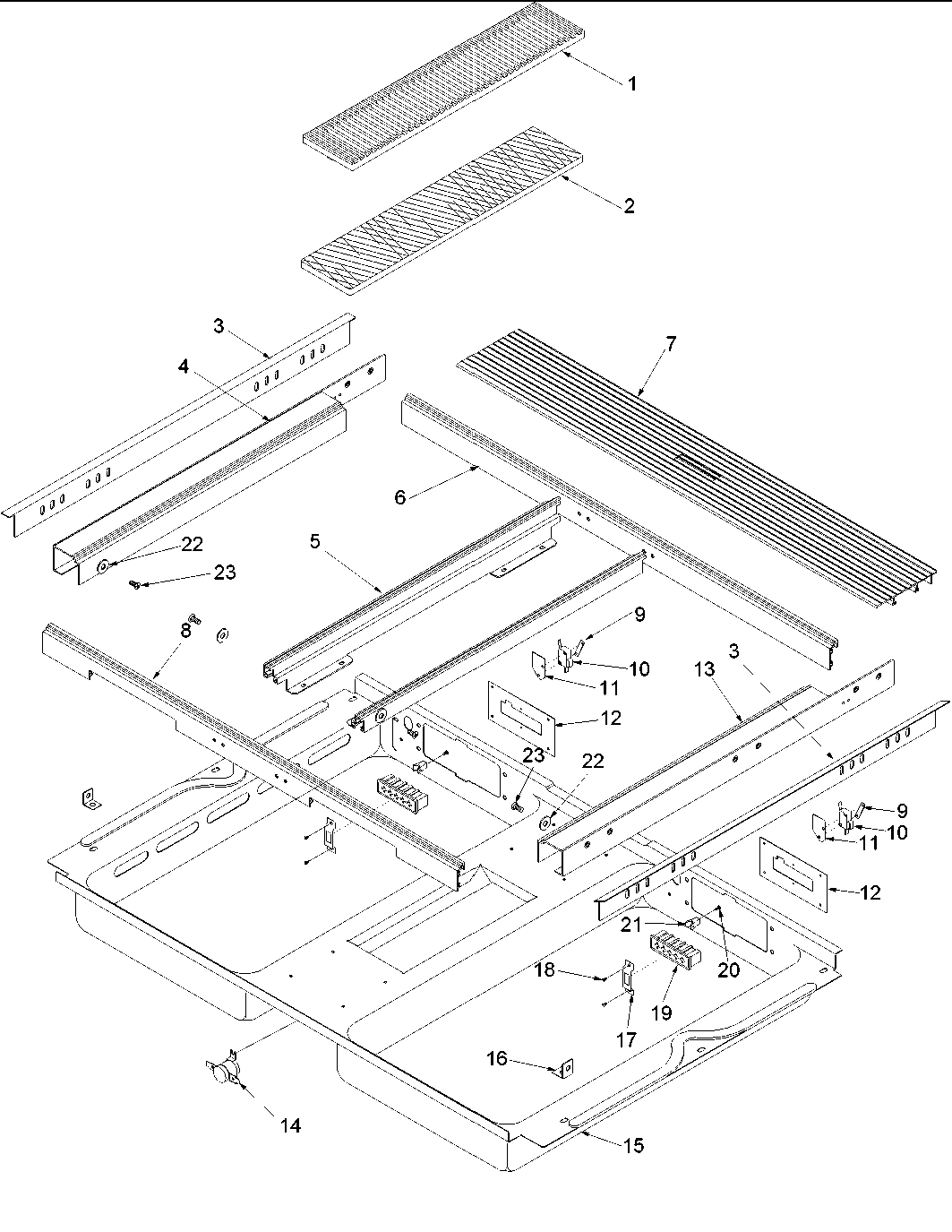

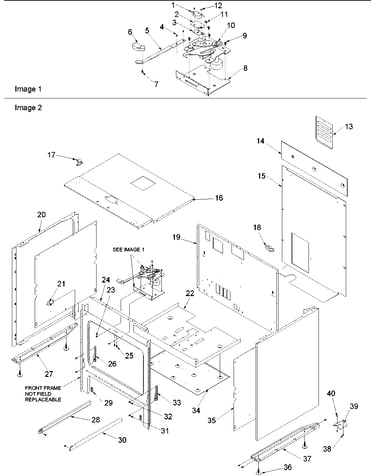

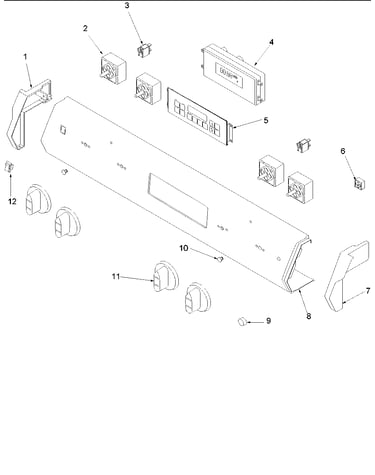

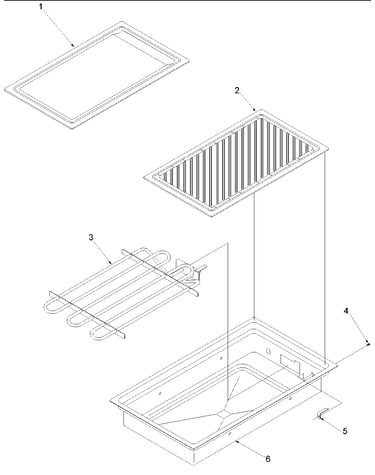

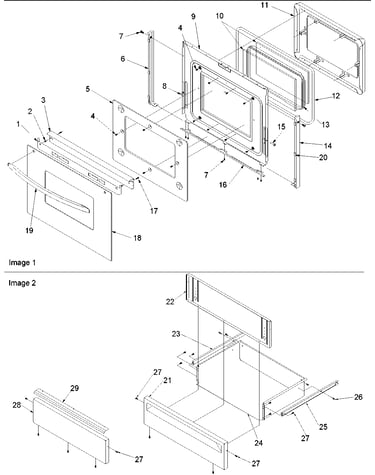

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Lamp 0042175
#20

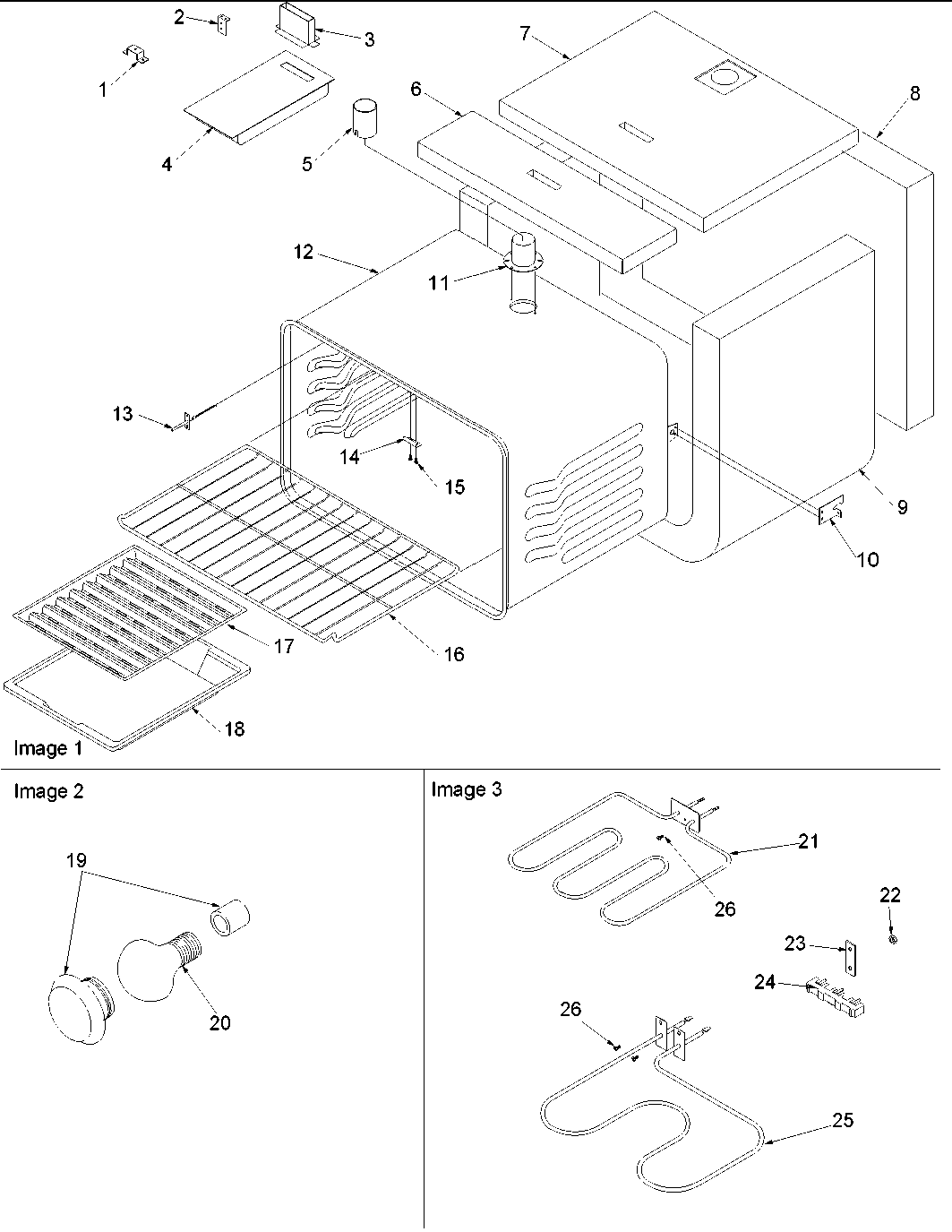

Cavity diagram

Lamp

Part #0042175

Replaced by #40A15

?
Manufacturer substitution
This part replaces 0042175. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Terminal Block 0306378
#24

Cavity diagram

Terminal block

Part #0306378

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 0306378. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Oven Light 0314842
#19

Cavity diagram

Oven light

Part #0314842

The manufacturer no longer makes this part, and there's no substitute part

Screw, #10-1 31750507
Screw, #10-1

Part #31750507

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 31750507. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Oven Sensor 0314907
#13

Cavity diagram

Oven sensor

Part #0314907

The manufacturer no longer makes this part, and there's no substitute part

Cover,backgd 0306379
#23

Cavity diagram

Cover,backgd

Part #0306379

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 0306379. Substitute parts can look different from the original.
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Screw 31750701
Screw

Part #31750701

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750701. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Pan 314175CG
#18

Cavity diagram

Broiler pan

Part #314175CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 314175CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Oven Rack 314763J
#16

Cavity diagram

Oven rack

Part #314763J

Replaced by #WP314763J

?
Manufacturer substitution
This part replaces 314763J. Substitute parts can look different from the original.
$35.63 |
14% OFF Phone Price : $41.63
In Stock
Shield Nut 31750113
#999B

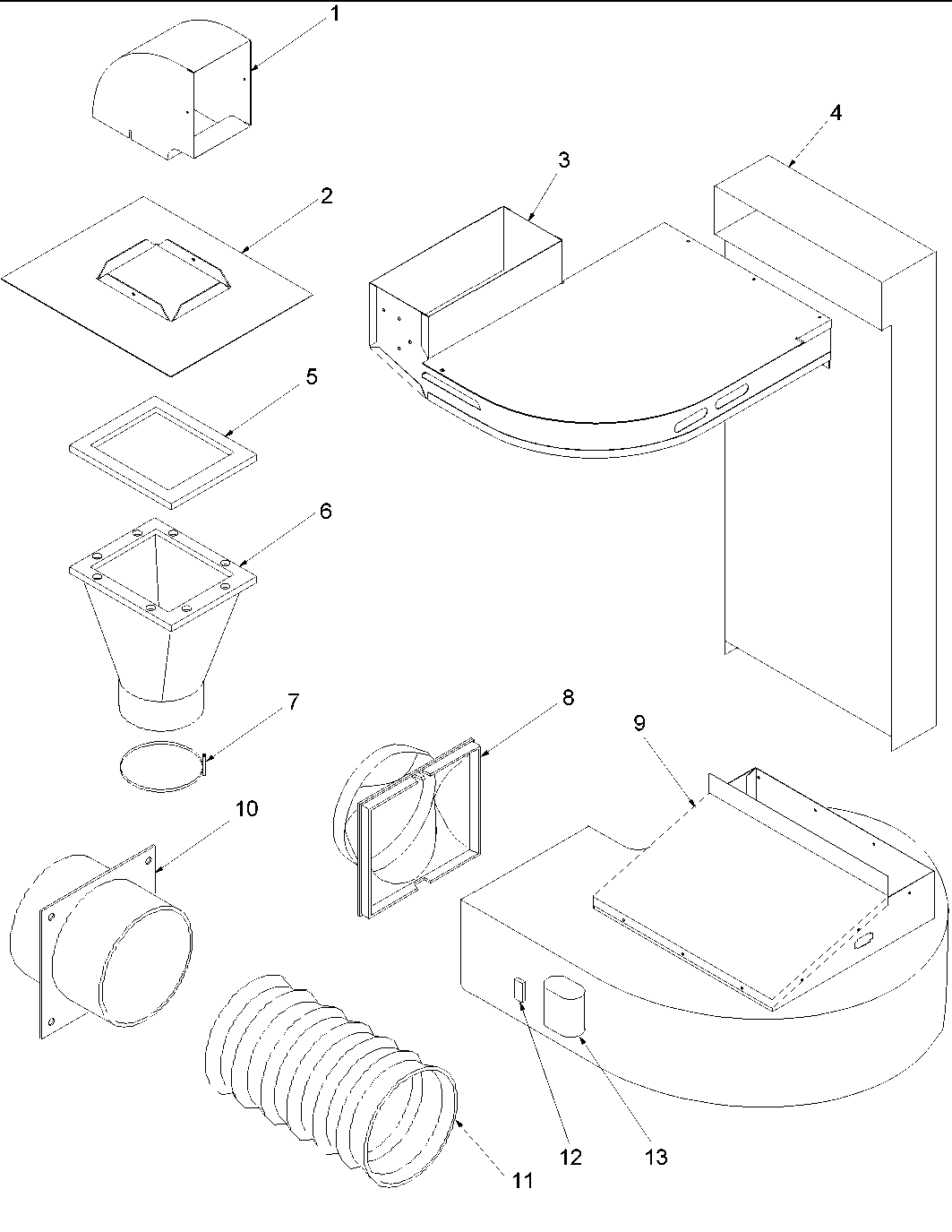

Ventilation parts diagram

Shield nut

Part #31750113

Replaced by #M0282005

?
Manufacturer substitution
This part replaces 31750113. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
