Model # RB215ABPN/XAA-00 Official Samsung refrigerator
Here are the diagrams and repair parts for Official Samsung RB215ABPN/XAA-00 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

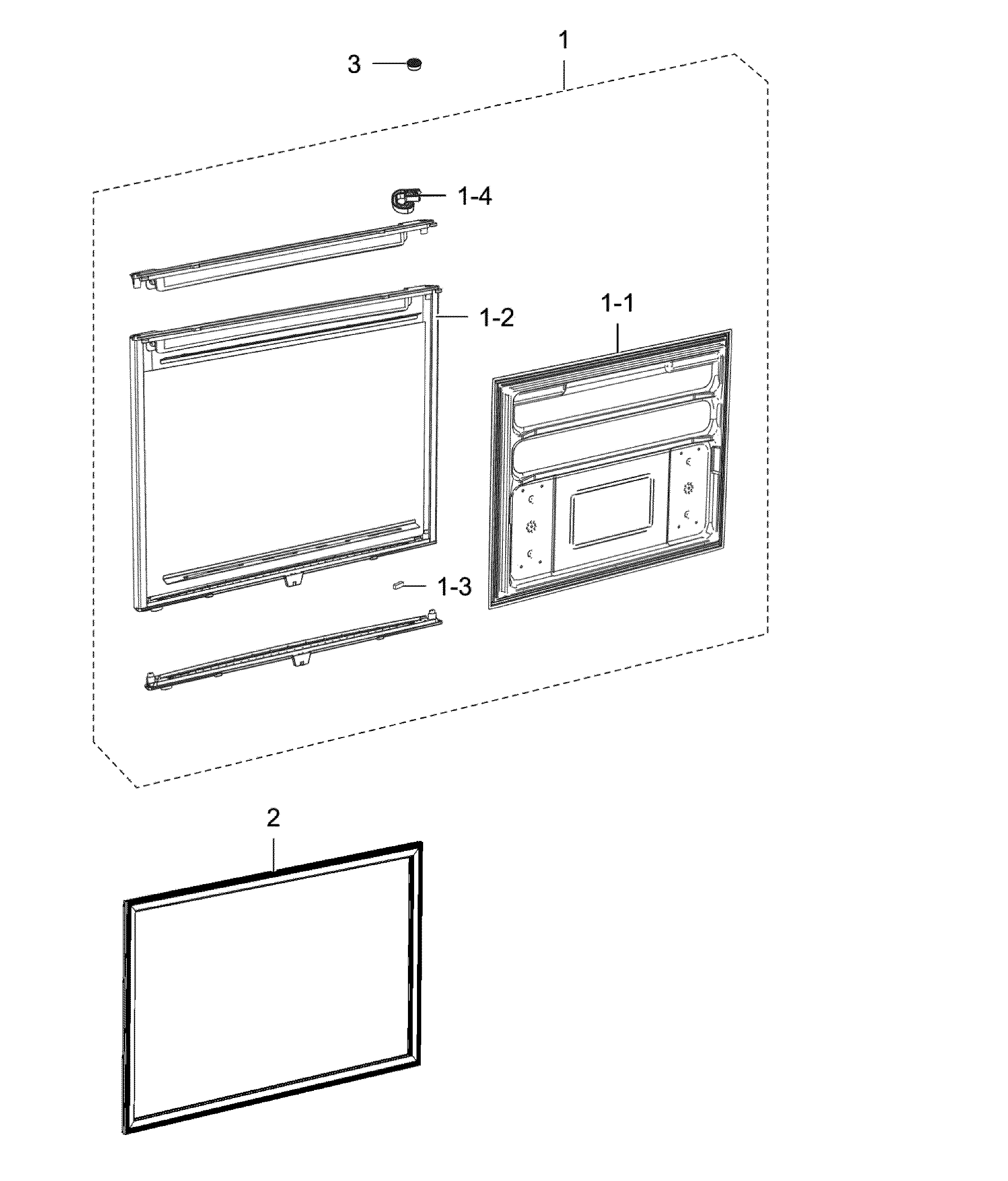

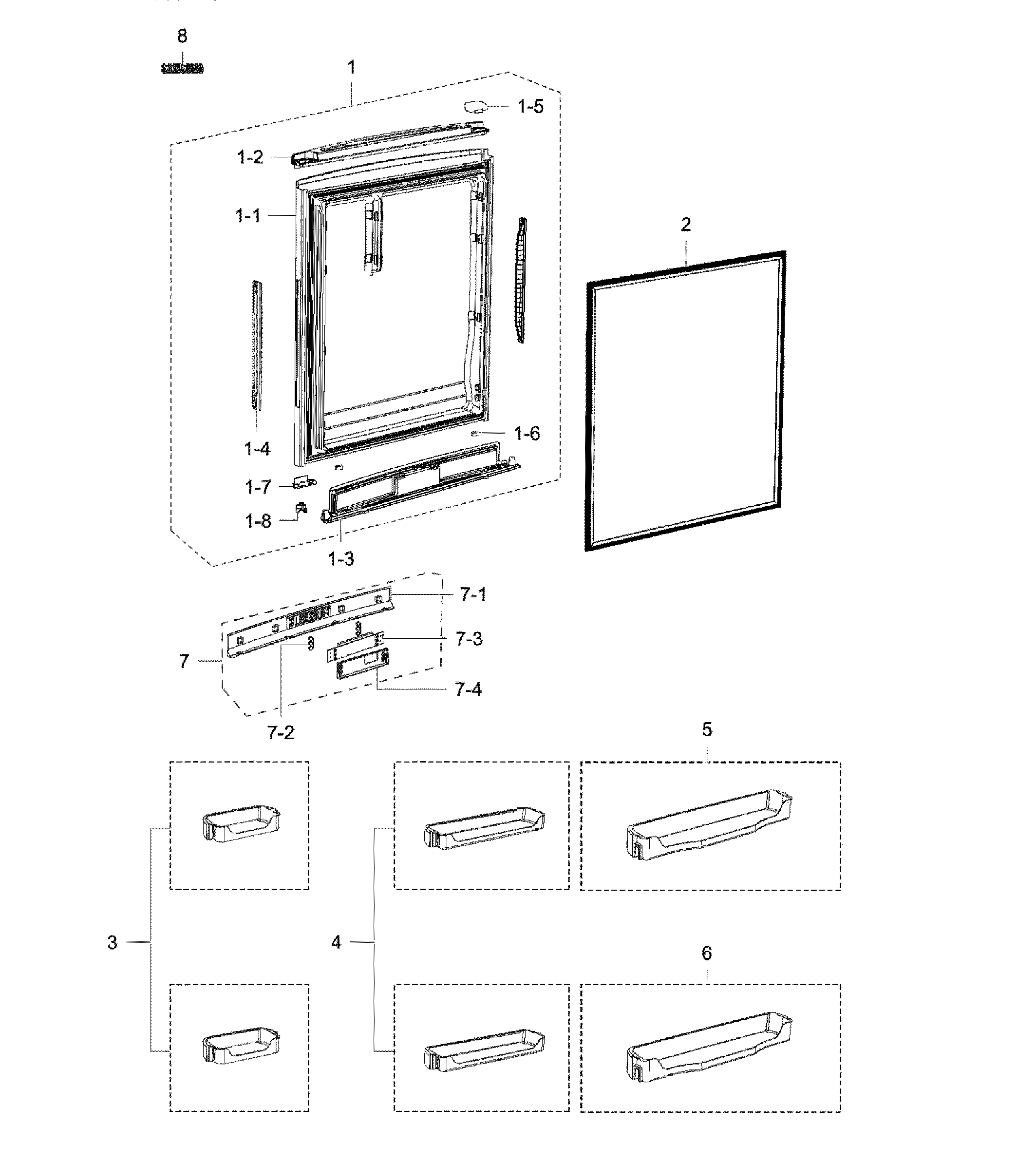

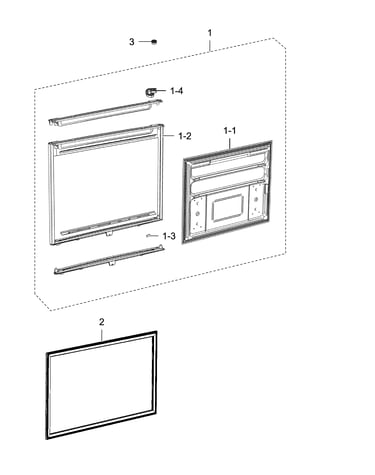

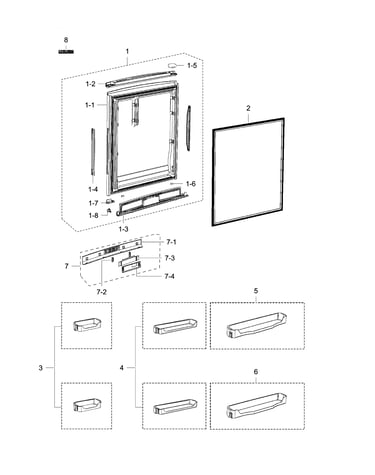

SELECT DIAGRAM
Browse Parts forRB215ABPN/XAA-00 Refrigerators
- #13

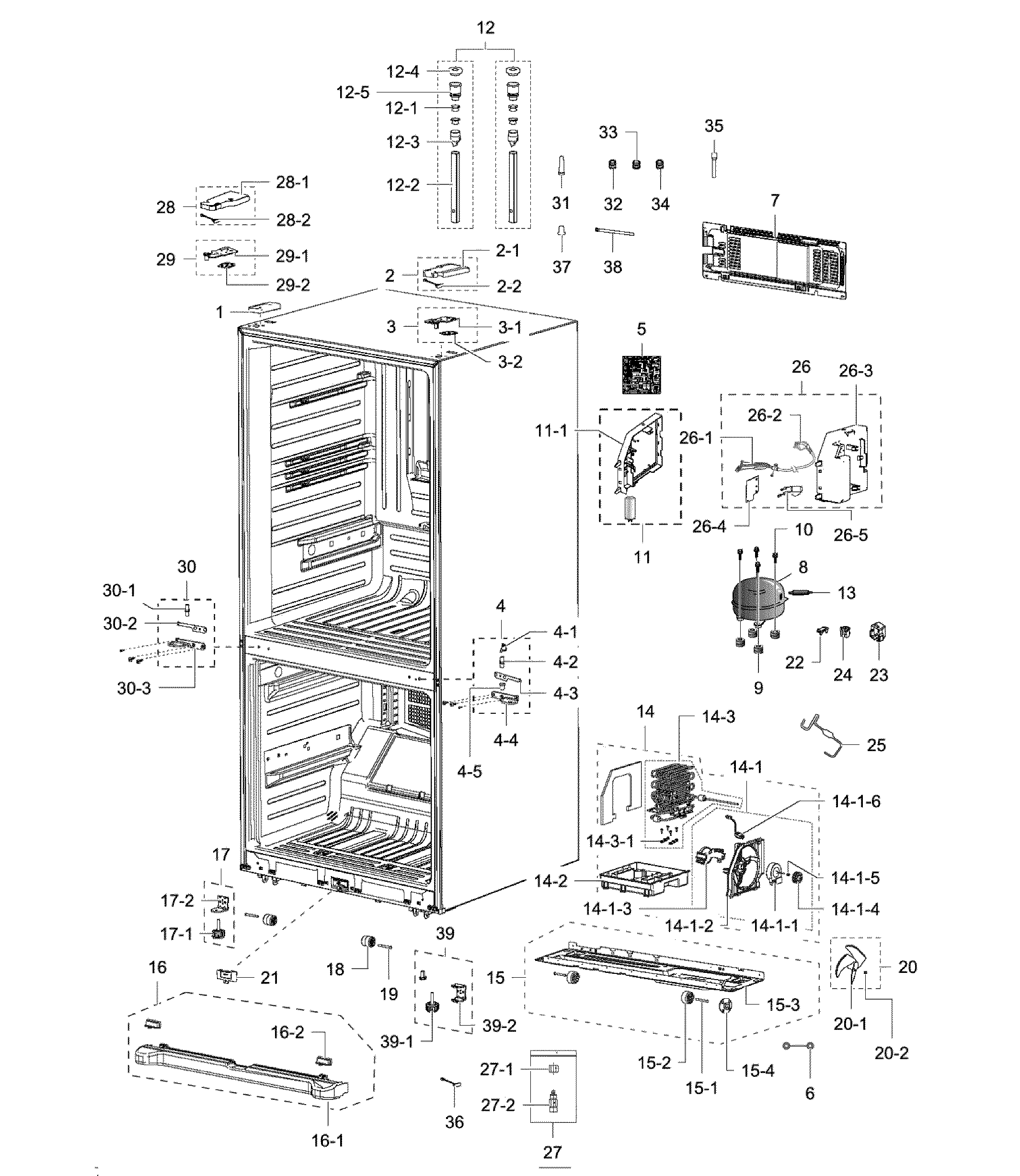

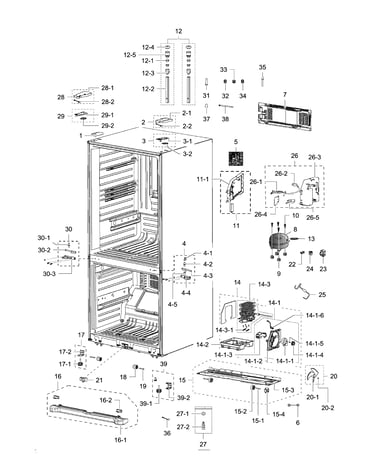

Cabinet assy diagram
Filtr dryrPart #DA62-04309B
Replaced by #DA81-06006B
?Manufacturer substitutionThis part replaces DA62-04309B. Substitute parts can look different from the original.$88.18 |6% OFF Phone Price : $94.18In Stock - #11

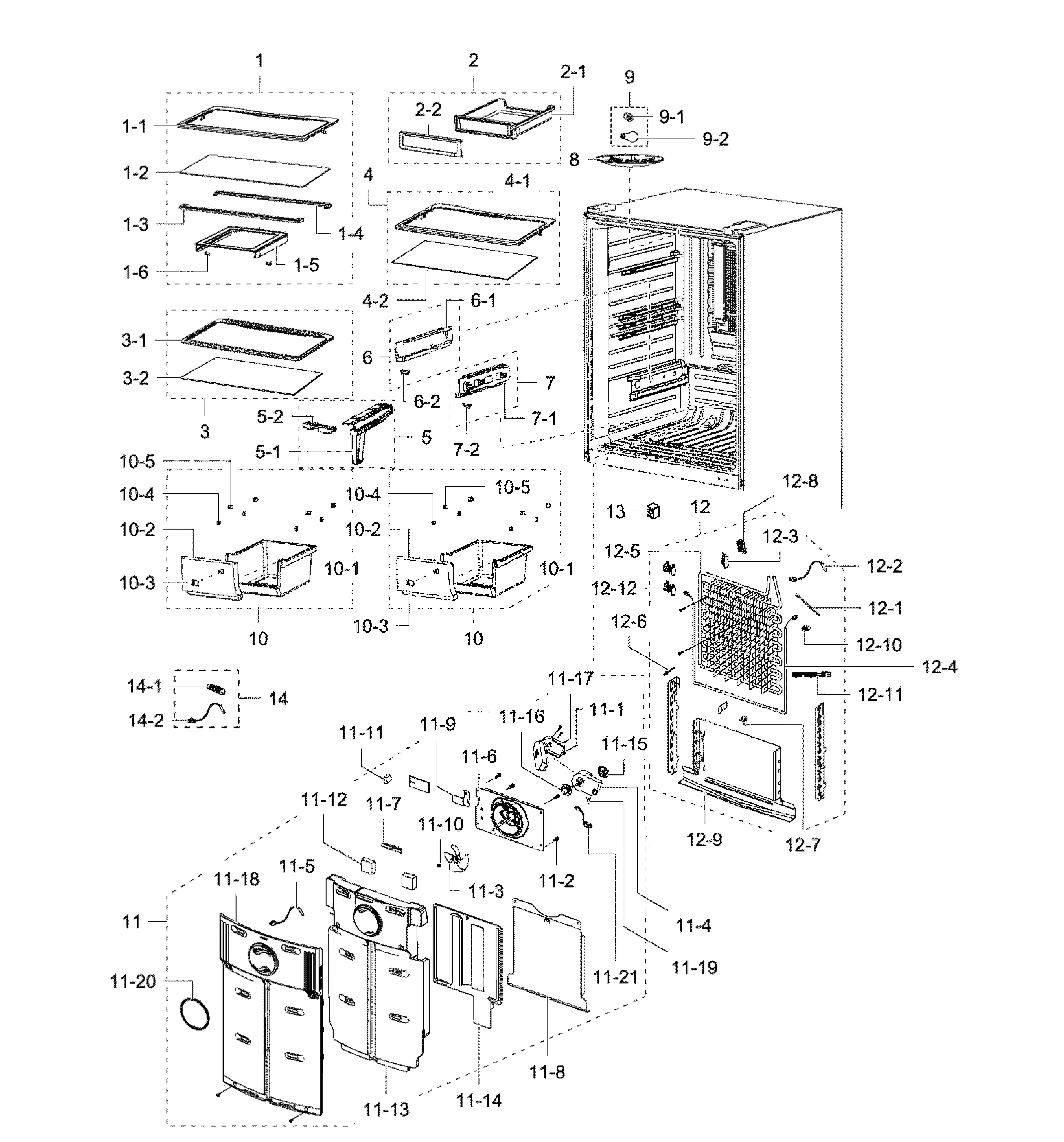

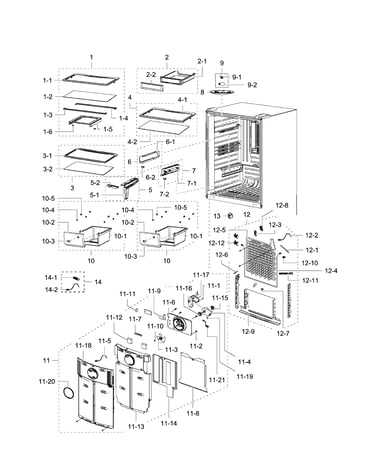

Refrigerator diagram
Refrigerator evaporator coverPart #DA97-06656J
Replaced by #DA97-11823A
?Manufacturer substitutionThis part replaces DA97-06656J. Substitute parts can look different from the original.$245.95 |5% OFF Phone Price : $257.95In Stock - #12-2
Refrigerator diagram
Refrigerator defrost sensorPart #DA32-00006S
$32.36 |16% OFF Phone Price : $38.36In Stock - #2-4

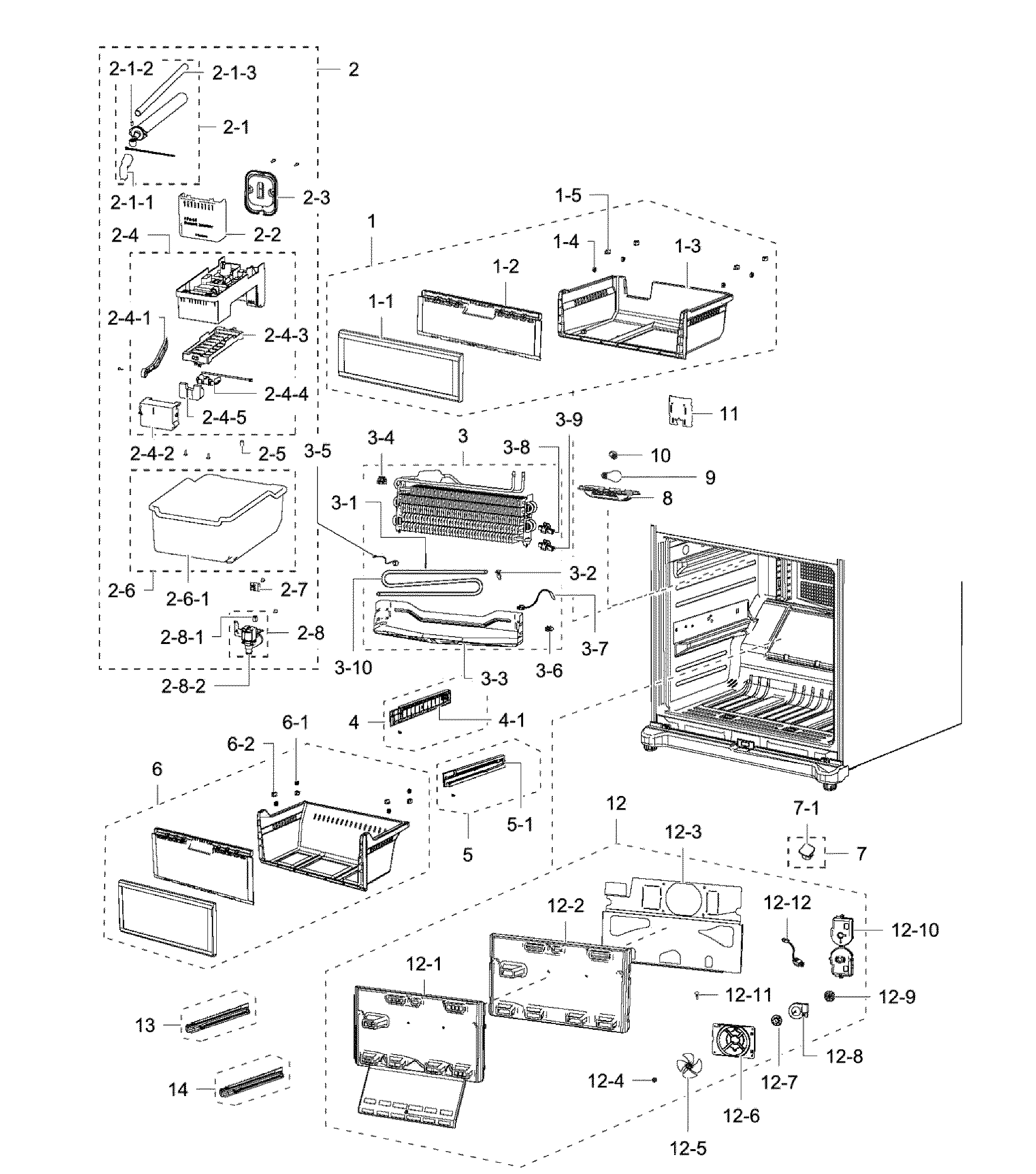

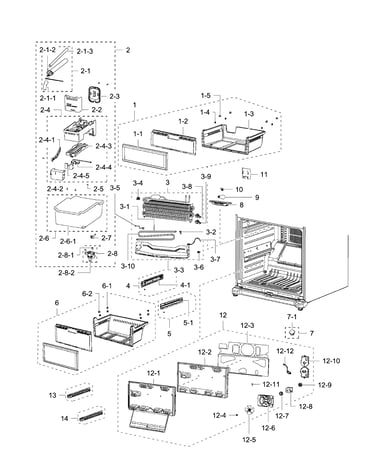

Freezer diagram
Refrigerator ice makerPart #DA97-05037C
Replaced by #DA97-05037D
?Manufacturer substitutionThis part replaces DA97-05037C. Substitute parts can look different from the original.$150.69 |7% OFF Phone Price : $162.69In Stock - #11-5
Refrigerator diagram
Kenmore pro refrigerator temperature sensorPart #DA32-10105X
$26.98 |18% OFF Phone Price : $32.98In Stock - #12
Cabinet assy diagram
Refrigerator drain capPart #DA97-04049A
Replaced by #DA97-04049D
?Manufacturer substitutionThis part replaces DA97-04049A. Substitute parts can look different from the original.$29.85 |17% OFF Phone Price : $35.85In Stock - #12-5
Cabinet assy diagram
Refrigerator drain capPart #DA67-01301A
Replaced by #DA97-04049D
?Manufacturer substitutionThis part replaces DA67-01301A. Substitute parts can look different from the original.$29.85 |17% OFF Phone Price : $35.85In Stock - #1211
Refrigerator diagram
Refrigerator defrost thermal fusePart #DA47-00301D
$30.58 |16% OFF Phone Price : $36.58In Stock - Refrigerator evaporator fan motor
Part #DA31-00146H
$118.74 |9% OFF Phone Price : $130.74In Stock - #2-82
Freezer diagram
Refrigerator water inlet valvePart #DA62-01477A
$84.68 |7% OFF Phone Price : $90.68In Stock
