Model # 11097588400 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 11097588400 gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

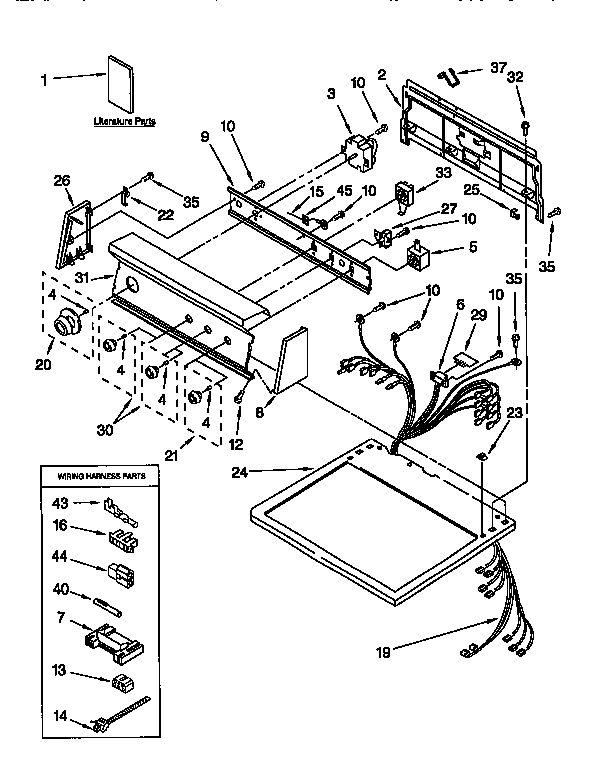

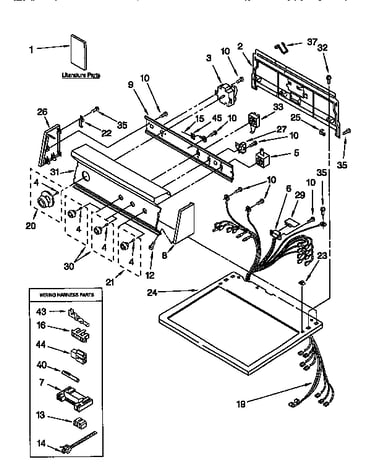

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for11097588400 Gas Dryer

  • Dryer Idler Pulley 3388672
    #13

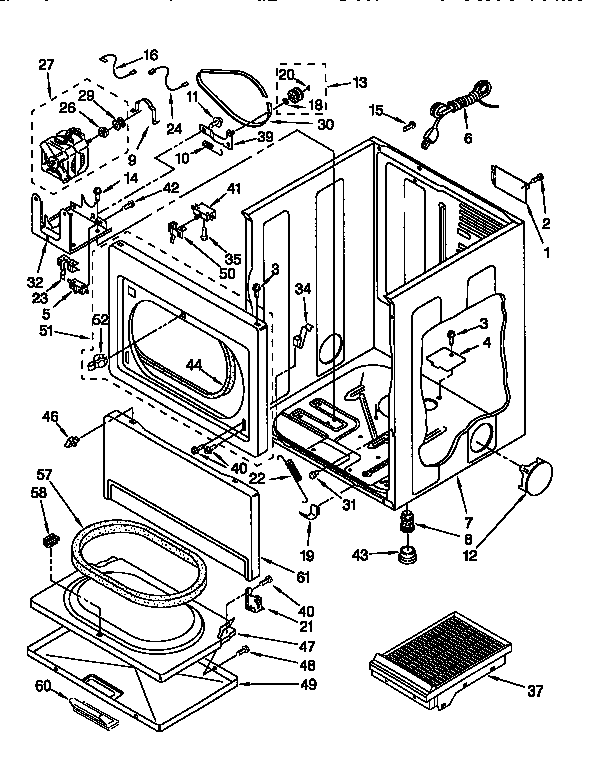

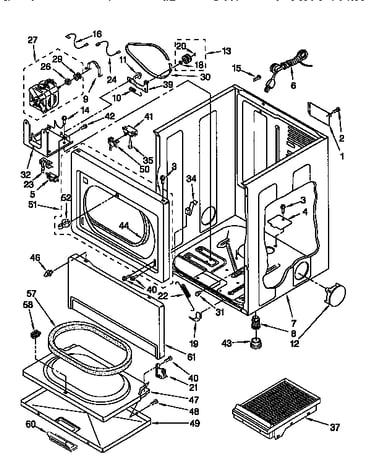

    Cabinet diagram

    Dryer idler pulley

    Part #3388672

    Replaced by #279640

    ?
    Manufacturer substitution
    This part replaces 3388672. Substitute parts can look different from the original.
    BEST SELLER
    $27.53
    18% OFF Phone Price : $33.53
    In Stock
  • Bracket 3388674
    #39

    Cabinet diagram

    Bracket

    Part #3388674

    Replaced by #W10837240

    ?
    Manufacturer substitution
    This part replaces 3388674. Substitute parts can look different from the original.
    BEST SELLER
    $17.72
    10% OFF Phone Price : $19.72
    In Stock
  • Dryer Operating Thermostat 3387134
    #42

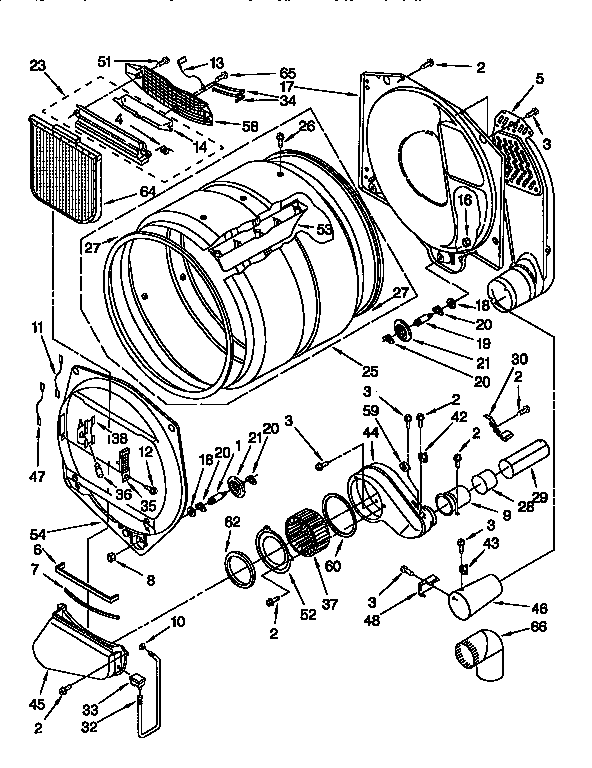

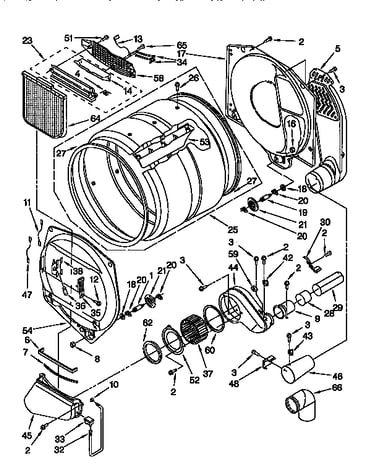

    Bulkhead diagram

    Dryer operating thermostat

    Part #3387134

    Replaced by #WP3387134

    ?
    Manufacturer substitution
    This part replaces 3387134. Substitute parts can look different from the original.
    BEST SELLER
    $17.96
    10% OFF Phone Price : $19.96
    In Stock
  • Dryer Blower Wheel 697772
    #37

    Bulkhead diagram

    Dryer blower wheel

    Part #697772

    Replaced by #WP697772

    ?
    Manufacturer substitution
    This part replaces 697772. Substitute parts can look different from the original.
    BEST SELLER
    $33.87
    15% OFF Phone Price : $39.87
    In Stock
  • Strike 696144
    #52

    Cabinet diagram

    Strike

    Part #696144

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 696144. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.25
    19% OFF Phone Price : $5.25
    In Stock
  • Catch 3398175
    #58

    Cabinet diagram

    Catch

    Part #3398175

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 3398175. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.25
    19% OFF Phone Price : $5.25
    In Stock
  • Drive Motor 3395654
    #27

    Cabinet diagram

    Drive motor

    Part #3395654

    Replaced by #279787

    ?
    Manufacturer substitution
    This part replaces 3395654. Substitute parts can look different from the original.
    BEST SELLER
    $172.19
    7% OFF Phone Price : $184.19
    In Stock
  • Screen 3390721
    #64

    Bulkhead diagram

    Screen

    Part #3390721

    Replaced by #W10120998

    ?
    Manufacturer substitution
    This part replaces 3390721. Substitute parts can look different from the original.
    BEST SELLER
    $48.69
    11% OFF Phone Price : $54.69
    In Stock
  • Dryer Drum Seal 697694
    #27

    Bulkhead diagram

    Dryer drum seal

    Part #697694

    Replaced by #280114

    ?
    Manufacturer substitution
    This part replaces 697694. Substitute parts can look different from the original.
    BEST SELLER
    $36.36
    14% OFF Phone Price : $42.36
    In Stock
  • Dryer Moisture Sensor 3387223
    #34

    Bulkhead diagram

    Dryer moisture sensor

    Part #3387223

    Replaced by #WP3387223

    ?
    Manufacturer substitution
    This part replaces 3387223. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $5.99
    14% OFF Phone Price : $6.99
    In Stock
