Model # WSLP1500H0WW Official GE washer

Here are the diagrams and repair parts for Official GE WSLP1500H0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Suspension WH16X21235
#22

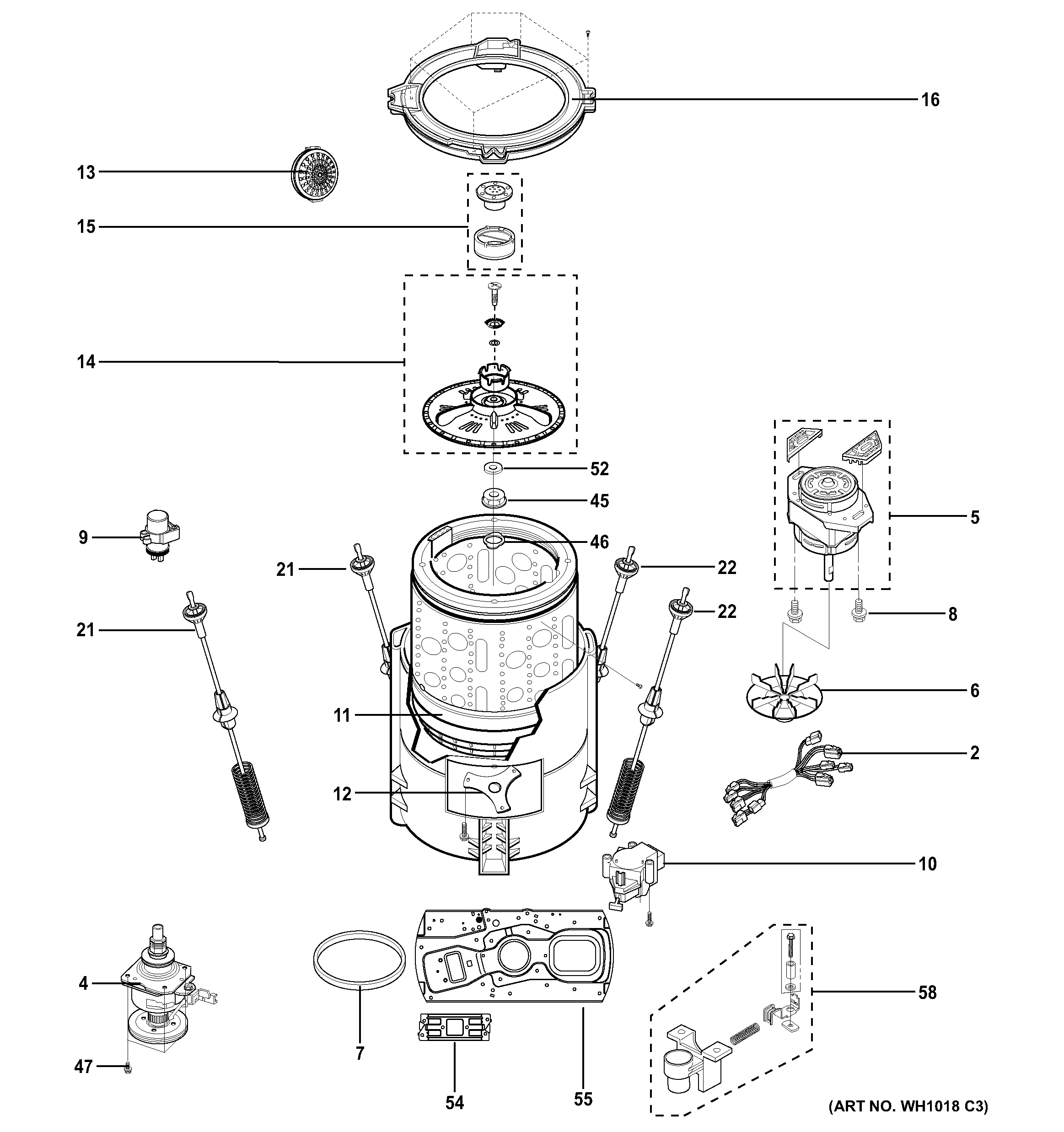

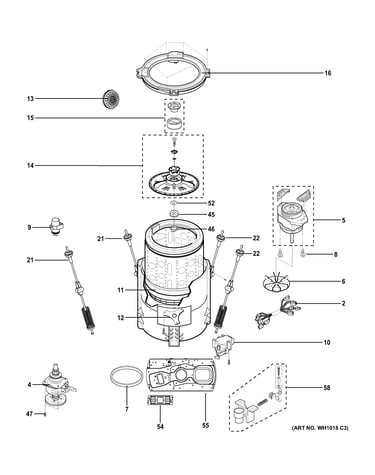

Tub & motor diagram

Suspension

Part #WH16X21235

Replaced by #WH16X26015

?
Manufacturer substitution
This part replaces WH16X21235. Substitute parts can look different from the original.
$70.71
In Stock
Washer Fill And Drain Hose Assembly WH41X20618
#49

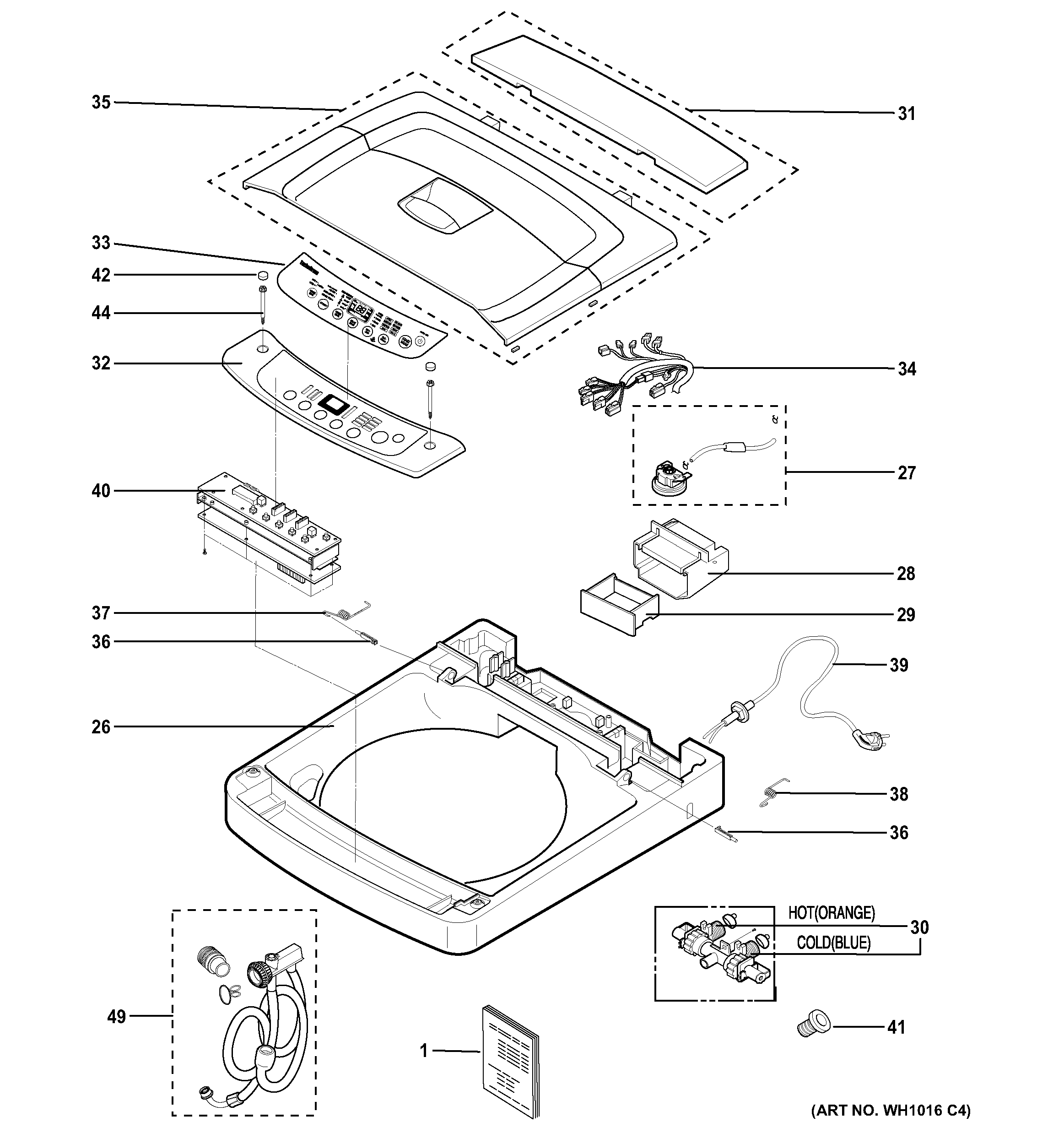

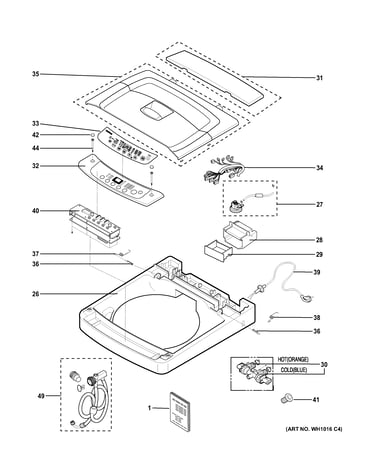

Controls & top panel diagram

Washer fill and drain hose assembly

Part #WH41X20618

$290.35
In Stock
Washer Lid Assembly WH44X20609
#35

Controls & top panel diagram

Washer lid assembly

Part #WH44X20609

$288.34 |
$12.00 OFF Phone Price : $300.34
In Stock
Suspension WH16X20596
#21

Tub & motor diagram

Suspension

Part #WH16X20596

Replaced by #WH16X26014

?
Manufacturer substitution
This part replaces WH16X20596. Substitute parts can look different from the original.
$63.89 |
9% OFF Phone Price : $69.89
In Stock
Drive Motor Mounting Bol WH02X22859
#8

Tub & motor diagram

Drive motor mounting bol

Part #WH02X22859

This item is not returnable
$4.35
In Stock
Hub Tub WH10X20592
#12

Tub & motor diagram

Hub tub

Part #WH10X20592

$88.70
In Stock
Pcb Assembly WH18X20614
#40

Controls & top panel diagram

Pcb assembly

Part #WH18X20614

$291.75
In Stock
Tub Assembly WH45X20591
#11

Tub & motor diagram

Tub assembly

Part #WH45X20591

$245.73
In Stock
Washer Drive Motor WH20X20534
#5

Tub & motor diagram

Washer drive motor

Part #WH20X20534

$290.49
In Stock
Rear Cover WH44X20617
#43

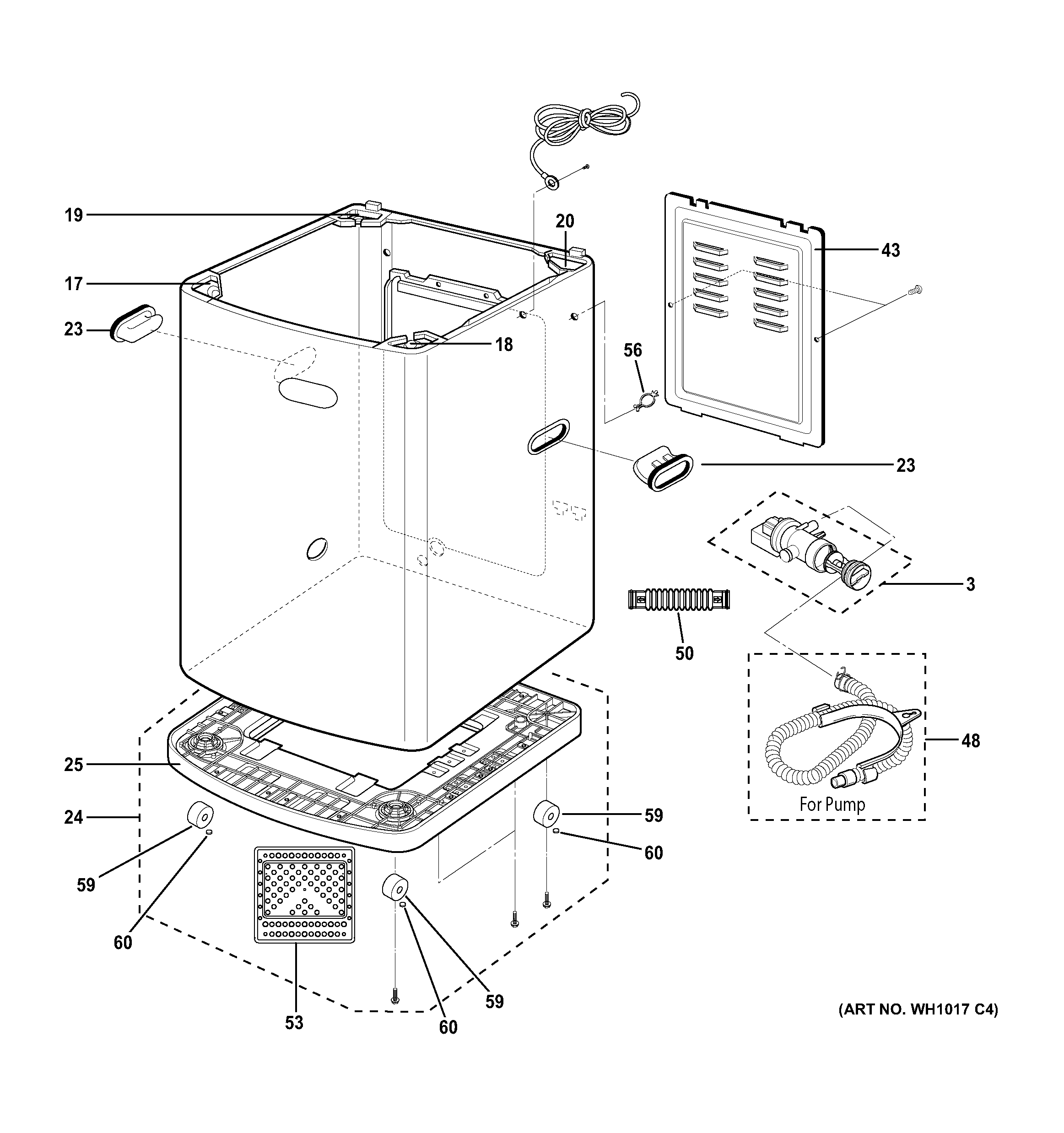

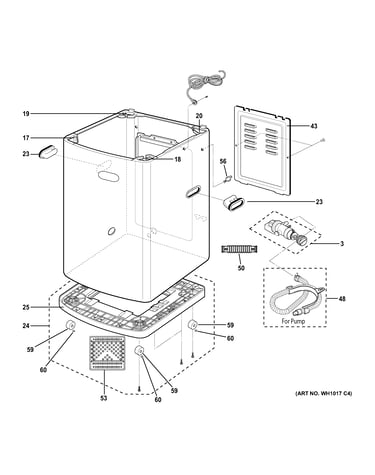

Cabinet diagram

Rear cover

Part #WH44X20617

$73.01
In Stock
