Model # LT-55154 Official Mitsubishi lcd television

Here are the diagrams and repair parts for Official Mitsubishi LT-55154 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Grill-fron 752A015010
#3

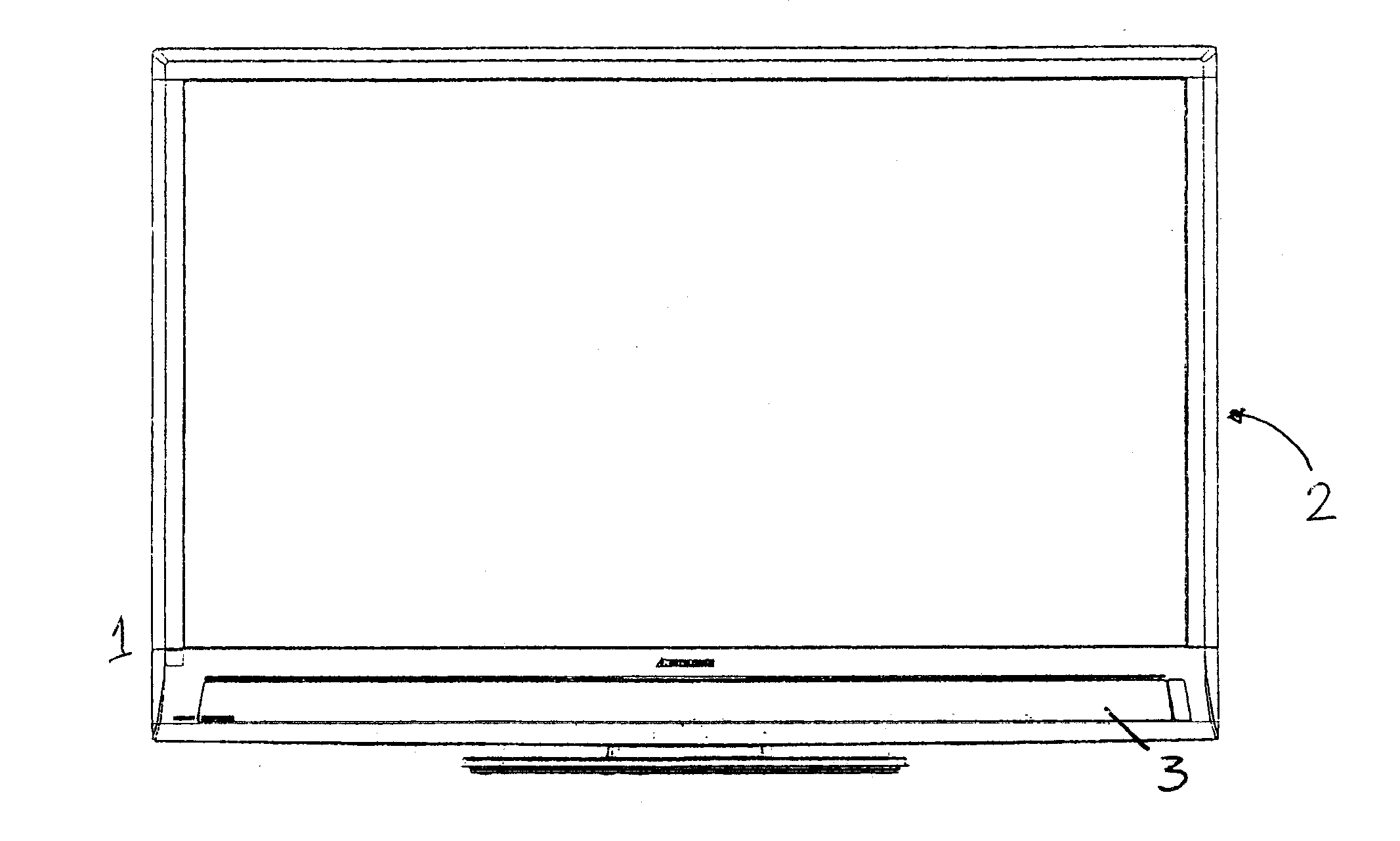

Cabinet parts diagram

Grill-fron

Part #752A015010

The manufacturer no longer makes this part, and there's no substitute part

Lcd Panel 289P153010
#NI

Cabinet parts diagram

Lcd panel

Part #289P153010

The manufacturer no longer makes this part, and there's no substitute part

Power Transformer 350P881010
#NI

Lcd panel diagram

Power transformer

Part #350P881010

The manufacturer no longer makes this part, and there's no substitute part

Pad Stand 623D584010
#5

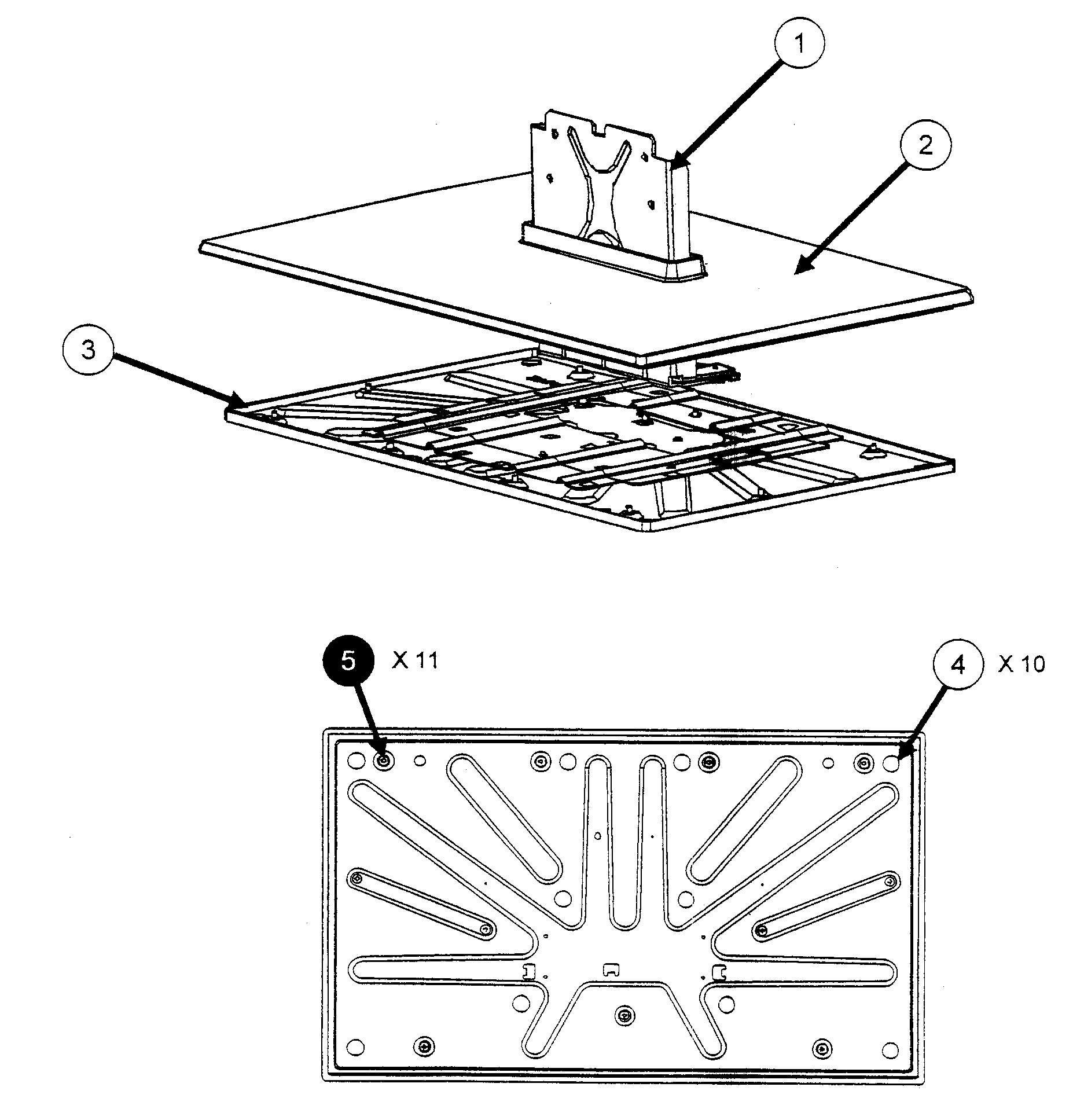

Stand diagram

Pad stand

Part #623D584010

The manufacturer no longer makes this part, and there's no substitute part

Plate-ir 761C861010
#NI

Cabinet parts diagram

Plate-ir

Part #761C861010

The manufacturer no longer makes this part, and there's no substitute part

Ic Njm78m0 270P950020
#NI

Lcd panel diagram

Ic njm78m0

Part #270P950020

The manufacturer no longer makes this part, and there's no substitute part

Cap 0.68mf 189P213030
#NI

Lcd panel diagram

Cap 0.68mf

Part #189P213030

The manufacturer no longer makes this part, and there's no substitute part

Television Remote Control 290P187020
#NI

Lcd panel diagram

Television remote control

Part #290P187020

The manufacturer no longer makes this part, and there's no substitute part

Pcb Filter 934C387001
#P1

Lcd panel diagram

Pcb filter

Part #934C387001

The manufacturer no longer makes this part, and there's no substitute part

Led Pcb 934C378001
#P6

Lcd panel diagram

Led pcb

Part #934C378001

The manufacturer no longer makes this part, and there's no substitute part
