Craftsman
Power Grinder

Model # 315267560 Official Craftsman rotary grinder

Here are the diagrams and repair parts for Official Craftsman 315267560 rotary grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Bearing 8ZD325009
#4

Housing assy diagram

Bearing

Part #8ZD325009

The manufacturer no longer makes this part, and there's no substitute part

Shaft Assembly 6ZD525001
#3

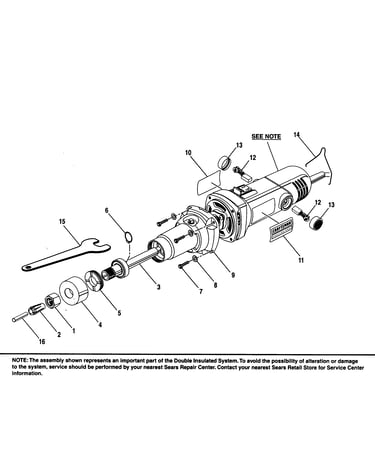

Grinder diagram

Shaft assembly

Part #6ZD525001

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 8ZD325006
#2

Housing assy diagram

Spring washer

Part #8ZD325006

The manufacturer no longer makes this part, and there's no substitute part

Housing 8ZD483102
#21

Housing assy diagram

Housing

Part #8ZD483102

The manufacturer no longer makes this part, and there's no substitute part

Armature 5ZD510033
#6

Housing assy diagram

Armature

Part #5ZD510033

The manufacturer no longer makes this part, and there's no substitute part

Screw M4.2x16mm 8ZD325002
#20

Housing assy diagram

Screw m4.2x16mm

Part #8ZD325002

The manufacturer no longer makes this part, and there's no substitute part

Wrench 8ZD381079
#15

Grinder diagram

Wrench

Part #8ZD381079

The manufacturer no longer makes this part, and there's no substitute part

Screw 8ZD325003
#22

Housing assy diagram

Screw

Part #8ZD325003

The manufacturer no longer makes this part, and there's no substitute part

Washer 8ZD325007
#8

Grinder diagram

Washer

Part #8ZD325007

The manufacturer no longer makes this part, and there's no substitute part

Slide Rod 8ZD283156
#8

Housing assy diagram

Slide rod

Part #8ZD283156

The manufacturer no longer makes this part, and there's no substitute part
