Model # 113239392 Official Craftsman wood shaper

Here are the diagrams and repair parts for Official Craftsman 113239392 wood shaper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

Knob 38531
#6

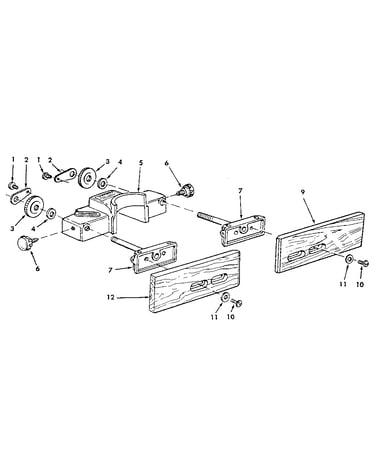

Figure 2 - fence assembly 72008 diagram

Knob

Part #38531

The manufacturer no longer makes this part, and there's no substitute part

Planer Spacer 39617
#4

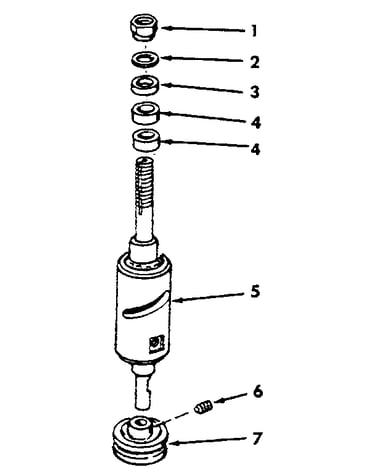

Figure 5 - spindle assembly diagram

Planer spacer

Part #39617

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Knob 38546
#14

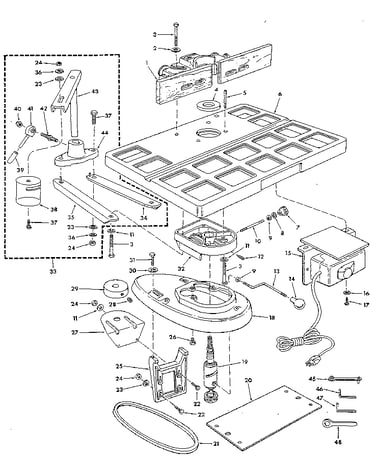

Figure 1 diagram

Power tool knob

Part #38546

The manufacturer no longer makes this part, and there's no substitute part

Lathe Lock Lever Grip 60262
#39

Figure 1 diagram

Lathe lock lever grip

Part #60262

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw STD610805
#9

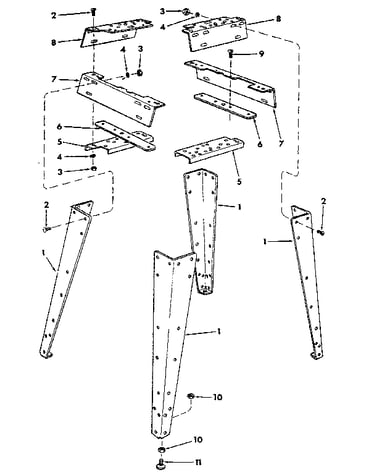

Figure 3 - legs diagram

Machine screw

Part #STD610805

This item is not returnable
In Stock
Washer 18451
#4

Figure 2 - fence assembly 72008 diagram

Washer

Part #18451

The manufacturer no longer makes this part, and there's no substitute part

Cord 60375
#1

Figure 4 - on/off power outlet 60382 & mounting bracket diagram

Cord

Part #60375

The manufacturer no longer makes this part, and there's no substitute part

Cord 64258
#4

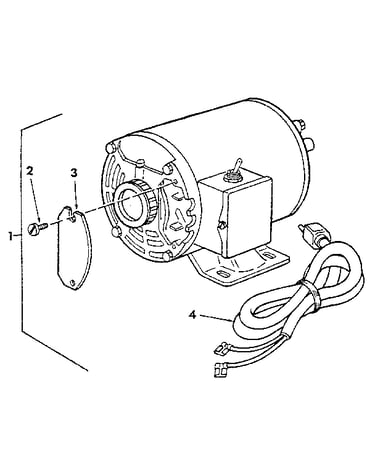

Figure 6 - motor diagram

Cord

Part #64258

The manufacturer no longer makes this part, and there's no substitute part

Scr Hx Wash 453068
#26

Figure 1 diagram

Scr hx wash

Part #453068

The manufacturer no longer makes this part, and there's no substitute part

Screw 448007
#6

Figure 4 - on/off power outlet 60382 & mounting bracket diagram

Screw

Part #448007

The manufacturer no longer makes this part, and there's no substitute part
