Model # 41793052201 Official Kenmore dryer

Here are the diagrams and repair parts for Official Kenmore 41793052201 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

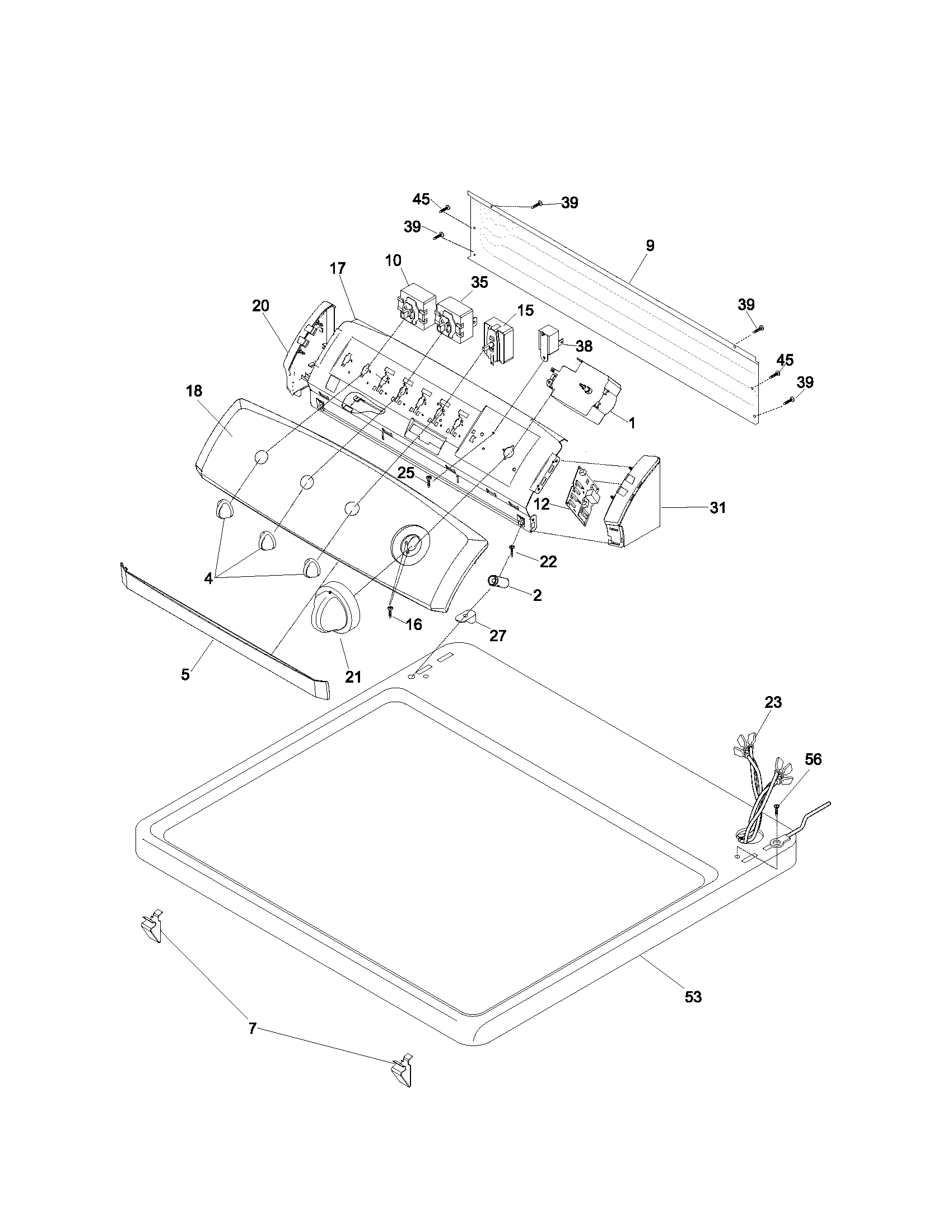

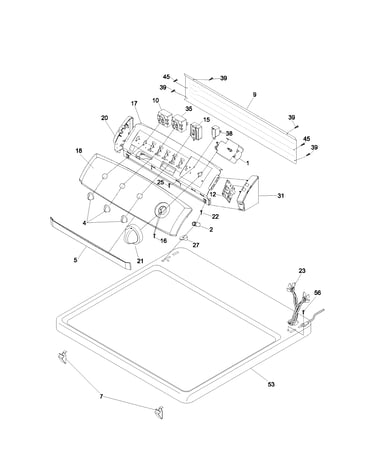

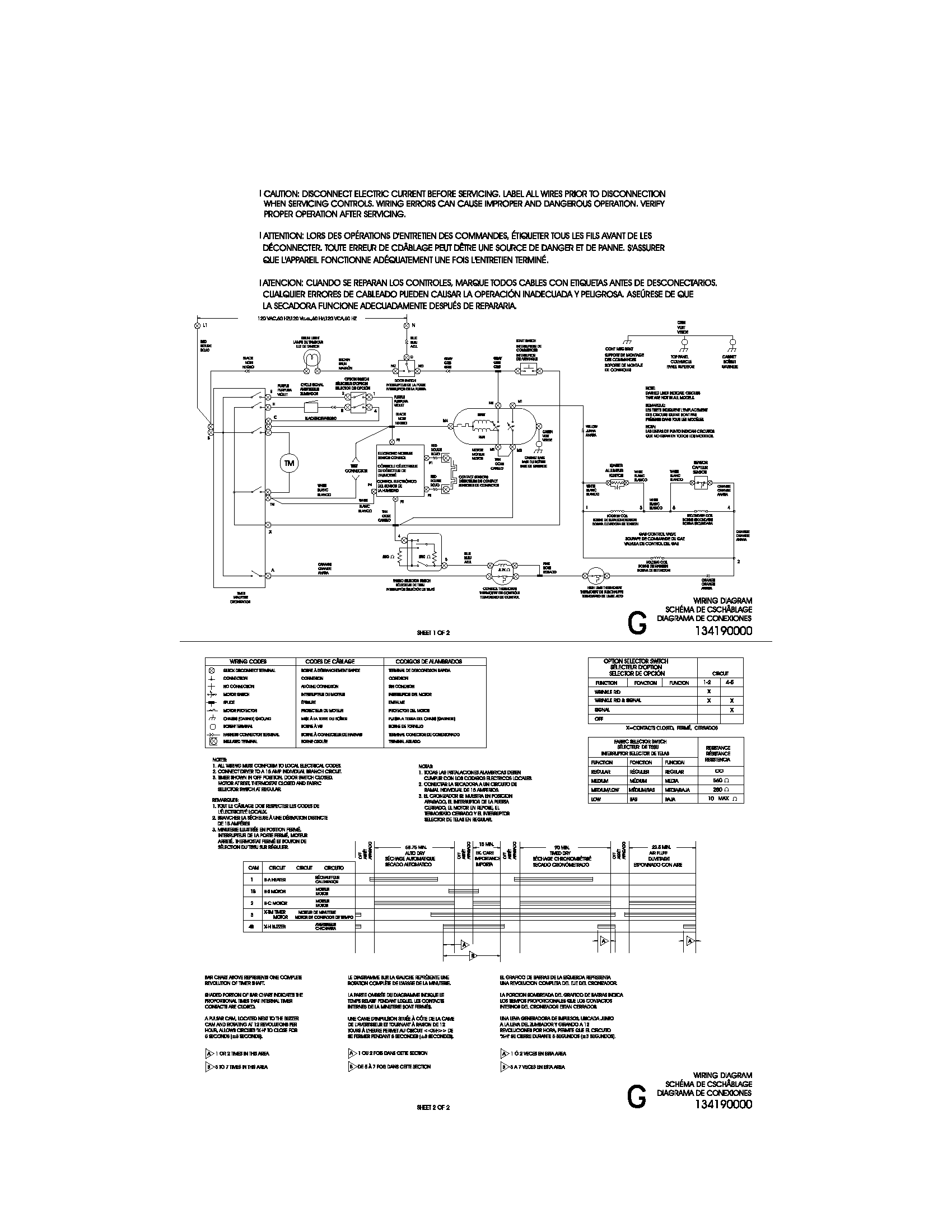

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
41793052201 Dryer
Dryer Drum Bearing Kit (replaces 000142850, 142850, 3281153, Q000142850, Wq142850) 5303281153
#NI

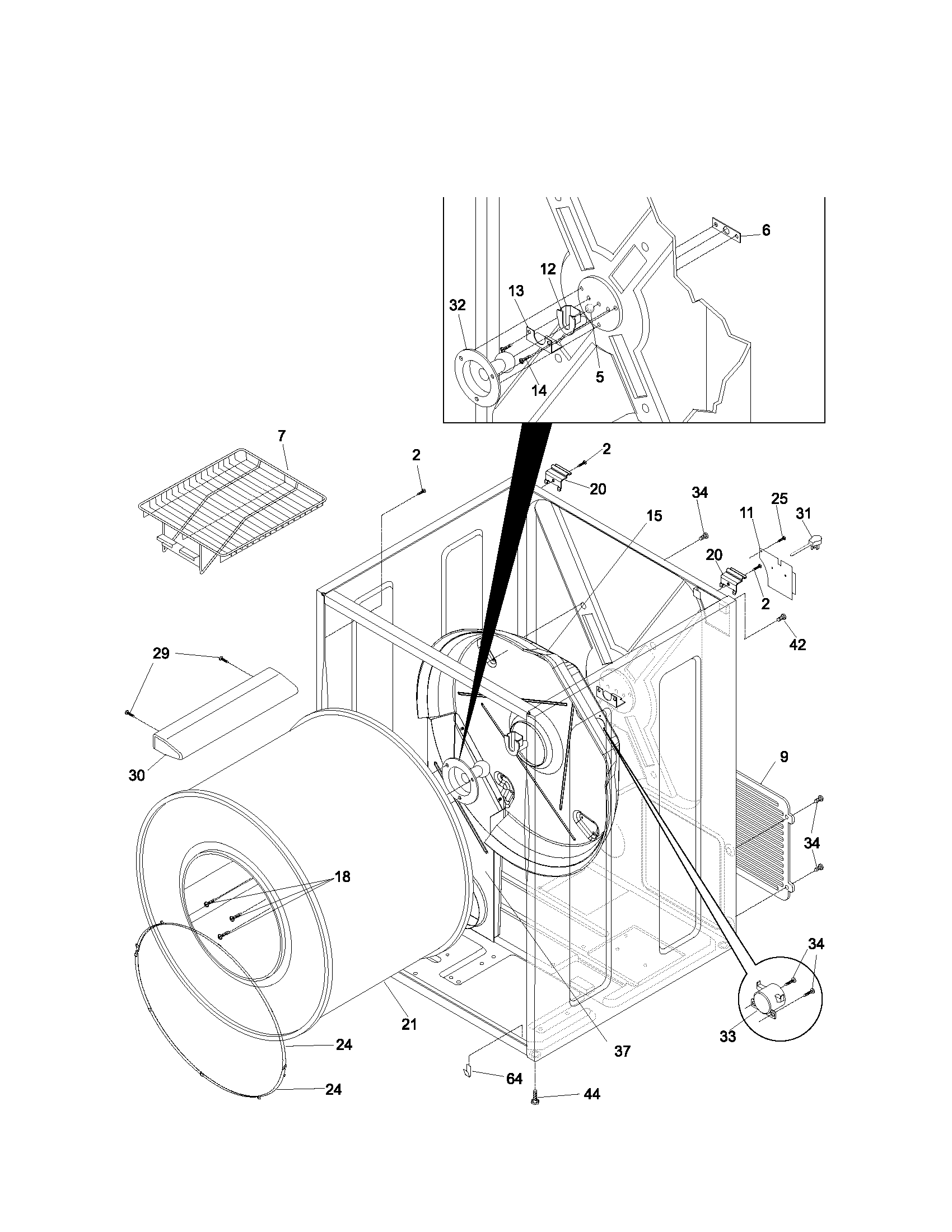

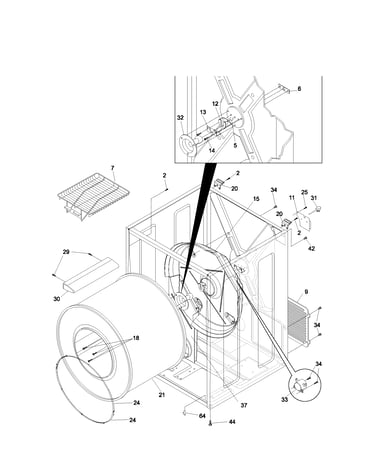

Cabinet/drum diagram

Dryer drum bearing kit (replaces 000142850, 142850, 3281153, q000142850, wq142850)

Part #5303281153

4.57 (21)
BEST SELLER
$19.18 |
9% OFF Phone Price : $21.18
In Stock
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

Cabinet/drum diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

2.5 (4)
BEST SELLER
$7.37 |
12% OFF Phone Price : $8.37
In Stock
Frigidaire Dryer Blower Wheel And Housing Assembly (replaces 131775610) 131775600
#10

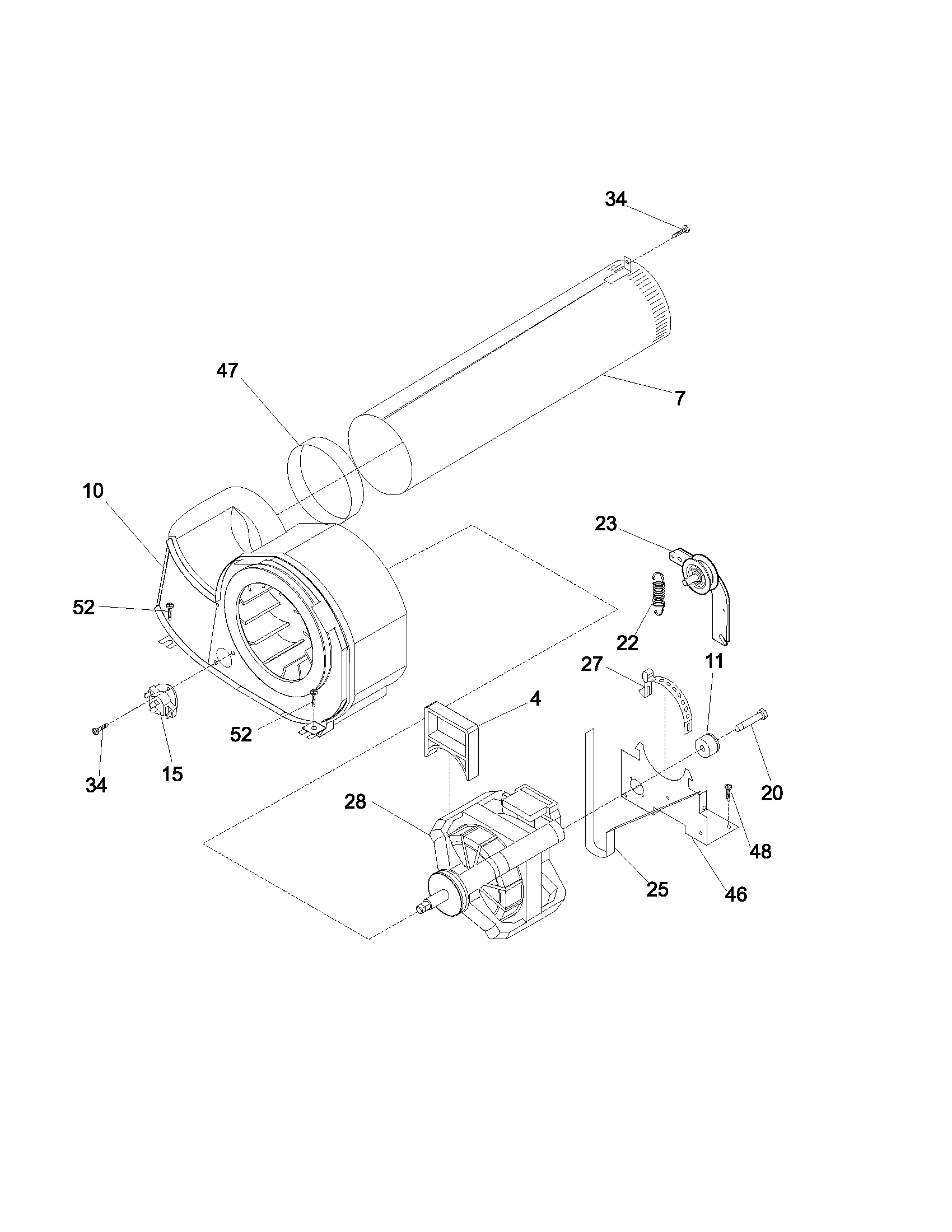

Motor diagram

Frigidaire dryer blower wheel and housing assembly (replaces 131775610)

Part #131775600

4.1 (20)
BEST SELLER
$90.31 |
6% OFF Phone Price : $96.31
In Stock
Frigidaire Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

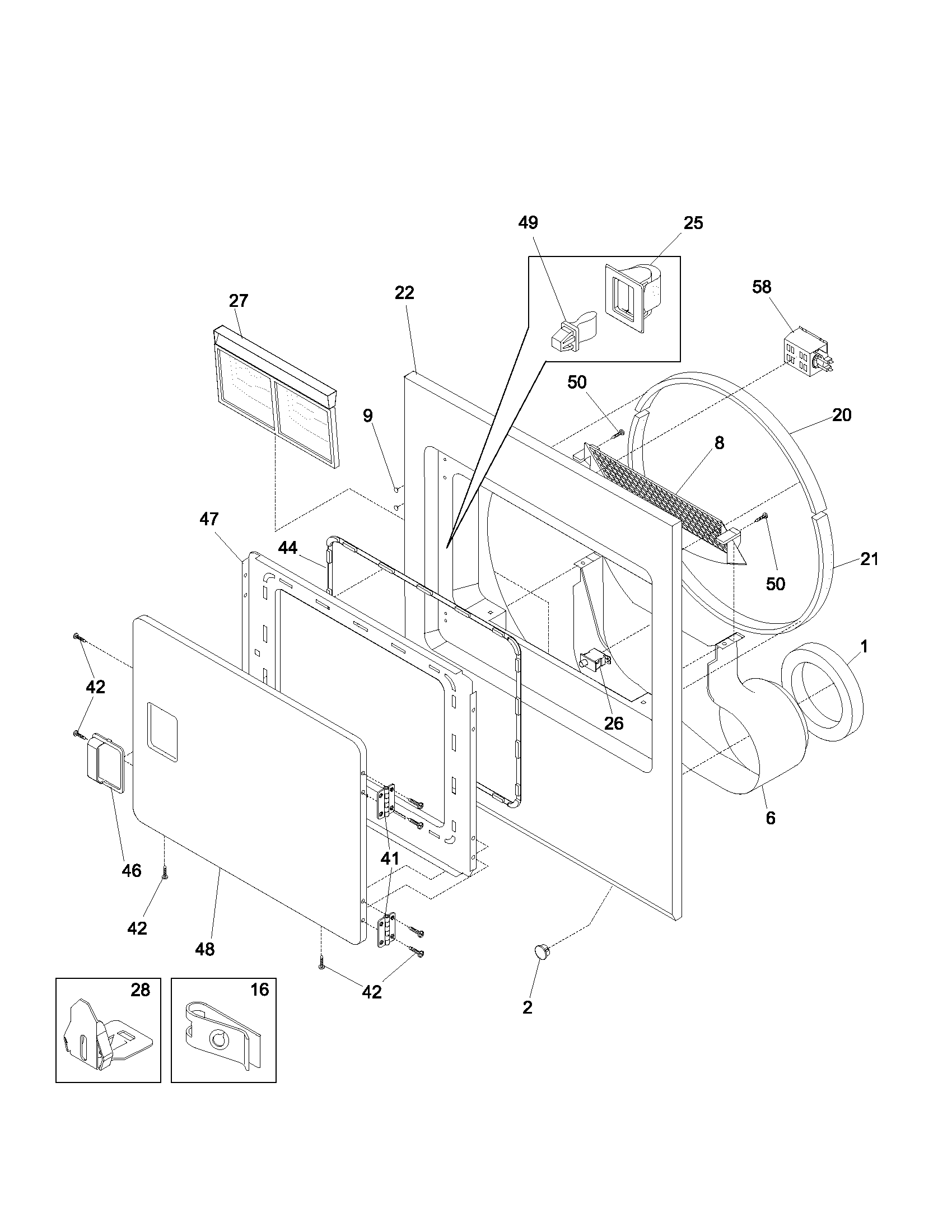

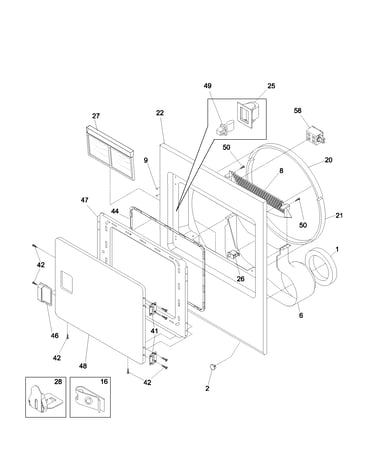

Front panel/lint filter diagram

Frigidaire dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

3.86 (42)
BEST SELLER
$42.30 |
12% OFF Phone Price : $48.30
In Stock
Bracket 131863000
#23

Motor diagram

Bracket

Part #131863000

Replaced by #131863007

?
Manufacturer substitution
This part replaces 131863000. Substitute parts can look different from the original.
4.71 (7)
BEST SELLER
$45.70 |
12% OFF Phone Price : $51.70
In Stock
Dryer Drum Bearing Bracket 131724300
#13

Cabinet/drum diagram

Dryer drum bearing bracket

Part #131724300

Replaced by #131724301

?
Manufacturer substitution
This part replaces 131724300. Substitute parts can look different from the original.
BEST SELLER
$13.59 |
13% OFF Phone Price : $15.59
In Stock
Dryer Drum Glide 131963900
#24

Cabinet/drum diagram

Dryer drum glide

Part #131963900

Replaced by #137513300

?
Manufacturer substitution
This part replaces 131963900. Substitute parts can look different from the original.
4.4 (5)
BEST SELLER
$32.40 |
16% OFF Phone Price : $38.40
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

2.33 (3)
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Dryer Screw 131477000
#18

Cabinet/drum diagram

Dryer screw

Part #131477000

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131477000. Substitute parts can look different from the original.
2.33 (3)
BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Dryer Radiant Sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, F000078913, F078913-000, F78913, Fl00078913, Q000600651, Wq600651) 5303281135
#79

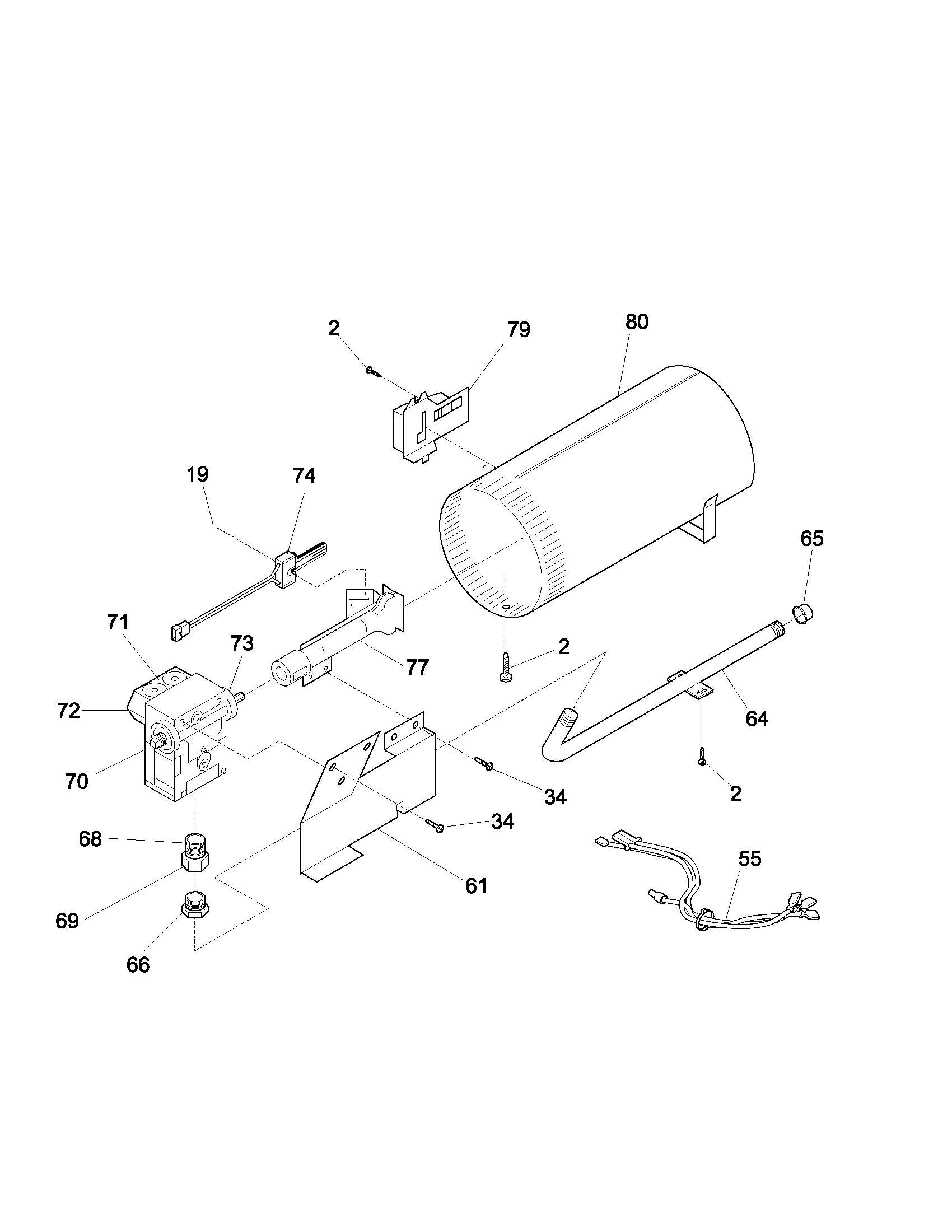

Burner diagram

Dryer radiant sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, f000078913, f078913-000, f78913, fl00078913, q000600651, wq600651)

Part #5303281135

3 (2)
BEST SELLER
$53.26 |
10% OFF Phone Price : $59.26
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
