Model # FUF14SUDRWW Official GE freezer - d series

Here are the diagrams and repair parts for Official GE FUF14SUDRWW freezer - d series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Freezer Dryer Filter WR86X10044
#740

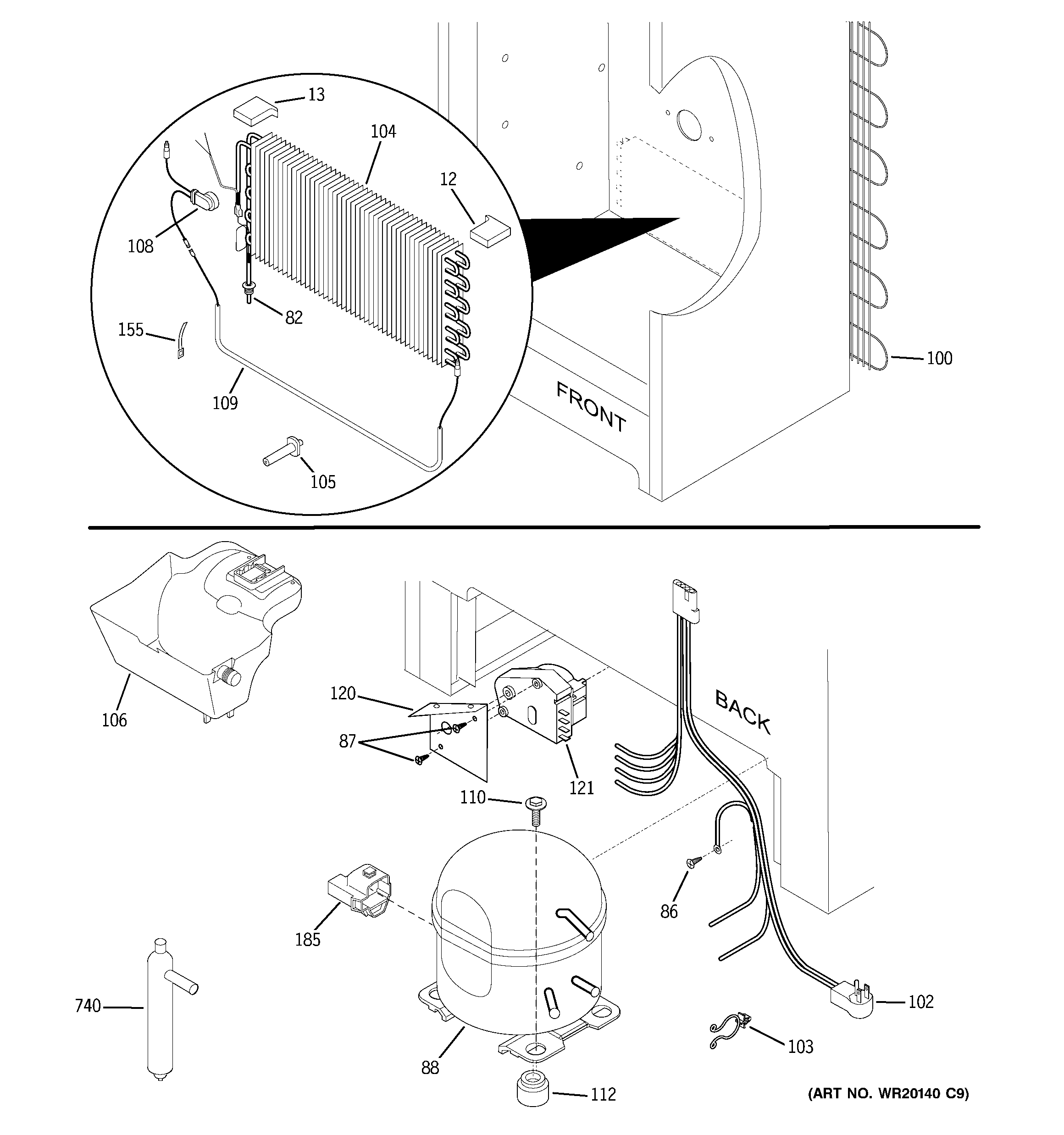

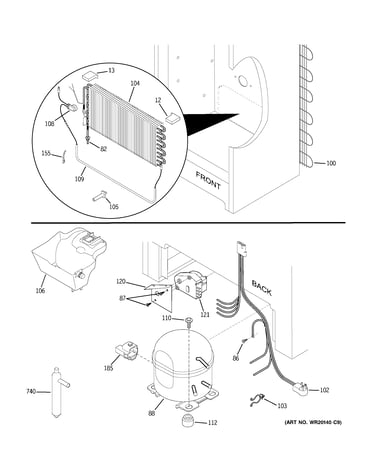

Unit parts diagram

Freezer dryer filter

Part #WR86X10044

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10044. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Freezer Door Gasket WR24X10011
#8

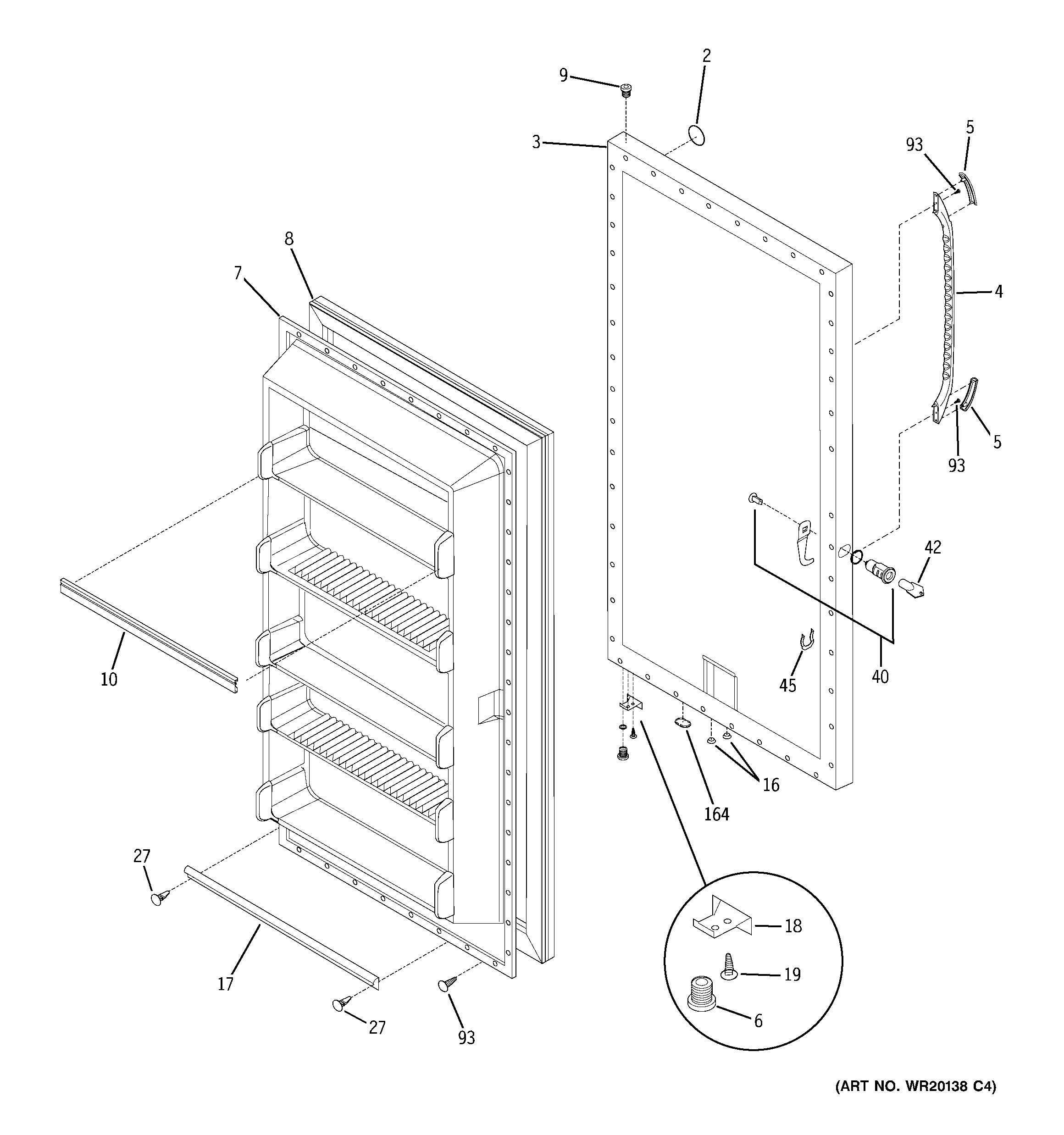

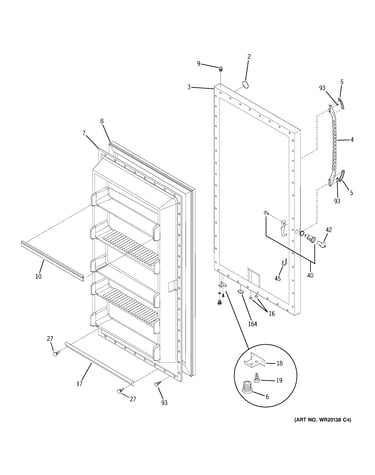

Door diagram

Freezer door gasket

Part #WR24X10011

Replaced by #WR14X27587

?
Manufacturer substitution
This part replaces WR24X10011. Substitute parts can look different from the original.
$213.14
Back Order
Clamp Capillary Tube WR02X11441
#153

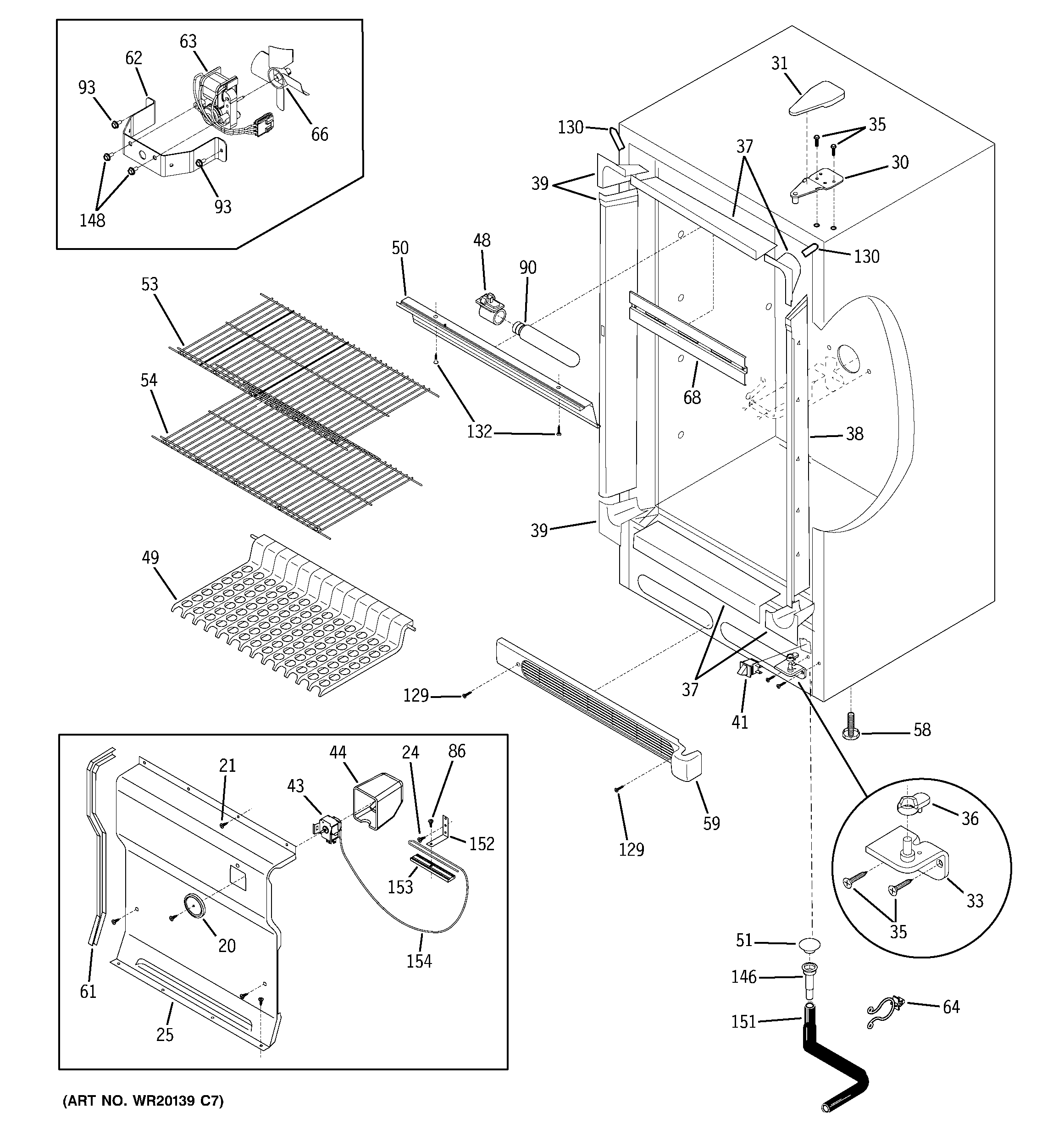

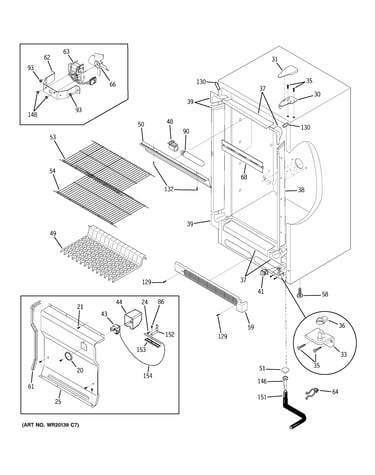

Cabinet diagram

Clamp capillary tube

Part #WR02X11441

$8.11
In Stock
Screw,rwhd , WR02X12764
Screw,rwhd ,

Part #WR02X12764

$30.84 |
16% OFF Phone Price : $36.84
In Stock
Drain Hose WR17X12652
#151

Cabinet diagram

Drain hose

Part #WR17X12652

$8.51
In Stock
Hinge Cover WR02X12689
#31

Cabinet diagram

Hinge cover

Part #WR02X12689

This item is not returnable
$5.92
In Stock
Hex Washer Head Screw WR01X10823
Hex washer head screw

Part #WR01X10823

$32.07
In Stock
Fan Bracket WR02X12686
#62

Cabinet diagram

Fan bracket

Part #WR02X12686

$17.19
In Stock
Hex Washer Head Screw WR01X10798
#148

Cabinet diagram

Hex washer head screw

Part #WR01X10798

$30.24
In Stock
Door Stop WR02X12988
#18

Door diagram

Door stop

Part #WR02X12988

$14.04
In Stock
