Model # 702213320 Official Sears single control kitchen sink faucet
Here are the diagrams and repair parts for Official Sears 702213320 single control kitchen sink faucet, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
702213320 Single Control Kitchen Sink Faucet
#7

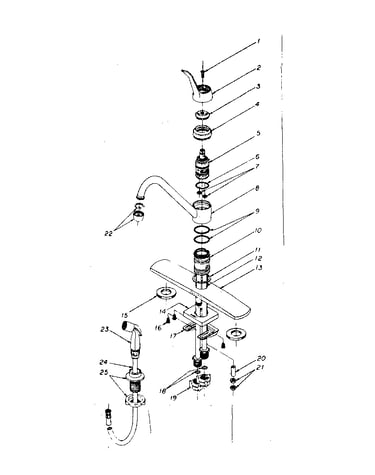

Unit parts diagram
Seal ring
Part #VP1952
The manufacturer no longer makes this part, and there's no substitute part
#5B
Unit parts diagram
Repair kit
Part #VP2197
The manufacturer no longer makes this part, and there's no substitute part
#20
Unit parts diagram
Spacer
Part #V1090
The manufacturer no longer makes this part, and there's no substitute part
#12
Unit parts diagram
Stud
Part #V1092
The manufacturer no longer makes this part, and there's no substitute part
#18
Unit parts diagram
O-ring
Part #V4213
The manufacturer no longer makes this part, and there's no substitute part
#16
Unit parts diagram
Core screw
Part #VP1930
The manufacturer no longer makes this part, and there's no substitute part
#10A
Unit parts diagram
Core
Part #VP1980
The manufacturer no longer makes this part, and there's no substitute part
#6
Unit parts diagram
O-ring
Part #VP1956
The manufacturer no longer makes this part, and there's no substitute part
#19
Unit parts diagram
Coupling nut
Part #V7852
The manufacturer no longer makes this part, and there's no substitute part
#4
Unit parts diagram
Bonnett nut
Part #VP1912
The manufacturer no longer makes this part, and there's no substitute part
