Model # 919167311 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919167311 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 61 parts |

Air Compressor Vibration Isolator Pad AC-0774

#32

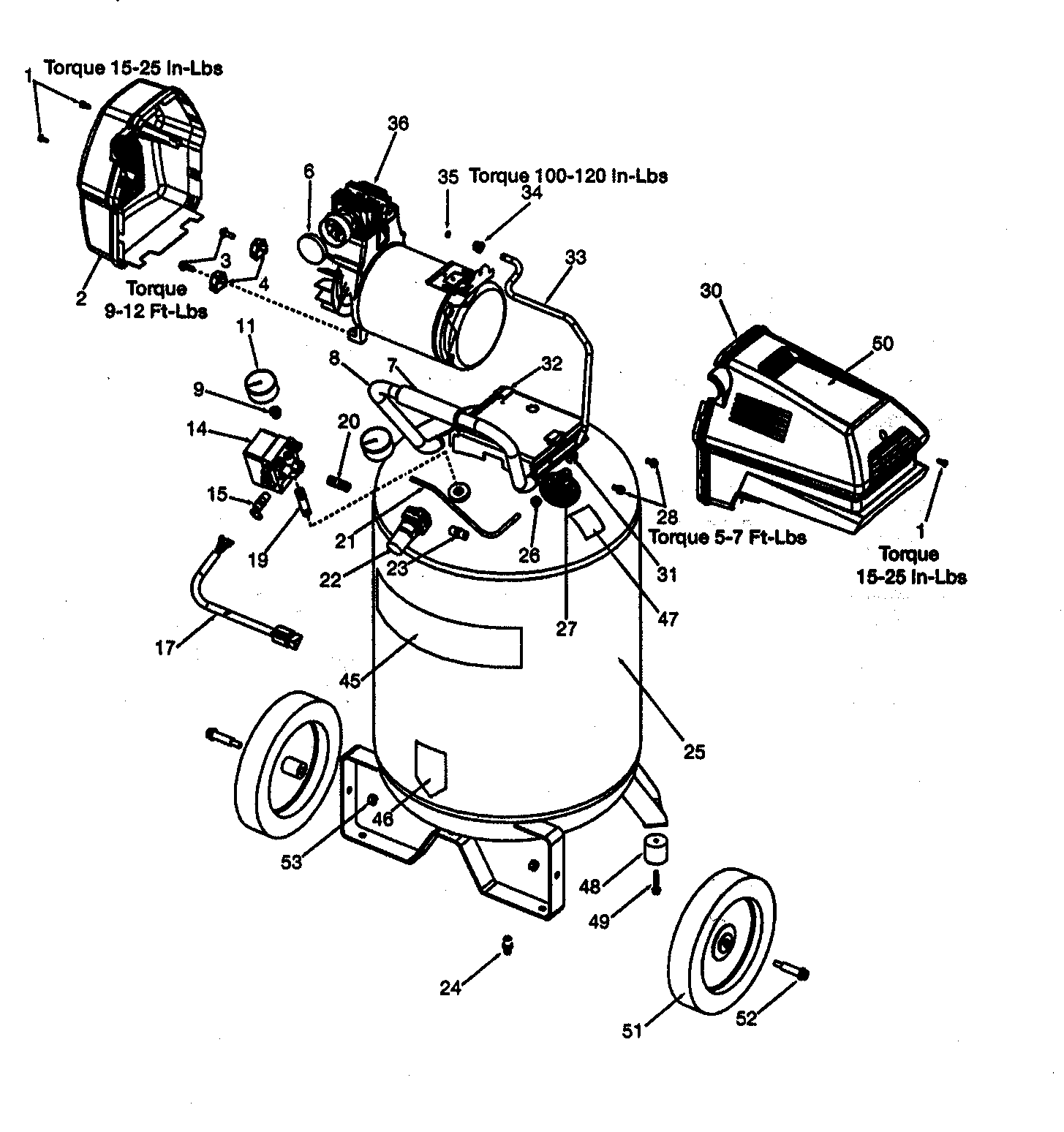

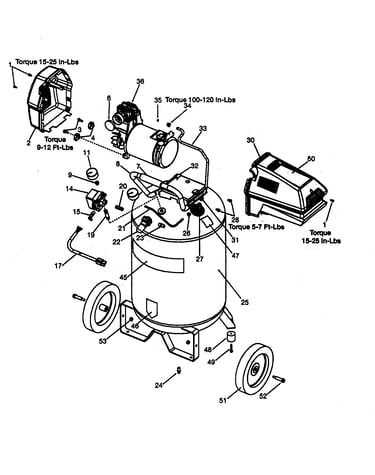

Compressor diagram

Air compressor vibration isolator pad

Part #AC-0774

The manufacturer no longer makes this part, and there's no substitute part

#73

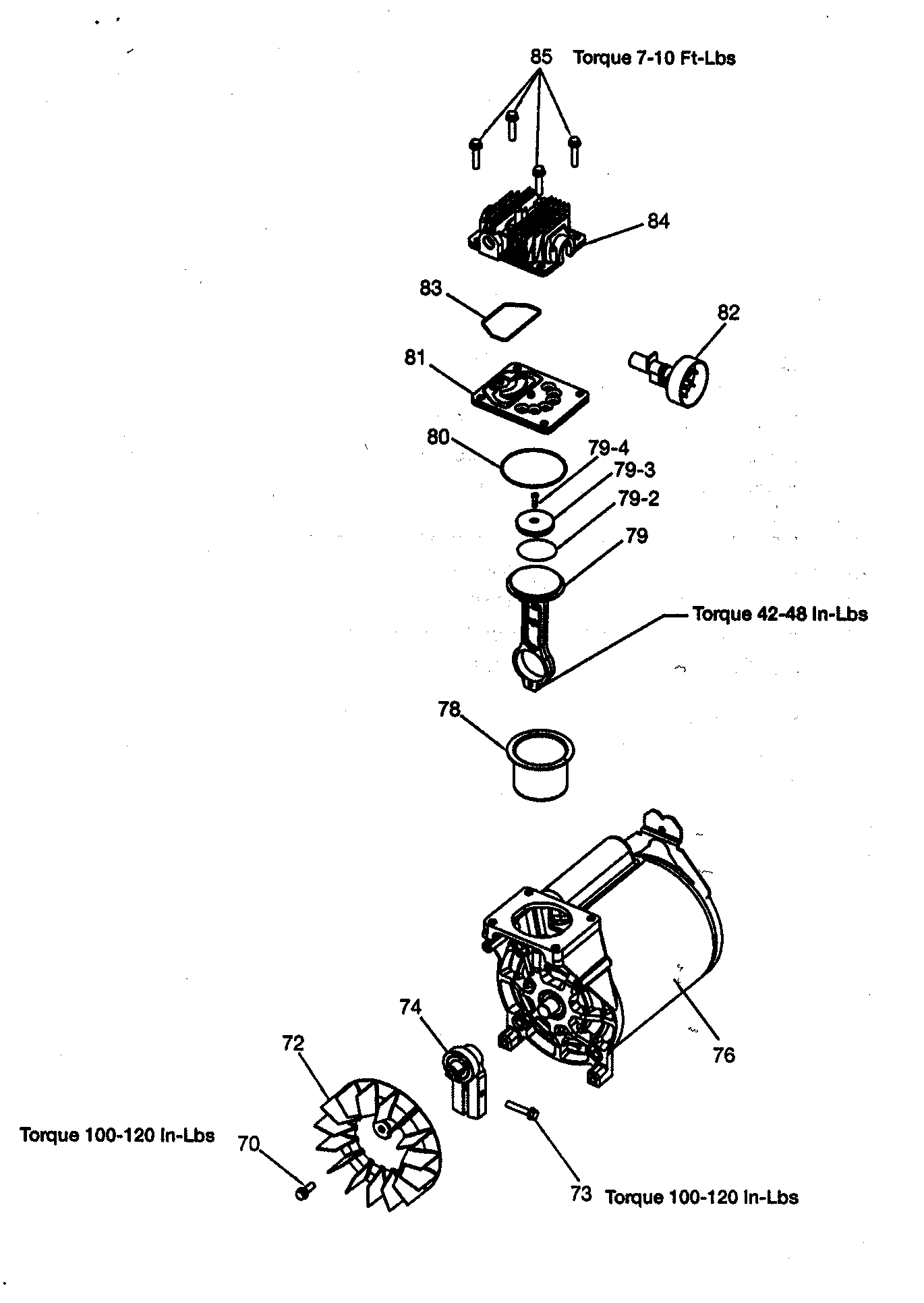

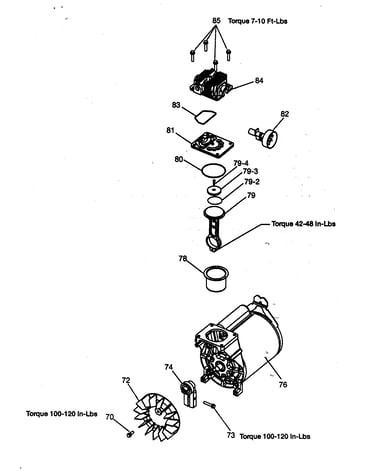

Pump assy diagram

Screw

Part #SSF-615

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Connecting Rod Cap ACG-29

#79-3

Pump assy diagram

Air compressor connecting rod cap

Part #ACG-29

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Air compressor air filter retainer

Part #CAC-1373

The manufacturer no longer makes this part, and there's no substitute part

#85

Pump assy diagram

Screw

Part #SSF-937

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Relief Valve D20114

#15

Compressor diagram

Air compressor pressure relief valve

Part #D20114

The manufacturer no longer makes this part, and there's no substitute part

#45

Compressor diagram

Air compressor nameplate

Part #LA-3069

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Air compressor shroud screw mount

Part #ACG-18

The manufacturer no longer makes this part, and there's no substitute part

#28

Compressor diagram

Air compressor handle screw

Part #SSF-981

The manufacturer no longer makes this part, and there's no substitute part

#72

Pump assy diagram

Air compressor fan blade

Part #AC-0108

The manufacturer no longer makes this part, and there's no substitute part
