Model # 41780052991 Official Kenmore dryer

Here are the diagrams and repair parts for Official Kenmore 41780052991 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

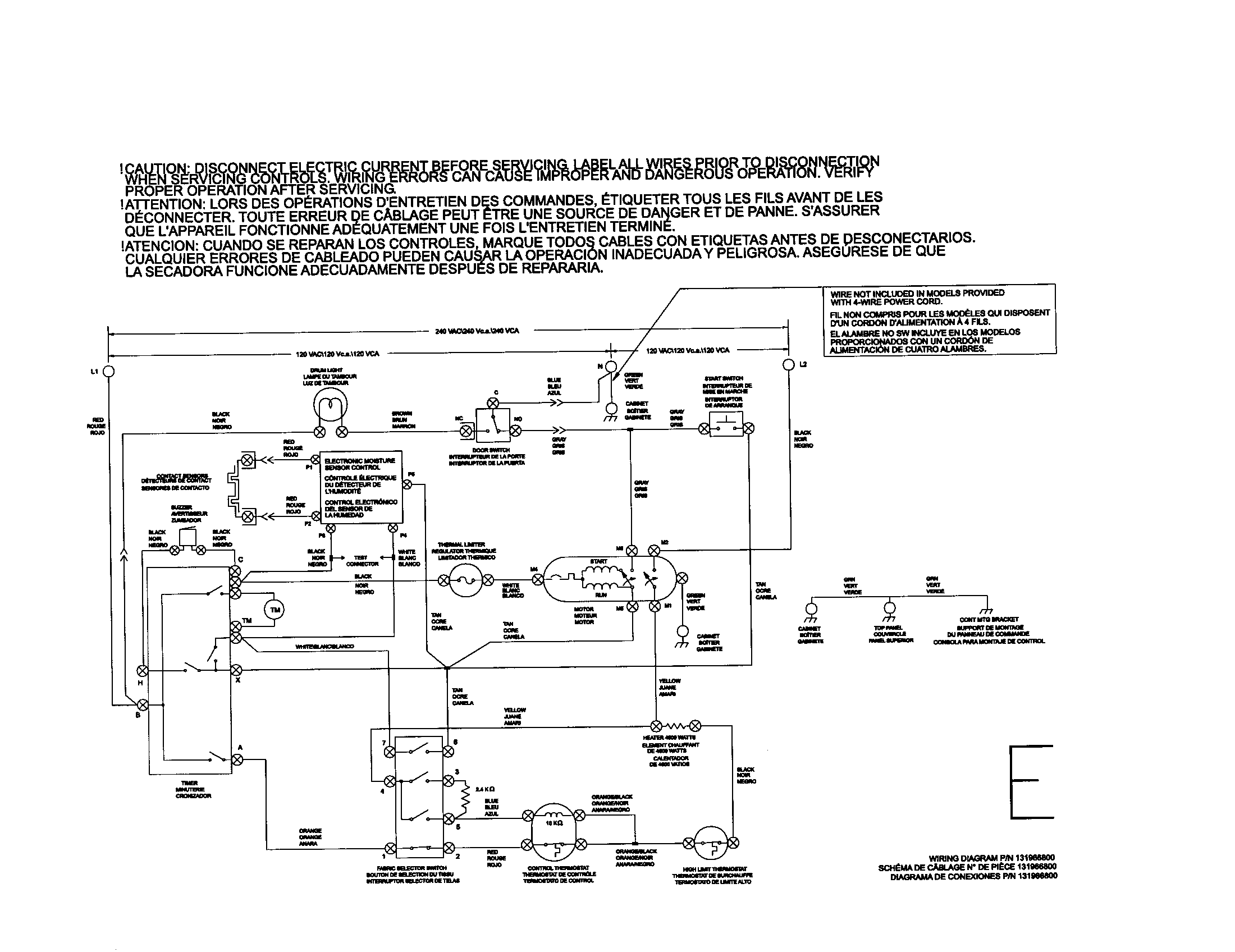

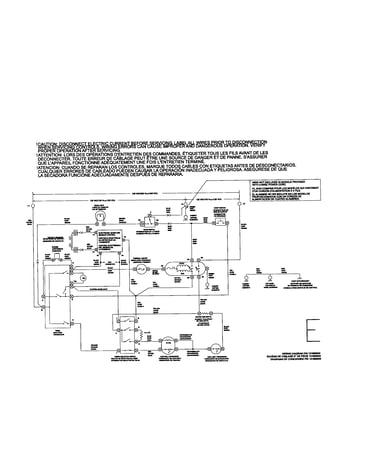

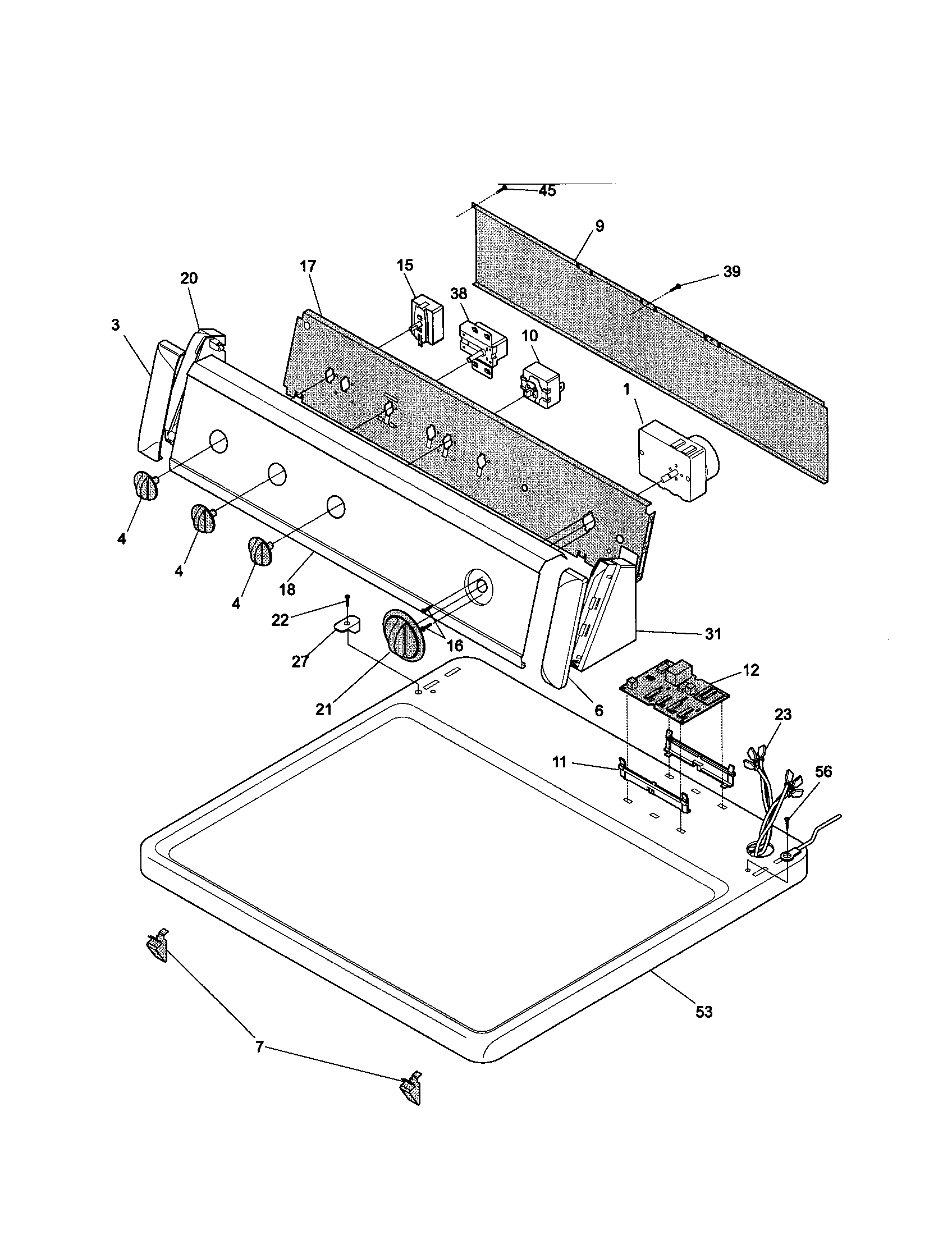

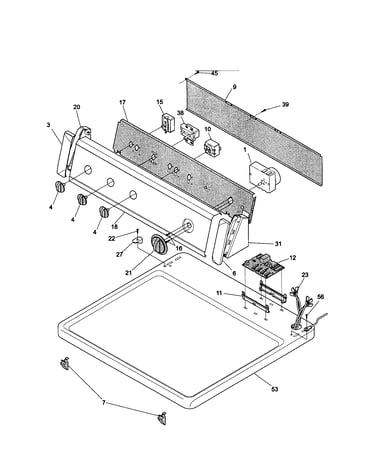

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

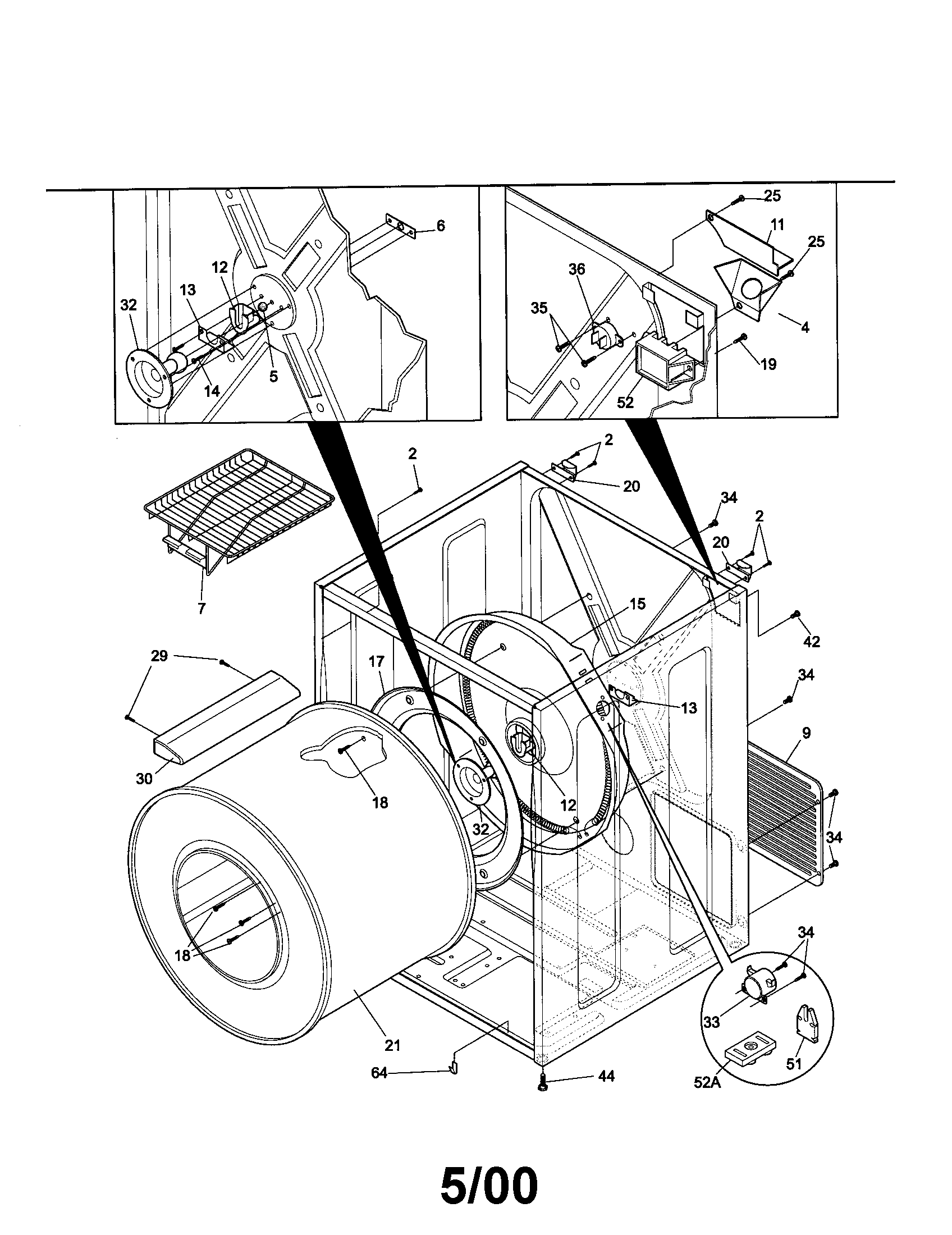

Drum/heater housing diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Dryer Drum Bearing Kit (replaces 000142850, 142850, 3281153, Q000142850, Wq142850) 5303281153

#NI

All parts diagram

Dryer drum bearing kit (replaces 000142850, 142850, 3281153, q000142850, wq142850)

Part #5303281153

BEST SELLER
$29.64 |
17% OFF Phone Price : $35.64
In Stock
Dryer Drum Support Shaft (replaces 137088600) 131777700
#32

Drum/heater housing diagram

Dryer drum support shaft (replaces 137088600)

Part #131777700

BEST SELLER
$58.75 |
9% OFF Phone Price : $64.75
In Stock
Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

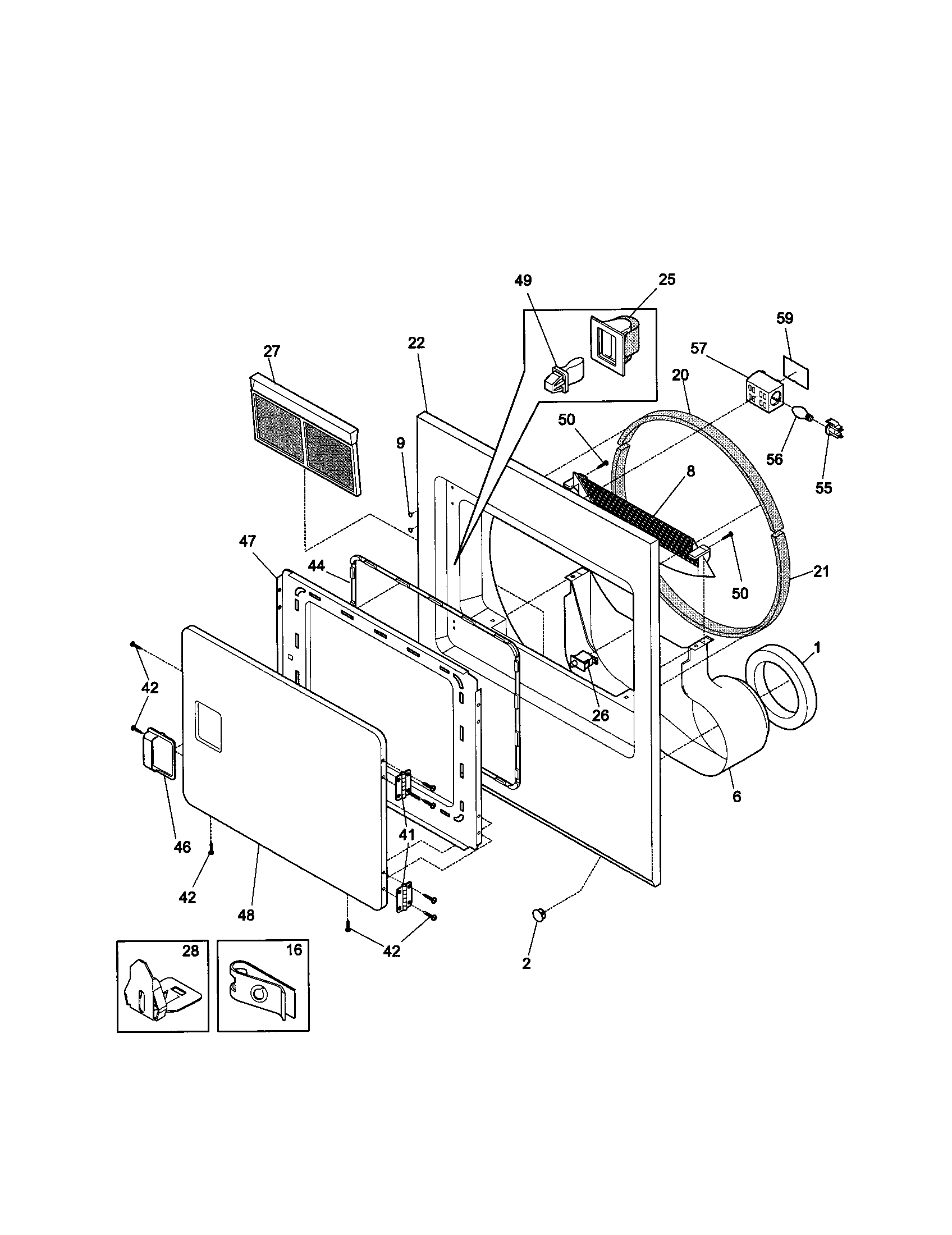

Door diagram

Dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Dryer Drive Motor (replaces 134156500, S131560100) 131560100
#28

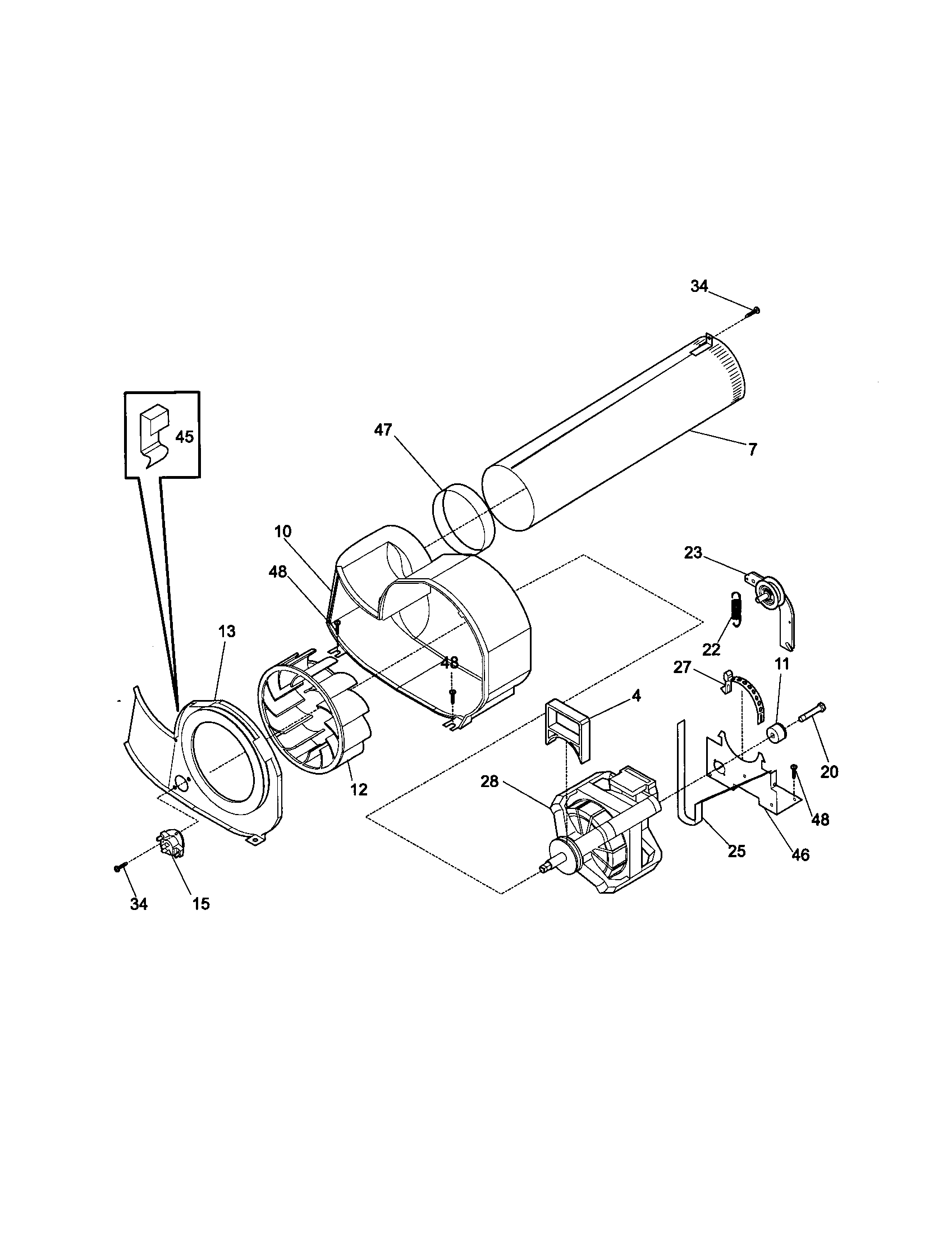

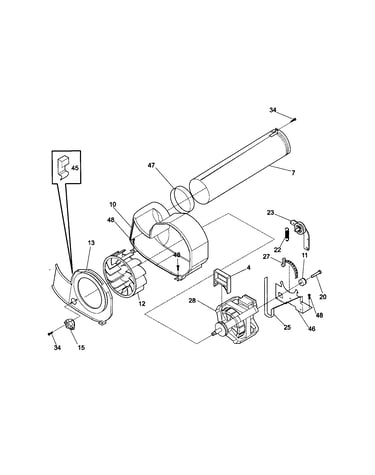

Motor/fan housing diagram

Dryer drive motor (replaces 134156500, s131560100)

Part #131560100

BEST SELLER
$156.46 |
7% OFF Phone Price : $168.46
In Stock
Dryer Felt And Glide Kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, F141811-000) 5303937139
#20

Door diagram

Dryer felt and glide kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, f141811-000)

Part #5303937139

BEST SELLER
$35.84 |
14% OFF Phone Price : $41.84
In Stock
Kelvinator Dryer Heating Element Assembly (replaces 131505700) 131553900
#15

Drum/heater housing diagram

Kelvinator dryer heating element assembly (replaces 131505700)

Part #131553900

BEST SELLER
$124.19 |
9% OFF Phone Price : $136.19
In Stock
Thermostat 5303209192
#36

Drum/heater housing diagram

Thermostat

Part #5303209192

Replaced by #134120900

?
Manufacturer substitution
This part replaces 5303209192. Substitute parts can look different from the original.
BEST SELLER
$26.79 |
18% OFF Phone Price : $32.79
In Stock
Dryer Drum Felt Seal, Lower 5303283286
#21

Door diagram

Dryer drum felt seal, lower

Part #5303283286

BEST SELLER
$37.40 |
14% OFF Phone Price : $43.40
In Stock
Dryer Drum Bearing Bracket 131724300
#13

Drum/heater housing diagram

Dryer drum bearing bracket

Part #131724300

Replaced by #131724301

?
Manufacturer substitution
This part replaces 131724300. Substitute parts can look different from the original.
BEST SELLER
$13.29 |
13% OFF Phone Price : $15.29
In Stock
