Model # 229960150 Official Kenmore hot water boiler
Here are the diagrams and repair parts for Official Kenmore 229960150 hot water boiler, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
229960150 Hot Water Boiler
#1

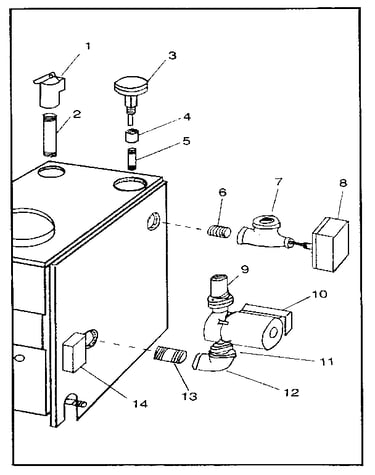

Boiler controls and piping diagram
Relief valve
Part #146-22-011
Replaced by #10-408-05
?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
12% OFF Phone Price : $50.77
In Stock
#9
Boiler controls and piping diagram
Circulator
Part #146-26-045
Replaced by #103251
?
Manufacturer substitution
This part replaces 146-26-045. Substitute parts can look different from the original.
$224.79 |
5% OFF Phone Price : $236.79
In Stock
#20B

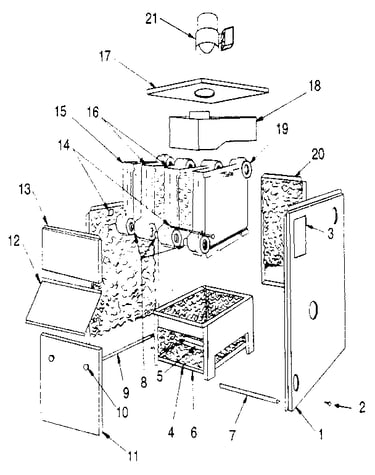

Jacket diagram
Dunkirk 5 sec block
Part #410-00-513
$2085.78
In Stock
#13F
Boiler controls and piping diagram
Vent damper
Part #146-28-003
Replaced by #FC46487201
?
Manufacturer substitution
This part replaces 146-28-003. Substitute parts can look different from the original.
$233.99
In Stock
#7

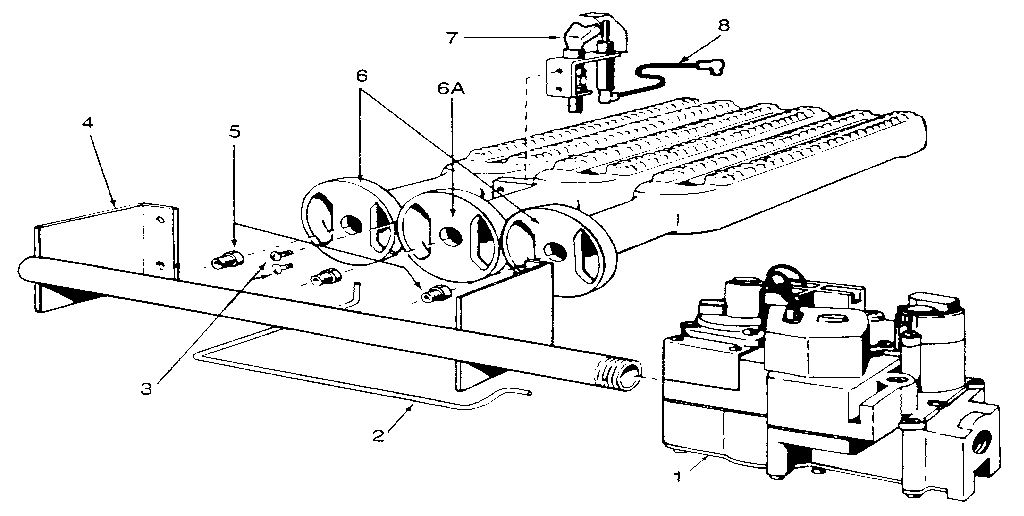

Gas burners and manifold parts diagram
Burner
Part #146-62-054
The manufacturer no longer makes this part, and there's no substitute part
#8
Gas burners and manifold parts diagram
Ignitn cable
Part #146-62-074
The manufacturer no longer makes this part, and there's no substitute part
#13C
Boiler controls and piping diagram
Vent dmpr
Part #146-28-011
Replaced by #240006936
?
Manufacturer substitution
This part replaces 146-28-011. Substitute parts can look different from the original.
$355.33
In Stock
#1
Gas burners and manifold parts diagram
Gas valve
Part #146-62-052
The manufacturer no longer makes this part, and there's no substitute part
#7A
Gas burners and manifold parts diagram
Pilot
Part #146-62-053
The manufacturer no longer makes this part, and there's no substitute part
#1
Jacket diagram
Jckt r s pnl
Part #425-00-901
The manufacturer no longer makes this part, and there's no substitute part
