Model # AMKIT97 (4344173) Official Whirlpool ice maker kit

Here are the diagrams and repair parts for Official Whirlpool AMKIT97-4344173 ice maker kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Refrigerator Insert 4344404
#27

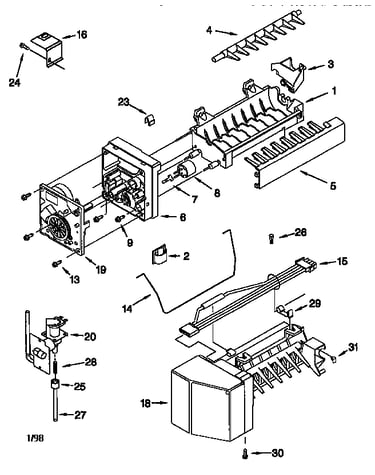

Icemaker diagram

Refrigerator insert

Part #4344404

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 4344404. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Motor Mold 628366
#19

Icemaker diagram

Motor mold

Part #628366

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Mold 628228
#1

Icemaker diagram

Refrigerator ice mold

Part #628228

Replaced by #WPW10190929

?
Manufacturer substitution
This part replaces 628228. Substitute parts can look different from the original.
BEST SELLER
$123.29 |
9% OFF Phone Price : $135.29
In Stock
Refrigerator Arm 4344400
#14

Icemaker diagram

Refrigerator arm

Part #4344400

Replaced by #WP67004028

?
Manufacturer substitution
This part replaces 4344400. Substitute parts can look different from the original.
$36.85 |
14% OFF Phone Price : $42.85
In Stock
Housing 627790
#6

Icemaker diagram

Housing

Part #627790

Replaced by #WP2195914

?
Manufacturer substitution
This part replaces 627790. Substitute parts can look different from the original.
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Refrigerator Nut 4343704
#25

Icemaker diagram

Refrigerator nut

Part #4343704

Replaced by #WP627018

?
Manufacturer substitution
This part replaces 4343704. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Inlet Valve 4344401
#20

Icemaker diagram

Refrigerator inlet valve

Part #4344401

Replaced by #W10833899

?
Manufacturer substitution
This part replaces 4344401. Substitute parts can look different from the original.
$145.13 |
8% OFF Phone Price : $157.13
In Stock
Refrigerator Ice Maker Cube Ejector 627843
#4

Icemaker diagram

Refrigerator ice maker cube ejector

Part #627843

Replaced by #WP627843

?
Manufacturer substitution
This part replaces 627843. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Refrigerator Cover 4344398
#18

Icemaker diagram

Refrigerator cover

Part #4344398

Replaced by #WPW10289690

?
Manufacturer substitution
This part replaces 4344398. Substitute parts can look different from the original.
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Refrigerator Insert 4344402
#26

Icemaker diagram

Refrigerator insert

Part #4344402

Replaced by #WPA3223101

?
Manufacturer substitution
This part replaces 4344402. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
