Model # 1456X1A Official Roper slide-in range

Here are the diagrams and repair parts for Official Roper 1456X1A slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

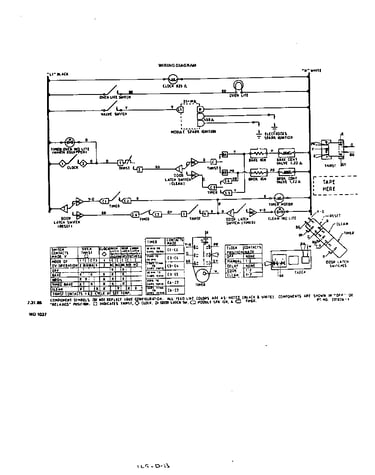

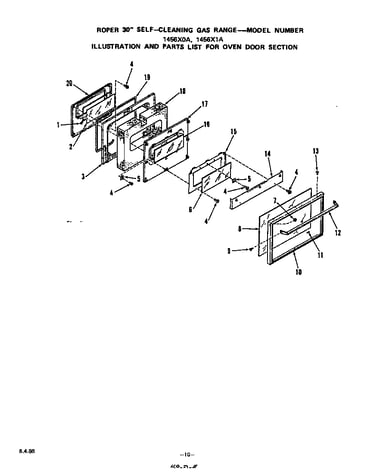

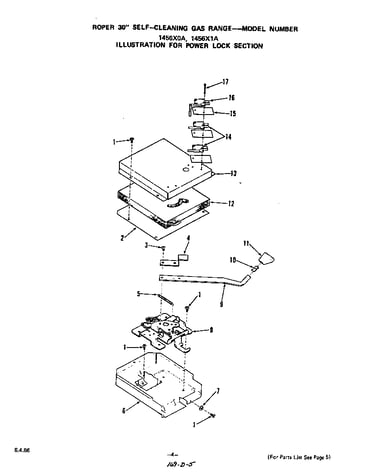

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 197 parts  |
Oven Igniter 319887
#2

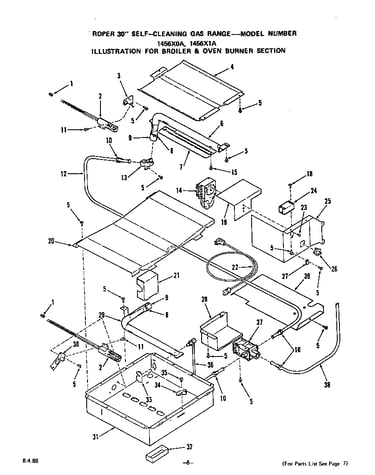

Broiler and oven burner diagram

Oven igniter

Part #319887

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces 319887. Substitute parts can look different from the original.
BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
Range Oven Light Bulb 111257
#42

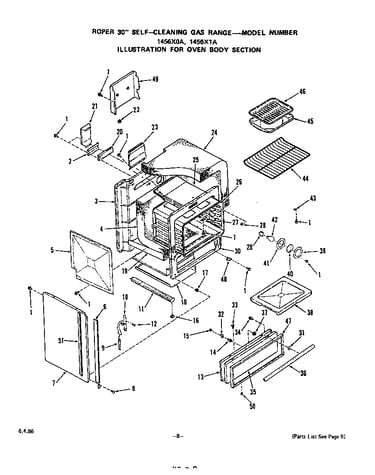

Oven body diagram

Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw 327320
Screw

Part #327320

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces 327320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw 311484
#11

Broiler and oven burner diagram

Screw

Part #311484

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 311484. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Light Lens 331705
#24

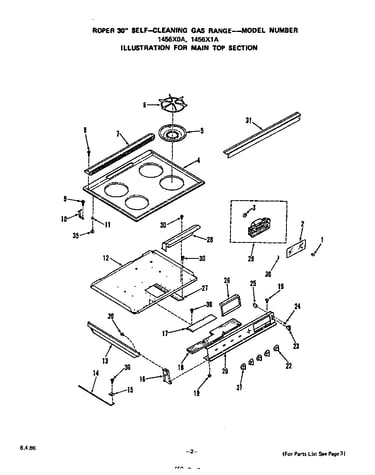

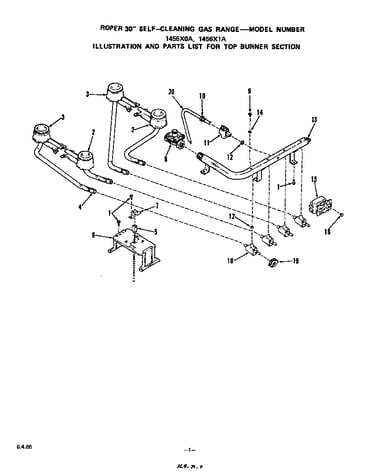

Main top diagram
