Model # LEDB400FEE0 Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire LEDB400FEE0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

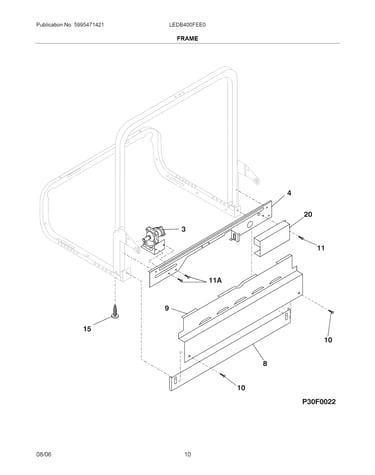

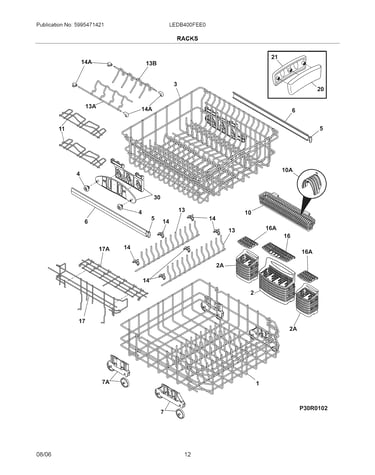

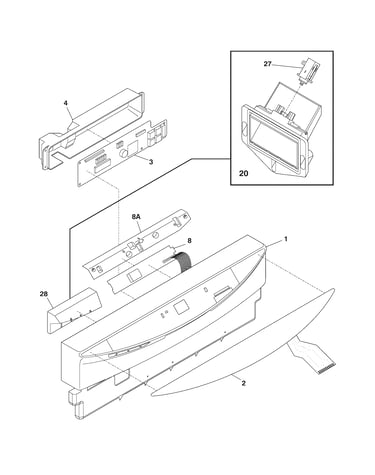

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Gasket 154561001
#3

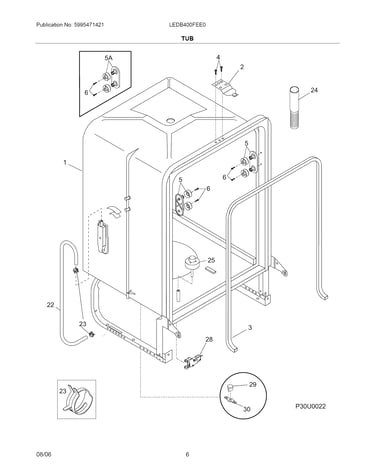

Tub diagram

Gasket

Part #154561001

Replaced by #154827601

?
Manufacturer substitution
This part replaces 154561001. Substitute parts can look different from the original.
BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Gasket 154588201
#49

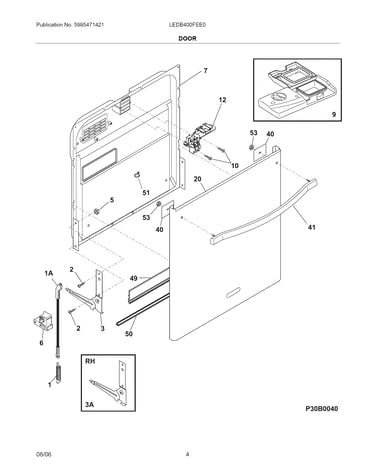

Door diagram

Gasket

Part #154588201

Replaced by #809006501

?
Manufacturer substitution
This part replaces 154588201. Substitute parts can look different from the original.
BEST SELLER
$22.58 |
21% OFF Phone Price : $28.58
In Stock
Dishwasher Lower Spray Arm Support 154294102
#62

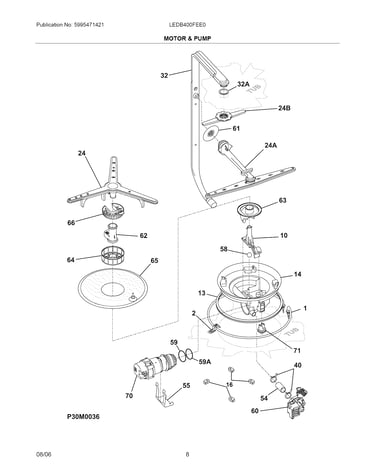

Motor & pump diagram

Dishwasher lower spray arm support

Part #154294102

Replaced by #5304518968

?
Manufacturer substitution
This part replaces 154294102. Substitute parts can look different from the original.
BEST SELLER
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Heater 154482901
#1

Motor & pump diagram

Heater

Part #154482901

Replaced by #154825001

?
Manufacturer substitution
This part replaces 154482901. Substitute parts can look different from the original.
BEST SELLER
$58.92 |
9% OFF Phone Price : $64.92
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.87 |
13% OFF Phone Price : $44.87
In Stock
Hose 154525301
#24

Tub diagram

Hose

Part #154525301

Replaced by #807117001

?
Manufacturer substitution
This part replaces 154525301. Substitute parts can look different from the original.
BEST SELLER
$32.27 |
16% OFF Phone Price : $38.27
In Stock
Dishwasher Filter 154252702
#66

Motor & pump diagram

Dishwasher filter

Part #154252702

Replaced by #5304506518

?
Manufacturer substitution
This part replaces 154252702. Substitute parts can look different from the original.
BEST SELLER
$13.71 |
13% OFF Phone Price : $15.71
In Stock
Motor Bracket 154362301
#55

Motor & pump diagram

Motor bracket

Part #154362301

Replaced by #5304534830

?
Manufacturer substitution
This part replaces 154362301. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.34
In Stock
Base 154252201
#63

Motor & pump diagram

Base

Part #154252201

Replaced by #5304506533

?
Manufacturer substitution
This part replaces 154252201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.64 |
10% OFF Phone Price : $20.64
In Stock
Filter 154252302
#64

Motor & pump diagram

Filter

Part #154252302

Replaced by #5304506533

?
Manufacturer substitution
This part replaces 154252302. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.64 |
10% OFF Phone Price : $20.64
In Stock
