Magic Chef
Top-Mount Refrigerator

Model # RB150PLA/DG08A Official Magic Chef refrigerator

Here are the diagrams and repair parts for Official Magic Chef RB150PLA-DG08A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

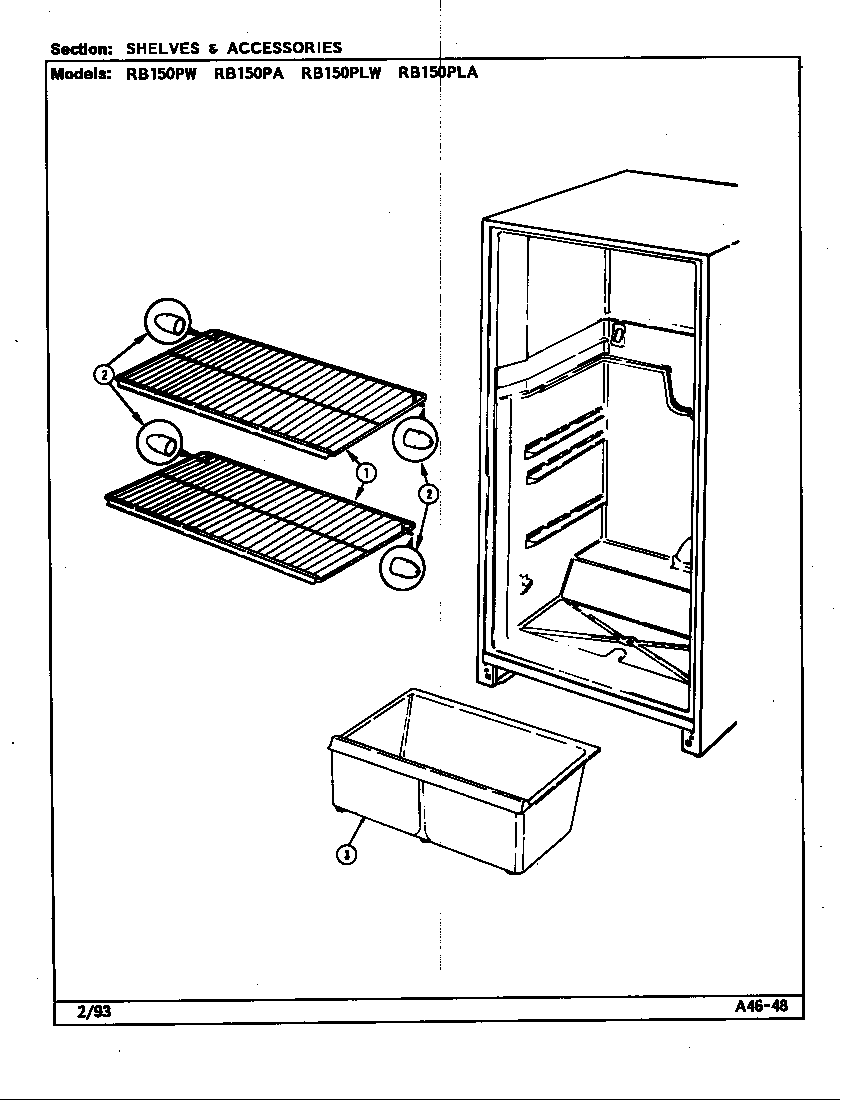

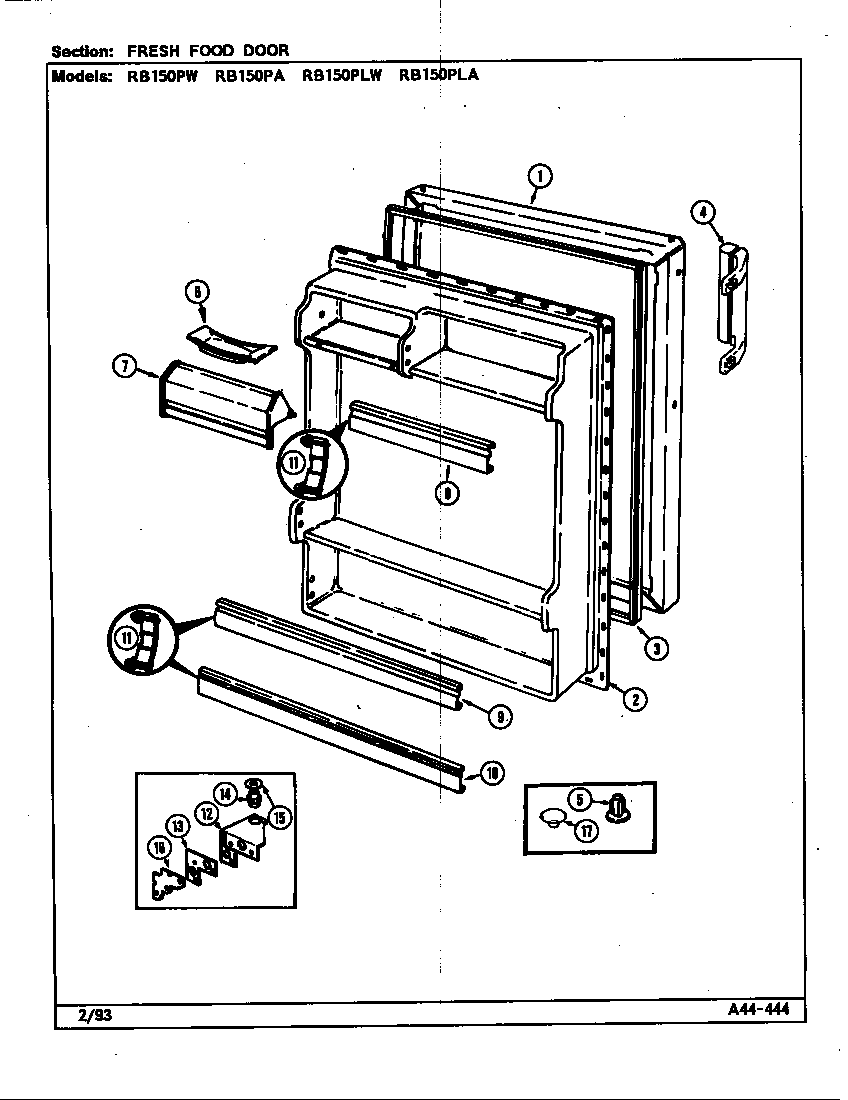

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Drier 13900
#13

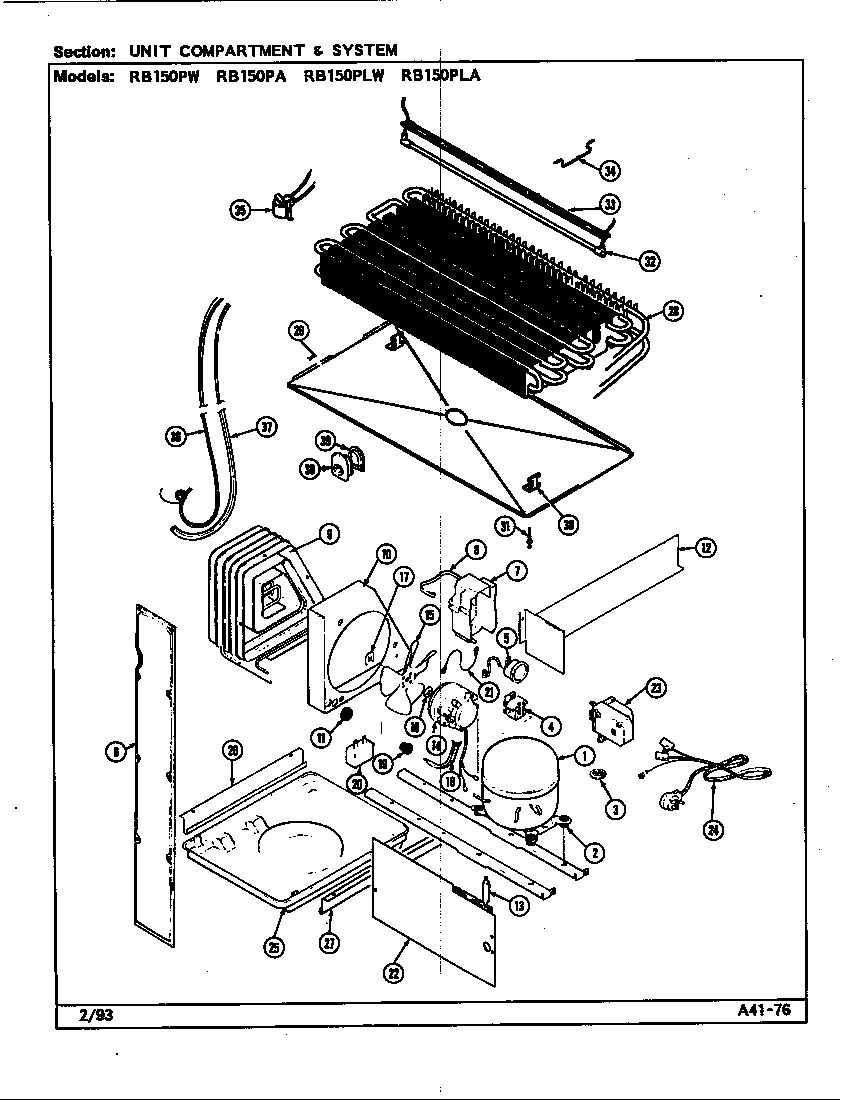

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Bulb 68123-1
#21

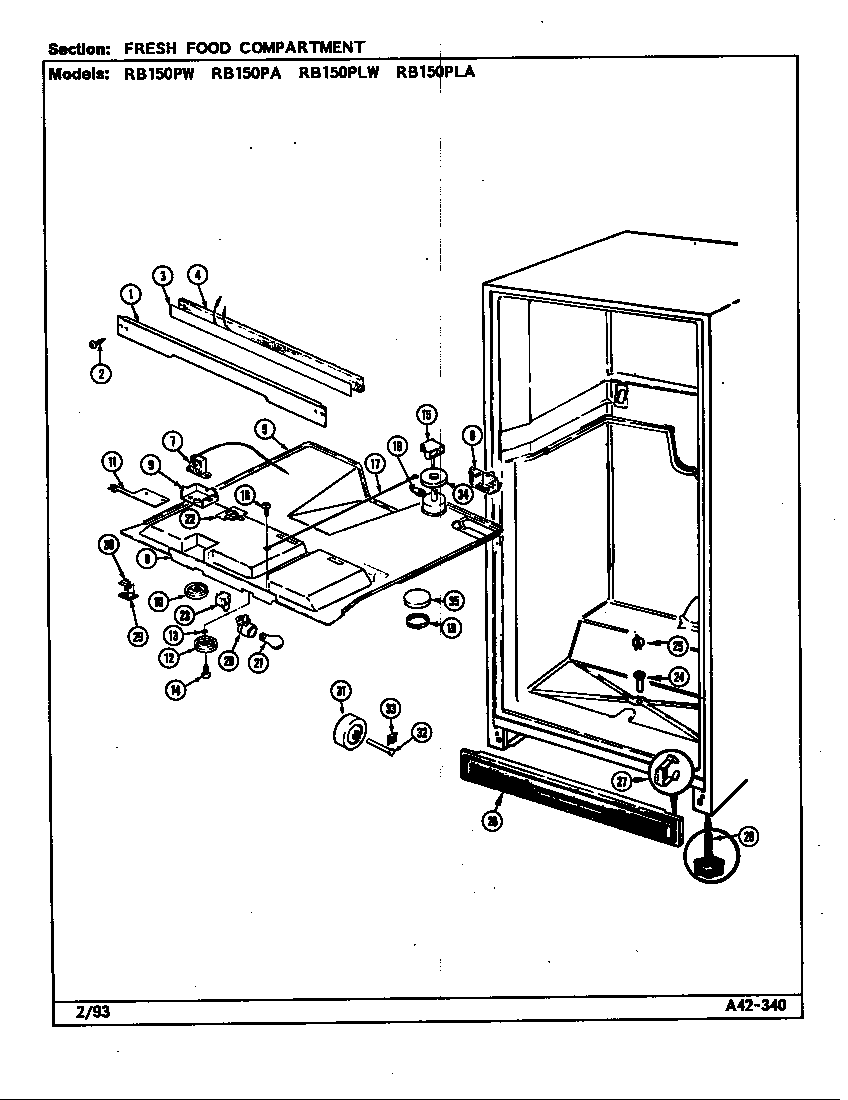

Fresh food compartment diagram

Refrigerator light bulb

Part #68123-1

Replaced by #40A15

?
Manufacturer substitution
This part replaces 68123-1. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Light Switch 66987-1
#23

Fresh food compartment diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Run Capacitor 65889-2
#20

Unit compartment & system diagram

Refrigerator run capacitor

Part #65889-2

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 65889-2. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Condenser Fan Motor 67560-7
#14

Unit compartment & system diagram

Refrigerator condenser fan motor

Part #67560-7

Replaced by #833697

?
Manufacturer substitution
This part replaces 67560-7. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Screw 9986-45
#22A

Unit compartment & system diagram

Screw

Part #9986-45

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 9986-45. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 400015-12
#4A

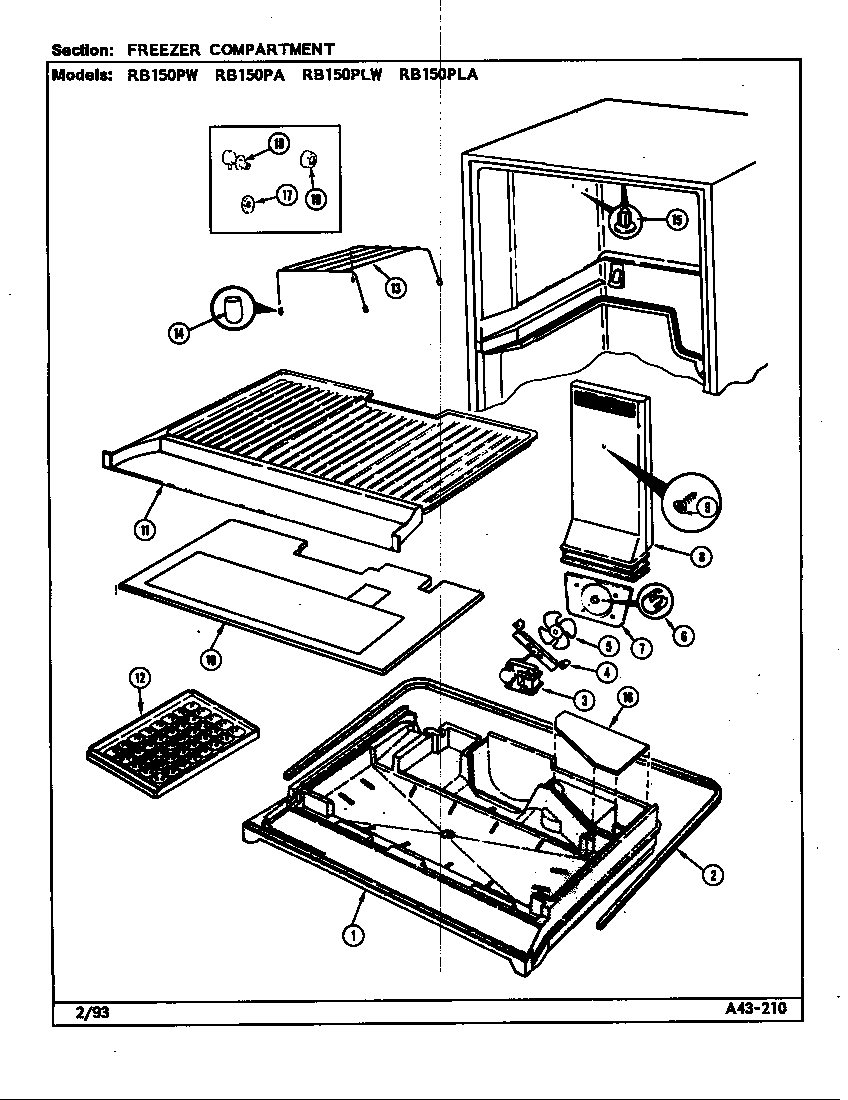

Freezer compartment diagram

Screw

Part #400015-12

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400015-12. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Screw 400015-31
#9

Freezer compartment diagram

Refrigerator screw

Part #400015-31

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 400015-31. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Screw 405016-103
#14

Fresh food compartment diagram

Refrigerator screw

Part #405016-103

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 405016-103. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Refrigerator Temperature Control 68601-4
#7

Fresh food compartment diagram

Refrigerator temperature control

Part #68601-4

Replaced by #WP68601-6

?
Manufacturer substitution
This part replaces 68601-4. Substitute parts can look different from the original.
$127.63 |
9% OFF Phone Price : $139.63
In Stock
