DeWalt
Angle Grinder

Model # D28110 TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt D28110-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
O-ring 633043-00
#93

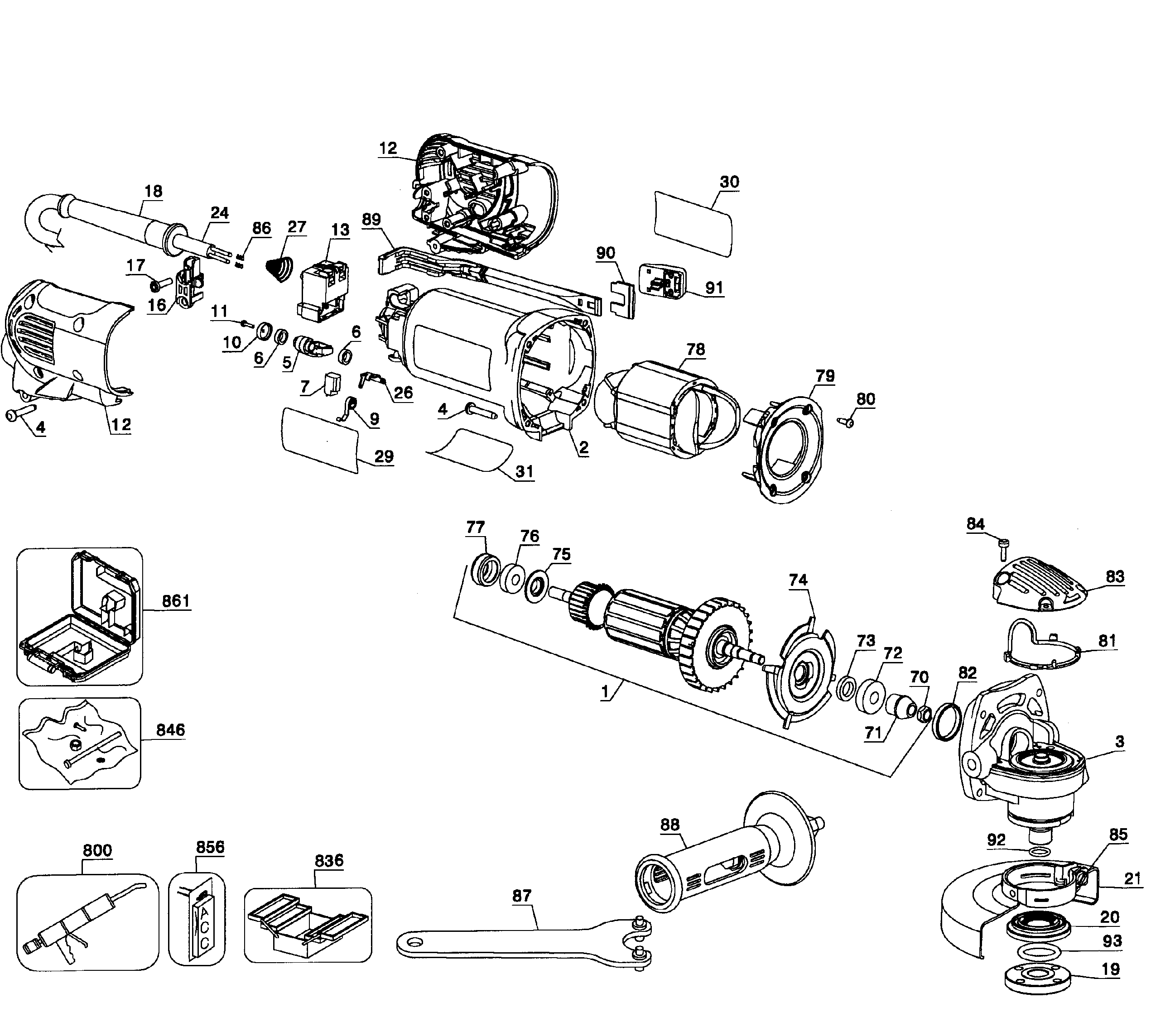

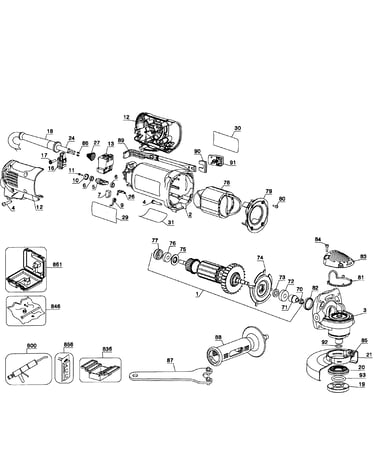

Main assy diagram

O-ring

Part #633043-00

The manufacturer no longer makes this part, and there's no substitute part

Guard N342331
#856

Main assy diagram

Guard

Part #N342331

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#18

Main assy diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Armature 623584-02SV
#1

Main assy diagram

Dewalt armature

Part #623584-02SV

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Angle Grinder On/off Switch 641889-00SV
#13

Main assy diagram

Dewalt angle grinder on/off switch

Part #641889-00SV

The manufacturer no longer makes this part, and there's no substitute part

Label 626891-00
#31

Main assy diagram

Label

Part #626891-00

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 623608-00
#91

Main assy diagram

Switch button

Part #623608-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Motor Brush Spring 623589-00
#9

Main assy diagram

Angle grinder motor brush spring

Part #623589-00

The manufacturer no longer makes this part, and there's no substitute part

Grease 583534-00
#800

Main assy diagram

Grease

Part #583534-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Wrench 401680-00
#87

Main assy diagram

Angle grinder wrench

Part #401680-00

The manufacturer no longer makes this part, and there's no substitute part
