Model # 58072189200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58072189200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

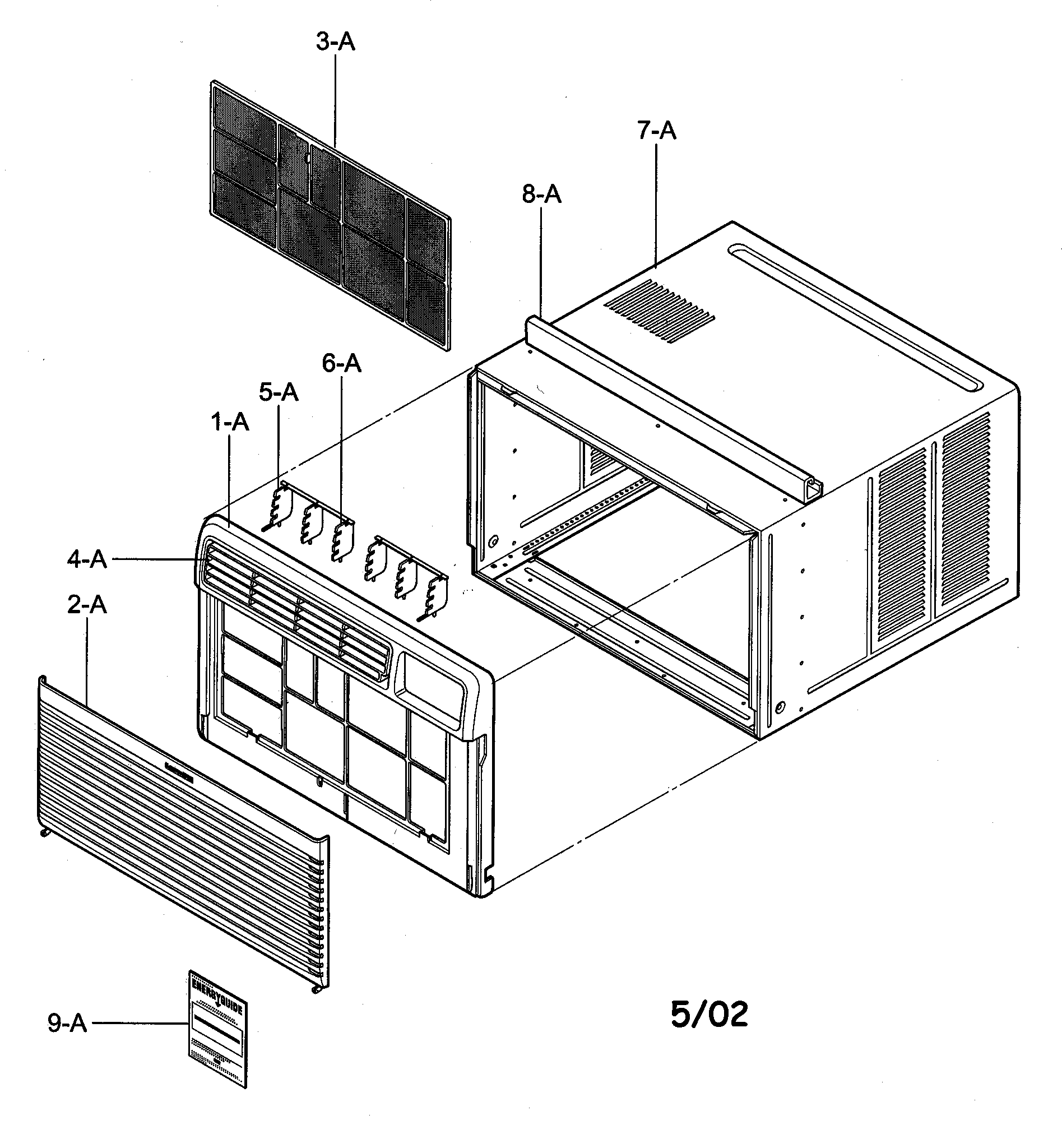

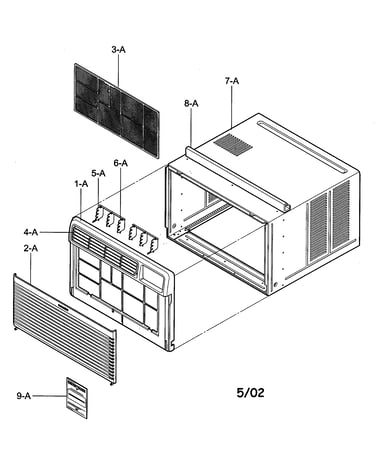

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Room Air Conditioner Drain Pipe 3H02773A
#19-C

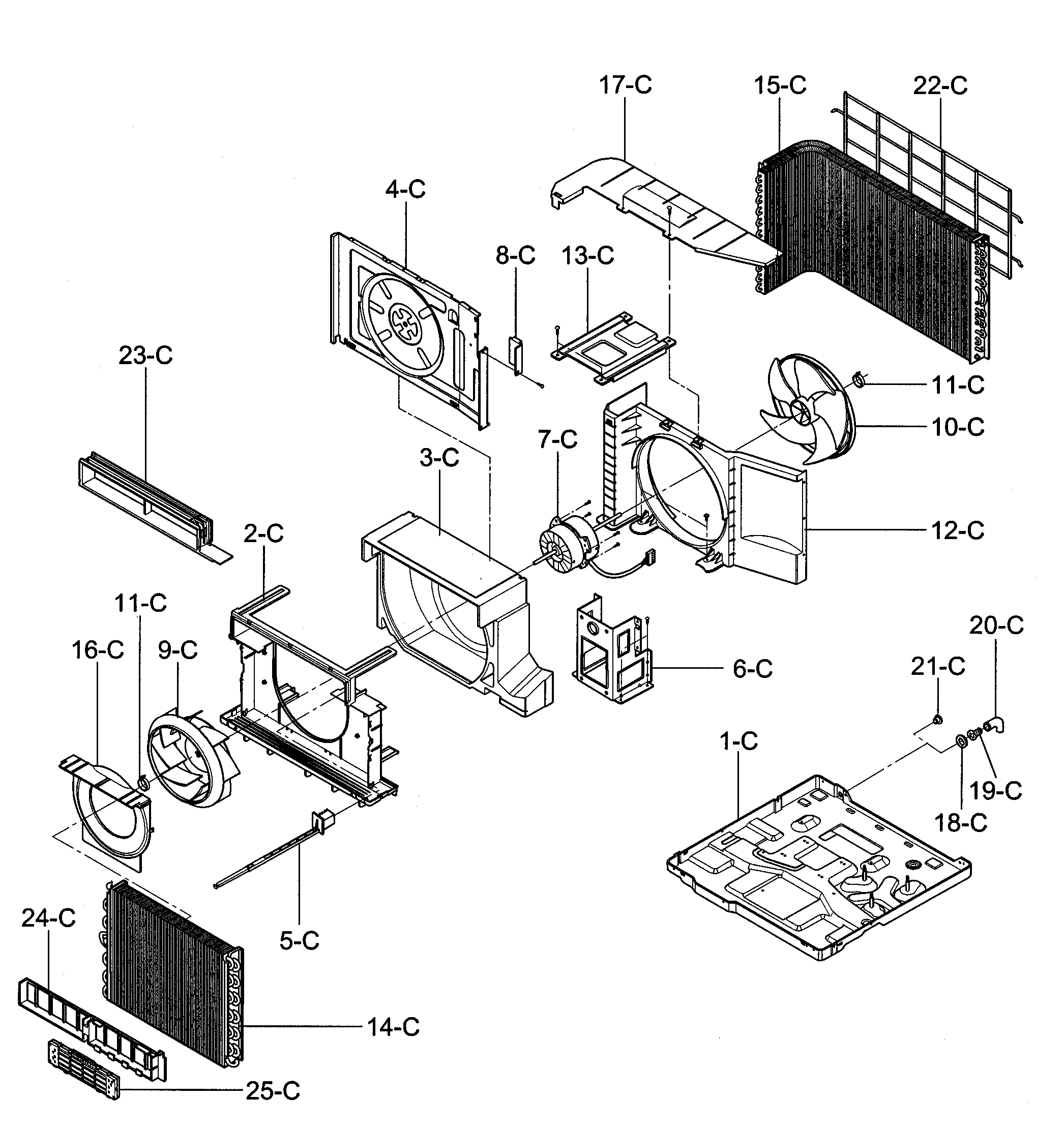

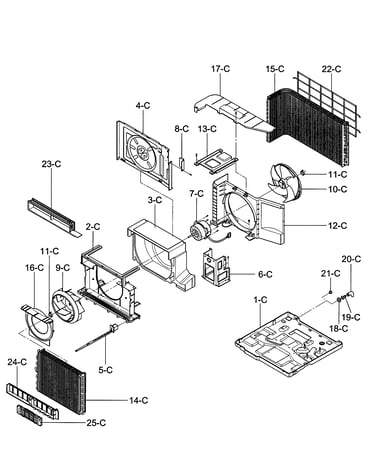

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Capacitor 6120AR2194D
#6-B

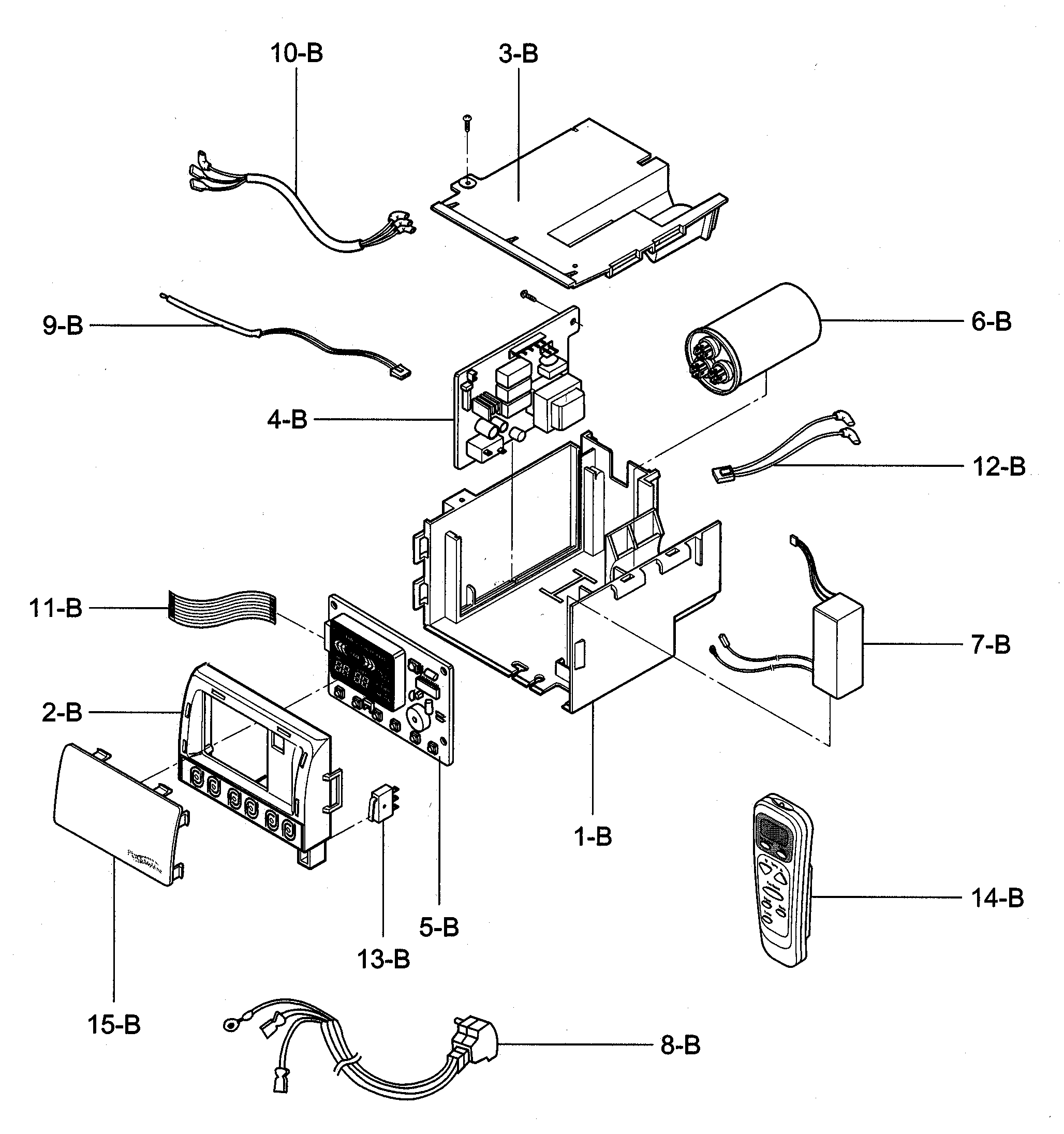

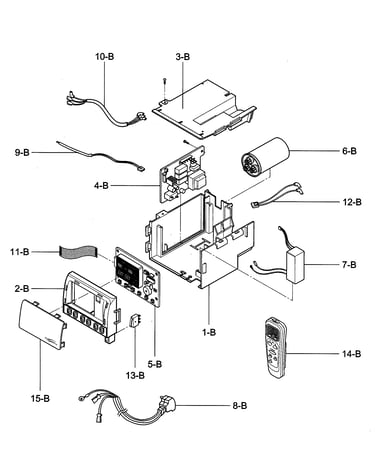

Control box assy diagram

Capacitor

Part #6120AR2194D

Replaced by #EAE51432202

?
Manufacturer substitution
This part replaces 6120AR2194D. Substitute parts can look different from the original.
$33.61 |
15% OFF Phone Price : $39.61
In Stock
Sill Bracket 3H01395C
#5-E

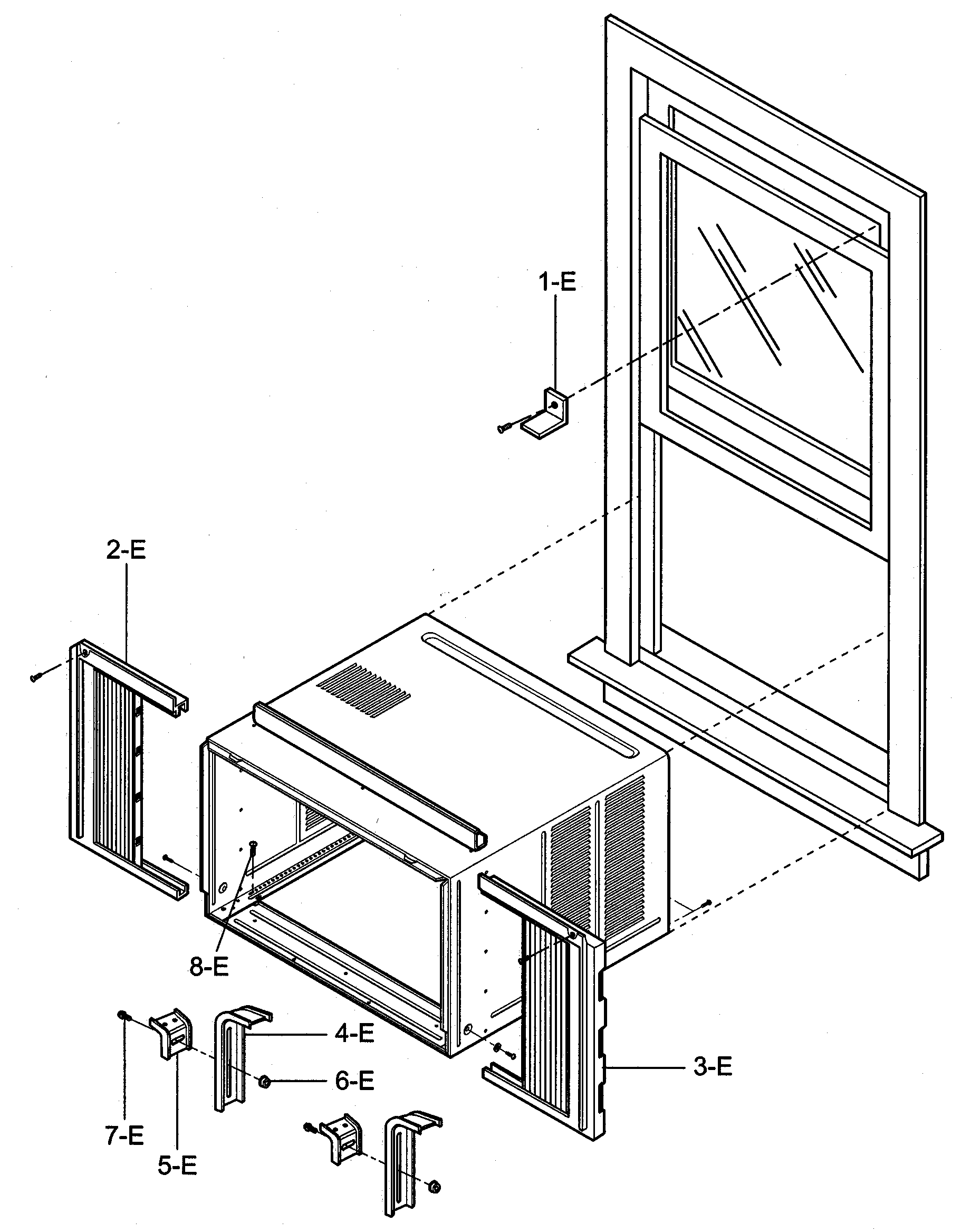

Installation kit assy diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$71.96
In Stock
Bracket Support 3H01479D
#4-E

Installation kit assy diagram

Bracket support

Part #3H01479D

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$71.96
In Stock
M-screw 4H01482A
#8-E

Installation kit assy diagram

M-screw

Part #4H01482A

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 4H01482A. Substitute parts can look different from the original.
$71.96
In Stock
Kenmore Overload 6750U-L025A
#6-D

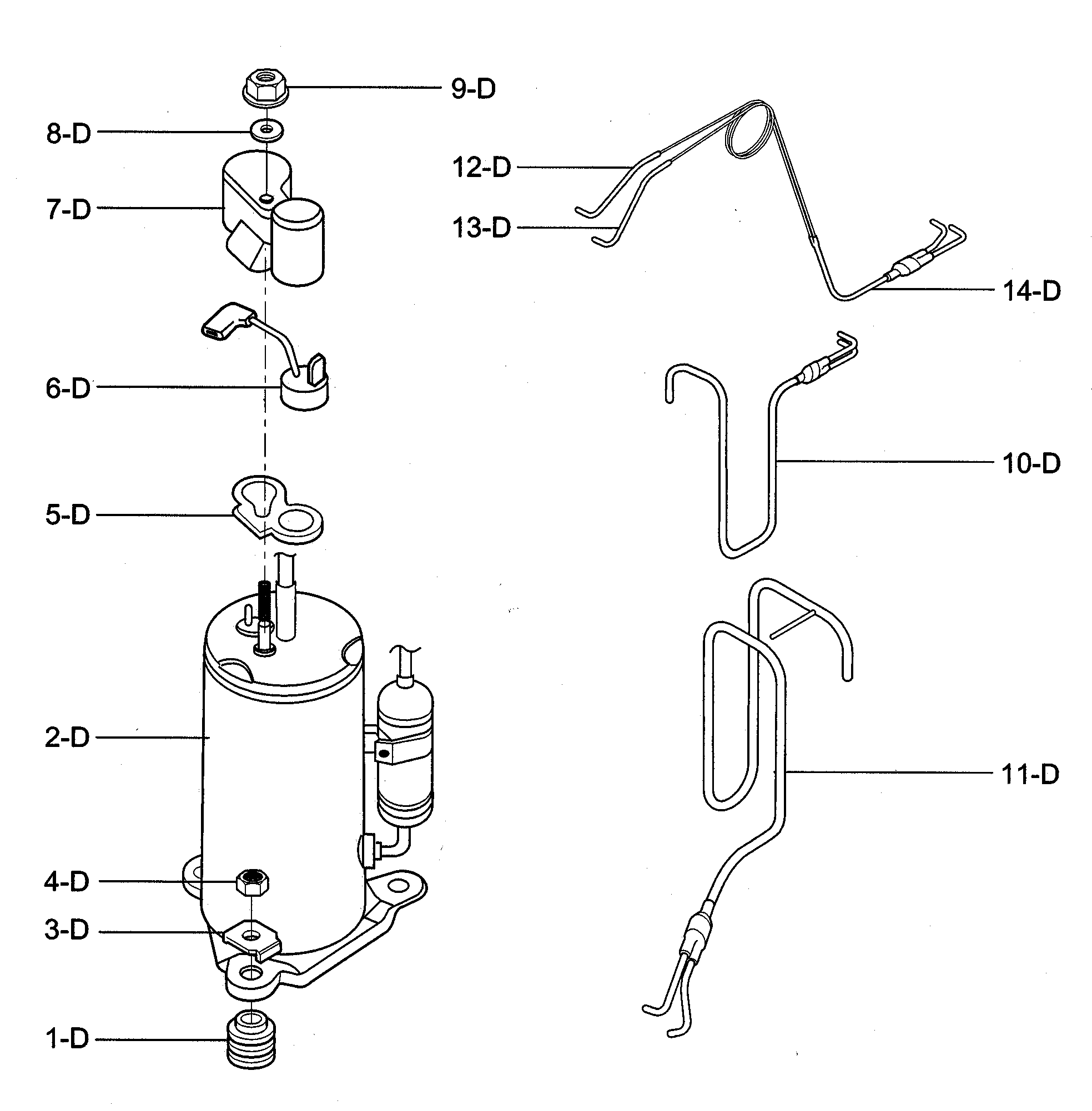

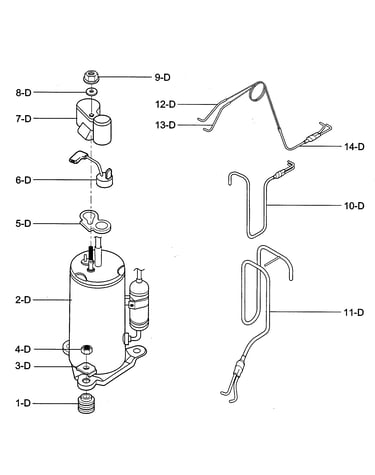

Compressor parts diagram

Kenmore overload

Part #6750U-L025A

$24.09
In Stock
Cover 3550U-L004A
#7-D

Compressor parts diagram

Cover

Part #3550U-L004A

$10.60
In Stock
Comfort-aire Brace 4800A20001A
#13-C

Air handling/cycle parts diagram

Comfort-aire brace

Part #4800A20001A

$10.60
In Stock
Barrier 4790A20031A
#4-C

Air handling/cycle parts diagram

Barrier

Part #4790A20031A

$36.49
In Stock
Air Guide 5238A20014A
#23-C

Air handling/cycle parts diagram

Air guide

Part #5238A20014A

$18.83
In Stock
